AYP 8208 A29 - Electrolux/AYP Lawn Tractor (1992) FUEL PUMP Parts Diagram

Lawn Tractor

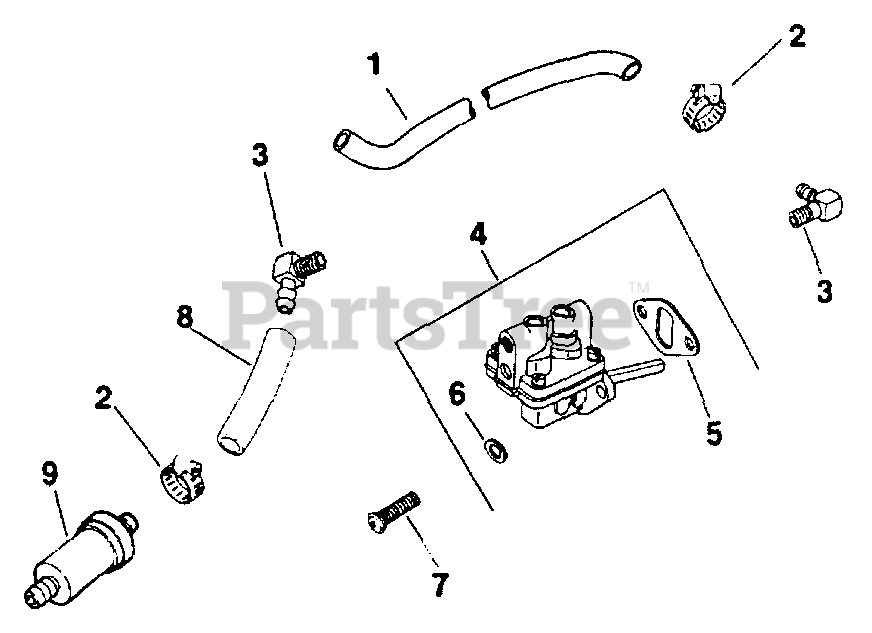

FUEL PUMP Parts Diagram

  • Title

1

Kohler 52 353 04

LINE, FUEL
(Superseded to 52 353 04-S)

$8.99

$

Usually ships in 2-5 days

0

2

Kohler X-426-9

CLAMP, HOSE
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler 25 155 02

CONNECTOR, HOSE
(Superseded to 25 155 02-S)

$14.99

$

In Stock, only 1 left!

0

4

Kohler 52 559 01

PUMP
(Superseded to 52 559 01-S)

$50.99

$

In Stock, only 1 left!

0

5

Kohler 25 041 05

GASKET
(Superseded to 25 041 09)

$3.49

$

Usually ships in 2-5 days

0

6

Kohler X-25-63

WASHER, PLAIN 1/4
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

7

Kohler 47 086 08

SCREW
(Superseded to 47 086 08-S)

$4.49

$

Usually ships in 2-5 days

0

8

Kohler 25 353 03

LINE
(Superseded to 25 353 03-S)

$19.99

$

Usually ships in 2-5 days

0

9

Kohler 45 050 01

FILTER
(Superseded to 25 050 08-S1)

$9.99

$

Usually ships in 2-5 days

0
