AYP 8208 A29 - Electrolux/AYP Lawn Tractor (1992) CRANKCASE Parts Diagram

Lawn Tractor

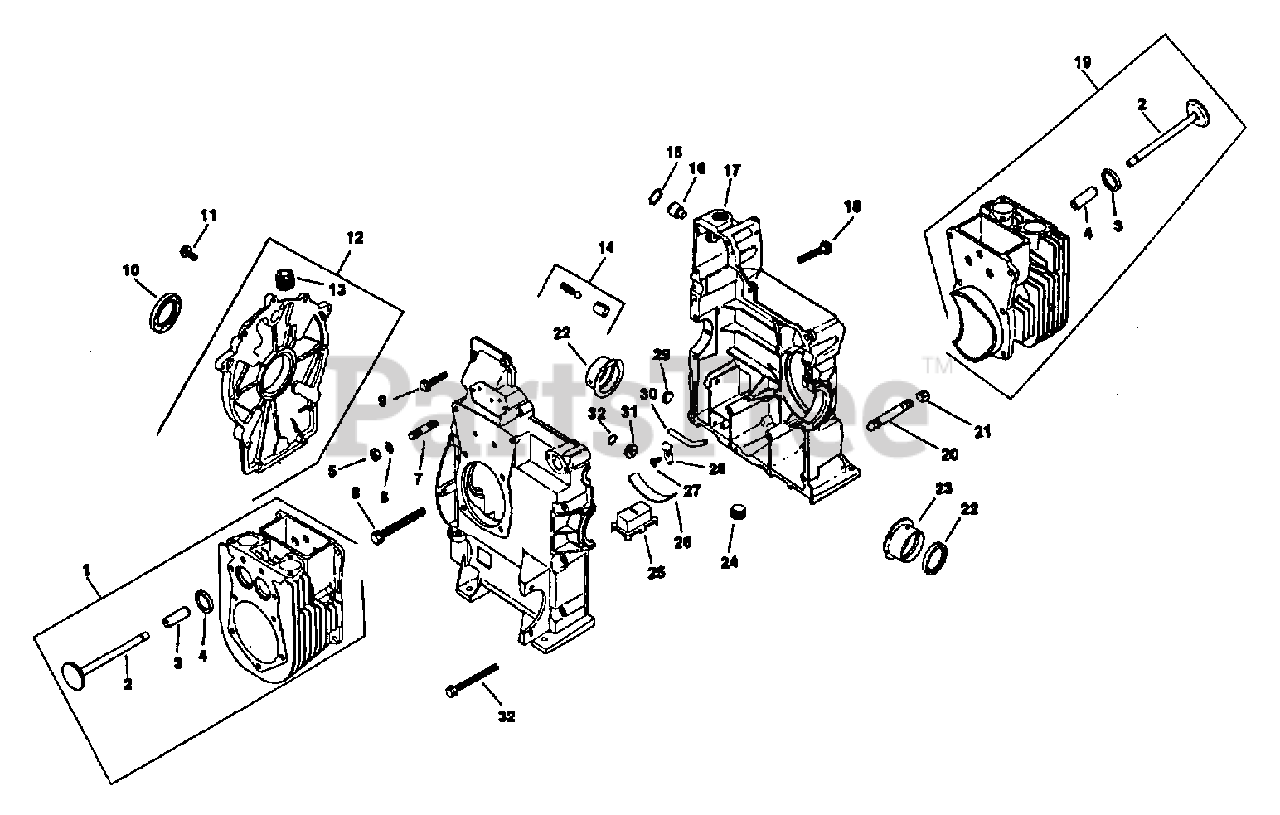

CRANKCASE Parts Diagram

  • Title

1

Kohler 82 755 19

KIT
(Superseded to 82 755 19-S)

$

$

Not available

2

Kohler 52 016 05

VALVE, EXHAUST
(Superseded to 52 016 05-S)

$92.99

$

Usually ships in 2-5 days

0

3

Kohler 52 316 06

GUIDE, VALVE
(Superseded to 52 316 08)

$

$

Not available

4

Kohler 52 031 01

INSERT, VALVE
(Superseded to 52 031 01-S)

$

$

Not available

5

Kohler X-82-2

NUT
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 52 468 12

WASHER
(Superseded to 52 468 12-S)

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 52 072 12

STUD
(Superseded to 52 072 12-S)

$

$

Not available

8

Kohler 25 086 13

SCREW
(Superseded to 25 086 13-S)

$

$

Not available

9

Kohler 25 086 10

SCREW
(Superseded to 25 086 10-S)

$

$

Not available

10

Kohler X-583-5

SEAL
(Superseded to X-583-5-S)

$22.99

$

In Stock, only 1 left!

0

11

Kohler X-802-9

SCREW
(Superseded to X-802-9-S)

$

$

Not available

12

Kohler 52 755 57

KIT, CLOSURE PLATE
(Superseded to 52 755 57-S)

$424.99

$

Usually ships in 2-5 days

0

13

Kohler X-75-23

PLUG
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

14

Kohler 52 755 50

KIT, OIL RELIEF
(Superseded to 52 755 50-S)

$

$

Not available

15

Kohler X-269-43

RING, RETAINING
(Superseded to X-269-43-S)

$3.99

$

Usually ships in 2-5 days

0

16

Kohler 52 078 05

SHAFT, GOVERNOR
(Superseded to 52 078 05-S)

$

$

Not available

17

REFER TO IMAGE

$

$

Not available

18

Kohler 25 086 12

SCREW
(Superseded to 25 086 12-S)

$5.99

$

Usually ships in 2-5 days

0

19

Kohler 82 755 18

KIT
(Superseded to 82 755 18-S)

$843.99

$

Usually ships in 2-5 days

0

20

Kohler 12 136 07

NIPPLE, PIPE
(Superseded to 12 136 07-S)

$6.49

$

Usually ships in 2-5 days

0

21

Kohler 12 173 03

CAP, PIPE
(Superseded to 12 173 03-S)

$47.99

$

Usually ships in 2-5 days

0

22

Kohler 52 032 10

SEAL, OIL, FRONT
(Superseded to 52 032 10-S)

$23.99

$

In Stock, only 1 left!

0

23

Kohler 52 030 10

BEARING, SLEEVE
(Superseded to 52 030 10-S)

$120.99

$

Usually ships in 2-5 days

0

Kohler 52 030 11

BEARING, SLEEVE
(Superseded to 52 030 11-S)

$240.99

$

Usually ships in 2-5 days

0

Kohler 52 030 12

BEARING, SLEEVE
(Superseded to 52 030 12-S)

$

$

Not available

24

Kohler X-75-32

PLUG
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

25

Kohler 52 095 03

HOUSING, OIL PICKUP
(Superseded to 82 755 29-S)

$32.99

$

Usually ships in 2-5 days

0

26

Kohler 52 237 02

CLAMP, SPRING
(Superseded to 52 237 02-S)

$

$

Not available

27

Kohler X-67-64

SCREW
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0

28

Kohler 52 237 05

CLAMP, TUBE
(Superseded to 52 237 05-S)

$

$

Not available

29

Kohler X-702-15

PLUG, CUP
(Superseded to X-702-15-S)

$2.99

$

Usually ships in 2-5 days

0

30

Kohler 52 123 10

TUBE, DIPSTICK
(Superseded to 82 755 29-S)

$32.99

$

Usually ships in 2-5 days

0

31

Kohler 52 139 08

PLUG
(Superseded to 52 139 08-S)

$

$

Not available

32

Kohler 52 141 02

O-RING
(Superseded to 52 141 02-S)

$

$

Not available

33

Kohler 25 086 11

SCREW
(Superseded to 25 086 11-S)

$6.99

$

In Stock, only 1 left!

0
