AYP 8208 A29 - Electrolux/AYP Lawn Tractor (1992) CARBURETOR Parts Diagram

Lawn Tractor

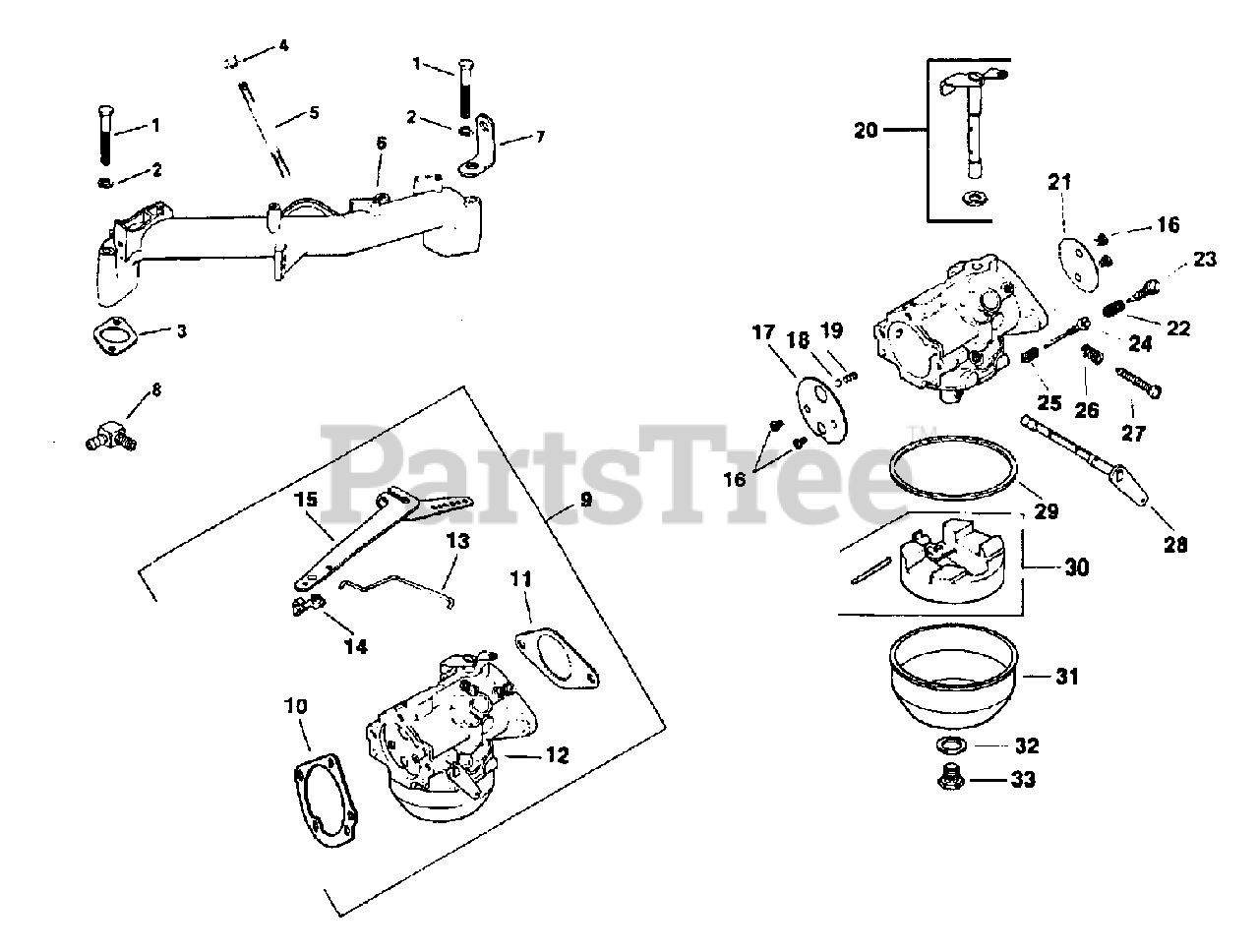

CARBURETOR Parts Diagram

  • Title

1

Kohler X-6-8

SCREW
(Superseded to X-6-8-S)

$2.49

$

Usually ships in 2-5 days

0

2

Kohler X-21-1

WASHER
(Superseded to X-21-1-S)

$3.99

$

In Stock, only 3 left!

0

3

Kohler 52 041 09

GASKET, INTAKE
(Superseded to 52 041 09-S)

$13.99

$

Usually ships in 2-5 days

0

4

Kohler X-77-2

NUT
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

5

Kohler X-352-37

STUD
(Superseded to X-352-37-S)

$

$

Not available

6

Kohler 52 164 10

MANIFOLD, INTAKE
(Superseded to 52 164 10-S)

$

$

Not available

7

Kohler 52 455 02

STRAP, LIFTING
(Superseded to 52 455 02-S)

$

$

Not available

8

Kohler 25 155 02

CONNECTOR, HOSE
(Superseded to 25 155 02-S)

$14.99

$

In Stock, only 1 left!

0

9

Kohler 52 853 27

KIT
(Superseded to 52 853 27-S)

$

$

Not available

10

Kohler 25 041 06

GASKET, ELBOW
(Superseded to 25 041 06-S)

$3.49

$

In Stock, only 2 left!

0

11

Kohler 271030

GASKET
(Superseded to 271030-S)

$7.49

$

Usually ships in 2-5 days

0

12

Kohler 52 053 63

CARBURETOR ASSEMBLY

$

$

Not available

Electrolux/AYP 52 053 58

(NOT AVAILABLE SEPERATELY)

$

$

Not available

13

Kohler 82 755 07

KIT, GOVERNOR LINKAGE
(Superseded to 82 755 07-S)

$

$

Not available

14

Kohler 25 158 09

BUSHING
(Superseded to 25 158 11)

$5.99

$

In Stock, only 2 left!

0

15

Kohler 52 186 06

ARM
(Superseded to 52 186 06-S)

$

$

Not available

16

Kohler 25 086 27

SCREW, THROTTLE PLATE
(Superseded to 25 086 27-S)

$4.49

$

Usually ships in 2-5 days

0

17

Kohler 25 146 03

PLATE, CHOKE
(Superseded to 25 146 03-S)

$28.99

$

Usually ships in 2-5 days

0

18

Kohler 25 194 01

BALL, CHOKE, FRICTION
(Superseded to 25 194 01-S)

$13.99

$

Usually ships in 2-5 days

0

19

Kohler 25 089 03

SPRING, CHOKE, FRICTION
(Superseded to 25 089 03-S)

$13.99

$

Usually ships in 2-5 days

0

20

Kohler 52 144 18

SHAFT
(Superseded to 52 144 25-S)

$40.99

$

Usually ships in 2-5 days

0

21

Kohler 25 146 02

PLATE
(Superseded to 25 146 02-S)

$10.99

$

Usually ships in 2-5 days

0

22

Kohler 25 089 02

THROTTLE
(Superseded to 25 089 02-S)

$5.99

$

Usually ships in 2-5 days

0

23

Kohler 25 368 01

SPRING
(Superseded to 25 368 01-S)

$7.49

$

Usually ships in 2-5 days

0

24

Kohler 25 368 03

NEEDLE
(Superseded to 25 368 03-S)

$9.99

$

Usually ships in 2-5 days

0

25

Kohler 25 089 02

THROTTLE
(Superseded to 25 089 02-S)

$5.99

$

Usually ships in 2-5 days

0

26

Kohler 25 089 04

SPRING
(Superseded to 25 089 04-S)

$11.99

$

Usually ships in 2-5 days

0

27

Kohler 25 086 26

SCREW
(Superseded to 25 086 26-S)

$5.49

$

Usually ships in 2-5 days

0

28

Kohler 52 090 12

LEVER
(Superseded to 52 090 12-S)

$48.99

$

Usually ships in 2-5 days

0

29

Kohler 25 041 04

GASKET
(Superseded to 25 041 04-S)

$9.99

$

In Stock, Qty 9

0

30

Kohler 25 757 09

KIT
(Superseded to 25 757 09-S)

$34.99

$

In Stock, only 2 left!

0

31

Kohler 25 104 01

BOWL
(Superseded to 25 104 01-S)

$28.99

$

Usually ships in 2-5 days

0

32

Kohler 25 041 03

GASKET
(Superseded to 25 041 03-S)

$7.99

$

In Stock, only 3 left!

0

33

Kohler 25 100 05

SCREW
(Superseded to 25 100 05-S)

$4.99

$

Usually ships in 2-5 days

0

Kohler 25 757 11

KIT
(Superseded to 25 757 11-S)

$90.99

$

In Stock, Qty 6

0
