AYP 8188 A69 - Electrolux/AYP Lawn Tractor (1996) ENGINE/B&S Parts Diagram

Lawn Tractor

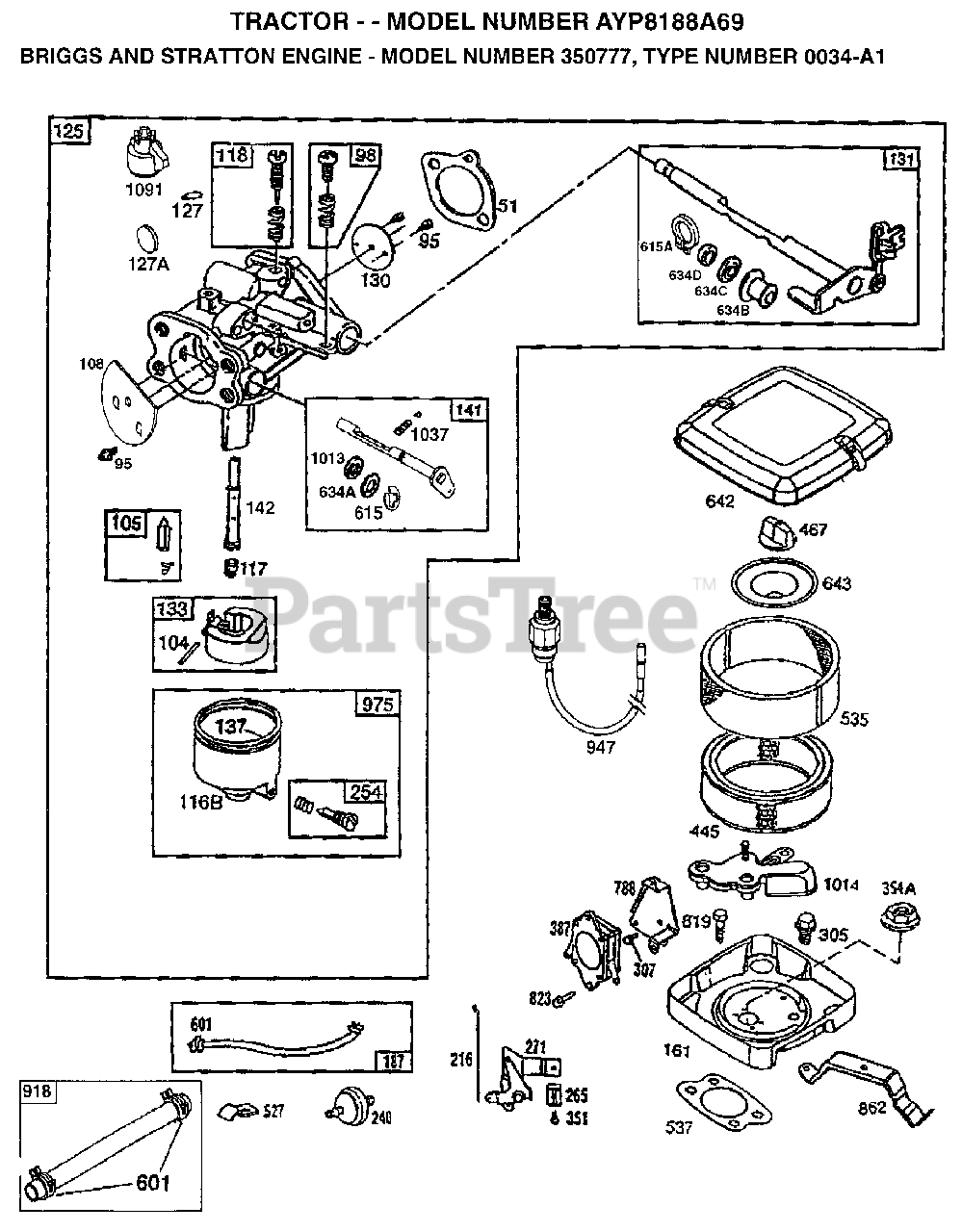

ENGINE/B&S Parts Diagram

  • Title

1

Briggs & Stratton 807787

CYLINDER ASSEMBLY

$546.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 805107

BEARING, CYLINDER
(Superseded to 807687)

$

$

Not available

3

Briggs & Stratton 805101

SEAL, OIL
(Superseded to 805101S)

$13.99

$

Usually ships in 2-12 days

0

5-1

Briggs & Stratton 807821

HEAD, CYLINDER, CYLINDER #1
(Superseded to 845486)

$232.99

$

In Stock, Qty 6

0

5-2

Briggs & Stratton 807822

HEAD, CYLINDER 2
(Superseded to 809186)

$220.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 805653

GASKET, CYLINDER HEAD
(Superseded to 805653S)

$35.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 807795

BREATHER ASSEMBLY
(Superseded to 808988)

$38.99

$

In Stock, Qty 7

0

9

Briggs & Stratton 805379

GASKET, BREATHER
(Superseded to 844986)

$8.49

$

In Stock, only 3 left!

0

10

Briggs & Stratton 805751

SCREW
(Superseded to 690751)

$7.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 805362

TUBE, BREATHER
(Superseded to 806083S)

$16.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 805112

GASKET, CRANKCASE COVER
(Superseded to 845254)

$45.99

$

In Stock, Qty 13

0

13

Briggs & Stratton 805097

SCREW, CYLINDER HEAD
(Superseded to 692059)

$3.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 805048

PLUG, OIL DRAIN
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 807779

CRANKSHAFT

$272.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 94196

KEY, TIMING GEAR
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

18

Briggs & Stratton 807638

COVER ASSEMBLY, CRANKCASE
(Superseded to 843954)

$208.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049

SEAL, OIL
(Superseded to 805049S)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 805696

SCREW, CRANKCASE COVER
(Superseded to 807362)

$3.49

$

In Stock, Qty 6

0

23

Electrolux/AYP 808132

FLYWHEEL, MAGNETO

$

$

Not available

24

Briggs & Stratton 805016

KEY, FLYWHEEL
(Superseded to 808095)

$13.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 807888

PISTON ASSEMBLY, STANDARD SIZE
(Superseded to 844540)

$149.99

$

Usually ships in 2-12 days

0

25

Electrolux/AYP 807991

PISTON ASSEMBLY

$

$

Not available

25

Briggs & Stratton 807992

PISTON ASSEMBLY
(Superseded to 843821)

$133.99

$

Usually ships in 2-12 days

0

25

Electrolux/AYP 807993

PISTON ASSEMBLY

$

$

Not available

26

Briggs & Stratton 807889

RING SET, PISTON, STANDARD SIZE
(Superseded to 843793)

$52.99

$

In Stock, Qty 17

0

26

Briggs & Stratton 807994

RING SET, PISTON

$40.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 807995

RING SET, PISTON
(Superseded to 843822)

$53.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 807996

RING SET, PISTON

$35.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 805099

LOCK, PISTON PIN
(Superseded to 690683)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807886

PIN ASSEMBLY, PISTON, STANDARD

$16.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900

ROD ASSEMBLY, CONNECTING
(Superseded to 807900S)

$

$

Not available

32

Briggs & Stratton 805395

SCREW, CONNECTING ROD
(Superseded to 690698)

$7.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 805089

VALVE, EXHAUST
(Superseded to 807681)

$43.99

$

In Stock, Qty 14

0

34

Briggs & Stratton 805090

VALVE, INTAKE
(Superseded to 807680)

$26.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 805078

SPRING, VALVE
(Superseded to 808159)

$

$

Not available

37

Briggs & Stratton 805506

COVER, STARTER
(Superseded to 841309)

$7.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 805092

RETAINER, VALVE SPRING
(Superseded to 692058)

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 805161

RETAINER, VALVE
(Superseded to 844788)

$6.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 262679

TAPPET, VALVE
(Superseded to 690977)

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 807542

GEAR, CAM
(Superseded to 845649)

$184.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 805772

MANIFOLD, INTAKE
(Superseded to 690754)

$131.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 805700

GASKET, CARBURETOR MOUNTING
(Superseded to 691694)

$2.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 805023

GASKET, INTAKE MANIFOLD
(Superseded to 692035)

$3.49

$

In Stock, Qty 17

0

53

Briggs & Stratton 805669

SCREW, SEMS
(Superseded to 690746)

$8.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 805006

SCREW, SEMS
(Superseded to 690676)

$4.99

$

In Stock, only 1 left!

0

75

Briggs & Stratton 805007

WASHER, SPRING
(Superseded to 691490)

$3.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 805447

SCREW, SEMS
(Superseded to 691647)

$3.99

$

In Stock, only 4 left!

0

84

Electrolux/AYP 914889

PLUG, PIPE

$

$

Not available

87

Briggs & Stratton 805054

SEAL, GOVERNOR SHAFT
(Superseded to 842826)

$7.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 805561

SCREW, VALVE MOUNTING
(Superseded to 690718)

$5.99

$

Usually ships in 2-12 days

0

95A

Briggs & Stratton 94466

SCREW, VALVE MOUNTING

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 807705

SCREW, THROTTLE ADJUSTING

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 805586

PIN, FLOAT HINGE
(Superseded to 690739)

$6.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 807706

VALVE, FUEL INLET

$41.99

$

In Stock, Qty 6

0

108

Briggs & Stratton 805562

VALVE, CHOKE
(Superseded to 690729)

$8.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 805058

O-RING, OIL PUMP
(Superseded to 690681)

$5.99

$

In Stock, only 2 left!

0

116A

Briggs & Stratton 805198

O-RING, CRANKCASE COVER

$4.99

$

Usually ships in 2-12 days

0

116B

Briggs & Stratton 224531

WASHER, BOWL
(Superseded to 692343)

$7.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 806109

JET, MAIN
(Superseded to 691554)

$18.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 808374

VALVE, IDLE ADJ NEEDLE
(Superseded to 842885)

$42.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 807708

CARBURETOR OVERHAUL KIT
(Superseded to 807962)

$

$

Not available

122

Briggs & Stratton 805674

SPACER, CARBURETOR
(Superseded to 690748)

$

$

Not available

125

Briggs & Stratton 808372

CARBURETOR ASSEMBLY
(Superseded to 847395)

$321.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 805570

PLUG, WELCH
(Superseded to 690731)

$7.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 805571

PLUG, WELCH
(Superseded to 690731)

$7.99

$

Usually ships in 2-12 days

0

130

Electrolux/AYP 808572

VALVE, THROTTLE

$

$

Not available

131

Briggs & Stratton 808375

SHAFT, THROTTLE ASM

$52.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 807710

FLOAT ASSEMBLY, CARBURETOR

$41.99

$

In Stock, only 1 left!

0

137

REFER TO IMAGE

$

$

Not available

141

Briggs & Stratton 807711

SHAFT, CHOKE

$32.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 806110

NOZZLE, CARBURETOR
(Superseded to 691555)

$39.99

$

Usually ships in 2-12 days

0

161

Briggs & Stratton 807857

BASE ASSEMBLY, AIR CLEANER
(Superseded to 846046)

$96.99

$

Usually ships in 2-12 days

0

166

Briggs & Stratton 805343

STUD, ROCKER ARM

$

$

Not available

166A

Briggs & Stratton 805073

STUD, OIL FILTER ADAPTER
(Superseded to 690682)

$4.49

$

Usually ships in 2-12 days

0

167

Briggs & Stratton 805420

WASHER, VALVE COVER
(Superseded to 691766)

$6.49

$

In Stock, Qty 20+

0

171

Briggs & Stratton 805019

NUT, NYLOCK
(Superseded to 692055)

$3.99

$

In Stock, Qty 9

0

187

Briggs & Stratton 393815

HOSE (CUT TO SUIT)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296004

PIPE, FUEL
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 94627

SCREW, SEMS 3/4"
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

188A

Briggs & Stratton 805247

SCREW, STARTER MOUNTING
(Superseded to 692062)

$3.49

$

In Stock, Qty 20+

0

189

Briggs & Stratton 805449

LOCK WASHER
(Superseded to 690706)

$3.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 807623

SCREW, VALVE ADJUSTMENT

$11.99

$

In Stock, only 1 left!

0

201

Briggs & Stratton 805480

LINK, GOVERNOR
(Superseded to 847015)

$6.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 805462

SPRING, GOVERNOR
(Superseded to 692071)

$7.49

$

In Stock, only 2 left!

0

209A

Briggs & Stratton 805453

SPRING, GOVERNED IDLE
(Superseded to 692069)

$6.49

$

In Stock, Qty 8

0

216

Briggs & Stratton 805439

LINK, CHOKE
(Superseded to 690705)

$6.49

$

In Stock, Qty 11

0

222

Briggs & Stratton 808195

BRACKET, GOVERNOR CONTROL
(Superseded to 808454)

$38.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 807528

LEVER ASSEMBLY, GOVERNOR
(Superseded to 690236)

$27.99

$

In Stock, only 1 left!

0

232

Briggs & Stratton 805465

SPRING, GOVERNOR LINK
(Superseded to 692073)

$9.49

$

In Stock, only 2 left!

0

240

Briggs & Stratton 493629

FILTER, FUEL (IN FUEL LINE TO TANK)
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

243

Briggs & Stratton 805964

SCREEN, OIL
(Superseded to 690878)

$16.99

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 807713

DRAIN, CARBURETOR BOWL
(Superseded to 807715)

$100.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 221535

CLAMP
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

271

Briggs & Stratton 808145

BRACKET, CHOKE CONTROL
(Superseded to 690923)

$15.99

$

Usually ships in 2-12 days

0

277

Briggs & Stratton 805018

WASHER
(Superseded to 842122)

$5.49

$

In Stock, only 1 left!

0

304

Briggs & Stratton 808220

HOUSING, BLOWER, BLACK
(Superseded to 690930)

$181.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 805406

SCREW, SEMS
(Superseded to 841233)

$3.49

$

In Stock, Qty 20+

0

307

Briggs & Stratton 805025

SCREW, SEMS
(Superseded to 692056)

$5.99

$

In Stock, Qty 5

0

308-1

Briggs & Stratton 808309

COVER, AIR GUIDE, CYLINDER #1
(Superseded to 841183)

$40.99

$

Usually ships in 2-12 days

0

308-2

Briggs & Stratton 808098

COVER, AIR GUIDE, CYLINDER #2
(Superseded to 841182)

$35.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 494990

MOTOR, STARTING
(Superseded to 795121)

$143.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 94004

BOLT
(Superseded to 691263)

$

$

Not available

324

Briggs & Stratton 494439

SCREEN, ROTATING

$53.99

$

In Stock, Qty 10

0

332

Briggs & Stratton 806028

NUT, HEX
(Superseded to 690887)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

ARMATURE, MAGNETO
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 806104

SCREW, MOUNTING
(Superseded to 691552)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 491055

PLUG, SPARK
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

351

Briggs & Stratton 805169

SCREW
(Superseded to 841552)

$3.49

$

In Stock, only 1 left!

0

353

Electrolux/AYP 94791

WASHER, LOCK

$

$

Not available

353A

Briggs & Stratton 806101

WASHER, LOCK, INTERNAL TOOTH
(Superseded to 691551)

$4.99

$

In Stock, only 1 left!

0

354

Briggs & Stratton 90576

NUT, HEX
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

354A

Briggs & Stratton 810078

NUT, HEX WASHER HEAD
(Superseded to 690939)

$3.49

$

In Stock, only 4 left!

0

356

Briggs & Stratton 493792

WIRE ASSEMBLY, GROUND
(Superseded to 692319)

$17.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 807887

GASKET SET
(Superseded to 847319)

$123.99

$

In Stock, only 2 left!

0

363

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

387

Briggs & Stratton 808322

PUMP, FUEL
(Superseded to 808656)

$27.99

$

In Stock, Qty 20+

0

423

Briggs & Stratton 805260

SCREW, SEMS
(Superseded to 690688)

$3.49

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 394018

CARTRIDGE, AIR CLEANER
(Superseded to 394018S)

$25.99

$

In Stock, Qty 12

0

467

Briggs & Stratton 491875

KNOB, AIR CLEANER
(Superseded to 691985)

$7.99

$

In Stock, Qty 9

0

474

Briggs & Stratton 393295

STATOR, ALTERNATOR
(Superseded to 592830)

$101.99

$

In Stock, Qty 20+

0

501

Briggs & Stratton 394890

REGULATOR, ALTERNATOR
(Superseded to 845907)

$61.99

$

In Stock, Qty 20+

0

510

Briggs & Stratton 495878

STARTER DRIVE GROUP
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0

513

Briggs & Stratton 398003

CLUTCH ASSEMBLY
(Superseded to 692024)

$21.99

$

In Stock, only 2 left!

0

520

Briggs & Stratton 93722

TERMINAL, SPADE
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 807985

DIPSTICK
(Superseded to 692101)

$23.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 805011

SEAL, FILLER TUBE
(Superseded to 692053)

$6.99

$

In Stock, Qty 9

0

525

Briggs & Stratton 807611

TUBE, OIL FILLER
(Superseded to 692093)

$20.99

$

In Stock, Qty 8

0

526

Briggs & Stratton 805448

SCREW, REGULATOR MOUNTING
(Superseded to 692067)

$3.99

$

In Stock, Qty 9

0

527

Briggs & Stratton 223167

CLAMP, FUEL PUMP
(Superseded to 690423)

$4.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 272490

ELEMENT, FILTER
(Superseded to 272490S)

$5.49

$

In Stock, Qty 20+

0

537

Briggs & Stratton 805655

GASKET, AIR CLEANER
(Superseded to 692081)

$5.49

$

In Stock, only 3 left!

0

544

Briggs & Stratton 490309

ARMATURE ASSEMBLY

$74.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 805412

BUSHING, GOVERNOR SHAFT
(Superseded to 690701)

$7.99

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 805413

BUSHING, GOVERNOR SHAFT
(Superseded to 806686)

$8.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 805381

BOLT
(Superseded to 690239)

$5.49

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 805197

BAFFLE, BREATHER
(Superseded to 690686)

$14.99

$

In Stock, only 1 left!

0

573

Briggs & Stratton 807663

BACK PLATE ASSEMBLY
(Superseded to 841310)

$24.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 805383

NUT, HEX
(Superseded to 690238)

$3.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 805158

SCREW, SEMS
(Superseded to 691902)

$3.49

$

In Stock, only 4 left!

0

614

Briggs & Stratton 806096

PIN, COTTER
(Superseded to 691550)

$4.99

$

Usually ships in 2-12 days

0

615

Electrolux/AYP 808578

RETAINER

$

$

Not available

615A

Electrolux/AYP 808577

RETAINER

$

$

Not available

616

Briggs & Stratton 807596

FORK, GOVERNOR

$

$

Not available

634

Briggs & Stratton 805416

WASHER, GOVERNOR SHAFT
(Superseded to 690704)

$5.99

$

In Stock, only 2 left!

0

634A

Briggs & Stratton 805580

COLLAR, CHOKE
(Superseded to 690737)

$8.49

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 805574

COLLAR, THROTTLE
(Superseded to 690733)

$15.99

$

Usually ships in 2-12 days

0

634C

Briggs & Stratton 806079

SEAL, THROTTLE SHAFT
(Superseded to 691548)

$5.99

$

Usually ships in 2-12 days

0

634D

Briggs & Stratton 805576

WASHER, THROTTLE
(Superseded to 690735)

$4.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 805529

ELBOW, SPARK PLUG
(Superseded to 692076)

$5.49

$

In Stock, Qty 20+

0

642

Briggs & Stratton 807862

COVER ASSEMBLY, AIR CLEANER
(Superseded to 699959)

$59.99

$

In Stock, only 4 left!

0

643

Briggs & Stratton 805631

PLATE, AIR FILTER
(Superseded to 844932)

$22.99

$

In Stock, Qty 7

0

657

Briggs & Stratton 805009

SCREW, SEMS
(Superseded to 690677)

$3.99

$

In Stock, only 2 left!

0

668

Briggs & Stratton 805402

SPACER, ROTATING SCREEN
(Superseded to 691500)

$7.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 805103

DOWEL, CRANKCASE
(Superseded to 806469)

$5.99

$

In Stock, only 2 left!

0

722

Briggs & Stratton 805483

SEAL, BREATHER SCREW
(Superseded to 844986)

$8.49

$

In Stock, only 3 left!

0

726

Briggs & Stratton 807805

GEAR, FLYWHEEL RING

$

$

Not available

727

Briggs & Stratton 805505

SHIELD, STARTER
(Superseded to 841313)

$16.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 805641

GROMMET, IGNITION CABLE
(Superseded to 690744)

$7.49

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 224356

CLIP, DEBRIS
(Superseded to 690451)

$2.99

$

Usually ships in 2-12 days

0

729B

Briggs & Stratton 280470

CLIP, WIRE
(Superseded to 690586)

$3.99

$

In Stock, only 3 left!

0

741

Briggs & Stratton 805675

GEAR, TIMING
(Superseded to 846085)

$19.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 280104

GEAR, STARTER
(Superseded to 695708)

$6.99

$

In Stock, only 3 left!

0

788

Briggs & Stratton 807685

BRACKET, FUEL PUMP
(Superseded to 691559)

$24.99

$

In Stock, only 1 left!

0

801

Briggs & Stratton 394856

CAP, DRIVE
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 494988

CAP ASSEMBLY

$57.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 494205

HOUSING ASSEMBLY

$73.99

$

In Stock, only 1 left!

0

819

Briggs & Stratton 805057

SCREW, SEMS
(Superseded to 691492)

$3.99

$

In Stock, only 2 left!

0

823

Briggs & Stratton 805317

SCREW, MOUNTING
(Superseded to 807084)

$3.49

$

In Stock, only 3 left!

0

842

Briggs & Stratton 270920

SEAL, OIL FILLER CAP
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

851

Electrolux/AYP 473880

TERMINAL, IGNITION CABLE

$

$

Not available

862

Briggs & Stratton 807859

BRACKET, AIR CLEANER
(Superseded to 692542)

$8.49

$

In Stock, only 1 left!

0

864

Briggs & Stratton 805083

LINER, EXHAUST PORT
(Superseded to 691493)

$12.99

$

Usually ships in 2-12 days

0

866

Briggs & Stratton 805738

VALLEY, COVER, AIR GUIDE
(Superseded to 843768)

$39.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 805094

SEAL, VALVE GUIDE
(Superseded to 691963)

$10.99

$

In Stock, Qty 20+

0

869

Electrolux/AYP 805085

SEAT, INTAKE VALVE

$

$

Not available

870

Electrolux/AYP 805086

SEAT, EXHAUST VALVE

$

$

Not available

871

Briggs & Stratton 805084

GUIDE, VALVE
(Superseded to 692057)

$12.99

$

In Stock, only 2 left!

0

876

Briggs & Stratton 495877

RETAINER AND PIN
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0

879

Briggs & Stratton 805841

COVER

$

$

Not available

883

Briggs & Stratton 805024

GASKET, EXHAUST MANIFOLD
(Superseded to 691613)

$5.49

$

Usually ships in 2-12 days

0

896

Briggs & Stratton 94288

ROLL PIN
(Superseded to 691641)

$4.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 393815

HOSE (CUT TO SUIT)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 808154

SOLENOID
(Superseded to 807744)

$

$

Not available

975

Briggs & Stratton 807913

BOWL, FUEL ASSEMBLY

$74.99

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 807916

GASKET SET, CARBURETOR
(Superseded to 807917)

$172.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 805250

GASKET, OIL FILTER ADAPTOR
(Superseded to 692063)

$4.49

$

In Stock, Qty 5

0

982

Briggs & Stratton 805030

SCREW, SEMS
(Superseded to 690679)

$3.49

$

Usually ships in 2-12 days

0

985

Briggs & Stratton 398525

INSULATOR ASSEMBLY
(Superseded to 691972)

$8.49

$

In Stock, only 3 left!

0

1004

Briggs & Stratton 805632

TUBE, AIR INLET
(Superseded to 690743)

$

$

Not available

1005

Briggs & Stratton 808082

FAN, FLYWHEEL
(Superseded to 843977)

$

$

Not available

1006

Briggs & Stratton 224413

RETAINER, FAN
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

1013

Briggs & Stratton 805581

SEAL, CHOKE SHAFT
(Superseded to 690738)

$11.99

$

Usually ships in 2-12 days

0

1014

Briggs & Stratton 807963

SHIELD, CARBURETOR
(Superseded to 844930)

$36.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 806039

GASKET, VALVE COVER
(Superseded to 806039S)

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 805100

COVER, VALVE
(Superseded to 691494)

$17.99

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 807665

COVER, VALVE
(Superseded to 691558)

$20.99

$

In Stock, only 1 left!

0

1024

Briggs & Stratton 807546

OIL PUMP ASSEMBLY
(Superseded to 843954)

$208.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 805313

SLIDER, GOVERNOR
(Superseded to 690689)

$22.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 805352

ROD, PUSH, INTAKE
(Superseded to 691836)

$12.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 805617

ROD, PUSH, EXHAUST
(Superseded to 691758)

$11.99

$

In Stock, Qty 20+

0

1027

Briggs & Stratton 492932

FILTER, OIL
(Superseded to 492932S)

$12.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 805292

ADAPTER, OIL FILTER
(Superseded to 808235)

$78.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 808096

ARM, ROCKER

$

$

Not available

1030

Briggs & Stratton 805342

SHAFT, ROCKER ARM
(Superseded to 690693)

$13.99

$

Usually ships in 2-12 days

0

1031

Briggs & Stratton 805341

SUPPORT, ROCKER ARM

$

$

Not available

1033

Briggs & Stratton 807910

OVERHAUL KIT, VALVE
(Superseded to 841191)

$89.99

$

In Stock, only 2 left!

0

1036

Briggs & Stratton 807688

BREATHER GASKET SET
(Superseded to 844986)

$8.49

$

In Stock, only 3 left!

0

1037

Electrolux/AYP 807217

BALL, CHOKE LOCATOR

$

$

Not available

1054

Briggs & Stratton 280275

TIE, CABLE

$4.49

$

Usually ships in 2-12 days

0

1054A

Briggs & Stratton 270723

TIE, CABLE
(Superseded to 280275)

$4.49

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272104

MANUAL, OPERATOR'S

$

$

Not available

1091

Briggs & Stratton 805858

CAP, LIMITER
(Superseded to 691515)

$8.99

$

Usually ships in 2-12 days

0
