AYP 8188 A69 - Electrolux/AYP Lawn Tractor (1996) ENGINE/B&S Parts Diagram

Lawn Tractor

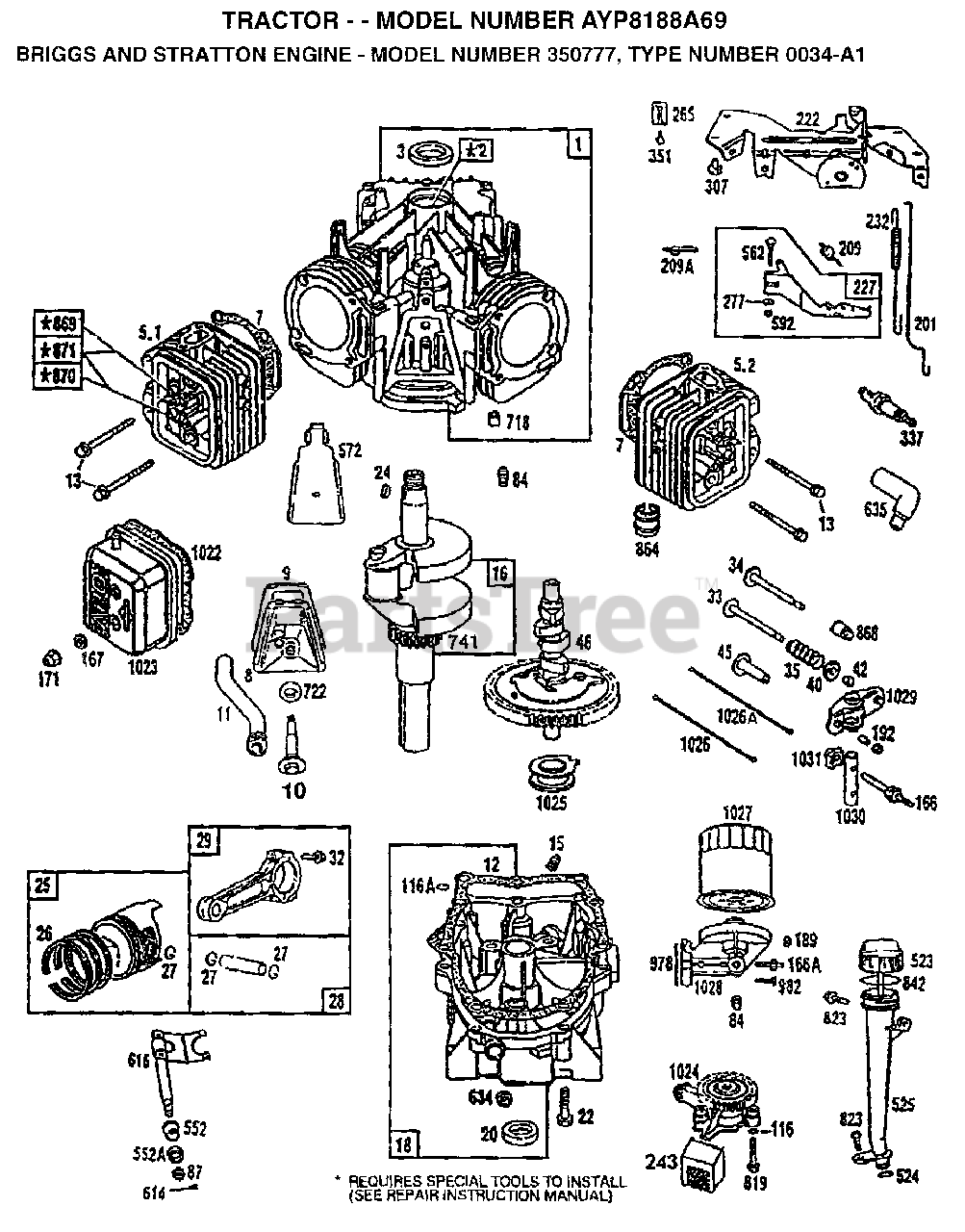

ENGINE/B&S Parts Diagram

  • Title
1

Electrolux/AYP 807787

CYLINDER ASSEMBLY

$

$

Not available

2

Electrolux/AYP 805107

BEARING, CYLINDER

$

$

Not available

3

$

$

Not available

5-1

Electrolux/AYP 807821

HEAD, CYLINDER, CYLINDER #1

$

$

Not available

5-2

Electrolux/AYP 807822

HEAD, CYLINDER 2

$

$

Not available

7

Electrolux/AYP 805653

GASKET, CYLINDER HEAD

$

$

Not available

8

Electrolux/AYP 807795

BREATHER ASSEMBLY

$

$

Not available

9

Electrolux/AYP 805379

GASKET, BREATHER

$

$

Not available

$

$

Not available

11

Electrolux/AYP 805362

TUBE, BREATHER

$

$

Not available

12

Electrolux/AYP 805112

GASKET, CRANKCASE COVER

$

$

Not available

13

Electrolux/AYP 805097

SCREW, CYLINDER HEAD

$

$

Not available

15

Electrolux/AYP 805048

PLUG, OIL DRAIN

$

$

Not available

16

$

$

Not available

16

Electrolux/AYP 94196

KEY, TIMING GEAR

$

$

Not available

18

Electrolux/AYP 807638

COVER ASSEMBLY, CRANKCASE

$

$

Not available

20

$

$

Not available

22

Electrolux/AYP 805696

SCREW, CRANKCASE COVER

$

$

Not available

23

Electrolux/AYP 808132

FLYWHEEL, MAGNETO

$

$

Not available

24

Electrolux/AYP 805016

KEY, FLYWHEEL

$

$

Not available

25

Electrolux/AYP 807888

PISTON ASSEMBLY, STANDARD SIZE

$

$

Not available

25

Electrolux/AYP 807991

PISTON ASSEMBLY

$

$

Not available

25

Electrolux/AYP 807992

PISTON ASSEMBLY

$

$

Not available

25

Electrolux/AYP 807993

PISTON ASSEMBLY

$

$

Not available

26

Electrolux/AYP 807889

RING SET, PISTON, STANDARD SIZE

$

$

Not available

26

Electrolux/AYP 807994

RING SET, PISTON

$

$

Not available

26

Electrolux/AYP 807995

RING SET, PISTON

$

$

Not available

26

Electrolux/AYP 807996

RING SET, PISTON

$

$

Not available

27

Electrolux/AYP 805099

LOCK, PISTON PIN

$

$

Not available

28

Electrolux/AYP 807886

PIN ASSEMBLY, PISTON, STANDARD

$

$

Not available

29

Electrolux/AYP 807900

ROD ASSEMBLY, CONNECTING

$

$

Not available

32

Electrolux/AYP 805395

SCREW, CONNECTING ROD

$

$

Not available

33

Electrolux/AYP 805089

VALVE, EXHAUST

$

$

Not available

34

Electrolux/AYP 805090

VALVE, INTAKE

$

$

Not available

35

Electrolux/AYP 805078

SPRING, VALVE

$

$

Not available

37

Electrolux/AYP 805506

COVER, STARTER

$

$

Not available

40

Electrolux/AYP 805092

RETAINER, VALVE SPRING

$

$

Not available

42

Electrolux/AYP 805161

RETAINER, VALVE

$

$

Not available

45

Electrolux/AYP 262679

TAPPET, VALVE

$

$

Not available

46

$

$

Not available

50

Electrolux/AYP 805772

MANIFOLD, INTAKE

$

$

Not available

51

Electrolux/AYP 805700

GASKET, CARBURETOR MOUNTING

$

$

Not available

52

Electrolux/AYP 805023

GASKET, INTAKE MANIFOLD

$

$

Not available

53

Electrolux/AYP 805669

SCREW, SEMS

$

$

Not available

54

Electrolux/AYP 805006

SCREW, SEMS

$

$

Not available

75

Electrolux/AYP 805007

WASHER, SPRING

$

$

Not available

78

Electrolux/AYP 805447

SCREW, SEMS

$

$

Not available

84

$

$

Not available

87

Electrolux/AYP 805054

SEAL, GOVERNOR SHAFT

$

$

Not available

95

Electrolux/AYP 805561

SCREW, VALVE MOUNTING

$

$

Not available

95A

Electrolux/AYP 94466

SCREW, VALVE MOUNTING

$

$

Not available

98

Electrolux/AYP 807705

SCREW, THROTTLE ADJUSTING

$

$

Not available

104

Electrolux/AYP 805586

PIN, FLOAT HINGE

$

$

Not available

105

Electrolux/AYP 807706

VALVE, FUEL INLET

$

$

Not available

108

Electrolux/AYP 805562

VALVE, CHOKE

$

$

Not available

116

Electrolux/AYP 805058

O-RING, OIL PUMP

$

$

Not available

116A

Electrolux/AYP 805198

O-RING, CRANKCASE COVER

$

$

Not available

116B

Electrolux/AYP 224531

WASHER, BOWL

$

$

Not available

117

$

$

Not available

118

Electrolux/AYP 808374

VALVE, IDLE ADJ NEEDLE

$

$

Not available

121

Electrolux/AYP 807708

CARBURETOR OVERHAUL KIT

$

$

Not available

122

Electrolux/AYP 805674

SPACER, CARBURETOR

$

$

Not available

125

Electrolux/AYP 808372

CARBURETOR ASSEMBLY

$

$

Not available

127

Electrolux/AYP 805570

PLUG, WELCH

$

$

Not available

127A

Electrolux/AYP 805571

PLUG, WELCH

$

$

Not available

130

Electrolux/AYP 808572

VALVE, THROTTLE

$

$

Not available

131

Electrolux/AYP 808375

SHAFT, THROTTLE ASM

$

$

Not available

133

Electrolux/AYP 807710

FLOAT ASSEMBLY, CARBURETOR

$

$

Not available

137

REFER TO IMAGE

$

$

Not available

141

Electrolux/AYP 807711

SHAFT, CHOKE

$

$

Not available

142

Electrolux/AYP 806110

NOZZLE, CARBURETOR

$

$

Not available

161

Electrolux/AYP 807857

BASE ASSEMBLY, AIR CLEANER

$

$

Not available

166

Electrolux/AYP 805343

STUD, ROCKER ARM

$

$

Not available

166A

Electrolux/AYP 805073

STUD, OIL FILTER ADAPTER

$

$

Not available

167

Electrolux/AYP 805420

WASHER, VALVE COVER

$

$

Not available

171

Electrolux/AYP 805019

NUT, NYLOCK

$

$

Not available

187

Electrolux/AYP 393815

HOSE (CUT TO SUIT)

$

$

Not available

187

$

$

Not available

188

Electrolux/AYP 94627

SCREW, SEMS 3/4"

$

$

Not available

188A

Electrolux/AYP 805247

SCREW, STARTER MOUNTING

$

$

Not available

189

Electrolux/AYP 805449

LOCK WASHER

$

$

Not available

192

Electrolux/AYP 807623

SCREW, VALVE ADJUSTMENT

$

$

Not available

201

Electrolux/AYP 805480

LINK, GOVERNOR

$

$

Not available

209

Electrolux/AYP 805462

SPRING, GOVERNOR

$

$

Not available

209A

Electrolux/AYP 805453

SPRING, GOVERNED IDLE

$

$

Not available

216

Electrolux/AYP 805439

LINK, CHOKE

$

$

Not available

222

Electrolux/AYP 808195

BRACKET, GOVERNOR CONTROL

$

$

Not available

227

Electrolux/AYP 807528

LEVER ASSEMBLY, GOVERNOR

$

$

Not available

232

Electrolux/AYP 805465

SPRING, GOVERNOR LINK

$

$

Not available

240

Electrolux/AYP 493629

FILTER, FUEL (IN FUEL LINE TO TANK)

$

$

Not available

243

Electrolux/AYP 805964

SCREEN, OIL

$

$

Not available

254

Electrolux/AYP 807713

DRAIN, CARBURETOR BOWL

$

$

Not available

$

$

Not available

271

Electrolux/AYP 808145

BRACKET, CHOKE CONTROL

$

$

Not available

$

$

Not available

304

Electrolux/AYP 808220

HOUSING, BLOWER, BLACK

$

$

Not available

305

Electrolux/AYP 805406

SCREW, SEMS

$

$

Not available

307

Electrolux/AYP 805025

SCREW, SEMS

$

$

Not available

308-1

Electrolux/AYP 808309

COVER, AIR GUIDE, CYLINDER #1

$

$

Not available

308-2

Electrolux/AYP 808098

COVER, AIR GUIDE, CYLINDER #2

$

$

Not available

309

Electrolux/AYP 494990

MOTOR, STARTING

$

$

Not available

$

$

Not available

324

Electrolux/AYP 494439

SCREEN, ROTATING

$

$

Not available

332

$

$

Not available

333

Electrolux/AYP 492341

ARMATURE, MAGNETO

$

$

Not available

334

Electrolux/AYP 806104

SCREW, MOUNTING

$

$

Not available

337

Electrolux/AYP 491055

PLUG, SPARK

$

$

Not available

$

$

Not available

353

Electrolux/AYP 94791

WASHER, LOCK

$

$

Not available

353A

Electrolux/AYP 806101

WASHER, LOCK, INTERNAL TOOTH

$

$

Not available

354

$

$

Not available

354A

Electrolux/AYP 810078

NUT, HEX WASHER HEAD

$

$

Not available

356

Electrolux/AYP 493792

WIRE ASSEMBLY, GROUND

$

$

Not available

358

$

$

Not available

363

Electrolux/AYP 19203

PULLER, FLYWHEEL

$

$

Not available

387

$

$

Not available

423

Electrolux/AYP 805260

SCREW, SEMS

$

$

Not available

445

Electrolux/AYP 394018

CARTRIDGE, AIR CLEANER

$

$

Not available

467

Electrolux/AYP 491875

KNOB, AIR CLEANER

$

$

Not available

474

Electrolux/AYP 393295

STATOR, ALTERNATOR

$

$

Not available

501

Electrolux/AYP 394890

REGULATOR, ALTERNATOR

$

$

Not available

510

Electrolux/AYP 495878

STARTER DRIVE GROUP

$

$

Not available

513

Electrolux/AYP 398003

CLUTCH ASSEMBLY

$

$

Not available

520

Electrolux/AYP 93722

TERMINAL, SPADE

$

$

Not available

523

$

$

Not available

524

Electrolux/AYP 805011

SEAL, FILLER TUBE

$

$

Not available

525

Electrolux/AYP 807611

TUBE, OIL FILLER

$

$

Not available

526

Electrolux/AYP 805448

SCREW, REGULATOR MOUNTING

$

$

Not available

527

Electrolux/AYP 223167

CLAMP, FUEL PUMP

$

$

Not available

535

Electrolux/AYP 272490

ELEMENT, FILTER

$

$

Not available

537

Electrolux/AYP 805655

GASKET, AIR CLEANER

$

$

Not available

544

Electrolux/AYP 490309

ARMATURE ASSEMBLY

$

$

Not available

552

Electrolux/AYP 805412

BUSHING, GOVERNOR SHAFT

$

$

Not available

552A

Electrolux/AYP 805413

BUSHING, GOVERNOR SHAFT

$

$

Not available

$

$

Not available

572

Electrolux/AYP 805197

BAFFLE, BREATHER

$

$

Not available

573

Electrolux/AYP 807663

BACK PLATE ASSEMBLY

$

$

Not available

592

$

$

Not available

601

Electrolux/AYP 93053

CLAMP, HOSE, GREEN

$

$

Not available

613

Electrolux/AYP 805158

SCREW, SEMS

$2.49

$

Usually ships in 3-10 days

0

614

Electrolux/AYP 806096

PIN, COTTER

$

$

Not available

615

$

$

Not available

615A

$

$

Not available

616

Electrolux/AYP 807596

FORK, GOVERNOR

$

$

Not available

634

Electrolux/AYP 805416

WASHER, GOVERNOR SHAFT

$

$

Not available

634A

Electrolux/AYP 805580

COLLAR, CHOKE

$

$

Not available

634B

Electrolux/AYP 805574

COLLAR, THROTTLE

$

$

Not available

634C

Electrolux/AYP 806079

SEAL, THROTTLE SHAFT

$

$

Not available

634D

Electrolux/AYP 805576

WASHER, THROTTLE

$

$

Not available

635

Electrolux/AYP 805529

ELBOW, SPARK PLUG

$

$

Not available

642

Electrolux/AYP 807862

COVER ASSEMBLY, AIR CLEANER

$

$

Not available

643

Electrolux/AYP 805631

PLATE, AIR FILTER

$

$

Not available

657

Electrolux/AYP 805009

SCREW, SEMS

$

$

Not available

668

Electrolux/AYP 805402

SPACER, ROTATING SCREEN

$

$

Not available

718

Electrolux/AYP 805103

DOWEL, CRANKCASE

$

$

Not available

722

Electrolux/AYP 805483

SEAL, BREATHER SCREW

$

$

Not available

726

Electrolux/AYP 807805

GEAR, FLYWHEEL RING

$

$

Not available

727

Electrolux/AYP 805505

SHIELD, STARTER

$

$

Not available

729

Electrolux/AYP 805641

GROMMET, IGNITION CABLE

$

$

Not available

729A

Electrolux/AYP 224356

CLIP, DEBRIS

$

$

Not available

729B

$

$

Not available

741

Electrolux/AYP 805675

GEAR, TIMING

$

$

Not available

783

Electrolux/AYP 280104

GEAR, STARTER

$

$

Not available

788

Electrolux/AYP 807685

BRACKET, FUEL PUMP

$

$

Not available

801

$

$

Not available

802

Electrolux/AYP 494988

CAP ASSEMBLY

$

$

Not available

803

Electrolux/AYP 494205

HOUSING ASSEMBLY

$

$

Not available

819

Electrolux/AYP 805057

SCREW, SEMS

$

$

Not available

823

Electrolux/AYP 805317

SCREW, MOUNTING

$

$

Not available

842

Electrolux/AYP 270920

SEAL, OIL FILLER CAP

$

$

Not available

851

Electrolux/AYP 473880

TERMINAL, IGNITION CABLE

$

$

Not available

862

Electrolux/AYP 807859

BRACKET, AIR CLEANER

$

$

Not available

864

Electrolux/AYP 805083

LINER, EXHAUST PORT

$

$

Not available

866

Electrolux/AYP 805738

VALLEY, COVER, AIR GUIDE

$

$

Not available

868

Electrolux/AYP 805094

SEAL, VALVE GUIDE

$

$

Not available

869

Electrolux/AYP 805085

SEAT, INTAKE VALVE

$

$

Not available

870

Electrolux/AYP 805086

SEAT, EXHAUST VALVE

$

$

Not available

871

Electrolux/AYP 805084

GUIDE, VALVE

$

$

Not available

876

Electrolux/AYP 495877

RETAINER AND PIN

$

$

Not available

$

$

Not available

883

Electrolux/AYP 805024

GASKET, EXHAUST MANIFOLD
(Superseded to 583604901)

$12.99

$

Usually ships in 3-10 days

0

896

$

$

Not available

918

Electrolux/AYP 393815

HOSE (CUT TO SUIT)

$

$

Not available

947

$

$

Not available

975

Electrolux/AYP 807913

BOWL, FUEL ASSEMBLY

$

$

Not available

977

Electrolux/AYP 807916

GASKET SET, CARBURETOR

$

$

Not available

978

Electrolux/AYP 805250

GASKET, OIL FILTER ADAPTOR

$

$

Not available

982

Electrolux/AYP 805030

SCREW, SEMS

$

$

Not available

985

Electrolux/AYP 398525

INSULATOR ASSEMBLY

$

$

Not available

1004

Electrolux/AYP 805632

TUBE, AIR INLET

$

$

Not available

1005

Electrolux/AYP 808082

FAN, FLYWHEEL

$

$

Not available

1006

Electrolux/AYP 224413

RETAINER, FAN

$

$

Not available

1013

Electrolux/AYP 805581

SEAL, CHOKE SHAFT

$

$

Not available

1014

Electrolux/AYP 807963

SHIELD, CARBURETOR

$

$

Not available

1022

Electrolux/AYP 806039

GASKET, VALVE COVER

$

$

Not available

1023

Electrolux/AYP 805100

COVER, VALVE

$

$

Not available

1023

Electrolux/AYP 807665

COVER, VALVE

$

$

Not available

1024

Electrolux/AYP 807546

OIL PUMP ASSEMBLY

$

$

Not available

1025

Electrolux/AYP 805313

SLIDER, GOVERNOR

$

$

Not available

1026

Electrolux/AYP 805352

ROD, PUSH, INTAKE

$

$

Not available

1026A

Electrolux/AYP 805617

ROD, PUSH, EXHAUST

$

$

Not available

1027

Electrolux/AYP 492932

FILTER, OIL

$

$

Not available

1028

Electrolux/AYP 805292

ADAPTER, OIL FILTER

$

$

Not available

1029

Electrolux/AYP 808096

ARM, ROCKER

$

$

Not available

1030

Electrolux/AYP 805342

SHAFT, ROCKER ARM

$

$

Not available

1031

Electrolux/AYP 805341

SUPPORT, ROCKER ARM

$

$

Not available

1033

Electrolux/AYP 807910

OVERHAUL KIT, VALVE

$

$

Not available

1036

Electrolux/AYP 807688

BREATHER GASKET SET

$

$

Not available

1037

Electrolux/AYP 807217

BALL, CHOKE LOCATOR

$

$

Not available

1054

$

$

Not available

1054A

$

$

Not available

1058

Electrolux/AYP 272104

MANUAL, OPERATOR'S

$

$

Not available

1091

Electrolux/AYP 805858

CAP, LIMITER

$

$

Not available
