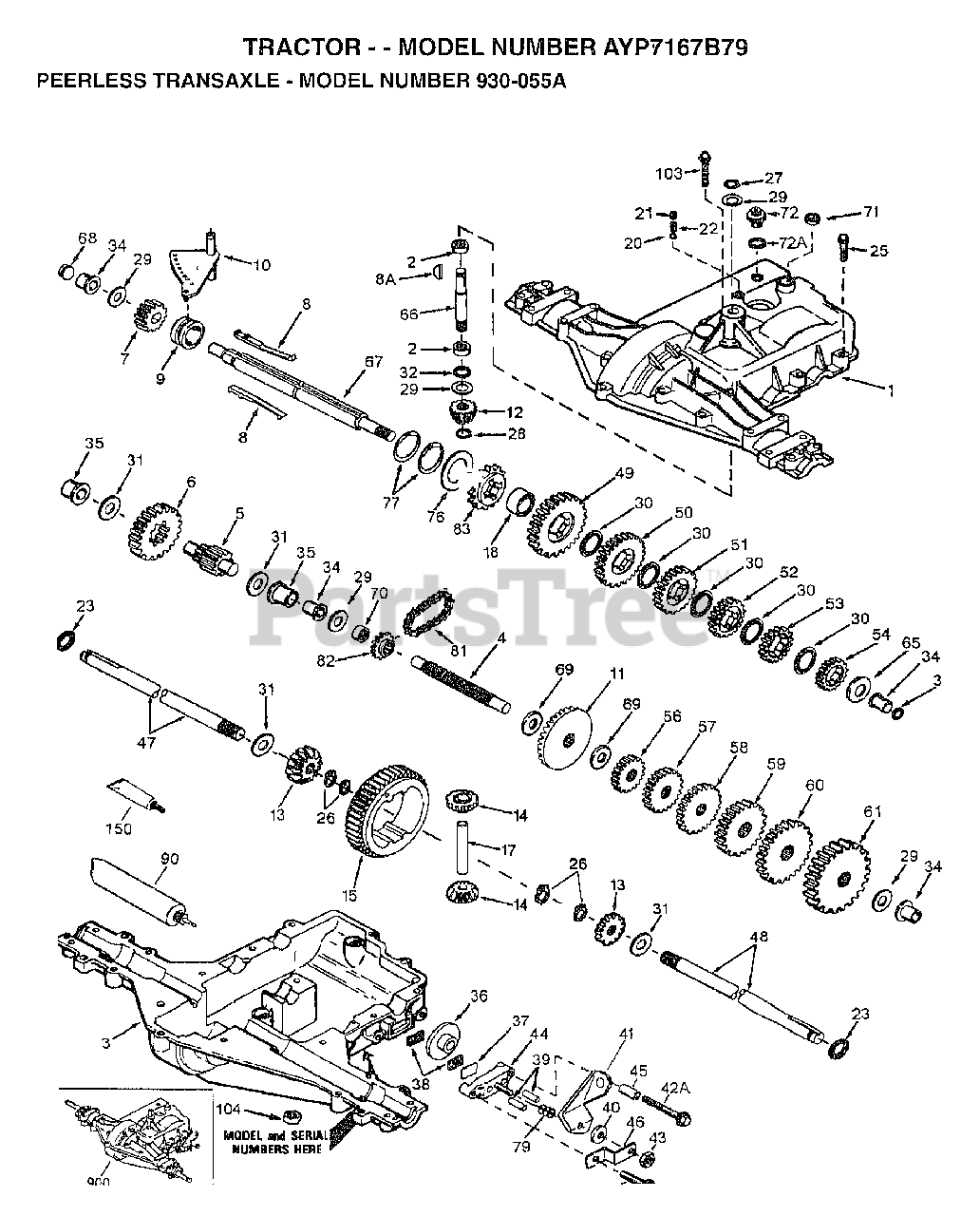

AYP 7167 B79 - Wizard Lawn Tractor (1997) PEERLESS TRANSAXLE Parts Diagram

Lawn Tractor

PEERLESS TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 772108A

TRANSAXLE COVER

$

$

Not available

2

Electrolux/AYP 780086

BEARING, NEEDLE

$

$

Not available

3

Electrolux/AYP 770102A

TRANSAXLE CASE

$

$

Not available

4

Electrolux/AYP 776260

SHAFT, COUNTER

$

$

Not available

5

Electrolux/AYP 776219B

OUTPUT SHAFT AND PINION

$

$

Not available

6

Electrolux/AYP 778139

GEAR, OUTPUT

$

$

Not available

7

Electrolux/AYP 778136

GEAR, SPUR, 15 TEETH

$

$

Not available

$

$

Not available

8A

Electrolux/AYP 792047

KEY, WOODRUFF

$

$

Not available

9

Electrolux/AYP 784352

COLLAR, SHIFTER

$

$

Not available

10

Electrolux/AYP 784355

ROD & FORK ASSY, SHIFT

$

$

Not available

11

Electrolux/AYP 778229

GEAR, BEVEL, 42 TEETH

$

$

Not available

12

Electrolux/AYP 778113A

BEVEL PINION, INPUT

$

$

Not available

13

Electrolux/AYP 778221

GEAR, BEVEL

$

$

Not available

14

Electrolux/AYP 778068

GEAR, BEVEL, PINION

$

$

Not available

15

$

$

Not available

17

$

$

Not available

18

Electrolux/AYP 786102

SPACER, NEUTRAL

$

$

Not available

20

Electrolux/AYP 792077

BALL STEEL, 5/16" DIA.

$

$

Not available

21

Electrolux/AYP 792078

SCREW, 3/8-16 X 3/8"

$

$

Not available

$

$

Not available

23

$

$

Not available

25

Electrolux/AYP 792073

SCREW, 1/4-20 X 1-1/4

$

$

Not available

26

Electrolux/AYP 792125

RING RETAINER

$

$

Not available

27

Electrolux/AYP 792035

RING, RETAINER

$

$

Not available

28

Electrolux/AYP 788040

RETAINING RING

$

$

Not available

29

Electrolux/AYP 780072

WASHER THRUST

$

$

Not available

30

Electrolux/AYP 780108

WASHER THRUST

$

$

Not available

$

$

Not available

32

$

$

Not available

33

Electrolux/AYP 788095

SEAL, SQUARE CUT

$

$

Not available

34

Electrolux/AYP 780105A

BUSHING, FLANGED

$

$

Not available

35

Electrolux/AYP 780118A

BUSHING, FLANGED

$

$

Not available

36

Electrolux/AYP 790003

DISK, BRAKE

$

$

Not available

37

Electrolux/AYP 790007

PLATE BRAKE PAD

$

$

Not available

38

$10.99

$

In Stock, only 1 left!

0

39

$

$

Not available

$

$

Not available

41

Electrolux/AYP 790079

BRAKE LEVER

$

$

Not available

42

Electrolux/AYP 792073

SCREW, 1/4-20 X 1-1/4

$

$

Not available

42A

Electrolux/AYP 792085A

SCREW, 1/4-20 X 2-1/4

$

$

Not available

43

Electrolux/AYP 792075

LOCKNUT 5/16-24

$

$

Not available

44

Electrolux/AYP 790025

HOLDER BRAKE PAD

$

$

Not available

$

$

Not available

46

Electrolux/AYP 786086

BRKT BRAKE LEVER

$

$

Not available

$

$

Not available

$

$

Not available

49

Electrolux/AYP 778215

GEAR, SPUR, 37 TEETH

$

$

Not available

50

Electrolux/AYP 778125

GEAR, SPUR, 35 TEETH

$

$

Not available

51

Electrolux/AYP 778124A

GEAR, SPUR, 30 TEETH

$

$

Not available

52

Electrolux/AYP 778123A

GEAR, SPUR, 25 TEETH

$

$

Not available

53

Electrolux/AYP 778122A

GEAR, SPUR, 22 TEETH

$

$

Not available

54

Electrolux/AYP 778273

GEAR, SPUR, 19T

$

$

Not available

56

Electrolux/AYP 778230

GEAR, SPUR, 12 TEETH

$

$

Not available

57

Electrolux/AYP 778151

GEAR, SPUR, 15 TEETH

$

$

Not available

58

Electrolux/AYP 778126A

GEAR, SPUR, 20 TEETH

$

$

Not available

59

Electrolux/AYP 778127A

GEAR, SPUR, 25 TEETH

$

$

Not available

60

Electrolux/AYP 778128A

GEAR, SPUR, 28 TEETH

$

$

Not available

61

Electrolux/AYP 778163

GEAR, SPUR, 31 TEETH

$

$

Not available

65

Electrolux/AYP 780109

WASHER, THRUST

$

$

Not available

66

Electrolux/AYP 776135

SHAFT, INPUT

$

$

Not available

67

Electrolux/AYP 776315A

SHAFT, BRAKE, 4 KEYED

$

$

Not available

$

$

Not available

69

Electrolux/AYP 780051

WASHER THRUST

$

$

Not available

$

$

Not available

71

Electrolux/AYP 788069

SEAL SQUARE CUT

$

$

Not available

72

Electrolux/AYP 792165

THREADED PLUG 9/16-18

$

$

Not available

72A

$

$

Not available

76

Electrolux/AYP 780090

WASHER, THRUST

$

$

Not available

77

Electrolux/AYP 788078A

INVERTED RETAINING RING

$

$

Not available

$

$

Not available

81

Electrolux/AYP 786081

CHAIN, ROLLER

$

$

Not available

82

Electrolux/AYP 786082

SPROCKET 9T

$

$

Not available

83

Electrolux/AYP 786123

SPROCKET 18T (REV)

$

$

Not available

90

Electrolux/AYP 788067B

GREASE BENTONITE, 32 OZ.

$

$

Not available

$

$

Not available

104

$

$

Not available

150

Electrolux/AYP 510334

GASKET ELIMINATOR

$

$

Not available

900

Electrolux/AYP 794603

REPLACEMENT TRANSAXLE

$

$

Not available
