AYP 7167 B79 - Wizard Lawn Tractor (1997) ENGINE BRIGGS & STRATTON Parts Diagram

Lawn Tractor

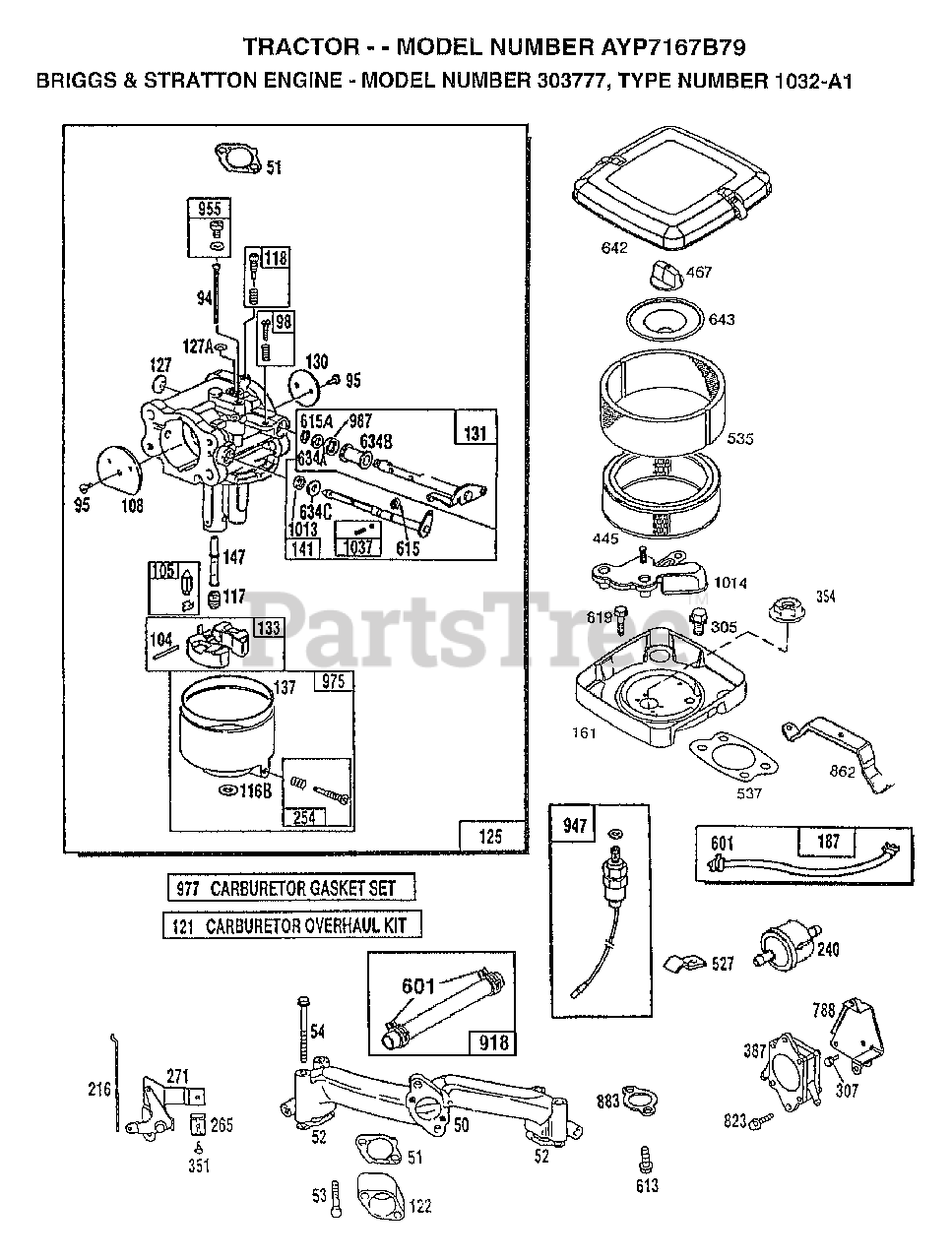

ENGINE BRIGGS & STRATTON Parts Diagram

  • Title

1

Briggs & Stratton 807511

CYLINDER ASSEMBLY

$546.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 805107

BEARING, CYLINDER
(Superseded to 807687)

$

$

Not available

3

Briggs & Stratton 805101

SEAL, OIL
(Superseded to 805101S)

$13.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 807987

HEAD, CYLINDER #1
(Superseded to 809200)

$226.99

$

In Stock, only 3 left!

0

5A

Briggs & Stratton 807988

HEAD, CYLINDER #2
(Superseded to 809201)

$220.99

$

In Stock, Qty 5

0

6

Briggs & Stratton 805193

WASHER, CYLINDER HEAD

$

$

Not available

7

Briggs & Stratton 805111

GASKET, CYLINDER HEAD
(Superseded to 807986)

$26.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 807795

BREATHER ASSEMBLY
(Superseded to 808988)

$38.99

$

In Stock, Qty 7

0

9

Briggs & Stratton 805379

GASKET, BREATHER
(Superseded to 844986)

$8.49

$

In Stock, only 3 left!

0

10

Briggs & Stratton 805751

SCREW
(Superseded to 690751)

$7.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 805362

TUBE, BREATHER
(Superseded to 806083S)

$16.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 805112

GASKET, CRANKCASE COVER
(Superseded to 845254)

$45.99

$

In Stock, Qty 13

0

13

Briggs & Stratton 805097

SCREW, CYLINDER HEAD
(Superseded to 692059)

$3.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 805048

PLUG, OIL DRAIN
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 807586

CRANKSHAFT

$245.99

$

Usually ships in 2-12 days

0

16A

Briggs & Stratton 94196

KEY, TIMING GEAR
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

16B

Briggs & Stratton 807625

WASHERS, THRUST

$19.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 807638

COVER ASSEMBLY, CRANKCASE
(Superseded to 843954)

$208.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049

SEAL, OIL
(Superseded to 805049S)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 805696

SCREW, CRANKCASE COVER
(Superseded to 807362)

$3.49

$

In Stock, Qty 6

0

23

Briggs & Stratton 807531

FLYWHEEL MAGNETO

$

$

Not available

24

Briggs & Stratton 805016

KEY, FLYWHEEL
(Superseded to 808095)

$13.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 807619

PISTON ASSEMBLY, STANDARD
(Superseded to 843951)

$

$

Not available

25A

Briggs & Stratton 807807

PISTON ASSEMBLY .010" OVERSIZE

$96.99

$

Usually ships in 2-12 days

0

25B

Briggs & Stratton 807809

PISTON ASSEMBLY .020" OVERSIZE
(Superseded to 843958)

$

$

Not available

25C

Briggs & Stratton 807811

PISTON ASSEMBLY .030" OVERSIZE

$95.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 807620

RING SET, PISTON, STANDARD
(Superseded to 843951)

$

$

Not available

26A

Briggs & Stratton 807808

RING SET, PISTON .010" OVERSIZE

$34.99

$

Usually ships in 2-12 days

0

26B

Briggs & Stratton 807810

RING SET, PISTON .020" OVERSIZE
(Superseded to 843958)

$

$

Not available

26C

Briggs & Stratton 807812

RING SET, PISTON .030" OVERSIZE

$45.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 805099

LOCK, PISTON PIN
(Superseded to 690683)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807621

PIN ASSEMBLY, PISTON, STANDARD

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900

ROD ASSEMBLY, CONNECTING
(Superseded to 807900S)

$

$

Not available

32

Briggs & Stratton 805395

SCREW, CONNECTING ROD
(Superseded to 690698)

$7.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 805089

VALVE, EXHAUST
(Superseded to 807681)

$43.99

$

In Stock, Qty 14

0

34

Briggs & Stratton 805090

VALVE, INTAKE
(Superseded to 807680)

$26.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 805078

SPRING, VALVE
(Superseded to 808159)

$

$

Not available

40

Briggs & Stratton 805092

RETAINER, VALVE SPRING
(Superseded to 692058)

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 805161

RETAINER, VALVE
(Superseded to 844788)

$6.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 262679

TAPPET, VALVE
(Superseded to 690977)

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 807542

GEAR, CAM
(Superseded to 845649)

$184.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 805409

MANIFOLD, INTAKE
(Superseded to 690754)

$131.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 805149

GASKET, CARBURETOR MOUNTING
(Superseded to 691694)

$2.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 805023

GASKET, INTAKE MANIFOLD
(Superseded to 692035)

$3.49

$

In Stock, Qty 17

0

53

Briggs & Stratton 805669

SCREW, SEMS
(Superseded to 690746)

$8.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 805006

SCREW, SEMS
(Superseded to 690676)

$4.99

$

In Stock, only 1 left!

0

75

Briggs & Stratton 805007

WASHER, SPRING
(Superseded to 691490)

$3.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 805447

SCREW, SEMS
(Superseded to 691647)

$3.99

$

In Stock, only 4 left!

0

84

Briggs & Stratton 91488

PLUG, PIPE
(Superseded to 794903)

$5.49

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 805054

SEAL, GOVERNOR SHAFT
(Superseded to 842826)

$7.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 805777

NOZZLE, CARBURETOR
(Superseded to 690755)

$25.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 805561

SCREW, VALVE MOUNTING
(Superseded to 690718)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 807705

SCREW, THROTTLE ADJUSTING

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 805586

PIN, FLOAT HINGE
(Superseded to 690739)

$6.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 807706

VALVE, FUEL INLET

$41.99

$

In Stock, Qty 6

0

108

Briggs & Stratton 805562

VALVE, CHOKE
(Superseded to 690729)

$8.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 805058

O-RING, OIL PUMP
(Superseded to 690681)

$5.99

$

In Stock, only 2 left!

0

116A

Briggs & Stratton 805198

O-RING, CRANKCASE COVER

$4.99

$

Usually ships in 2-12 days

0

116B

REFER TO IMAGE

$

$

Not available

116C

REFER TO IMAGE

$

$

Not available

117A

REFER TO IMAGE

$

$

Not available

117B

Briggs & Stratton 805755

JET, MAIN

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 808258

VALVE ASSY, CARBURETOR IDLE

$32.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 808324

CARBURETOR OVERHAUL KIT
(Superseded to 842890)

$219.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 805770

SPACER, CARBURETOR
(Superseded to 690753)

$14.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 808255

CARBURETOR ASSEMBLY

$

$

Not available

127

Briggs & Stratton 805570

PLUG, WELCH
(Superseded to 690731)

$7.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 805571

PLUG, WELCH
(Superseded to 690731)

$7.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 805572

VALVE, THROTTLE
(Superseded to 690732)

$22.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 808323

SHAFT, THROTTLE

$49.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 807710

FLOAT ASSEMBLY, CARBURETOR

$41.99

$

In Stock, only 1 left!

0

137

REFER TO IMAGE

$

$

Not available

141

Briggs & Stratton 807711

SHAFT, CHOKE

$32.99

$

Usually ships in 2-12 days

0

142

Electrolux/AYP NOZZLE

NOZZLE

$

$

Not available

156

Briggs & Stratton 805343

STUD, ROCKER ARM

$

$

Not available

161

Briggs & Stratton 807857

BASE ASSEMBLY, AIR CLEANER
(Superseded to 846046)

$96.99

$

Usually ships in 2-12 days

0

166

Briggs & Stratton 805343

STUD, ROCKER ARM

$

$

Not available

166A

Briggs & Stratton 805073

STUD, OIL FILTER ADAPTER
(Superseded to 690682)

$4.49

$

Usually ships in 2-12 days

0

167

Briggs & Stratton 805420

WASHER, VALVE COVER
(Superseded to 691766)

$6.49

$

In Stock, Qty 20+

0

171

Briggs & Stratton 805019

NUT, NYLOCK
(Superseded to 692055)

$3.99

$

In Stock, Qty 9

0

187

Briggs & Stratton 393815

HOSE (CUT TO SUIT)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 296004

PIPE, FUEL
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 805247

SCREW, STARTER MOUNTING
(Superseded to 692062)

$3.49

$

In Stock, Qty 20+

0

189

Briggs & Stratton 805449

LOCK WASHER
(Superseded to 690706)

$3.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 807623

SCREW, VALVE ADJUSTMENT

$11.99

$

In Stock, only 1 left!

0

201

Briggs & Stratton 805480

LINK, GOVERNOR
(Superseded to 847015)

$6.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 805462

SPRING, GOVERNOR
(Superseded to 692071)

$7.49

$

In Stock, only 2 left!

0

209A

Briggs & Stratton 805453

SPRING, GOVERNED IDLE
(Superseded to 692069)

$6.49

$

In Stock, Qty 8

0

216

Briggs & Stratton 805439

LINK, CHOKE
(Superseded to 690705)

$6.49

$

In Stock, Qty 11

0

222

Briggs & Stratton 808195

BRACKET, GOVERNOR CONTROL
(Superseded to 808454)

$38.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 807528

LEVER ASSEMBLY, GOVERNOR
(Superseded to 690236)

$27.99

$

In Stock, only 1 left!

0

232

Briggs & Stratton 805465

SPRING, GOVERNOR LINK
(Superseded to 692073)

$9.49

$

In Stock, only 2 left!

0

240

Briggs & Stratton 493629

FILTER, FUEL (IN FUEL LINE TO TANK)
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

243

Briggs & Stratton 805964

SCREEN, OIL
(Superseded to 690878)

$16.99

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 807713

DRAIN, CARBURETOR BOWL
(Superseded to 807715)

$100.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 221535

CLAMP
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

271

Briggs & Stratton 808145

BRACKET, CHOKE CONTROL
(Superseded to 690923)

$15.99

$

Usually ships in 2-12 days

0

277

Briggs & Stratton 805018

WASHER
(Superseded to 842122)

$5.49

$

In Stock, only 1 left!

0

304

Electrolux/AYP 807899

HOUSING, BLOWER

$

$

Not available

305

Briggs & Stratton 805406

SCREW, SEMS
(Superseded to 841233)

$3.49

$

In Stock, Qty 20+

0

307

Briggs & Stratton 805025

SCREW, SEMS
(Superseded to 692056)

$5.99

$

In Stock, Qty 5

0

308

Briggs & Stratton 808309

COVER, AIR GUIDE, CYLINDER #1
(Superseded to 841183)

$40.99

$

Usually ships in 2-12 days

0

308A

Briggs & Stratton 808098

COVER, AIR GUIDE, CYLINDER #2
(Superseded to 841182)

$35.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 494990

MOTOR, STARTING
(Superseded to 795121)

$143.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 94169

BOLT
(Superseded to 691263)

$

$

Not available

311

Briggs & Stratton 490311

SCREEN ROTATING

$35.99

$

Usually ships in 2-12 days

0

324

Briggs & Stratton 494439

SCREEN, ROTATING

$53.99

$

In Stock, Qty 10

0

332

Briggs & Stratton 805028

NUT, HEX
(Superseded to 806039S)

$7.49

$

In Stock, Qty 20+

0

333

Briggs & Stratton 492341

ARMATURE, MAGNETO
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 805407

SCREW, MOUNTING
(Superseded to 692066)

$3.49

$

In Stock, Qty 7

0

337

Briggs & Stratton 491055

PLUG, SPARK
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

351

Briggs & Stratton 805169

SCREW
(Superseded to 841552)

$3.49

$

In Stock, only 1 left!

0

353

Briggs & Stratton 92791

WASHERLOCK
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

353A

Briggs & Stratton 806101

WASHER, LOCK, INTERNAL TOOTH
(Superseded to 691551)

$4.99

$

In Stock, only 1 left!

0

354

Briggs & Stratton 90576

NUT, HEX
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

354A

Briggs & Stratton 810078

NUT, HEX WASHER HEAD
(Superseded to 690939)

$3.49

$

In Stock, only 4 left!

0

356

Briggs & Stratton 493792

WIRE ASSEMBLY, GROUND
(Superseded to 692319)

$17.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 807989

GASKET SET
(Superseded to 847319)

$123.99

$

In Stock, only 2 left!

0

363

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

387

Briggs & Stratton 491922

PUMP, FUEL
(Superseded to 808656)

$27.99

$

In Stock, Qty 20+

0

423

Briggs & Stratton 805260

SCREW, SEMS
(Superseded to 690688)

$3.49

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 394018

CARTRIDGE, AIR CLEANER
(Superseded to 394018S)

$25.99

$

In Stock, Qty 12

0

467

Briggs & Stratton 491875

KNOB, AIR CLEANER
(Superseded to 691985)

$7.99

$

In Stock, Qty 9

0

474

Briggs & Stratton 393295

STATOR, ALTERNATOR
(Superseded to 592830)

$101.99

$

In Stock, Qty 20+

0

501

Briggs & Stratton 394890

REGULATOR, ALTERNATOR
(Superseded to 845907)

$61.99

$

In Stock, Qty 20+

0

510

Briggs & Stratton 495878

STARTER DRIVE GROUP
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0

513

Briggs & Stratton 398003

CLUTCH ASSEMBLY
(Superseded to 692024)

$21.99

$

In Stock, only 2 left!

0

520

Briggs & Stratton 93722

TERMINAL, SPADE
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 807989

GASKET SET
(Superseded to 847319)

$123.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 805011

SEAL, FILLER TUBE
(Superseded to 692053)

$6.99

$

In Stock, Qty 9

0

525

Briggs & Stratton 807611

TUBE, OIL FILLER
(Superseded to 692093)

$20.99

$

In Stock, Qty 8

0

526

Briggs & Stratton 805448

SCREW, REGULATOR MOUNTING
(Superseded to 692067)

$3.99

$

In Stock, Qty 9

0

527

Briggs & Stratton 223167

CLAMP, FUEL PUMP
(Superseded to 690423)

$4.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 272490

ELEMENT, FILTER
(Superseded to 272490S)

$5.49

$

In Stock, Qty 20+

0

537

Briggs & Stratton 805655

GASKET, AIR CLEANER
(Superseded to 692081)

$5.49

$

In Stock, only 3 left!

0

544

Briggs & Stratton 490309

ARMATURE ASSEMBLY

$74.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 805412

BUSHING, GOVERNOR SHAFT
(Superseded to 690701)

$7.99

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 805413

BUSHING, GOVERNOR SHAFT
(Superseded to 806686)

$8.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 805381

BOLT
(Superseded to 690239)

$5.49

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 805197

BAFFLE, BREATHER
(Superseded to 690686)

$14.99

$

In Stock, only 1 left!

0

573

Briggs & Stratton 807663

BACK PLATE ASSEMBLY
(Superseded to 841310)

$24.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 805383

NUT, HEX
(Superseded to 690238)

$3.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 805158

SCREW, SEMS
(Superseded to 691902)

$3.49

$

In Stock, only 4 left!

0

614

Briggs & Stratton 805417

PIN, COTTER
(Superseded to 691550)

$4.99

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 805578

RETAINER, CHOKE SHAFT

$4.99

$

Usually ships in 2-12 days

0

615A

Briggs & Stratton 805577

RETAINER, THROTTLE SHAFT
(Superseded to 690736)

$6.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 807596

FORK, GOVERNOR

$

$

Not available

634

Briggs & Stratton 805416

WASHER, GOVERNOR SHAFT
(Superseded to 690704)

$5.99

$

In Stock, only 2 left!

0

634A

Briggs & Stratton 805576

WASHER, THROTTLE
(Superseded to 690735)

$4.99

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 805574

COLLAR, THROTTLE
(Superseded to 690733)

$15.99

$

Usually ships in 2-12 days

0

634C

Briggs & Stratton 805580

COLLAR, CHOKE
(Superseded to 690737)

$8.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 805529

ELBOW, SPARK PLUG
(Superseded to 692076)

$5.49

$

In Stock, Qty 20+

0

642

Briggs & Stratton 807862

COVER ASSEMBLY, AIR CLEANER
(Superseded to 699959)

$59.99

$

In Stock, only 4 left!

0

643

Briggs & Stratton 805631

PLATE, AIR FILTER
(Superseded to 844932)

$22.99

$

In Stock, Qty 7

0

657

Briggs & Stratton 805009

SCREW, SEMS
(Superseded to 690677)

$3.99

$

In Stock, only 2 left!

0

668

Briggs & Stratton 805402

SPACER, ROTATING SCREEN
(Superseded to 691500)

$7.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 805103

DOWEL, CRANKCASE
(Superseded to 806469)

$5.99

$

In Stock, only 2 left!

0

718A

Briggs & Stratton 805102

DOWEL, CYLINDER HEAD

$4.99

$

Usually ships in 2-12 days

0

722

Briggs & Stratton 805483

SEAL, BREATHER SCREW
(Superseded to 844986)

$8.49

$

In Stock, only 3 left!

0

726

Briggs & Stratton 807805

GEAR, FLYWHEEL RING

$

$

Not available

727

Briggs & Stratton 805505

SHIELD, STARTER
(Superseded to 841313)

$16.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 805641

GROMMET, IGNITION CABLE
(Superseded to 690744)

$7.49

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 280470

CLIP, WIRE
(Superseded to 690586)

$3.99

$

In Stock, only 3 left!

0

741

Briggs & Stratton 805984

GEAR, TIMING
(Superseded to 846085)

$19.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 280104

GEAR, STARTER
(Superseded to 695708)

$6.99

$

In Stock, only 3 left!

0

788

Briggs & Stratton 807685

BRACKET, FUEL PUMP
(Superseded to 691559)

$24.99

$

In Stock, only 1 left!

0

801

Briggs & Stratton 394856

CAP, DRIVE
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 490310

CAP ASSEMBLY, COMMUTATOR END

$

$

Not available

803

Briggs & Stratton 398892

HOUSING ASSEMBLY

$74.99

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 805057

SCREW, SEMS
(Superseded to 691492)

$3.99

$

In Stock, only 2 left!

0

823

Briggs & Stratton 805317

SCREW, MOUNTING
(Superseded to 807084)

$3.49

$

In Stock, only 3 left!

0

842

Briggs & Stratton 270920

SEAL, OIL FILLER CAP
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

862

Briggs & Stratton 807859

BRACKET, AIR CLEANER
(Superseded to 692542)

$8.49

$

In Stock, only 1 left!

0

864

Briggs & Stratton 493880

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

866

Briggs & Stratton 805738

VALLEY, COVER, AIR GUIDE
(Superseded to 843768)

$39.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 805094

SEAL, VALVE GUIDE
(Superseded to 691963)

$10.99

$

In Stock, Qty 20+

0

869

Electrolux/AYP 805085

SEAT, INTAKE VALVE

$

$

Not available

870

Electrolux/AYP 805086

SEAT, EXHAUST VALVE

$

$

Not available

871

Briggs & Stratton 805084

GUIDE, VALVE
(Superseded to 692057)

$12.99

$

In Stock, only 2 left!

0

876

Electrolux/AYP 495871

RETAINER KIT

$

$

Not available

879

Briggs & Stratton 805841

COVER

$

$

Not available

883

Briggs & Stratton 805024

GASKET, EXHAUST MANIFOLD
(Superseded to 691613)

$5.49

$

Usually ships in 2-12 days

0

896

Briggs & Stratton 94288

ROLL PIN
(Superseded to 691641)

$4.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 393815

HOSE (CUT TO SUIT)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 807744

SOLENOID

$

$

Not available

955

Briggs & Stratton 807714

PLUG AND SEAL, CARBURETOR

$7.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 807715

BOWL ASSEMBLY, FLOAT

$100.99

$

In Stock, only 1 left!

0

977

Briggs & Stratton 808325

CARBURETOR GASKET SET
(Superseded to 807962)

$

$

Not available

978

Briggs & Stratton 805250

GASKET, OIL FILTER ADAPTOR
(Superseded to 692063)

$4.49

$

In Stock, Qty 5

0

982

Briggs & Stratton 805030

SCREW, SEMS
(Superseded to 690679)

$3.49

$

Usually ships in 2-12 days

0

985

Briggs & Stratton 398525

INSULATOR ASSEMBLY
(Superseded to 691972)

$8.49

$

In Stock, only 3 left!

0

987

Briggs & Stratton 805575

SEAL, THROTTLE SHAFT
(Superseded to 690734)

$15.99

$

Usually ships in 2-12 days

0

1003

Briggs & Stratton 490316

BRUSH SPRING SET

$5.49

$

Usually ships in 2-12 days

0

1004

Briggs & Stratton 805632

TUBE, AIR INLET
(Superseded to 690743)

$

$

Not available

1013

Briggs & Stratton 805581

SEAL, CHOKE SHAFT
(Superseded to 690738)

$11.99

$

Usually ships in 2-12 days

0

1014

Briggs & Stratton 807797

DEFLECTOR, BREATHER, A.C.
(Superseded to 844930)

$36.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 806039

GASKET, VALVE COVER
(Superseded to 806039S)

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 805100

COVER, VALVE
(Superseded to 691494)

$17.99

$

Usually ships in 2-12 days

0

1023A

Briggs & Stratton 807665

COVER, VALVE
(Superseded to 691558)

$20.99

$

In Stock, only 1 left!

0

1024

Briggs & Stratton 807546

OIL PUMP ASSEMBLY
(Superseded to 843954)

$208.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 805313

SLIDER, GOVERNOR
(Superseded to 690689)

$22.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 805352

ROD, PUSH, INTAKE
(Superseded to 691836)

$12.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 805617

ROD, PUSH, EXHAUST
(Superseded to 691758)

$11.99

$

In Stock, Qty 20+

0

1027

Briggs & Stratton 492932

FILTER, OIL
(Superseded to 492932S)

$12.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 805292

ADAPTER, OIL FILTER
(Superseded to 808235)

$78.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 808096

ARM, ROCKER

$

$

Not available

1030

Briggs & Stratton 805342

SHAFT, ROCKER ARM
(Superseded to 690693)

$13.99

$

Usually ships in 2-12 days

0

1031

Briggs & Stratton 805341

SUPPORT, ROCKER ARM

$

$

Not available

1033

Briggs & Stratton 807668

OVERHAUL KIT, VALVE
(Superseded to 808392)

$83.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 807688

BREATHER GASKET SET
(Superseded to 844986)

$8.49

$

In Stock, only 3 left!

0

1037

Briggs & Stratton 807717

BALL, CHOKE LOCATOR
(Superseded to 807711)

$32.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

TIE, CABLE

$4.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 805858

CAP, LIMITER
(Superseded to 691515)

$8.99

$

Usually ships in 2-12 days

0
