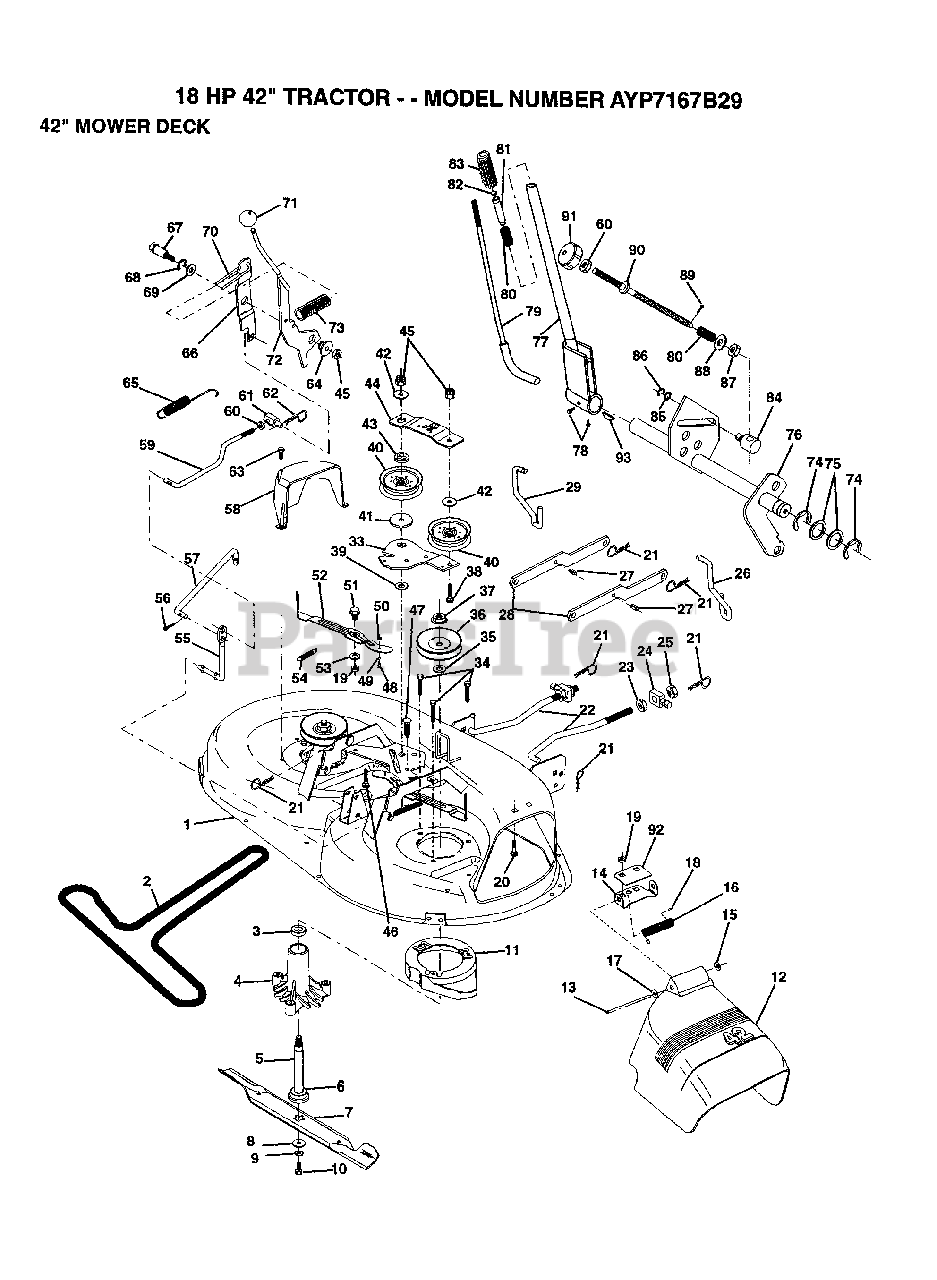

AYP 7167 B29 - Electrolux/AYP Lawn Tractor (1992) MOWER DECK Parts Diagram

Lawn Tractor

MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 130970

SUB= 145338

$

$

Not available

2

Electrolux/AYP 130969

BELT-V.92.4.MWR
(Superseded to 532130969)

$30.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 14

0

4

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$34.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 133172

SUB= 137646

$

$

Not available

6

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

7

Electrolux/AYP 127843

SUB= 138498

$

$

Not available

8

Electrolux/AYP 129962

WASHER BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

9

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 128961

SUB= 140329

$

$

Not available

12

Electrolux/AYP 130968

DEFLECTOR.SHIELD
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

13

Electrolux/AYP 131491

HINGE ROD
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 131267

DEFLECTOR BRKT
(Superseded to 532177563)

$

$

Not available

15

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

19

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

21

Murray 4939M

SUB= 85902

$

$

Not available

22

Electrolux/AYP 127218

LINK.FRONT
(Superseded to 532127218)

$17.99

$

In Stock, only 4 left!

0

23

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

24

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

25

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

26

Electrolux/AYP 135388

LIFT LINK RH

$

$

Not available

27

Electrolux/AYP 135563

"PIN,SPRING"
(Superseded to 532135563)

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

29

Electrolux/AYP 134619

LINK LIFT LH
(Superseded to 532134619)

$34.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 133844

IDLER ARM
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 78158

SUB= 17580520

$

$

Not available

35

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

36

Electrolux/AYP 129861

SUB= 153535
(Superseded to 532129861)

$

$

Not available

37

$

$

Not available

38

Electrolux/AYP 72110614

BOLT
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

41

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

42

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 133502

RETAINER SPACER
(Superseded to 532133502)

$6.49

$

In Stock, only 1 left!

0

44

Electrolux/AYP 133503

IDLER ARM STIFF
(Superseded to 532133503)

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 72110618

BOLT CARRIAGE
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

47

Electrolux/AYP 133835

XMAS TREE FASTNER
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 131340

SHOULDER BOLT
(Superseded to 532131340)

$

$

Not available

49

Electrolux/AYP 133940

SUB= 151785
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 69180

LOCKNUT
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

52

Electrolux/AYP 131845

BRAKE PAD ARM ASM
(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 133944

HARD SMALL WASHER
(Superseded to 532133944)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 131335

SPRING EXTENSION
(Superseded to 532179748)

$5.99

$

In Stock, Qty 7

0

55

Electrolux/AYP 133551

PIVOT ROD
(Superseded to 532133551)

$8.99

$

In Stock, only 1 left!

0

56

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 133504

CLUTCH ROD SECOND
(Superseded to 532133504)

$

$

Not available

58

Electrolux/AYP 134236

SUB= 140088

$

$

Not available

59

Electrolux/AYP 133550

SUB= 142427

$

$

Not available

60

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

61

Electrolux/AYP 133205

TRUNION
(Superseded to 532142028)

$

$

Not available

62

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

63

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

64

Electrolux/AYP 127498

BUSHING
(Superseded to 532127498)

$

$

Not available

65

Electrolux/AYP 131870

RETURN SPRING
(Superseded to 532131870)

$18.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 127847

CLUTCH ARM SECOND
(Superseded to 532127847)

$2.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 128903

SHOULDER BOLT
(Superseded to 532128903)

$6.99

$

In Stock, only 2 left!

0

68

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

70

Electrolux/AYP 127845

SPRING KEEPER
(Superseded to 532127845)

$

$

Not available

71

Electrolux/AYP 132044

SUB= 532132044

$

$

Not available

72

Electrolux/AYP 131813

SUB= 532131813

$

$

Not available

73

Electrolux/AYP 128759

SUB= 918128759
(Superseded to 532153701)

$

$

Not available

74

Electrolux/AYP 12000022

E-RING
(Superseded to 812000022)

$4.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 131874

SUB= 532131874

$

$

Not available

77

$

$

Not available

$

$

Not available

79

Electrolux/AYP 132175

SUB= 136973

$

$

Not available

80

Electrolux/AYP 122512X

SUB= 532122512

$

$

Not available

81

Electrolux/AYP 122364X

SUB= 125925X
(Superseded to 532122364)

$

$

Not available

82

Electrolux/AYP 124526X

SUB= 125925X

$

$

Not available

83

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

84

Electrolux/AYP 110810X

TRUNION LT
(Superseded to 532110810)

$

$

Not available

85

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

86

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$

$

Not available

88

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

89

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

90

Electrolux/AYP 110729X

ROD LIFT LT
(Superseded to 532110729)

$

$

Not available

91

$

$

Not available

92

Electrolux/AYP 134753

STIFFENER BRKT
(Superseded to 532177563)

$

$

Not available

$

$

Not available

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$56.99

$

In Stock, Qty 5

0

Electrolux/AYP 134745

SUB= 145411

$

$

Not available
