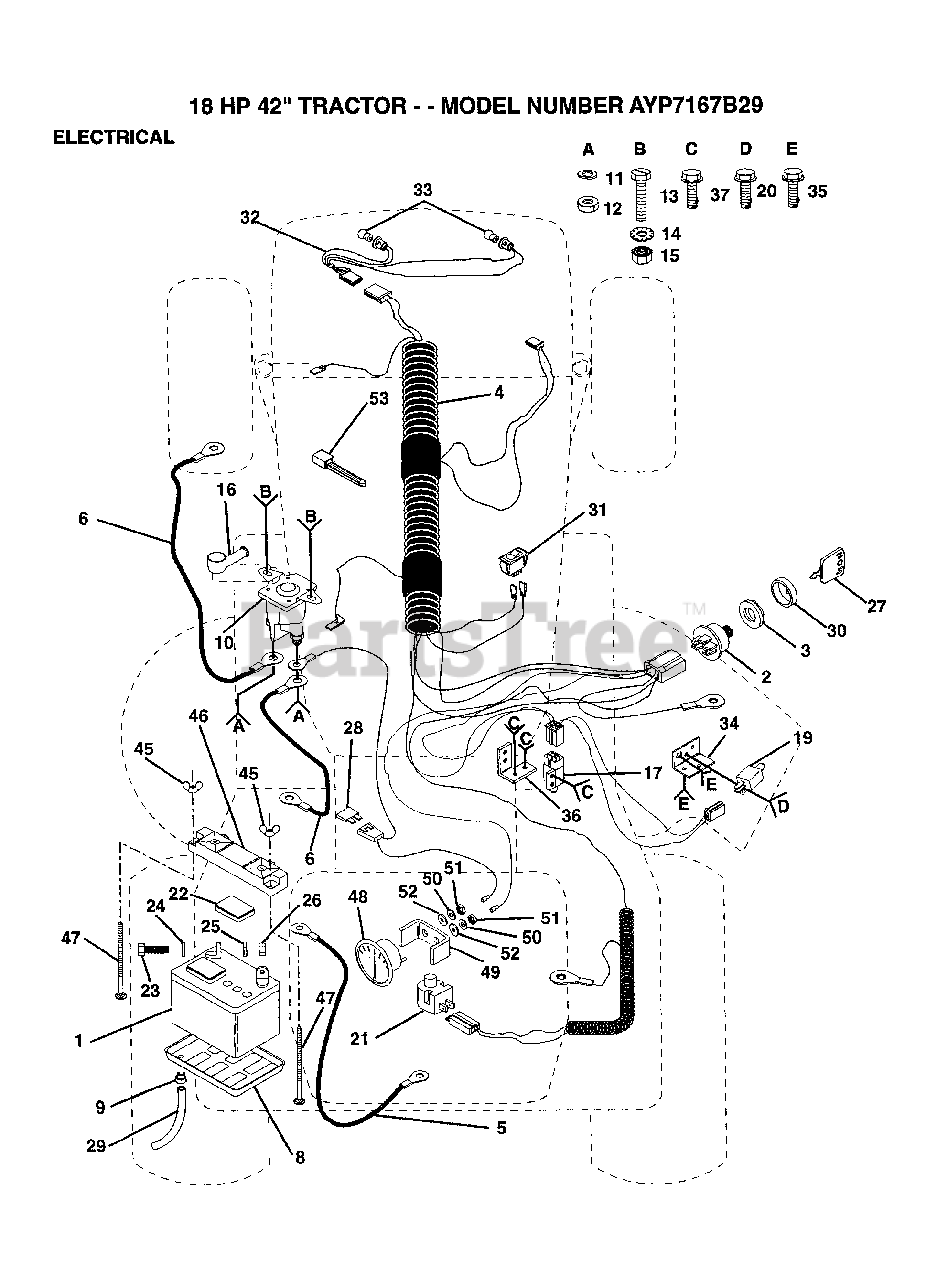

AYP 7167 B29 - Electrolux/AYP Lawn Tractor (1992) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Electrolux/AYP 121265X

SUB= 123899X

$

$

Not available

2

Electrolux/AYP 102972X

SUB= 918102972X
(Superseded to 532102972)

$

$

Not available

3

Electrolux/AYP 124211X

NUT IGNITION
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

$

$

Not available

5

Electrolux/AYP 4207J

CABLE T
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 4206J

CABLE-BATTERY T
(Superseded to 185464)

$

$

Not available

8

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

10

$

$

Not available

11

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

12

Electrolux/AYP 73350400

NUT
(Superseded to 873350400)

$

$

Not available

13

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

14

$2.49

$

Usually ships in 3-10 days

0

15

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

16

Electrolux/AYP 131563

SUB= 154336
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 109553X

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 104445X

SWITCH-INTER. GT
(Superseded to 532104445)

$17.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

21

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

23

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 122147X

KEY
(Superseded to 532122147)

$

$

Not available

28

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

29

$

$

Not available

30

Electrolux/AYP 123620X

SUB= 141226
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, only 4 left!

0

32

Electrolux/AYP 127441X

SUB= 136850
(Superseded to 136850)

$

$

Not available

33

Electrolux/AYP 4152J

HEADLAMP BULB
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 108236X

BRACKET LT
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

36

Electrolux/AYP 130890

SWITCH BRACKET

$

$

Not available

37

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

45

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

46

Electrolux/AYP 102476X

SUB= 150109
(Superseded to 532102476)

$

$

Not available

47

Electrolux/AYP 72240460

BOLT
(Superseded to 872240460)

$6.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 9433R

AMMETER T
(Superseded to 532124900)

$45.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 131708

SUB= 532131708

$

$

Not available

50

Electrolux/AYP 10101000

SUB= 10071000

$

$

Not available

$

$

Not available

52

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 7192J

WIRE TIE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0
