AYP 7158 A49 - Electrolux/AYP Lawn Tractor (1994) LIFT ASSY. Parts Diagram

Lawn Tractor

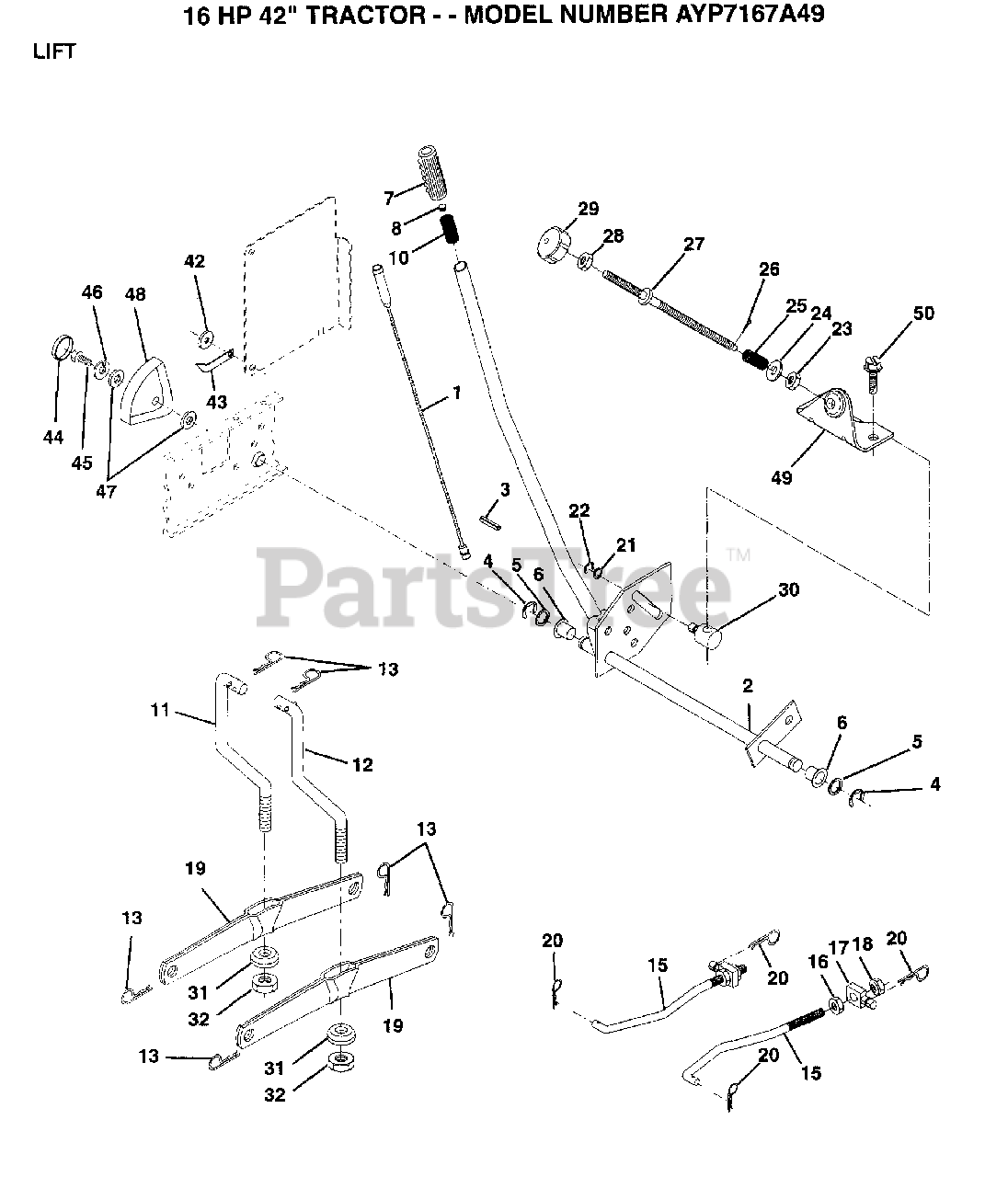

LIFT ASSY. Parts Diagram

  • Title
1

Electrolux/AYP 136973

WIRE ASM
(Superseded to 532136973)

$

$

Not available

2

Electrolux/AYP 140278

HANDLE.LIFT.LH.
(Superseded to 532140278)

$

$

Not available

3

Electrolux/AYP 138284

PIN GROOVE
(Superseded to 532138284)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

5

Electrolux/AYP 19211621

WASHER
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 125631X

GRIP HANDLE
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 122365X

SUB= 125925X

$

$

Not available

10

Electrolux/AYP 122512X

SUB= 532122512

$

$

Not available

11

Electrolux/AYP 139865

SUB= 918139865
(Superseded to 532151141)

$26.99

$

Usually ships in 3-10 days

0

12

Murray 139866

SUB= 151140
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Murray 4939M

SUB= 85902

$

$

Not available

15

Electrolux/AYP 127218

LINK.FRONT
(Superseded to 532127218)

$17.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

19

Electrolux/AYP 139868

ARM SUSP REAR
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

22

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$

$

Not available

24

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

25

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

27

Electrolux/AYP 126971X

SUB= 532126971
(Superseded to 532126971)

$

$

Not available

28

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 138057

KNOB INF 3/8-16
(Superseded to 532138057)

$8.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 110810X

TRUNION LT
(Superseded to 532110810)

$

$

Not available

31

Electrolux/AYP 140302

BEARING PVT LH
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 73810600

NUT.LOCK.3/8-24
(Superseded to 873810600)

$4.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 120529X

WASHER T
(Superseded to 532120529)

$2.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 123933X

SUB= 123933X505

$

$

Not available

44

Electrolux/AYP 123935X

"PLUG,HOLE"
(Superseded to 532123935)

$5.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 74780516

SUB= 77394
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 19112410

WASHER
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 123934X

HEIGHT INDICATOR
(Superseded to 532123934)

$

$

Not available

49

Electrolux/AYP 140168

BRACKET STOP INF
(Superseded to 532140168)

$

$

Not available

50

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0
