AYP 7148 A49 - Electrolux/AYP Lawn Tractor (1994) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

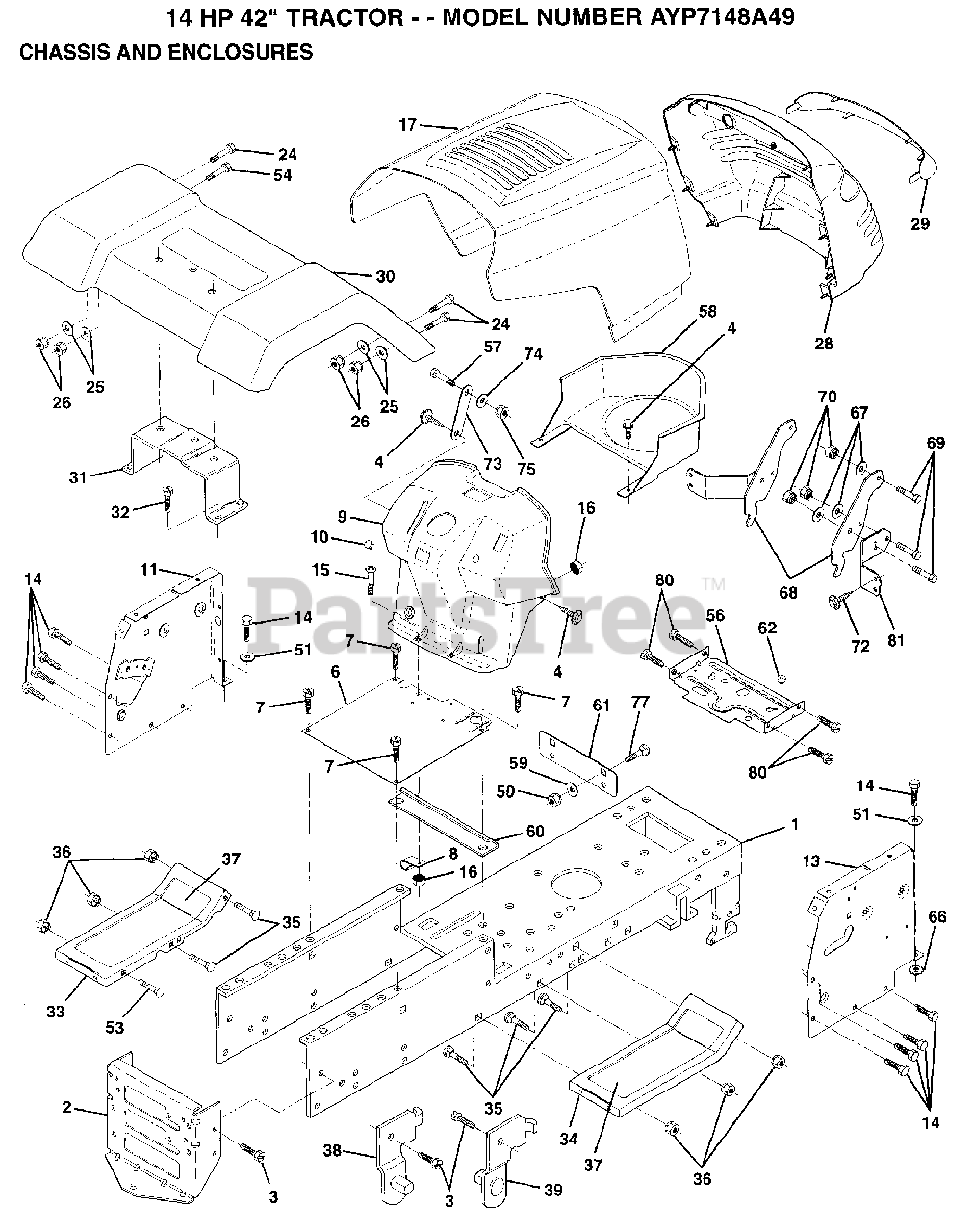

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 140341

SUB= 145501

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 140169X016

SADDLE LT SADDLE SHIFT

$

$

Not available

7

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

8

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

9

Electrolux/AYP 140622

SUB= 532142467
(Superseded to 532142467)

$

$

Not available

10

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 140311

PANEL ASM DASH
(Superseded to 155931)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 140178

SUB= 146959
(Superseded to 532140178)

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

16

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

17

Electrolux/AYP 139394X505

SUB= 159639X505
(Superseded to 583682701)

$80.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 1 left!

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 140141

SUB= 157373
(Superseded to 532179101)

$

$

Not available

29

Electrolux/AYP 140278

HANDLE.LIFT.LH.
(Superseded to 532140278)

$

$

Not available

30

Electrolux/AYP 109872X505

FENDER
(Superseded to 583689101)

$80.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 136619

BRKT FENDER
(Superseded to 532136619)

$

$

Not available

32

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 105465X505

SUB= 145244X505

$

$

Not available

34

Electrolux/AYP 105464X505

SUB= 145243X505

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

50

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

53

Murray 72140608

SUB= 72110608

$

$

Not available

54

Electrolux/AYP 74760614

SUB= 74760616

$

$

Not available

56

Electrolux/AYP 140281

SUB= 140281X431

$

$

Not available

57

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 140806

DUCT AIR 12-15H
(Superseded to 532150127)

$

$

Not available

59

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

60

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

61

Electrolux/AYP 139978

PLATE EXTEN FEND

$

$

Not available

62

Murray 124028X

SUB= 532124028

$

$

Not available

66

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 140219

HING PICK-OFF HD
(Superseded to 532140219)

$

$

Not available

69

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

70

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

72

Electrolux/AYP 17030814

SUB= 91817030814
(Superseded to 532161464)

$

$

Not available

73

Electrolux/AYP 142779

BRACE SUPT DASH
(Superseded to 532142779)

$

$

Not available

74

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 143007

BRACKET GRILLE
(Superseded to 532143007)

$

$

Not available
