AYP 7147 A29 - Electrolux/AYP Lawn Tractor (1992) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

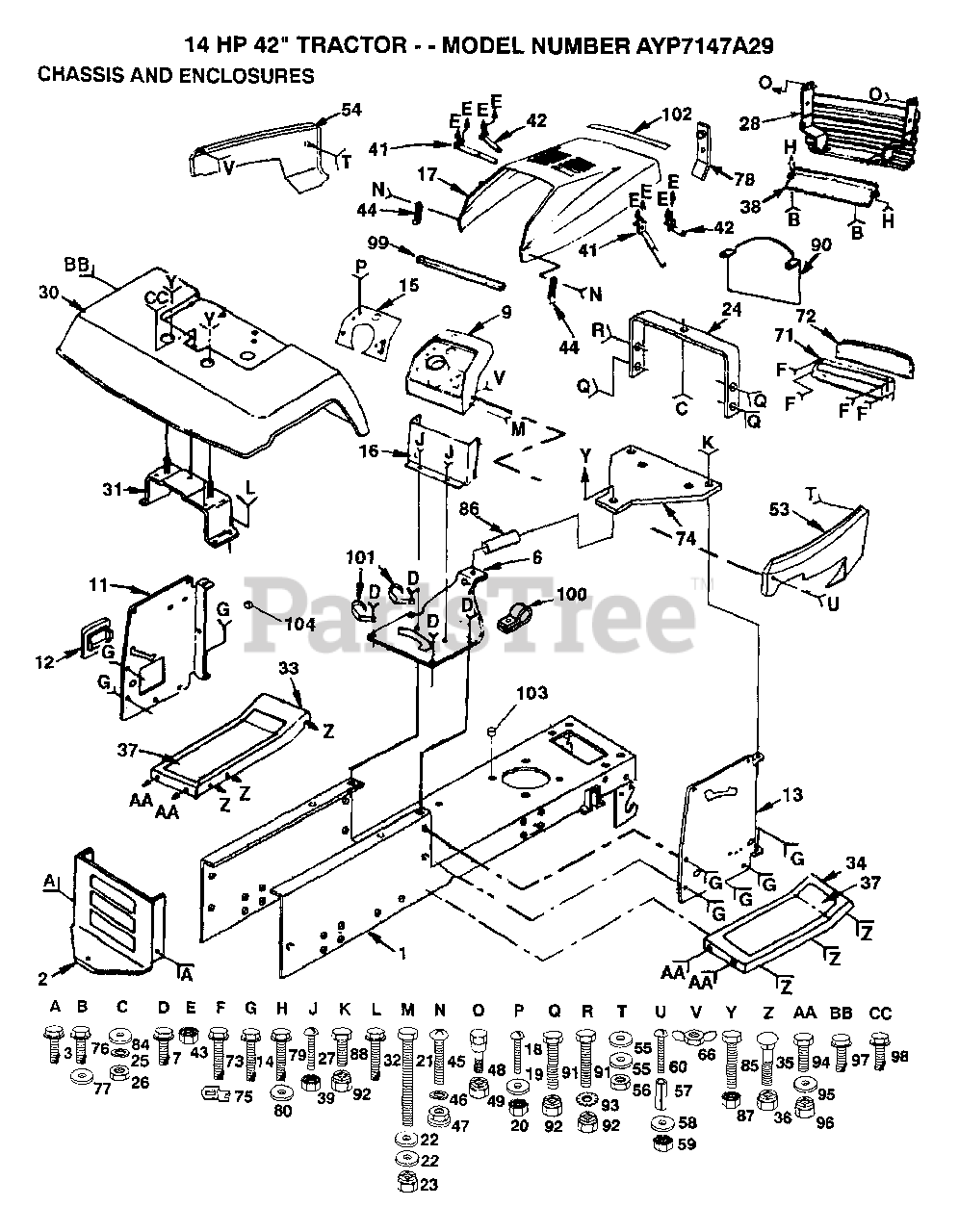

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 131052

CHASSIS WELDMENT

$

$

Not available

2

Electrolux/AYP 130805

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

$16.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

9

$

$

Not available

11

Electrolux/AYP 132178

DASH PANEL LH

$21.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

13

Electrolux/AYP 132069

SUB= 532132069

$

$

Not available

14

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

16

$12.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 132635X505

SUB= 150301X505

$

$

Not available

18

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

19

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

23

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 124130X

SUPPORT ASS'Y
(Superseded to 532124130)

$

$

Not available

25

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

28

Electrolux/AYP 131716X

SUB= 532131716

$

$

Not available

30

Electrolux/AYP 109872X505

FENDER
(Superseded to 583689101)

$80.99

$

Usually ships in 3-10 days

0

31

$

$

Not available

32

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 105465X505

SUB= 145244X505

$

$

Not available

34

Electrolux/AYP 105464X505

SUB= 145243X505

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

38

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

41

$

$

Not available

42

$

$

Not available

43

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

44

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 14

0

45

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 11

0

47

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

48

$

$

Not available

49

Electrolux/AYP 76380400

SUB= 73690400

$

$

Not available

53

$58.99

$

Usually ships in 3-10 days

0

54

$59.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 2 left!

0

56

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

57

Electrolux/AYP 7206J

SPACER LT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

58

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 74981020

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

66

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

71

Electrolux/AYP 124392X417

SUB= 147717
(Superseded to 583678801)

$

$

Not available

72

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

74

$

$

Not available

75

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

78

Electrolux/AYP 132644

SUB= 532132644

$

$

Not available

79

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

80

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 2 left!

0

85

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

86

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 133685

BAFFLE HOOD VERT

$9.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

92

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

95

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

96

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 105037X

FOAM-STRIP LT
(Superseded to 532104915)

$

$

Not available

100

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

101

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

102

Electrolux/AYP 104915X

SUB= 105037X

$

$

Not available

103

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

104

$

$
