AYP 7143 B49 - Electrolux/AYP Lawn Tractor (1994) ENGINE/B&S Parts Diagram

Lawn Tractor

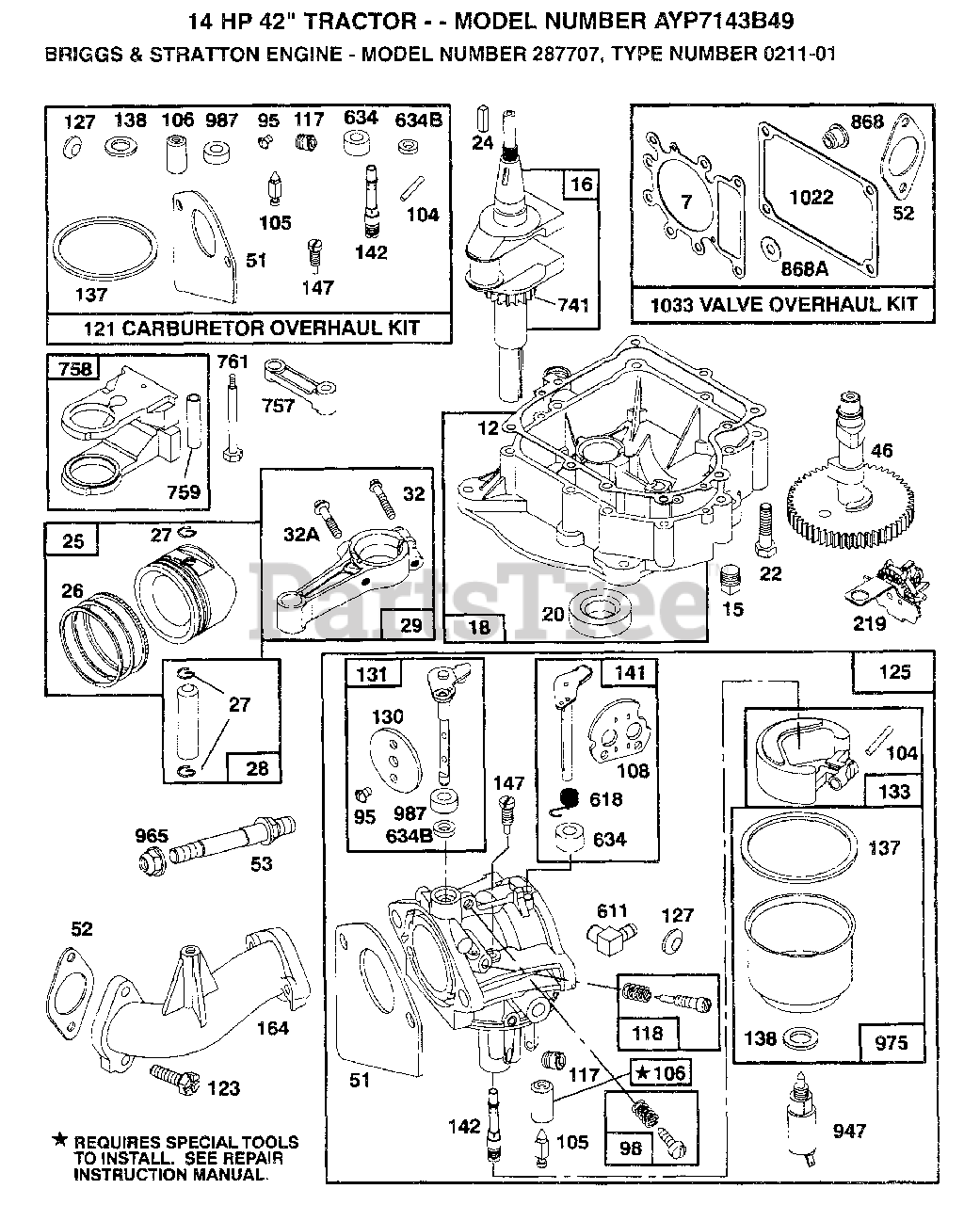

ENGINE/B&S Parts Diagram

  • Title

1

Briggs & Stratton 496412

CYLINDER ASSY

$537.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 797673)

$18.99

$

In Stock, Qty 7

0

3

Briggs & Stratton 391086

SEAL, OIL
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 495858

HEAD, CYLINDER
(Superseded to 796026)

$226.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272614

GASKET, CYLINDER HEAD
(Superseded to 273280S)

$10.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495735

BREATHER ASSY

$63.99

$

In Stock, Qty 6

0

9

Briggs & Stratton 27803

GASKET, VALVE COVER
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

SCREW, STEMS
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 281246

TUBE, BREATHER
(Superseded to 691328)

$15.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 271916

GASKET, CRANKCASE COVER 1/64"
(Superseded to 692226)

$6.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 271997

GASKET, CRANKCASE COVER .005"
(Superseded to 692406)

$9.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 271996

GASKET, CRANKCASE COVER .009"
(Superseded to 692405)

$6.49

$

In Stock, only 1 left!

0

13

Briggs & Stratton 94728

SCREW, CYLINDER HEAD
(Superseded to 84001963)

$3.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94239

PLUG, OIL DRAIN
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 495162

CRANKSHAFT
(Superseded to 693944)

$246.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 94196

KEY, TIMING GEAR
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

18

Briggs & Stratton 494238

BASE, ENGINE

$

$

Not available

20

Briggs & Stratton 291675

SEAL, OIL
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94624

SCREW, SEMS, BASE MOUNTING
(Superseded to 692125)

$4.99

$

In Stock, only 4 left!

0

23

Briggs & Stratton 492326

FLYWHEEL & RING GEAR ASSY, MAGNETO
(Superseded to 693557)

$

$

Not available

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 495860

PISTON ASSY, STANDARD SIZE
(Superseded to 499284)

$

$

Not available

25

Electrolux/AYP 495977

PISTON ASSY .010" OVERSIZE

$

$

Not available

25

Briggs & Stratton 495978

PISTON ASSY .020" OVERSIZE
(Superseded to 499292)

$

$

Not available

25

Electrolux/AYP 495979

PISTON ASSY .030" OVERSIZE

$

$

Not available

26

Briggs & Stratton 495854

RING SET, PISTON, STANDARD SIZE

$79.99

$

In Stock, Qty 5

0

26

Briggs & Stratton 495852

RING SET, PISTON, .010" OVERSIZE

$29.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 495851

RING SET, PISTON, .020" OVERSIZE

$64.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 495855

RING SET, PISTON, .030" OVERSIZE

$32.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 260924

LOCK, PISTON PIN
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

PIN ASSEMBLY, PISTON, STANDARD

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

PIN ASSEMBLY, PISTON .005" OVER

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 494504

ROD ASSY, CONNECTING
(Superseded to 494504S)

$112.99

$

In Stock, Qty 5

0

29

Briggs & Stratton 495490

ROD ASSY, CONNECTING

$

$

Not available

33

Briggs & Stratton 495856

VALVE, EXHAUST
(Superseded to 792868)

$35.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94695

SCREW
(Superseded to 791118)

$4.99

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 94648

SCREW
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 495857

VALVE, INTAKE
(Superseded to 791935)

$27.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262811

SPRING, VALVE
(Superseded to 691279)

$5.99

$

In Stock, Qty 10

0

37

Briggs & Stratton 224502

GUARD, FLYWHEEL
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 224641

RETAINER, VALVE SPRING
(Superseded to 499586)

$7.49

$

In Stock, Qty 18

0

45

Briggs & Stratton 262411

TAPPET, VALVE
(Superseded to 690564)

$9.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 494433

GEAR CAM
(Superseded to 793880)

$96.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 272465

GASKET, CARBURETOR (CARBURETOR TO ELBOW)
(Superseded to 692284)

$4.99

$

In Stock, only 3 left!

0

52

Briggs & Stratton 272569

GASKET, CARBURETOR
(Superseded to 272569S)

$4.99

$

In Stock, only 1 left!

0

53

Briggs & Stratton 94637

STUD, CARBURETOR MOUNTING
(Superseded to 690227)

$7.99

$

In Stock, Qty 6

0

75

Briggs & Stratton 224061

WASHER, SPRING
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

78

Briggs & Stratton 94626

SCREW, SEMS
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

SCREW, THROTTLE
(Superseded to 691636)

$3.99

$

In Stock, only 4 left!

0

98

Briggs & Stratton 495800

SCREW, IDLE SPEED

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

PIN, FLOAT HINGE
(Superseded to 690525)

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

VALVE ASSY, INLET NEEDLE
(Superseded to 231855S)

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 231854

INLET VALVE SEAT
(Superseded to 690577)

$7.99

$

In Stock, Qty 6

0

108

Briggs & Stratton 224540

VALVE, CHOKE
(Superseded to 692344)

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 231858

JET, NEEDLE VALVE
(Superseded to 697228)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 495932

VALVE, NEEDLE

$12.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 495799

IN CARBURETOR OVERHAUL KIT
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

123

Briggs & Stratton 94616

SCREW, ELBOW MOUNTING
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 495935

CARBURETOR ASSEMBLY
(Superseded to 799727)

$

$

Not available

127

REFER TO IMAGE

$

$

Not available

130

Briggs & Stratton 224539

VALVE, THROTTLE
(Superseded to 691750)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 494379

SHAFT & LEVER, THROTTLE
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

FLOAT, CARBURETOR

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

GASKET, FLOAT BOWL
(Superseded to 281165S)

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

WASHER, FLOAT BOWL SCREW
(Superseded to 692255)

$5.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 495931

SHAFT & LEVER, CHOKE
(Superseded to 790902)

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 231859

NOZZLE, CARBURETOR
(Superseded to 231990)

$29.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 231794

PILOT, JET
(Superseded to 497472)

$22.99

$

Usually ships in 2-12 days

0

164

Electrolux/AYP 214053

ELBOW CARB

$

$

Not available

166

Briggs & Stratton 94555

STUD, ROCKER ARM
(Superseded to 691095)

$7.99

$

In Stock, Qty 20+

0

171

Briggs & Stratton 281051

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 692297)

$10.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 393815

HOSE (CUT TO SUIT)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93535

SCREW, HEX HEAD
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

192

Briggs & Stratton 492160

SCREW ASSY, ROCKER ARM
(Superseded to 691986)

$11.99

$

In Stock, Qty 18

0

201

Briggs & Stratton 262767

LINK, GOVERNOR
(Superseded to 691841)

$9.49

$

In Stock, Qty 12

0

209

Briggs & Stratton 260695

SPRING, GOVERNOR
(Superseded to 796260)

$4.99

$

In Stock, Qty 12

0

216

Briggs & Stratton 262766

LINK, CHOKE
(Superseded to 691840)

$8.99

$

In Stock, Qty 18

0

219

Briggs & Stratton 490815

GOVERNOR GEAR
(Superseded to 691968)

$37.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 495611

PLATE, GOVERNOR CONTROL
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

224

Briggs & Stratton 94729

SCREW, SEMS, HEX HEAD
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

225

Briggs & Stratton 231058

CRANK, GOVERNOR
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 493935

LEVER ASSY, GOVERNOR
(Superseded to 691374)

$26.99

$

In Stock, only 2 left!

0

230

Briggs & Stratton 94742

WASHER, GOVERNOR CRANK, 1/4" I.D.
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 262785

SPRING, GOVERNOR LINK
(Superseded to 691842)

$11.99

$

In Stock, Qty 20+

0

238

Briggs & Stratton 262836

CAP, VALVE
(Superseded to 691843)

$8.49

$

In Stock, Qty 20+

0

240

Briggs & Stratton 394358

FILTER, FUEL
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 221535

CLAMP
(Superseded to 691024)

$3.99

$

In Stock, only 3 left!

0

284

Briggs & Stratton 94326

SCREW, AIR CLEANER
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

284-A

Briggs & Stratton 94073

SCREW, HEX HEAD
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

294

Briggs & Stratton 810068

SCREW, SET
(Superseded to 691986)

$11.99

$

In Stock, Qty 18

0

304

Briggs & Stratton 496281

HOUSING, BLOWER
(Superseded to 695065)

$217.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94513

SCREW, SEMS, AIR CLEANER
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

305-A

Briggs & Stratton 94734

SCREW
(Superseded to 692127)

$6.49

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 224696

SHIELD CYLINDER
(Superseded to 698454)

$47.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94623

SCREW, SEMS, CYLINDER SHIELD MTG.
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

333

Briggs & Stratton 495859

ARMATURE, MAGNETO
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 93381

SCREW, SEM, ARMATURE MOUNTING
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 491055

PLUG, SPARK
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

SUB= 69485
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

356

Briggs & Stratton 496070

WIRE ASSEMBLY
(Superseded to 692037)

$35.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 495993

GASKET SET

$86.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

423

Briggs & Stratton 94073

SCREW, HEX HEAD
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

445

Briggs & Stratton 493909

CARTRIDGE, AIR CLEANER
(Superseded to 496894S)

$19.99

$

In Stock, only 3 left!

0

455

Briggs & Stratton 222561

CUP, SCREEN MOUNTING
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 493903

KNOB, AIR CLEANER
(Superseded to 691668)

$5.49

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 224948

SCREEN, FLUSH ROTATING
(Superseded to 690492)

$13.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 393474

STATOR, ALTERNATOR, DUAL CIRCUIT
(Superseded to 592831)

$101.99

$

In Stock, Qty 7

0

482

Briggs & Stratton 93621

SCREW, SEMS
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 495230

CAP AND DIPSTICK, OIL FILLER
(Superseded to 692014)

$25.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 68838

SEAL, FILLER TUBE
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 496113

TUBE, OIL FILLER
(Superseded to 691398)

$21.99

$

In Stock, only 1 left!

0

535

Briggs & Stratton 272403

ELEMENT, AIR CLEANER
(Superseded to 272403S)

$3.99

$

In Stock, Qty 18

0

537

Briggs & Stratton 281106

O-RING, AIR CLEANER
(Superseded to 691917)

$4.49

$

In Stock, Qty 20+

0

552

Briggs & Stratton 231597

BUSHING, GOVERNOR CRANK, 1/4" I.D.
(Superseded to 491986)

$

$

Not available

562

Briggs & Stratton 92613

BOLT, GOVERNOR LEVER

$

$

Not available

592

Briggs & Stratton 231082

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

601

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

611

Briggs & Stratton 493496

ELBOW, FUEL PIPE
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 93306

COTTER, HAIR PIN
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

RETAINER, E-RING

$5.99

$

In Stock, only 3 left!

0

618

Briggs & Stratton 262803

SPRING, CHOKE RETURN

$8.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 281168

SEAL, CHOKE SHAFT
(Superseded to 690597)

$6.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 491323

SEAL, GOVERNOR
(Superseded to 692407)

$7.99

$

In Stock, Qty 7

0

634B

Briggs & Stratton 281167

WASHER, THROTTLE SHAFT
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

635

Briggs & Stratton 280872

ELBOW, SPARK PLUG
(Superseded to 691909)

$4.99

$

In Stock, Qty 5

0

646

Briggs & Stratton 224546

BRACE, AIR CLEANER

$

$

Not available

657

Briggs & Stratton 93496

SCREW, SEMS
(Superseded to 690804)

$

$

Not available

668

Briggs & Stratton 280848

SPACER
(Superseded to 691323)

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 230192

PIN, DOWEL
(Superseded to 690959)

$6.99

$

In Stock, only 1 left!

0

726

Briggs & Stratton 392134

GEAR, RING
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

COVER, STARTER

$26.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 262932

GEAR, TIMING
(Superseded to 691284)

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 213998

LINK, COUNTERWEIGHT
(Superseded to 691714)

$

$

Not available

758

Briggs & Stratton 399891

COUNTERWEIGHT ASSY
(Superseded to 692423)

$222.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 2 left!

0

761

Briggs & Stratton 94593

SCREW, COUNTERWEIGHT
(Superseded to 691096)

$5.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

SEAL, OIL FILLER CAP
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 496415

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 597130)

$47.99

$

In Stock, only 2 left!

0

851

Briggs & Stratton 224110

TERMINAL, IGNITION CABLE
(Superseded to 692424)

$5.99

$

In Stock, Qty 13

0

868

Briggs & Stratton 494435

SEAL ASSEMBLY, VALVE
(Superseded to 690968)

$10.99

$

In Stock, Qty 20+

0

868A

Briggs & Stratton 272610

GASKET, VALVE
(Superseded to 690968)

$10.99

$

In Stock, Qty 20+

0

871

Electrolux/AYP 262835

BUSHING, GUIDE (INTAKE & EXHAUST)

$

$

Not available

872

Briggs & Stratton 281104

COVER, AIR CLEANER
(Superseded to 691916)

$

$

Not available

875

Briggs & Stratton 495862

BODY, AIR CLEANER
(Superseded to 696129)

$

$

Not available

877

Briggs & Stratton 393456

DIODE & CONNECTOR ASSY

$20.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 495739

SOLENOID
(Superseded to 692734)

$102.99

$

In Stock, Qty 7

0

965

Briggs & Stratton 94108

LOCKNUT, AIR CLEANER MOUNTING
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

975

Briggs & Stratton 495933

BOWL ASSEMBLY, CARBURETOR

$

$

Not available

977

Briggs & Stratton 494385

CARBURETOR GASKET KIT
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 281166

SEAL, THROTTLE SHAFT
(Superseded to 691326)

$5.49

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 281355

FAN, FLYWHEEL
(Superseded to 695493)

$92.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224413

RETAINER, FAN
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 272475

GASKET, COVER
(Superseded to 272475S)

$6.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 224552

COVER, ROCKER ARM
(Superseded to 691192)

$

$

Not available

1026

Briggs & Stratton 494432

ROD, PUSH, INTAKE
(Superseded to 692003)

$7.99

$

In Stock, Qty 20+

0

1026

Briggs & Stratton 495136

ROD, PUSH, EXHAUST
(Superseded to 692011)

$9.49

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 224554

ARM, ROCKER
(Superseded to 691751)

$9.49

$

Usually ships in 2-12 days

0

1033

Briggs & Stratton 495992

VALVE OVERHAUL KIT

$64.99

$

In Stock, only 2 left!

0

1034

Briggs & Stratton 495248

GUIDE ASSEMBLY, PUSH ROD
(Superseded to 690822)

$9.49

$

In Stock, only 2 left!

0

1044

Briggs & Stratton 94673

SCREW, SHOULDER, HEX HEAD
(Superseded to 698139)

$5.99

$

In Stock, Qty 7

0

1054

Briggs & Stratton 270723

TIE, CABLE
(Superseded to 280275)

$4.49

$

Usually ships in 2-12 days

0
