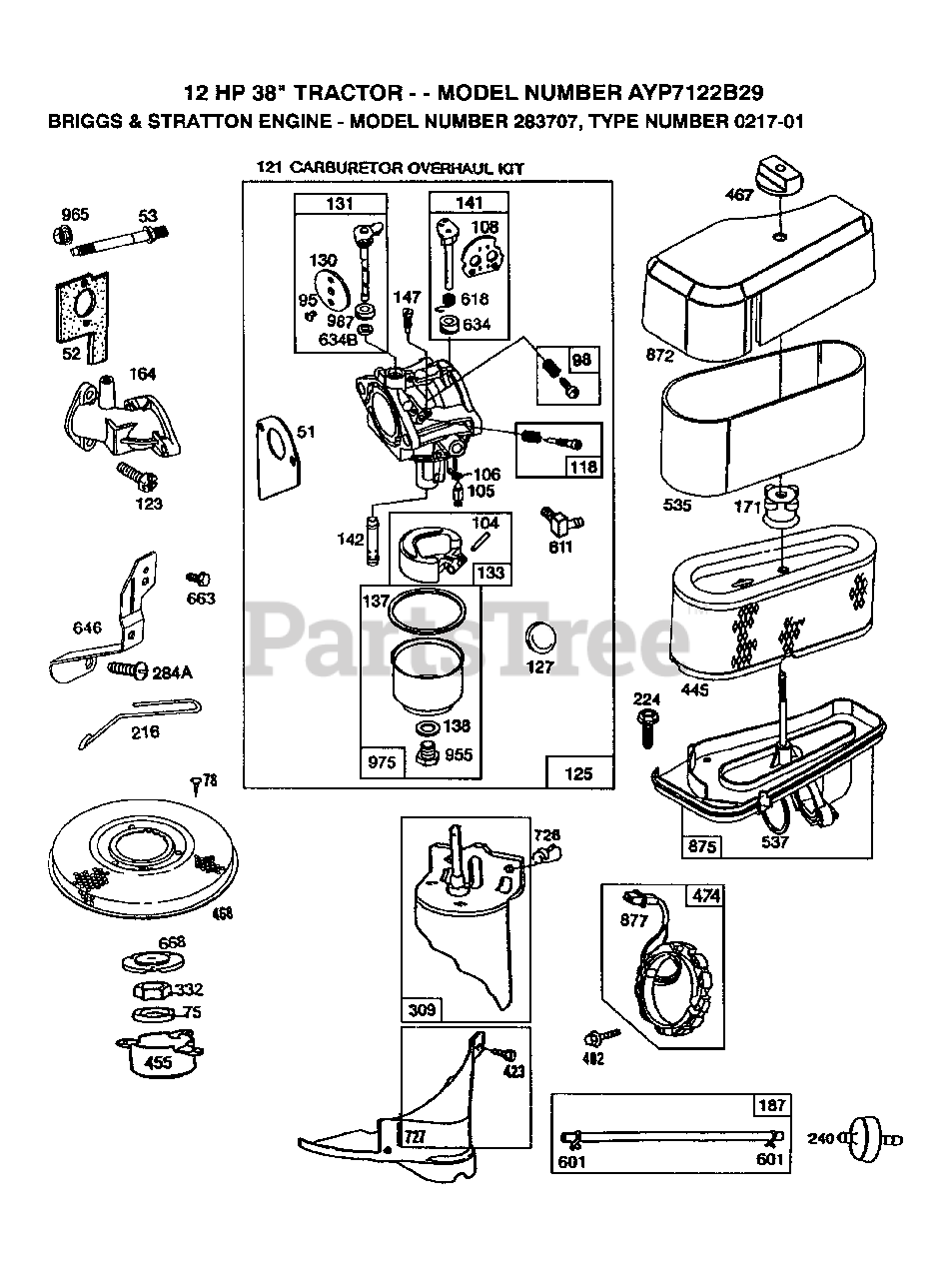

AYP 7122 B29 - Electrolux/AYP Lawn Tractor (1992) ENGINE/B&S Parts Diagram

Lawn Tractor

ENGINE/B&S Parts Diagram

  • Title

51

Briggs & Stratton 272465

GASKET, CARBURETOR (CARBURETOR TO ELBOW)
(Superseded to 692284)

$4.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270872

GASKET, CARBURETOR
(Superseded to 498869)

$5.49

$

In Stock, Qty 10

0

53

Briggs & Stratton 94637

STUD, CARBURETOR MOUNTING
(Superseded to 690227)

$7.99

$

In Stock, Qty 6

0

75

Briggs & Stratton 224061

WASHER, SPRING
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 93805

SCREW, SEMS
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

SCREW, THROTTLE
(Superseded to 691636)

$3.99

$

In Stock, only 1 left!

0

98

Briggs & Stratton 494382

SCREW, IDLE SPEED
(Superseded to 398185)

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231789

PIN, FLOAT HINGE
(Superseded to 690525)

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231790

VALVE ASSEMBLY, INLET NEEDLE
(Superseded to 494788)

$9.99

$

In Stock, only 2 left!

0

106

Briggs & Stratton 281169

INLET, VALVE SEAT
(Superseded to 691901)

$8.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 494383

VALVE, NEEDLE

$13.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 494384

CARBURETOR OVERHAUL KIT
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

123

Briggs & Stratton 94616

SCREW, ELBOW MOUNTING
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 494502

CARBURETOR ASSEMBLY
(Superseded to 799728)

$

$

Not available

127

REFER TO IMAGE

$

$

Not available

130

Briggs & Stratton 224539

VALVE, THROTTLE
(Superseded to 691750)

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494379

SHAFT & LEVER, THROTTLE
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

FLOAT, CARBURETOR

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

GASKET, FLOAT BOWL
(Superseded to 281165S)

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

WASHER, FLOAT BOWL SCREW
(Superseded to 692255)

$5.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 494380

SHAFT AND LEVER, CHOKE
(Superseded to 790902)

$33.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 494537

NOZZLE/JET, CARBURETOR
(Superseded to 691425)

$29.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231794

PILOT, JET
(Superseded to 497472)

$22.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 213819

ELBOW, INTAKE
(Superseded to 691711)

$

$

Not available

171

Briggs & Stratton 281051

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 692297)

$10.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 393815

HOSE (CUT TO SUIT)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 262766

LINK, CHOKE
(Superseded to 691840)

$8.99

$

In Stock, Qty 20+

0

224

Briggs & Stratton 94513

SCREW, SEMS, AIR CLEANER
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

240

Briggs & Stratton 394358

FILTER, FUEL
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

284A

Briggs & Stratton 94326

SCREW, AIR CLEANER
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

309

REFER TO IMAGE

$

$

Not available

309

Briggs & Stratton 394805

MOTER AND DRIVE ASSY.
(Superseded to 497595)

$110.99

$

In Stock, Qty 20+

0

332

Briggs & Stratton 92284

NUT, FLYWHEEL
(Superseded to 690662)

$5.99

$

Usually ships in 2-12 days

0

423

Briggs & Stratton 94073

SCREW, HEX HEAD
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

445

Briggs & Stratton 493909

CARTRIDGE, AIR CLEANER
(Superseded to 496894S)

$19.99

$

In Stock, Qty 6

0

455

Briggs & Stratton 222561

CUP, SCREEN MOUNTING
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 493903

KNOB, AIR CLEANER
(Superseded to 691668)

$5.49

$

In Stock, only 3 left!

0

468

Briggs & Stratton 222562

SCREEN, FLUSH ROTATING
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 393474

STATOR, ALTERNATOR, DUAL CIRCUIT
(Superseded to 592831)

$101.99

$

In Stock, Qty 9

0

482

Briggs & Stratton 93621

SCREW, SEMS
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 272403

ELEMENT, AIR CLEANER
(Superseded to 272403S)

$3.99

$

In Stock, Qty 20+

0

537

Briggs & Stratton 281106

O-RING, AIR CLEANER
(Superseded to 691917)

$4.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

611

Briggs & Stratton 494451

FUEL INLET TUBE
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 262803

SPRING, CHOKE RETURN

$8.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 281168

SEAL, CHOKE SHAFT
(Superseded to 690597)

$6.49

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 281167

WASHER, THROTTLE SHAFT
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

646

Briggs & Stratton 224546

BRACE, AIR CLEANER

$

$

Not available

663

Briggs & Stratton 94620

SCREW, HEX HEAD
(Superseded to 691693)

$3.99

$

In Stock, Qty 12

0

668

Briggs & Stratton 280848

SPACER
(Superseded to 691323)

$4.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

GEAR, RING
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

COVER, STARTER

$26.99

$

In Stock, only 1 left!

0

872

Briggs & Stratton 281104

COVER, AIR CLEANER
(Superseded to 691916)

$

$

Not available

875

Briggs & Stratton 494237

BODY, AIR CLEANER
(Superseded to 696129)

$

$

Not available

877

Briggs & Stratton 393456

DIODE & CONNECTOR ASSY

$20.99

$

In Stock, only 1 left!

0

955

Briggs & Stratton 94642

SCREW, FUEL BOWL
(Superseded to 691657)

$7.99

$

In Stock, only 1 left!

0

965

Briggs & Stratton 94108

LOCKNUT, AIR CLEANER MOUNTING
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

975

Briggs & Stratton 494378

BOWL ASSEMBLY, CARBURETOR
(Superseded to 495933)

$

$

Not available

987

Briggs & Stratton 281166

SEAL, THROTTLE SHAFT
(Superseded to 691326)

$5.49

$

Usually ships in 2-12 days
