AYP 7122 A29 - Electrolux/AYP Lawn Tractor (1992) FENDER/CHASSIS Parts Diagram

Lawn Tractor

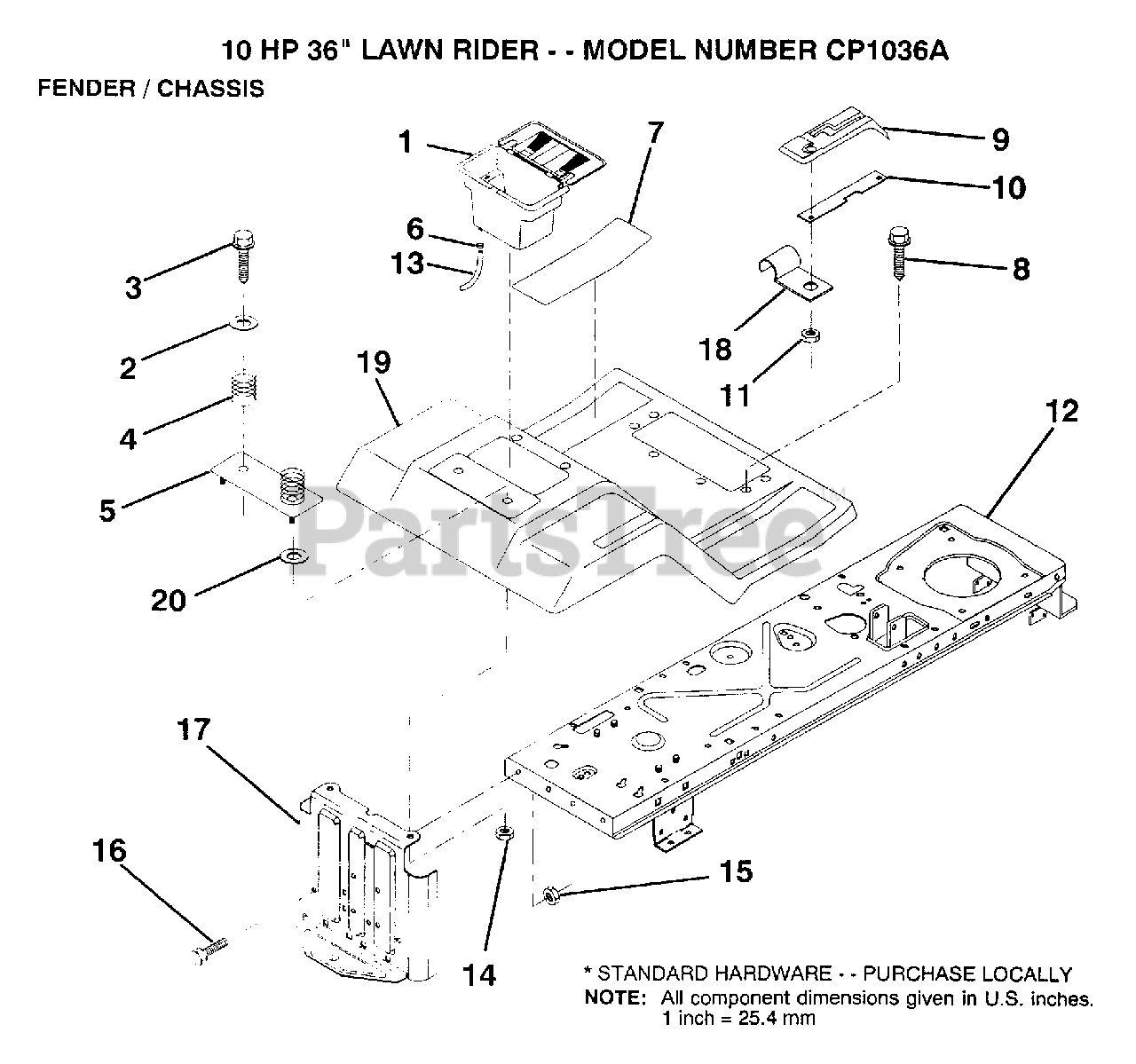

FENDER/CHASSIS Parts Diagram

  • Title

1

Electrolux/AYP 129965

SUB= 156417

$

$

Not available

2

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

5

Electrolux/AYP 127115X417

FENDER PLATE

$

$

Not available

6

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124144X

PAD FOOTREST
(Superseded to 134214)

$

$

Not available

8

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 126993X

CONSOLE SHFT 4SP
(Superseded to 532126993)

$

$

Not available

10

Electrolux/AYP 124602X

SUB= 139783

$

$

Not available

11

Electrolux/AYP 124346X

NUT
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 131880

CHASSIS

$62.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 105687X

SUB= 109238X

$

$

Not available

14

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

15

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 127880

DRAWBAR
(Superseded to 539127880)

$109.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126470X

"CLIP,INSULATOR"
(Superseded to 532126470)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 128083X417

SUB= 140955X417

$

$

Not available

20

Electrolux/AYP 19091413

WASHER

$2.49

$

Usually ships in 3-10 days

0
