AYP 3487 A79 - Electrolux/AYP Tiller (1997) TRANSMISSION Parts Diagram

Tiller

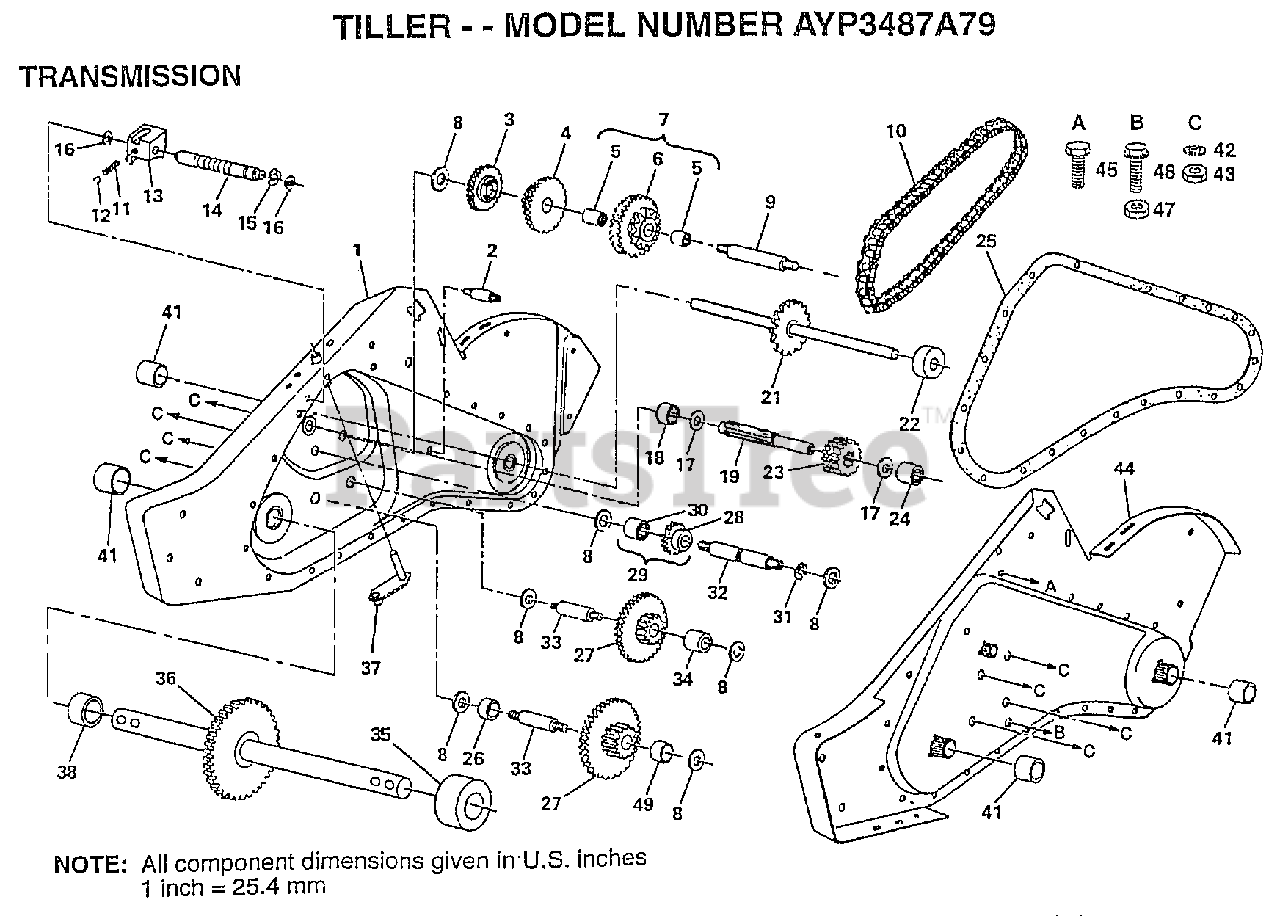

TRANSMISSION Parts Diagram

  • Title

Electrolux/AYP 150674

SUB= 162169
(Superseded to 532183655)

$910.99

$

Usually ships in 3-10 days

0

1

Electrolux/AYP 150430

SUB= 162170
(Superseded to 532162170)

$358.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 8370J

BOLT TI
(Superseded to 532008370)

$

$

Not available

3

Electrolux/AYP 8547J

REVERSE GEAR TI
(Superseded to 532008547)

$

$

Not available

4

Electrolux/AYP 8546J

CLUSTER GEAR TI
(Superseded to 532008546)

$

$

Not available

5

Electrolux/AYP 100413K

"CRT, BEARING"
(Superseded to 585695501)

$24.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 674A291

SUB= 674A290

$

$

Not available

7

Electrolux/AYP 674A290

SPROCKET ASSY TI
(Superseded to 532144564)

$

$

Not available

8

Electrolux/AYP 4358J

WASHER
(Superseded to 532004358)

$7.49

$

In Stock, only 3 left!

0

9

Electrolux/AYP 8358J

REDUCTION SHFT TI
(Superseded to 532008358)

$17.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 8371J

CHAIN TI
(Superseded to 532008371)

$66.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 100371K

SPRING-SHIFT CRT
(Superseded to 532100371)

$7.49

$

In Stock, only 4 left!

0

12

Electrolux/AYP 7392M

SUB= 100482K
(Superseded to 532007392)

$

$

Not available

13

Electrolux/AYP 8353J

SHIFT FORK TI
(Superseded to 532008353)

$34.99

$

In Stock, Qty 7

0

14

Electrolux/AYP 8354J

SHIFT SHAFT TI
(Superseded to 532008354)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

16

Electrolux/AYP 154467

WASHER SEAL
(Superseded to 532154467)

$7.49

$

In Stock, only 2 left!

0

17

Electrolux/AYP 1370H

"T, BEARING"
(Superseded to 532001370)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 4895H

"TI, BEARING"
(Superseded to 532004895)

$17.99

$

In Stock, Qty 14

0

19

Electrolux/AYP 150695

SHAFT INPUT
(Superseded to 532150695)

$66.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 105378X

SHAFT TINE CRT
(Superseded to 532105378)

$

$

Not available

22

Electrolux/AYP 106181X

SPACER CRT
(Superseded to 532106181)

$14.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 8359J

INPUT PINION TI
(Superseded to 532008359)

$

$

Not available

24

Electrolux/AYP 5020J

NEEDLE BRNG LT
(Superseded to 532005020)

$17.99

$

In Stock, Qty 5

0

25

Electrolux/AYP 8372J

GEARCASE GSKT TI
(Superseded to 532008372)

$

$

Not available

26

Electrolux/AYP 106389X

SPACER CRT
(Superseded to 532106389)

$9.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 100433M

GEAR CLUSTER CRT
(Superseded to 532100433)

$56.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 8357J

REVERSE GEAR TI
(Superseded to 532008357)

$36.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 674A289

GEAR ASSY TI
(Superseded to 532144562)

$54.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 6803J

NEEDLE BEARING TI
(Superseded to 532006803)

$10.99

$

In Stock, Qty 5

0

31

Electrolux/AYP 12000040

KLIP RING
(Superseded to 812000040)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 8356J

REVERSE SHAFT TI
(Superseded to 532008356)

$

$

Not available

33

Electrolux/AYP 100016K

SHAFT CRT
(Superseded to 532100016)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 106392X

SPACER CRT
(Superseded to 532106392)

$

$

Not available

35

Electrolux/AYP 106394X

SPACER CRT
(Superseded to 532106394)

$31.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 100436L

SHAFT ASSY CRT
(Superseded to 532100436)

$145.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 142145

BRACKET ASM SHIFT
(Superseded to 532142145)

$

$

Not available

38

Electrolux/AYP 106393X

SPACER CRT
(Superseded to 532106393)

$21.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 155236

SEAL ASM-OIL
(Superseded to 532155236)

$7.49

$

In Stock, only 3 left!

0

42

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 73610700

NUT.ASF.HEX.7/16
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0

44

Electrolux/AYP 150417

SUB= 162170
(Superseded to 532162170)

$358.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 17720510

SCREW 5/16-18X5/8
(Superseded to 583608801)

$

$

Not available

47

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 100107K

BOLT TI
(Superseded to 532100107)

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 106391X

SPACER CRT
(Superseded to 532106391)

$15.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 6066J

GREASE PREMIUM-1
(Superseded to 585517301)

$

$

Not available
