AYP 3487 A79 - Electrolux/AYP Tiller (1997) MAINFRAME, RIGHT Parts Diagram

Tiller

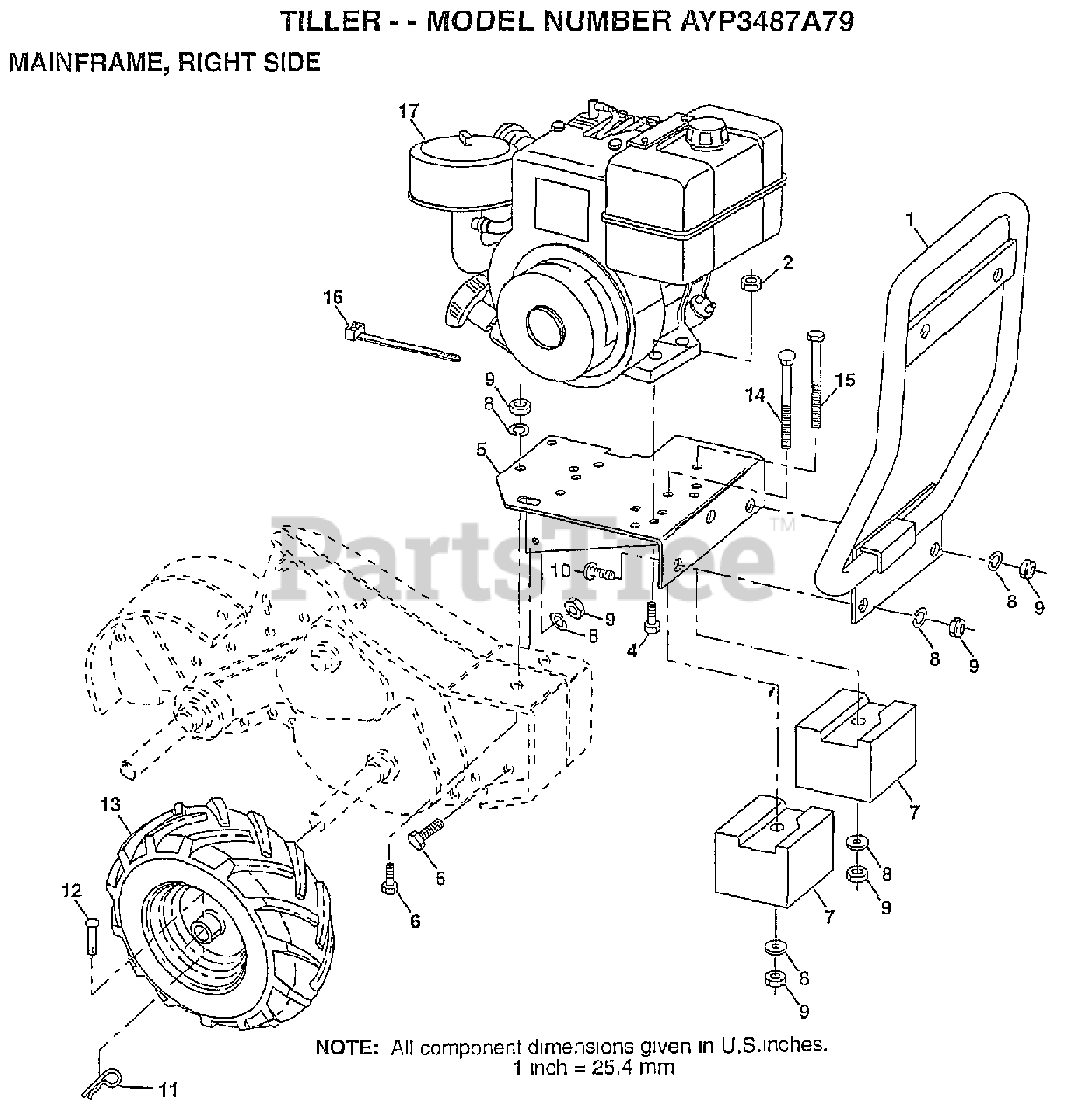

MAINFRAME, RIGHT Parts Diagram

  • Title

1

Electrolux/AYP 138402

BUMPER.ASM
(Superseded to 532138402)

$

$

Not available

2

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 74760528

BOLT
(Superseded to 874760528)

$4.99

$

In Stock, Qty 12

0

5

Electrolux/AYP 138669

"ASM. ENGINE, BASE"
(Superseded to 532138669)

$

$

Not available

6

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 8450J

COUNTERWEIGHT CRT
(Superseded to 532008450)

$

$

Not available

8

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

12

Electrolux/AYP 4929H

RIVET.PAN HD.1.75
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 5015J

TIRE TI
(Superseded to 532005015)

$145.99

$

In Stock, only 2 left!

0

Electrolux/AYP 138417

RIM.16X4X8.WHT
(Superseded to 532138417)

$94.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 795R

SUB= 65139

$

$

Not available

14

Electrolux/AYP 72470636

BOLT CRT
(Superseded to 872470636)

$14.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74760672

BOLT.3/8-16X4.5
(Superseded to 874760672)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 104164X

TIE CABLE CRT
(Superseded to 532104164)

$6.49

$

In Stock, only 1 left!

0

17

REFER TO IMAGE

$

$

Not available
