AYP 3332 A79 - Wizard Tiller (1997) ENGINE (BRIGGS & STRATTON) Parts Diagram

Tiller

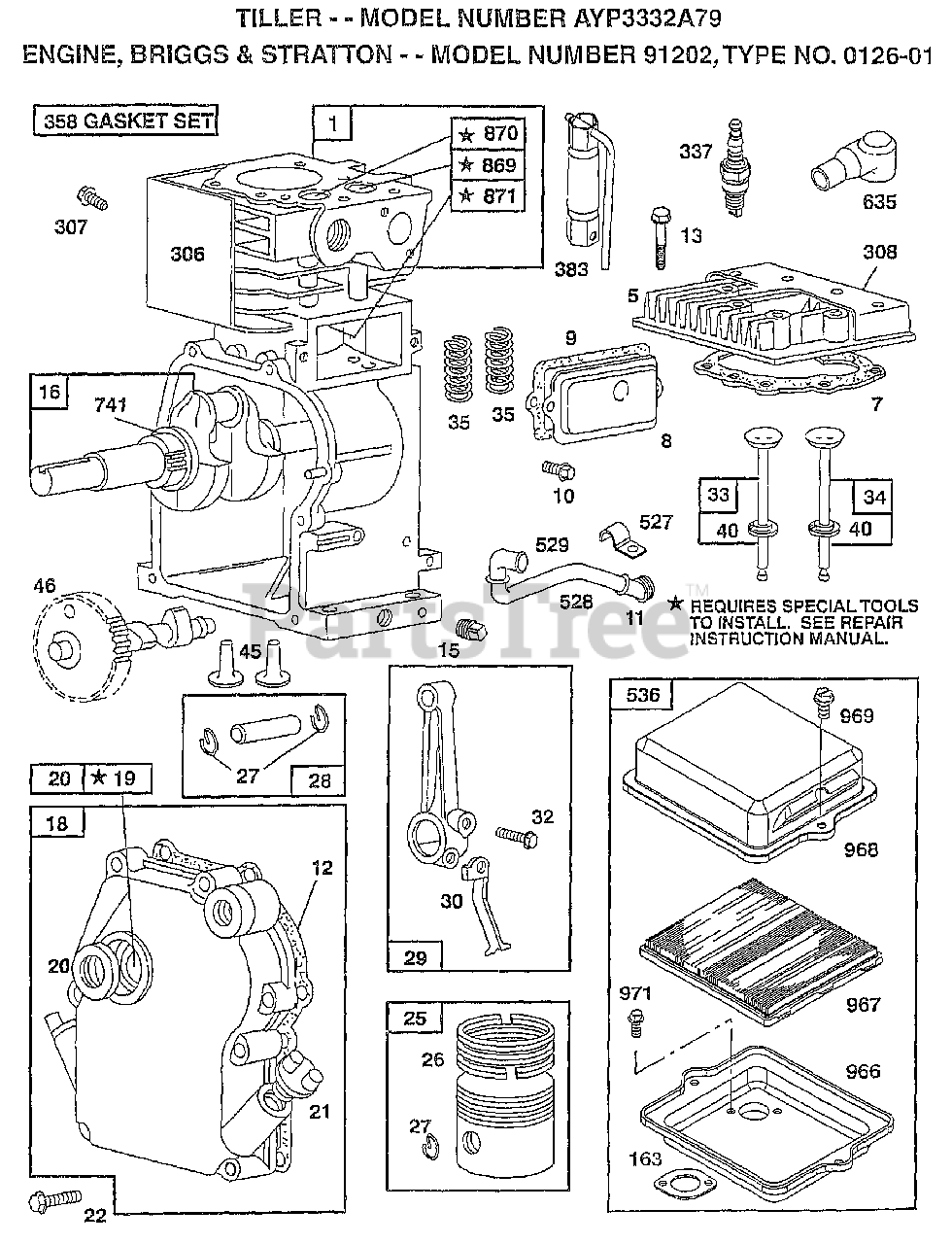

ENGINE (BRIGGS & STRATTON) Parts Diagram

  • Title

1

Briggs & Stratton 494549

CYLINDER ASSEMBLY
(Superseded to 791358)

$308.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

BUSHING, CYLINDER
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 213942

HEAD, CYLINDER
(Superseded to 790169)

$

$

Not available

7

Briggs & Stratton 272536

GASKET, CYLINDER HEAD
(Superseded to 698717)

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 294178

BREATHER, VALVE CHAMBER
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

GASKET, VALVE COVER
(Superseded to 27549S)

$3.99

$

In Stock, Qty 14

0

10

Briggs & Stratton 93394

SCREW, SEMS, BREATHER, MOUNTING
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 66578

GROMMET, BREATHER TUBE
(Superseded to 692187)

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 270833

GASKET, CRANKCASE, STANDARD .015"
(Superseded to 692218)

$

$

Not available

12A

Briggs & Stratton 270895

GASKET, CRANKCASE .005"

$9.99

$

In Stock, only 3 left!

0

12B

Briggs & Stratton 270896

GASKET, CRANKCASE .009"

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

SCREW, CYLINDER HEAD
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94387

PLUG OIL DRAIN
(Superseded to 691686)

$5.49

$

In Stock, only 2 left!

0

15A

Briggs & Stratton 93448

PLUG, PIPE, HEX SOCKET
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 492880

CRANKSHAFT

$148.99

$

Usually ships in 2-12 days

0

16A

Briggs & Stratton 230978

CRANKSHAFT GEAR PIN
(Superseded to 499047)

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 394820

BUSHING, CRANKCASE COVER
(Superseded to 699406)

$185.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293708

BUSHING, CYLINDER
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

21

Briggs & Stratton 66768

PLUG, OIL FILLER
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94607

SCREW, SEM, MOUNTING
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 296884

KEY, FLYWHEEL

$

$

Not available

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 298904

PISTON ASSEMBLY, STANDARD
(Superseded to 793214)

$

$

Not available

25A

Briggs & Stratton 298905

PISTON ASSEMBLY .010" OVERSIZE

$50.99

$

Usually ships in 2-12 days

0

25B

Briggs & Stratton 298906

PISTON ASSEMBLY .020" OVERSIZE

$

$

Not available

25C

Briggs & Stratton 298907

PISTON ASSEMBLY .030" OVERSIZE

$

$

Not available

26

Briggs & Stratton 298982

RING SET, PISTON, STANDARD

$48.99

$

In Stock, Qty 8

0

26A

Briggs & Stratton 298983

RING SET, PISTON .010" OVERSIZE

$

$

Not available

26B

Briggs & Stratton 298984

RING SET, PISTON .020" OVERSIZE

$35.99

$

Usually ships in 2-12 days

0

26C

Briggs & Stratton 298985

RING SET, PISTON .030" OVERSIZE

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

LOCK, PISTON PIN
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 3 left!

0

28A

Briggs & Stratton 298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 294367

ROD ASSEMBLY, CONNECTING
(Superseded to 699655)

$39.99

$

In Stock, only 3 left!

0

29A

Briggs & Stratton 296079

ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN

$18.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 220670

DIPPER, CONNECTING ROD
(Superseded to 691719)

$7.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94404

SCREW, CONNECTING ROD
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

VALVE, EXHAUST

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

VALVE, INTAKE

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

SPRING, INTAKE VALVE
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

37

Briggs & Stratton 224557

GUARD, FLYWHEEL
(Superseded to 690463)

$10.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 93312

RETAINER, VALVE SPRING
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 230173

TAPPET, VALVE
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 493747

GEAR, CAM
(Superseded to 691998)

$61.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 271936

GASKET, INTAKE ELBOW MOUNTING
(Superseded to 273113S)

$4.49

$

In Stock, Qty 19

0

53

Briggs & Stratton 94523

SCREW, EXHAUST
(Superseded to 692336)

$7.99

$

In Stock, only 2 left!

0

56

Briggs & Stratton 280439

PULLEY, STARTER
(Superseded to 280439S)

$12.99

$

In Stock, Qty 12

0

57

Briggs & Stratton 490179

SPRING, REWIND STARTER

$

$

Not available

58

Briggs & Stratton 280406

ROPE, REWIND STARTER
(Superseded to 280406S)

$8.49

$

In Stock, Qty 5

0

60

Briggs & Stratton 393152

HANDLE, REWIND STARTER

$4.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 399671

CLUTCH ASSEMBLY, REWIND STARTER

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

HOUSING, STARTER CLUTCH

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

BALL, CLUTCH
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

RATCHET, REWIND STARTER
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

WASHER, CLUTCH RETAINER
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221661

SCREEN, REWIND STARTER
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93758

SCREW, SEMS
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 223047

WASHER, SPRING
(Superseded to 691736)

$5.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 492645

CARBURETOR ASSEMBLY
(Superseded to 495459)

$179.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 93499

SCREW
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 223793

THROTTLE, CARBURETOR
(Superseded to 691743)

$7.49

$

In Stock, only 1 left!

0

97

Briggs & Stratton 490371

SHAFT AND LEVER, THROTTLE
(Superseded to 692018)

$9.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 490495

VALVE GROUP, CHOKE

$12.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 231533

VALVE, NEEDLE
(Superseded to 691777)

$17.99

$

In Stock, only 2 left!

0

124

Briggs & Stratton 94616

SCREW, ELBOW MOUNTING
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 220352

PLUG, WELCH
(Superseded to 691718)

$13.99

$

In Stock, only 4 left!

0

127A

Briggs & Stratton 223789

PLUG, WELCH
(Superseded to 691742)

$4.99

$

In Stock, only 2 left!

0

149

Briggs & Stratton 26336

SPRING, NEEDLE VALVE
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 260575

SPRING, THROTTLE ADJUSTMENT
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

153

Briggs & Stratton 490501

SCREW, CARBURETOR CAM AND LEVER

$4.99

$

Usually ships in 2-12 days

0

154

Briggs & Stratton 93527

SCREW, MACHINE, ROUND HEAD
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

156

Briggs & Stratton 492905

LEVER, SPEED ADJUSTER, FIXED SPEED

$12.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271935

GASKET, AIR CLEANER MOUNTING
(Superseded to 271935S)

$6.49

$

In Stock, Qty 12

0

180

Briggs & Stratton 495377

TANK ASSEMBLY, FUEL

$

$

Not available

181

Briggs & Stratton 494559

CAP, FUEL TANK

$

$

Not available

190

Briggs & Stratton 94712

SCREW, FUEL TANK
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 272489

GASKET, FUEL TANK TO CARBURETOR
(Superseded to 692241)

$4.49

$

In Stock, Qty 20+

0

200

Briggs & Stratton 495213

BLADE, GOVERNOR
(Superseded to 498770)

$

$

Not available

201

Briggs & Stratton 262325

LINK, AIR VANE GOVERNOR
(Superseded to 691822)

$6.49

$

In Stock, only 1 left!

0

209

Briggs & Stratton 262317

SPRING, AIR VANE GOVERNOR
(Superseded to 690373)

$14.99

$

In Stock, only 4 left!

0

216

Briggs & Stratton 262359

LINK, CHOKE
(Superseded to 691824)

$9.99

$

In Stock, only 2 left!

0

222

Briggs & Stratton 490649

PANEL, CONTROL

$

$

Not available

298

Briggs & Stratton 220859

LOCKNUT, MUFFLER
(Superseded to 691720)

$5.49

$

Usually ships in 2-12 days

0

299

Briggs & Stratton 493288

MUFFLER, EXHAUST

$36.99

$

In Stock, only 1 left!

0

305

Briggs & Stratton 94608

SCREW, SEMS
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

305A

Briggs & Stratton 93777

SCREW, HEX HEAD BACK PLATE TO CYLINDER
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

306

Briggs & Stratton 224555

SHIELD, CYLINDER
(Superseded to 690461)

$20.99

$

In Stock, Qty 10

0

307

Briggs & Stratton 93758

SCREW, SEMS
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 224556

COVER, CYLINDER HEAD
(Superseded to 690462)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 398593

ARMATURE, MAGNETO
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 93381

SCREW, SEM, ARMATURE MOUNTING
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

PLUG, SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

SUB= 69485
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

356

Briggs & Stratton 398808

WIRE, GROUND

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 494550

GASKET SET
(Superseded to 495605)

$47.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19069

PULLEY, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

392

Briggs & Stratton 262328

SPRING, FUEL PUMP DIAPHRAGM
(Superseded to 691823)

$4.99

$

In Stock, only 2 left!

0

394

Briggs & Stratton 270026

DIAPHRAGM

$3.99

$

In Stock, Qty 20+

0

432

Briggs & Stratton 221377

CAP, SPRING
(Superseded to 690766)

$4.99

$

In Stock, Qty 5

0

433

Briggs & Stratton 93265

PIN, DIAPHRAGM COVER
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 210959

COVER, DIAPHRAGM
(Superseded to 691713)

$10.99

$

In Stock, only 2 left!

0

435

Briggs & Stratton 93141

SCREW, DIAPHRAGM
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 280715

KNOB, CONTROL
(Superseded to 692295)

$9.49

$

In Stock, only 4 left!

0

526

Briggs & Stratton 94408

SCREW SEMS TANK BRKT MOUNT
(Superseded to 691685)

$3.99

$

In Stock, Qty 6

0

527

Briggs & Stratton 223786

CLAMP BREATHER TUBE
(Superseded to 691741)

$4.99

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 231527

TUBE, BREATHER
(Superseded to 692528)

$

$

Not available

529

Briggs & Stratton 67838

GROMMET, BREATHER TUBE
(Superseded to 692189)

$4.49

$

In Stock, Qty 16

0

536

Briggs & Stratton 494279

AIR CLEANER KIT

$

$

Not available

541

Briggs & Stratton 22398

WASHER, SPEED ADJUSTER LEVEL
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

542

Briggs & Stratton 94269

SCREW, AIR CLEANER
(Superseded to 692779)

$3.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 491046

STARTER ASSEMBLY, REWIND
(Superseded to 690098)

$106.99

$

Usually ships in 2-12 days

0

611

Briggs & Stratton 391813

FUEL PIPE AND CLIP ASSEMBLY

$

$

Not available

621

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

634

Briggs & Stratton 271853

WASHER, THROTTLE SHAFT, FOAM
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

676

Briggs & Stratton 393756

DEFLECTOR, MUFFLER
(Superseded to 396548)

$16.99

$

Usually ships in 2-12 days

0

679

Briggs & Stratton 270382

WASHER, FOAM
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

680

Briggs & Stratton 221839

WASHER, BRASS
(Superseded to 690401)

$3.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 261533

GEAR, TIMING
(Superseded to 691805)

$15.99

$

Usually ships in 2-12 days

0

779

Briggs & Stratton 262276

LINK, CONTROL
(Superseded to 691828)

$

$

Not available

851

Briggs & Stratton 221798

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

864

Briggs & Stratton 492232

ADAPTER ASSEMBLY, MUFFLER
(Superseded to 690776)

$25.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 211172

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

SEAT, EXHAUST VALVE, STANDARD
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

GUIDE, EXHAUST VALVE

$13.99

$

Usually ships in 2-12 days

0

871A

Briggs & Stratton 63709

GUIDE, INTAKE VALVE

$14.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272203

GASKET, MUFFLER
(Superseded to 691314)

$6.49

$

In Stock, only 1 left!

0

966

Briggs & Stratton 492797

BASE, AIR CLEANER
(Superseded to 494279)

$

$

Not available

967

Briggs & Stratton 491588

SUB= 3364
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 223765

COVER, AIR CLEANER
(Superseded to 791082)

$20.99

$

In Stock, Qty 13

0

969

Briggs & Stratton 490073

SCREW, COVER MOUNTING
(Superseded to 694515)

$5.99

$

In Stock, Qty 8

0

971

Briggs & Stratton 94018

SCREW, AIR CLEANER
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

987

Briggs & Stratton 398970

SEAL, THROTTLE SHAFT
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

995

Briggs & Stratton 223887

BRACKET, CONTROL LINK
(Superseded to 691756)

$4.99

$

In Stock, Qty 12

0

1016

Briggs & Stratton 490817

SPACER

$9.49

$

In Stock, Qty 5

0
