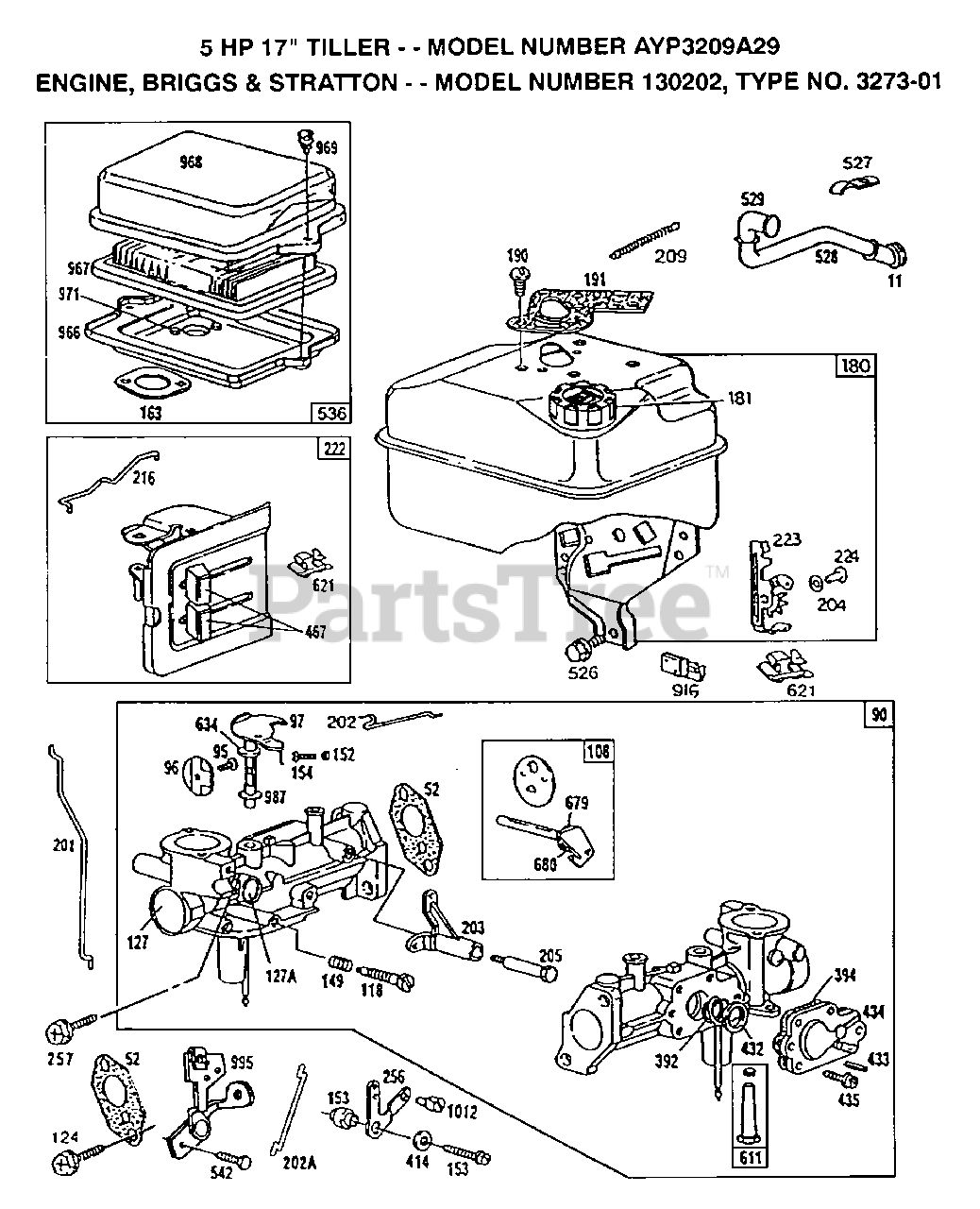

AYP 3209 A29 - Electrolux/AYP Tiller (1992) ENGINE Parts Diagram

Tiller

ENGINE Parts Diagram

  • Title

1

Briggs & Stratton 395990

CYLINDER ASSEMBLY
(Superseded to 497144)

$537.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 297565

BUSHING, CYLINDER

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 211542

HEAD, CYLINDER
(Superseded to 691716)

$

$

Not available

7

Briggs & Stratton 272157

GASKET, CYLINDER HEAD
(Superseded to 272157S)

$6.49

$

In Stock, Qty 5

0

8

Briggs & Stratton 294178

BREATHER, VALVE CHAMBER
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

GASKET, VALVE COVER
(Superseded to 27549S)

$3.99

$

In Stock, Qty 10

0

10

Briggs & Stratton 94621

SCREW, STEMS
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 66578

GROMMET, BREATHER TUBE
(Superseded to 692187)

$4.49

$

In Stock, Qty 16

0

12

Briggs & Stratton 270080

GASKET CRANKCASE STANDARD .015"
(Superseded to 692213)

$3.99

$

In Stock, only 4 left!

0

Briggs & Stratton 270125

GASKET, CRANKCASE .005" THICK

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 270126

GASKET, CRANKCASE .009" THICK

$8.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 94221

SCREW, CYLINDER HEAD 2-3/32"
(Superseded to 691640)

$3.49

$

In Stock, Qty 11

0

14

Briggs & Stratton 93369

SCREW, CYLINDER HEAD 2-15/32"
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94387

PLUG OIL DRAIN
(Superseded to 691686)

$5.49

$

In Stock, only 1 left!

0

Briggs & Stratton 93448

PLUG, PIPE, HEX SOCKET
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 492088

CRANKSHAFT

$

$

Not available

Briggs & Stratton 230978

CRANKSHAFT GEAR PIN
(Superseded to 499047)

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 297602

COVER ASSEMBLY, CRANKCASE
(Superseded to 694350)

$149.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 297603

BUSHING, CRANKCASE COVER

$

$

Not available

20

Briggs & Stratton 294606

SEAL, OIL
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

21

Briggs & Stratton 66768

PLUG, OIL FILLER
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

SCREW, SEM, MOUNTING
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 297229

FLYWHEEL, MAGNETO

$

$

Not available

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 298904

PISTON ASSEMBLY, STANDARD
(Superseded to 793214)

$

$

Not available

Briggs & Stratton 298905

PISTON ASSEMBLY .010" OVERSIZE

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298906

PISTON ASSEMBLY .020" OVERSIZE

$

$

Not available

Briggs & Stratton 298907

PISTON ASSEMBLY .030" OVERSIZE

$

$

Not available

26

Briggs & Stratton 298982

RING SET, PISTON, STANDARD

$48.99

$

In Stock, Qty 8

0

Briggs & Stratton 299742

RING SET, PISTON, CHROME, STANDARD
(Superseded to 298982)

$48.99

$

In Stock, Qty 8

0

Briggs & Stratton 298983

RING SET, PISTON .010" OVERSIZE

$

$

Not available

Briggs & Stratton 298984

RING SET, PISTON .020" OVERSIZE

$35.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

LOCK, PISTON PIN
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 2 left!

0

Briggs & Stratton 298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 299430

ROD ASSEMBLY, CONNECTING

$40.99

$

In Stock, only 1 left!

0

Briggs & Stratton 390459

ROD ASSEMBLY, CONNECTING

$

$

Not available

30

Briggs & Stratton 221890

DIPPER, CONNECTING ROD
(Superseded to 691759)

$8.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 221876

LOCK, CONNECTING ROD SCREW

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

LOCK, CONNECTING ROD SCREW
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 211119

VALVE, EXHAUST
(Superseded to 211119S)

$

$

Not available

34

Briggs & Stratton 261044

VALVE, INTAKE
(Superseded to 261044S)

$

$

Not available

35

Briggs & Stratton 260552

SPRING, INTAKE VALVE
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26478

SPRING, EXHAUST VALVE
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

37

Briggs & Stratton 222443

GUARD, FLYWHEEL
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 93312

RETAINER, VALVE SPRING
(Superseded to 692194)

$5.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 260642

TAPPET, VALVE
(Superseded to 690509)

$

$

Not available

46

Briggs & Stratton 212733

GEAR, CAM
(Superseded to 691164)

$59.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 271936

GASKET, INTAKE ELBOW MOUNTING
(Superseded to 273113S)

$4.49

$

In Stock, Qty 14

0

55

Briggs & Stratton 299431

HOUSING, REWIND STARTER

$

$

Not available

56

Briggs & Stratton 295871

PULLEY, REWIND STARTER

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

SPRING, REWIND STARTER

$

$

Not available

58

Briggs & Stratton 66884

ROPE, REWIND STARTER
(Superseded to 692188)

$8.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 490653

INSERT, STARTER HANDLE
(Superseded to 490652)

$5.49

$

In Stock, Qty 10

0

60

Briggs & Stratton 490652

HANDLE, REWIND STARTER

$5.49

$

In Stock, Qty 10

0

65

Briggs & Stratton 94128

SCREW, HEX HEAD
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

CLUTCH ASSEMBLY, REWIND STARTER

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

HOUSING, STARTER CLUTCH

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

BALL, CLUTCH
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

RATCHET, REWIND STARTER
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

WASHER, CLUTCH RETAINER
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221923

SCREEN, STARTER PULLEY

$

$

Not available

74

Briggs & Stratton 93758

SCREW, SEMS
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 224061

WASHER, SPRING
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

81

Briggs & Stratton 222263

LOCK, SCREW
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

90

Briggs & Stratton 492611

CARBURERTOR ASSEMBLY
(Superseded to 498298)

$149.99

$

In Stock, Qty 18

0

95

Briggs & Stratton 93499

SCREW
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 223793

THROTTLE, CARBURETOR
(Superseded to 691743)

$7.49

$

In Stock, only 1 left!

0

97

Briggs & Stratton 490048

SHAFT AND LEVER THROTTLE
(Superseded to 692325)

$16.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 491177

VALVE AND SHAFT GROUP, CHOKE

$

$

Not available

118

Briggs & Stratton 231533

VALVE, NEEDLE
(Superseded to 691777)

$17.99

$

In Stock, only 2 left!

0

124

Briggs & Stratton 93357

SCREW, SEMS, CARBURETOR MOUNTING
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 220352

PLUG, WELCH
(Superseded to 691718)

$13.99

$

In Stock, only 4 left!

0

127A

Briggs & Stratton 223789

PLUG, WELCH
(Superseded to 691742)

$4.99

$

In Stock, only 2 left!

0

149

Briggs & Stratton 26336

SPRING, NEEDLE VALVE
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 260575

SPRING, THROTTLE ADJUSTMENT
(Superseded to 691783)

$7.99

$

In Stock, Qty 10

0

153

Briggs & Stratton 490589

SCREW AND COLLAR

$

$

Not available

154

Briggs & Stratton 93527

SCREW, MACHINE, ROUND HEAD
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271935

GASKET, AIR CLEANER MOUNTING
(Superseded to 271935S)

$6.49

$

In Stock, Qty 11

0

180

Briggs & Stratton 490554

TAMK ASSEMBLY, FUEL
(Superseded to 694315)

$

$

Not available

181

Briggs & Stratton 494559

CAP, FUEL TANK

$

$

Not available

190

Briggs & Stratton 94094

SCREW, SEMS, FUEL TANK MOUNTING
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 272410

GASKET, FUEL TANK MOUNTING
(Superseded to 272996)

$4.99

$

In Stock, Qty 20+

0

200

Briggs & Stratton 223886

GUIDE, AIR
(Superseded to 691745)

$11.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 262280

LINK, GOVERNOR
(Superseded to 691814)

$10.99

$

In Stock, only 1 left!

0

202

Briggs & Stratton 262270

LINK, THROTTLE
(Superseded to 691812)

$8.99

$

In Stock, only 1 left!

0

202A

Briggs & Stratton 262470

LINK, CONTROL
(Superseded to 691274)

$

$

Not available

203

Briggs & Stratton 280720

BELL CRANK
(Superseded to 691906)

$7.99

$

In Stock, only 1 left!

0

204

Briggs & Stratton 222962

BUSHING, GOVERNOR LEVER, FLAT

$1.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 231520

SCREW, SHOULDER
(Superseded to 691776)

$

$

Not available

209

Briggs & Stratton 262282

SPRING, GOVERNOR
(Superseded to 690376)

$11.99

$

In Stock, only 4 left!

0

216

Briggs & Stratton 262359

LINK, CHOKE
(Superseded to 691824)

$9.99

$

In Stock, only 2 left!

0

219

Briggs & Stratton 391737

GEAR, GOVERMOR

$38.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 221551

WASHER THRUST
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

222

Briggs & Stratton 490648

BRACKET, CONTROL
(Superseded to 490649)

$

$

Not available

223

Briggs & Stratton 223455

LEVER, GOVERNOR CONTROL

$2.49

$

Usually ships in 2-12 days

0

224

Briggs & Stratton 93491

RIVET, GOVERNOR CONTROL LEVER MOUNTING

$1.49

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 490374

LEVER ASSEMBLY, GOVERNOR
(Superseded to 690653)

$16.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

WASHER, GOVERNOR LEVER
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

256

Briggs & Stratton 223813

CRANK, BELL
(Superseded to 691744)

$8.99

$

In Stock, only 2 left!

0

257

Briggs & Stratton 93543

SCREW, SEMS, HEX HEAD
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

300

Briggs & Stratton 393615

MUFFLER, EXHAUST
(Superseded to 494585)

$23.99

$

In Stock, only 1 left!

0

304

Briggs & Stratton 490169

HOUSING, BLOWER

$

$

Not available

305

Briggs & Stratton 93158

SCREW, SEMS
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

306

Briggs & Stratton 221511

SHIELD, CYLINDER
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

307

Briggs & Stratton 93490

SCREW, HEX HEAD
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

308

Briggs & Stratton 221512

COVER, CYLINDER HEAD
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 397358

ARMATURE GROUP

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

SCREW, ARMATURE MOUNTING
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

PLUG, SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

SUB= 69485
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

356

Briggs & Stratton 398808

WIRE, GROUND

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 397145

GASKET SET
(Superseded to 495603)

$32.99

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19069

PULLEY, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

NUT, HEX
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

392

Briggs & Stratton 262328

SPRING, FUEL PUMP DIAPHRAGM
(Superseded to 691823)

$4.99

$

In Stock, only 2 left!

0

394

Briggs & Stratton 270026

DIAPHRAGM

$3.99

$

In Stock, Qty 20+

0

414

Briggs & Stratton 220982

WASHER
(Superseded to 691721)

$7.49

$

In Stock, only 1 left!

0

432

Briggs & Stratton 221377

CAP, SPRING
(Superseded to 690766)

$4.99

$

In Stock, only 3 left!

0

433

Briggs & Stratton 93265

PIN, DIAPHRAGM COVER
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 210959

COVER, DIAPHRAGM
(Superseded to 691713)

$10.99

$

In Stock, only 1 left!

0

435

Briggs & Stratton 93141

SCREW, DIAPHRAGM
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 280715

KNOB, CONTROL
(Superseded to 692295)

$9.49

$

In Stock, only 4 left!

0

526

Briggs & Stratton 94409

SCREW, SEMS, TANK BRACKET MNT.
(Superseded to 691685)

$3.99

$

In Stock, Qty 5

0

527

Briggs & Stratton 223789

PLUG, WELCH
(Superseded to 691742)

$4.99

$

In Stock, only 2 left!

0

528

Briggs & Stratton 231550

TUBE, BREATHER

$

$

Not available

529

Briggs & Stratton 67838

GROMMET, BREATHER TUBE
(Superseded to 692189)

$4.49

$

In Stock, Qty 8

0

536

Briggs & Stratton 494279

AIR CLEANER KIT

$

$

Not available

542

Briggs & Stratton 93572

SCREW
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

552

Briggs & Stratton 231079

BUSHING, GOVERNOR CRANK
(Superseded to 690508)

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

BOLT, GOVERNOR LEVER

$

$

Not available

592

Briggs & Stratton 231082

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

608

Briggs & Stratton 390463

STARTER, ASSEMBLY, REWIND

$

$

Not available

611

Briggs & Stratton 391813

FUEL PIPE AND CLIP ASSEMBLY

$

$

Not available

613

Briggs & Stratton 93935

SCREW, HEX HEAD
(Superseded to 691413)

$5.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

COTTER, HAIR PIN
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

RETAINER, E-RING

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231077

CRANK, GOVERNOR
(Superseded to 692016)

$

$

Not available

621

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

634

Briggs & Stratton 271853

WASHER, THROTTLE SHAFT, FOAM
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

655

Briggs & Stratton 222598

ANCHOR, SPRING
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393757

DEFLECTOR, EXHAUST, SIDE OUTLET
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

679

Briggs & Stratton 270382

WASHER, FOAM
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

680

Briggs & Stratton 221839

WASHER, BRASS
(Superseded to 690401)

$3.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 261696

GEAR, TIMING

$52.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 211787

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691705)

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 211172

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

GUIDE, EXHAUST VALVE

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 63709

GUIDE, INTAKE VALVE

$14.99

$

Usually ships in 2-12 days

0

916

Briggs & Stratton 280321

RACK, GEAR CONTROL
(Superseded to 691900)

$5.99

$

Usually ships in 2-12 days

0

966

Briggs & Stratton 490074

BASE, AIR CLEANER
(Superseded to 494279)

$

$

Not available

967

Briggs & Stratton 491588

SUB= 3364
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 223765

COVER, AIR CLEANER
(Superseded to 791082)

$20.99

$

In Stock, Qty 12

0

969

Briggs & Stratton 490073

SCREW, COVER MOUNTING
(Superseded to 694515)

$5.99

$

In Stock, Qty 8

0

971

Briggs & Stratton 94018

SCREW, AIR CLEANER
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

987

Briggs & Stratton 398970

SEAL, THROTTLE SHAFT
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

995

Briggs & Stratton 491577

LEVER, BRACKET ASSEMBLY
(Superseded to 691414)

$9.49

$

Usually ships in 2-12 days

0

1012

Briggs & Stratton 490577

RETAINER, LINK

$24.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

SPACER

$9.49

$

In Stock, Qty 5

0

1019

Briggs & Stratton 491100

LABEL KIT

$34.99

$

Usually ships in 2-12 days

0
