AY 12536 B - Electrolux/AYP Lawn Tractor HOOD Parts Diagram

Lawn Tractor

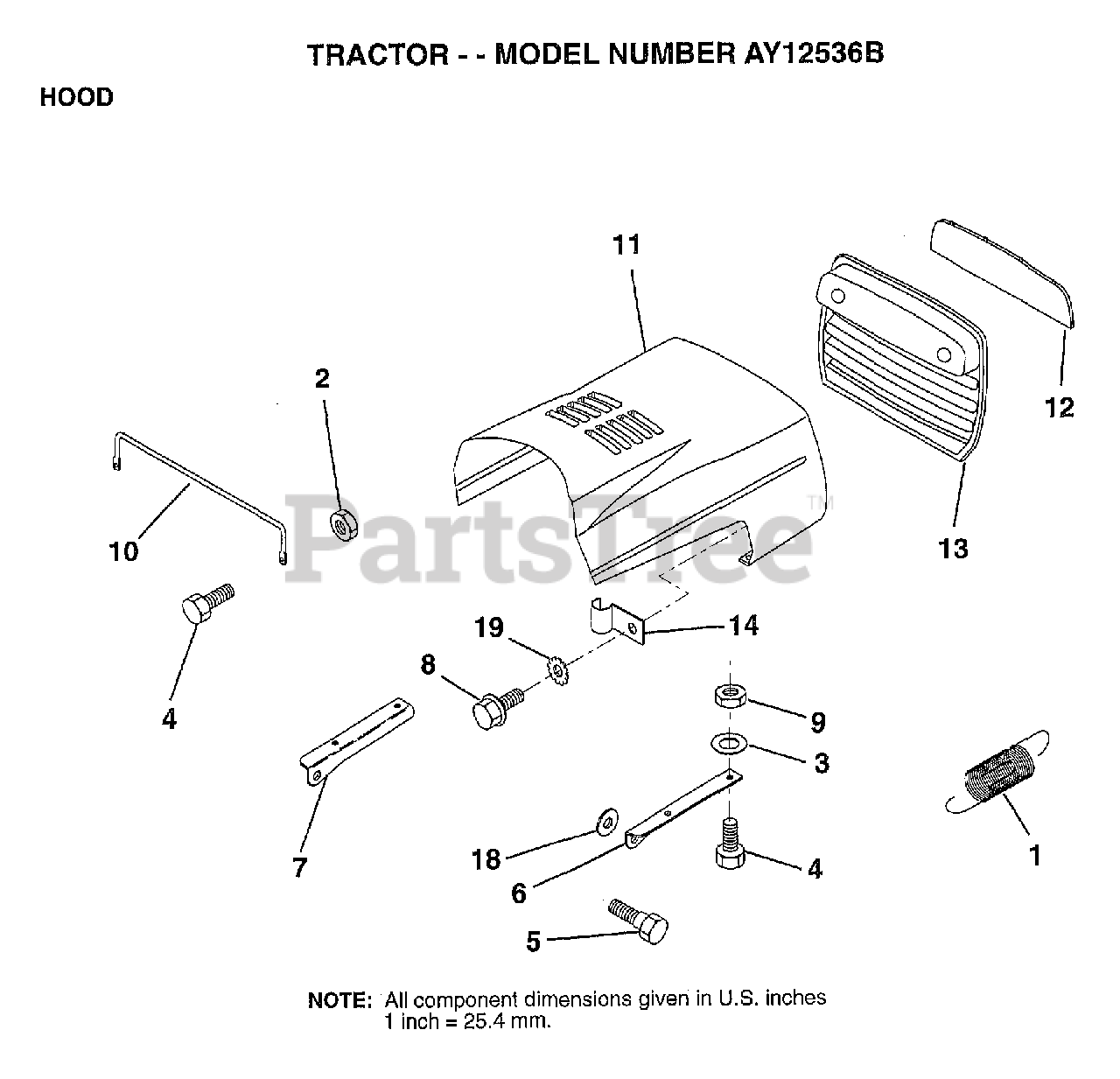

HOOD Parts Diagram

  • Title
1

Electrolux/AYP 124657X

EXT SPRING
(Superseded to 532124657)

$10.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 73640400

NUT HXKEP 1/4X20
(Superseded to 873640400)

$

$

Not available

3

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

5

Electrolux/AYP 139888

BOLT.SHLD.5/16-18
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

6

Electrolux/AYP 122549X

BRKT HOOD RH
(Superseded to 532122549)

$

$

Not available

7

Electrolux/AYP 122548X

BRKT HOOD LH
(Superseded to 532122548)

$2.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 17521312

SCREW SLTD HXHD
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 123693X

"BRACE,HOOD"
(Superseded to 532123693)

$

$

Not available

11

Electrolux/AYP 132918X550

HOOD.IMPREG.MS550

$

$

Not available

12

Electrolux/AYP 122035X

LENS
(Superseded to 532122035)

$14.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 127029X

GRILL
(Superseded to 583672601)

$35.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

18

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 11030400

LOCKWASHER GT

$2.49

$

Usually ships in 3-10 days

0
