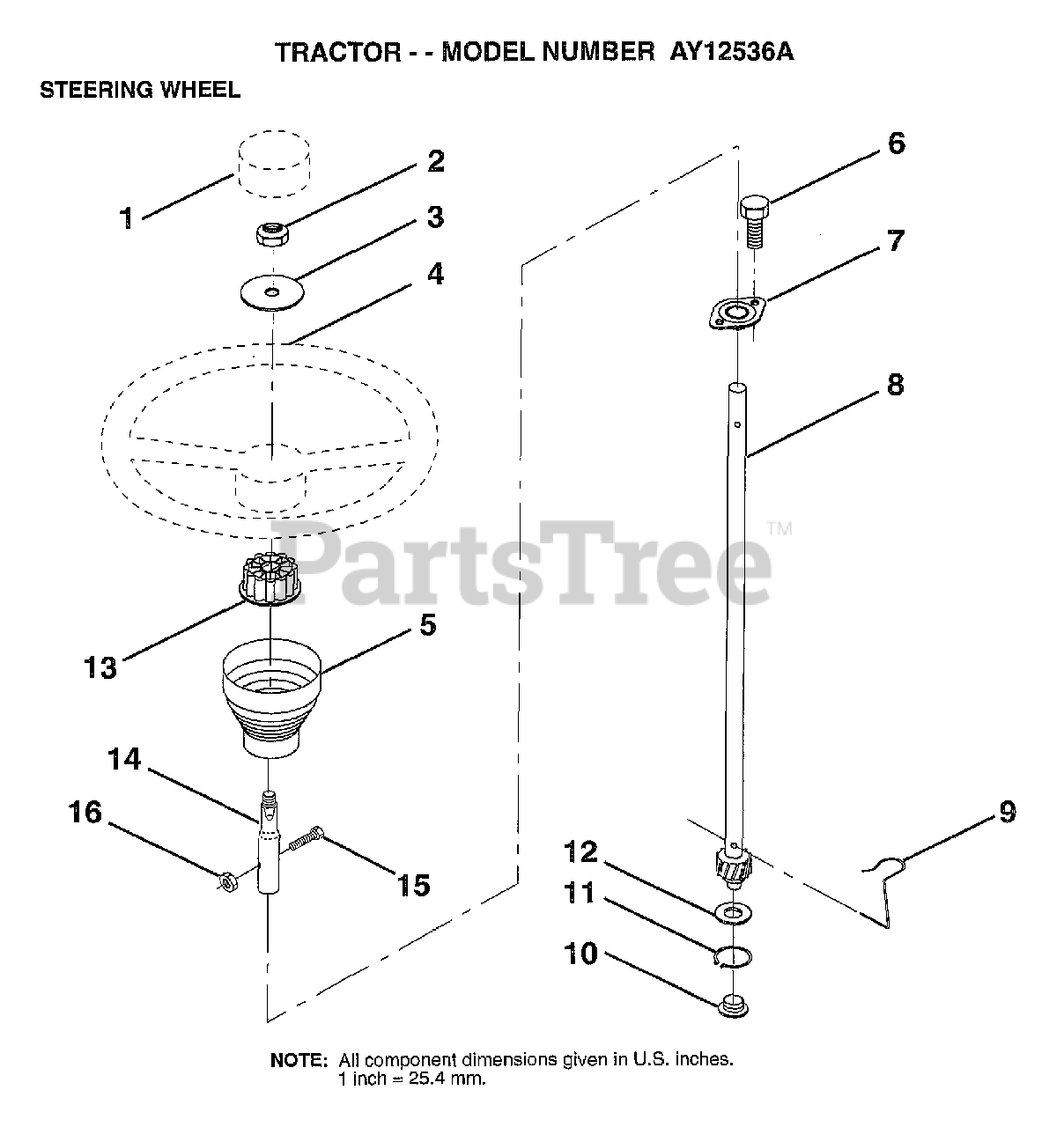

AY 12536 A - Electrolux/AYP Lawn Tractor STEERING WHEEL Parts Diagram

Lawn Tractor

STEERING WHEEL Parts Diagram

  • Title

1

Electrolux/AYP 133742

ST WHL INSERT CAP

$

$

Not available

2

Electrolux/AYP 7810H

GRIPCO NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 19133808

WASHER T
(Superseded to 583789501)

$

$

Not available

4

Electrolux/AYP 133741

SUB= 150547
(Superseded to 583261901)

$46.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 121897X

SLEEVE STEERING
(Superseded to 583666401)

$3.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 17431008

SUB= 98000165

$

$

Not available

7

Electrolux/AYP 102803X

SUB= 918102803X
(Superseded to 532155107)

$7.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 147391

SHAFT.STEERING.LR
(Superseded to 532148966)

$

$

Not available

9

Electrolux/AYP 124210X

STEERING CLIP
(Superseded to 532124210)

$

$

Not available

10

Electrolux/AYP 123438X

BUSHING STEER LWR
(Superseded to 532123438)

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 12000045

RING
(Superseded to 812000045)

$7.49

$

In Stock, only 4 left!

0

12

Electrolux/AYP 19211616

WASHER LT
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 104820X

ADAPTER-WHEEL LT
(Superseded to 532104820)

$17.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 147392

SUB= 154307

$

$

Not available

15

Electrolux/AYP 74780520

BOLT
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
