AX90HUC - Cub Cadet 547cc Engine AX90HUC General Assembly Parts Diagram

547cc Engine

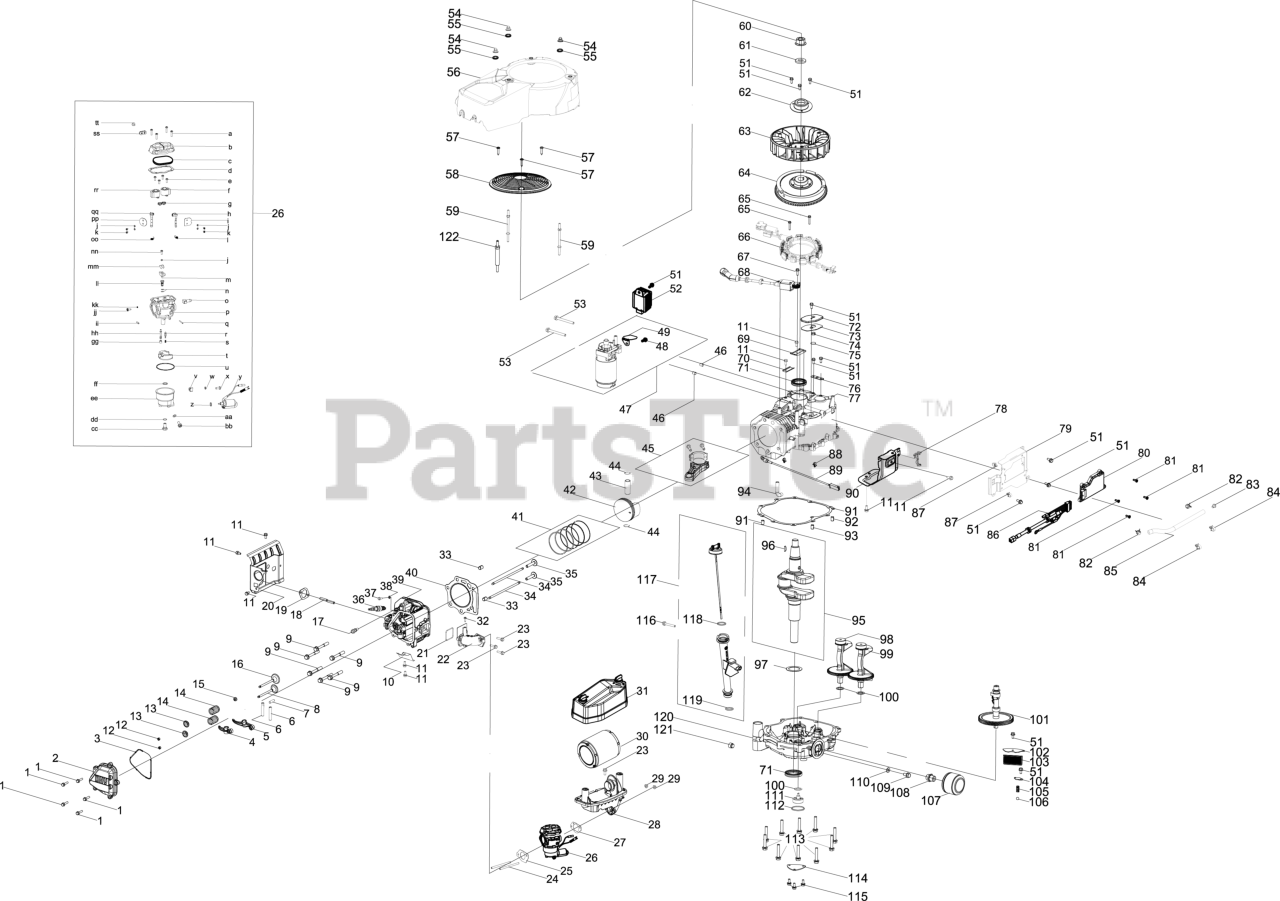

AX90HUC General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 951-14914

VALVE COVER

$28.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-14913

VALVE COVER GASKET

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 651P05491

ROCKER ARM (EXHAUST)

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 651P05490

ROCKER ARM (INTAKE)

$13.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 911-06414

ROCKER ARM SHAFT

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 915-05035

CAMSHAFT PIN

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 951-14909

EXHAUST VALVE

$26.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-06291

BOLT M10-1.25 x 70

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 931-10868

SHROUD

$7.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 951-14912

VALVE CAP
(Superseded to 951-14912A)

$3.49

$

In Stock, only 2 left!

0

13

Cub Cadet 951-14911

VALVE SPRING SEAT

$5.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 951-14910

VALVE SPRING

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-11964

INTAKE VALVE SEAL
(Superseded to 951-11964A)

$11.99

$

In Stock, only 2 left!

0

16

Cub Cadet 951-14908

INTAKE VALVE

$26.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-05305

HOOK BOLT

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 910-06299

STUD

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 921-04744

EXHAUST GASKET

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 907-06281

SHROUD - LEFT SIDE

$26.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 951-14915

INTAKE PIPE RING

$4.99

$

In Stock, only 1 left!

0

22

Cub Cadet 931-10879

INTAKE PIPE

$24.99

$

In Stock, only 1 left!

0

23

Cub Cadet 710-06292

BOLT M6 x 22

$5.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-06319

STUD M6-1.00 x 92

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 951-14947

INTAKE GASKET

$8.49

$

In Stock, Qty 20+

0

26

Cub Cadet 651P06495

CARBURETOR

$152.99

$

In Stock, only 1 left!

0

27

Cub Cadet 921-04745

AIR FLTER GASKET

$6.99

$

In Stock, only 1 left!

0

28

Cub Cadet 931-05262

INTAKE MANIFOLD

$20.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

30

Cub Cadet 937-05066

AIR FILTER W/PREFILTER

$22.99

$

In Stock, Qty 15

0

30

Cub Cadet 490-200-C063

Cub Cadet AIR FILTER/PRE-FILTER

Note: Retail Packaged Part

$29.99

$

In Stock, Qty 5

0

30

Cub Cadet 490-200-M063

Genuine Factory Parts AIR FILTER
(Superseded to 490-200-Y063)

Note: Retail Packaged Part

$29.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 490-200-Y063

Troy-Bilt AIR FILTER (05066)

Note: Retail Packaged Part

$29.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 651P06315

AIR FILTER COVER

$17.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-06447

SELF TAPPING SCREW 4.8 x 16

$5.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 708-05067A

PIN, 12x16

$

$

Currently unavailable

34

Cub Cadet 951-14898

SINGLE PUSH ROD

$22.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 951-15614

TAPPET

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 951-10292A

SPARK PLUG (F6RTC/RN11YC/BPR6ES)

$6.99

$

In Stock, Qty 20+

0

37

Cub Cadet 710-06290

BOLT M5-.8 x 10

$4.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 936-05113

FLAT WASHER: 5.3 x 10 x 1

$5.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 918-07090

CYLINDER HEAD

$291.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 921-04743

CYLINDER HEAD GASKET

$16.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-05248

PISTON RING SET

$28.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-14905

PISTON

$55.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 911-06415

PISTON PIN

$10.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-11953

PISTON PIN SNAP RING
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 5

0

45

Cub Cadet 951-14902

CONNECTING ROD ASSEMBLY

$76.99

$

In Stock, only 2 left!

0

46

Cub Cadet 915-05026

DOWEL PIN

$5.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 725P10145

STARTER
(Superseded to 725P14645)

$266.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 710-04968

BOLT M6 x 16

$6.99

$

In Stock, only 3 left!

0

49

Cub Cadet 751P18186

STARTER SHIELD BRACKET

$0.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 12

0

52

Cub Cadet 951-15920

REGULATOR ASSEMBLY

$137.99

$

In Stock, only 2 left!

0

53

Cub Cadet 710-06286

BOLT M8-1.25 x 80

$5.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 712-04276

ACORN NUT
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

55

Cub Cadet 736-05109

WASHER

$6.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 631P06439

SHROUD

$25.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 710-05303

BOLT 5.5 x 25

$3.99

$

In Stock, only 2 left!

0

58

Cub Cadet 951-12205

DEBRIS SHIELD

$9.99

$

In Stock, Qty 7

0

59

Cub Cadet 910-06310

STUD

$7.49

$

In Stock, only 1 left!

0

60

Cub Cadet 912-05102

NUT M20 x 1.5

$8.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 936-05110

WASHER 20.5 x 5 x 40

$6.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 751-21913

FLYWHEEL OULET SHIELD

$

$

Currently unavailable

63

Cub Cadet 931-10866

COOLING FAN

$49.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-15766

Flywheel

$225.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 710-06448

BOLT M5 x 28

$3.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 751P18206

CHARGING COIL

$61.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

68

Cub Cadet 994-00128

IGNITION COIL ASSEMBLY

$90.99

$

In Stock, only 1 left!

0

69

Cub Cadet 951-14921

WIRE PLATE

$4.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-14922

BREATHER SCREEN

$4.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 937-05067

OIL SEAL 38 x 58 x 8

$15.99

$

In Stock, only 3 left!

0

72

Cub Cadet 907-06254

BREATHER COVER

$8.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 921-04738

BREATHER COVER GASKET

$5.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 732-04718

BREATHER VALVE SPRING

$4.49

$

In Stock, only 1 left!

0

75

Cub Cadet 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

76

Cub Cadet 907-06255

BRACKET

$4.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 751P18207

CRANKCASE

$309.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 751P17766

CLIP

$0.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 751P18208

ECM MOUNT BRACKET

$10.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 751P18209

ELECTRONIC CONTROL MODULE

$

$

Not available

81

Cub Cadet 710-06212

SCREW M4x12

$1.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-14091

PLUG

$4.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 723-04071

FUEL LINE SUPPORT CLAMP
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

85

Cub Cadet 993-00171

FUEL HOSE 6.3 x 12.5 x 250

$9.49

$

Usually ships in 3-6 days

0

86

Cub Cadet 625P06570

WIRE HARNESS (EGOV)

$9.49

$

Usually ships in 3-6 days

0

87

Cub Cadet 931-10630

PLASTIC SUPPORT CLAMP

$6.49

$

Usually ships in 3-6 days

0

88

Cub Cadet 731P24131

WIRE SUPPORT CLAMP

$2.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 751-21912

TEMPERATURE SENSOR
(Superseded to 751P21912)

$12.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 907-06280

SHROUD - RIGHT

$11.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 921-04741

CRANKCASE COVER GASKET

$16.99

$

In Stock, Qty 8

0

92

Cub Cadet 715-04096A

DOWEL PIN 9 X 14

$4.49

$

Usually ships in 3-6 days

0

93

Cub Cadet 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 951-14916

VENTING HOSE

$4.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 951-05245

CRANKSHAFT ASSEMBLY

$288.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

97

Cub Cadet 936-05111

WASHER 38.3 x 54 x 1

$5.49

$

Usually ships in 3-6 days

0

98

Cub Cadet 917-05292A

BALANCE SHAFT (LH)

$80.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 917-05293A

BALANCE SHAFT (RH)

$80.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 936-05112

WASHER 17.2 x 26 x 1

$5.49

$

In Stock, only 2 left!

0

101

Cub Cadet 919-05216

CAMSHAFT

$79.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 931-10867

FILTER COVER

$4.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 937-05069

FILTER SCREEN

$4.99

$

Usually ships in 3-6 days

0

104

Cub Cadet 951-14895

PRESSURE RELEASE COVER

$5.49

$

Usually ships in 3-6 days

0

105

Cub Cadet 932-05290

PRESSURE RELEASE SPRING

$5.49

$

Usually ships in 3-6 days

0

106

Cub Cadet 951-15588

OIL PUMP STEEL BALL

$3.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 951-12690

ENGINE OIL FILTER

$17.99

$

In Stock, Qty 20+

0

107

Cub Cadet 490-201-C010

Cub Cadet OIL FILTER

Note: Retail Packaged Part

$17.99

$

In Stock, only 1 left!

0

107

Cub Cadet 490-201-0010

Genuine Factory Parts OIL FILTER
(Superseded to 490-201-Y010)

Note: Retail Packaged Part

$17.99

$

In Stock, only 1 left!

0

107

Cub Cadet 490-201-Y010

Troy-Bilt OIL FILTER

Note: Retail Packaged Part

$17.99

$

In Stock, only 1 left!

0

108

Cub Cadet 951-12253

SCREW JOINT OIL FILTER ADAPTER

$7.99

$

Usually ships in 3-6 days

0

109

Cub Cadet 710-05313

BOLT M8 x 15

$3.99

$

Usually ships in 3-6 days

0

110

Cub Cadet 736-04560

OIL DRAIN PLUG WASHER

$4.49

$

Usually ships in 3-6 days

0

111

Cub Cadet 951-05247

OIL PUMP ASSEMBLY

$58.99

$

Usually ships in 3-6 days

0

112

Cub Cadet 921-04742

GASKET

$6.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 710-06289

BOLT M8 x 45

$4.49

$

Usually ships in 3-6 days

0

114

Cub Cadet 951-14896

OIL SEPARATOR

$5.49

$

Usually ships in 3-6 days

0

115

Cub Cadet 710-05293

SCREW M6-1 x 16

$4.99

$

Usually ships in 3-6 days

0

116

Cub Cadet 710-06287

BOLT M6-1 x 45 CL5.8

$5.49

$

Usually ships in 3-6 days

0

117

Cub Cadet 924-05033

DIPSTICK ASSEMBLY
(Superseded to 924-05033A)

$26.99

$

Usually ships in 3-6 days

0

118

Cub Cadet 921-04739

O-RING

$4.99

$

Usually ships in 3-6 days

0

119

Cub Cadet 921-04740

O-RING

$4.99

$

Usually ships in 3-6 days

0

120

Cub Cadet 751P18211

CRANKCASE COVER

$181.99

$

Usually ships in 3-6 days

0

121

Cub Cadet 951-11644

ENGINE PLUG 3/8 NPT

$10.99

$

In Stock, Qty 5

0

122

Cub Cadet 710-11659

STUD

$3.49

$

Usually ships in 3-6 days

0

a

Screw, M4×16

$

$

Not available

b

Carburetor protecting Cover

$

$

Not available

c

Stepper Motor Shock Pad

$

$

Not available

d

Protecting Cover Gasket

$

$

Not available

e

Screw, M4×10

$

$

Not available

f

Stepping Motor

$

$

Not available

g

Electronic Conctol Driving Gear

$

$

Not available

h

Choke Driven Gear

$

$

Not available

i

Choke Plate

$

$

Not available

j

Washer

$

$

Not available

k

Screw, M3×5

$

$

Not available

l

Choke Spring

$

$

Not available

m

Idle Jet Rivet

$

$

Not available

n

O-Ring, 4×1.8G

$

$

Not available

o

Fuel Nipple

$

$

Not available

p

Carburetor Body

$

$

Not available

q

Cub Cadet 711-06036

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

r

Cub Cadet 751P14036A

NEEDLE VALVE

$5.99

$

Usually ships in 3-6 days

0

s

Cub Cadet 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

t

Float

$

$

Not available

u

Cub Cadet 951-11970

FUEL BOWL GASKET

$6.99

$

In Stock, Qty 17

0

v

Idle Mixture Screw

$

$

Not available

w

Cub Cadet 736-04629

WASHER

$3.99

$

Usually ships in 3-6 days

0

x

Screw, M5×8

$

$

Not available

y

Cub Cadet 951-14972

CARBURETOR SOLENOID VALVE ASM

Note: 1

$45.99

$

In Stock, only 2 left!

0

z

O-Ring, Solenoid Valve Seat

$

$

Not available

aa

Gasket, Drain Bolt

$

$

Not available

bb

Cub Cadet 910-06752

DRAIN BOLT

$5.49

$

Usually ships in 3-6 days

0

cc

Bolt

$

$

Not available

dd

O-Ring, P18-2001

$

$

Not available

ee

Float Bowl

$

$

Not available

ff

Seal

$

$

Not available

gg

Main Jet

$

$

Not available

hh

Nozzle Tube

$

$

Not available

ii

Cub Cadet 793P00129A

IDLE MIXTURE SCREW

$2.99

$

Usually ships in 3-6 days

0

jj

Idle Adjusting Screw

$

$

Not available

kk

Spring

$

$

Not available

ll

Idle Jet

$

$

Not available

mm

Idle Jet Board

$

$

Not available

nn

Screw, M3×6

$

$

Not available

oo

Throttle Spring

$

$

Not available

pp

Throttle Plate

$

$

Not available

qq

Throttle Driven Gear

$

$

Not available

rr

Stepping Motor

$

$

Not available

ss

Protecting Cover Jacket

$

$

Not available

tt

Screw, M2.5×4

$

$

Not available

Cub Cadet 752ZAX90HUC

COMPLETE ENGINE 547cc
(Superseded to 952ZAX90HUC)

$

$

Not available
