AV600-660-11A - Tecumseh Engine Engine Parts List #1 Parts Diagram

Engine

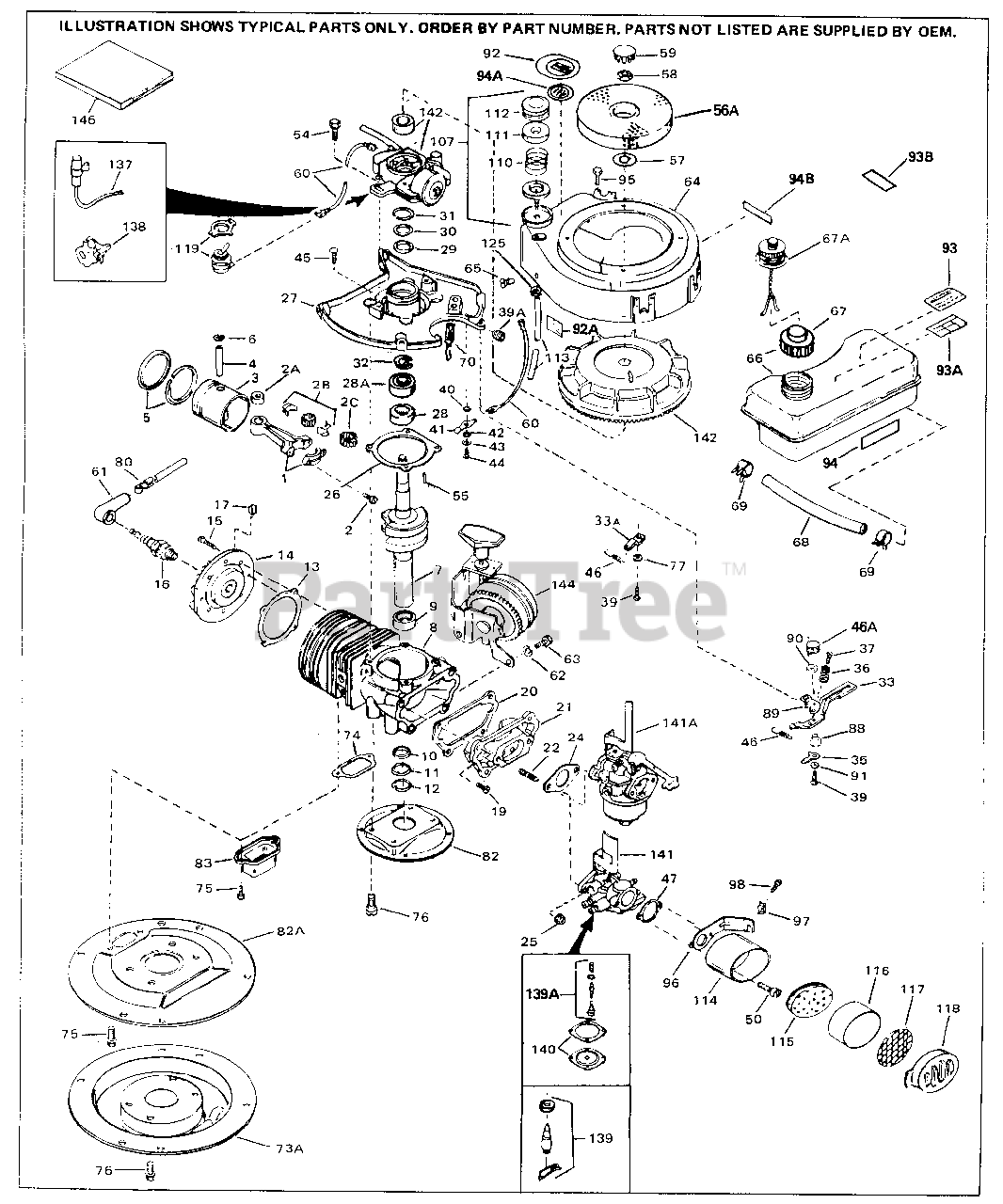

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 310235B

"Rod Assy., Connecting Incl. 2, 2A & 2 B
(Superseded to 310235C)

$106.99

$

Usually ships in 3-12 days

0

2

Tecumseh 650633

Screw, Connecting rod

$1.99

$

In Stock, only 2 left!

0

2A

Tecumseh 530104A

Bearing, Cartridge

$15.99

$

Usually ships in 3-12 days

0

2B

Tecumseh 530150

Bearing & Liner Set, Needle 37 Needl es
(Superseded to 530150A)

$36.99

$

Usually ships in 3-12 days

0

3

Tecumseh 310269

Piston
(Superseded to 310283A)

$33.99

$

Usually ships in 3-12 days

0

4

Tecumseh 310264

Pin, Piston

$9.49

$

Usually ships in 3-12 days

0

5

Tecumseh 310190

Ring Set, Piston
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

6

Tecumseh 310167

Ring, Piston pin retaining

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 290459

Crankshaft

$

$

Currently unavailable

8

Tecumseh 250263A

Block Assy., Cylinder Incl. 9 thru 1 2
(Superseded to 250263B)

$

$

Currently unavailable

9

Tecumseh 530143A

Bearing, Needle

$18.99

$

In Stock, only 1 left!

0

10

Tecumseh 510145

Seal, Crankshaft

$3.99

$

Usually ships in 3-12 days

0

11

Tecumseh 510143

Retainer, Crankshaft seal

$3.99

$

In Stock, only 1 left!

0

12

Tecumseh 510142

Spring, Crankshaft seal retainer

$1.99

$

In Stock, only 2 left!

0

13

Tecumseh 510274

* Gasket, Cylinder head
(Superseded to 510274A)

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 250240A

CYL HEAD
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

15

Tecumseh 650477

Screw, Torx T-30, 1/4-20 x 3/4"

$1.99

$

In Stock, Qty 20+

0

16

Tecumseh 33636

Resistor Spark Plug - RJ17LM

$5.49

$

In Stock, Qty 13

0

19

Tecumseh 650579

Screw, Torx T-25, 10-24 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 510323

* Gasket, Reed plate
(Superseded to 510323A)

$6.99

$

In Stock, only 1 left!

0

21

Tecumseh 470142

Plate Assy., Reed (Incl. 22)

$39.99

$

Usually ships in 3-12 days

0

22

Tecumseh 650700

Stud, Carburetor

$

$

Not available

24

Tecumseh 510110

* Gasket, Carburetor
(Superseded to 510110A)

$1.99

$

In Stock, Qty 5

0

25

Tecumseh 650456

Nut, Hex, 1/4-20 (Use as required)

$1.99

$

In Stock, only 1 left!

0

25

Tecumseh 650457

Nut, Hex, 1/4-28 (Use as required)
(Superseded to 29752)

$1.99

$

In Stock, only 3 left!

0

26

Tecumseh 510292

* Gasket, Housing base
(Superseded to 510292A)

$3.99

$

Usually ships in 3-12 days

0

27

Tecumseh 350383

Blower Housing Base

$38.99

$

Usually ships in 3-12 days

0

28

Tecumseh 530105

Bearing, Needle

$11.99

$

Usually ships in 3-12 days

0

29

Tecumseh 510105

Seal, Crankshaft

$2.99

$

Usually ships in 3-12 days

0

30

Tecumseh 510106A

Retainer, Crankshaft seal

$3.99

$

In Stock, only 1 left!

0

31

Tecumseh 510109A

Spring, Crankshaft seal retainer

$3.99

$

Usually ships in 3-12 days

0

32

Tecumseh 570630

Ring, Retainer (Use as required)

$

$

Currently unavailable

33

Tecumseh 570421

Lever, Control

$27.99

$

Usually ships in 3-12 days

0

35

Tecumseh 570415

Lever, Adjusting

$3.99

$

Usually ships in 3-12 days

0

36

Tecumseh 31342

Spring

$5.99

$

In Stock, only 1 left!

0

37

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

39

Tecumseh 650544

Screw, Torx T-25, 10-24 x 7/8"

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 650911

Screw, Torx T-30, 1/4-20 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

46

Tecumseh 570454

Spring, Governor

$1.99

$

In Stock, only 1 left!

0

47

Tecumseh 510206

Gasket
(Superseded to 35815)

$1.49

$

In Stock, Qty 20+

0

50

Tecumseh 650431

Screw, Torx T-25, 10-32 x 5/8"

$1.99

$

In Stock, Qty 6

0

54

Tecumseh 650747

Screw, 1/4-20 x 3/4"

$

$

Currently unavailable

55

Tecumseh 650496

Key, Flywheel

$1.49

$

In Stock, Qty 20+

0

57

Tecumseh 650201

Washer

$

$

Not available

58

Tecumseh 650390

Nut, Flywheel

$1.99

$

In Stock, only 3 left!

0

60

Tecumseh 610686

Wire, Cut off

$

$

Not available

61

Tecumseh 610118

Cover, Spark plug

$6.49

$

In Stock, only 2 left!

0

64

Tecumseh 350374

Blower Housing

$

$

Currently unavailable

65

Tecumseh 650356

Screw, 1/4-20 x 3/8"

$1.99

$

Usually ships in 3-12 days

0

66

Tecumseh 410233

Tank, Fuel (Incl. 67)

$55.99

$

Usually ships in 3-12 days

0

67A

Tecumseh 410224

Fuel Cap
(Superseded to 410285)

$19.99

$

Usually ships in 3-12 days

0

68

Tecumseh 29774

Fuel Line (8.62")

$34.99

$

In Stock, Qty 6

0

68

Tecumseh 30705

Fuel Line (16") (Use as required)

$16.99

$

In Stock, Qty 7

0

69

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

74

Tecumseh 510257

Gasket, Exhaust
(Superseded to 510257A)

$3.99

$

Usually ships in 3-12 days

0

75

Tecumseh 650356

Screw, 1/4-20 x 3/8"

$1.99

$

Usually ships in 3-12 days

0

83

Tecumseh 390276A

Muffler
(Superseded to 390276B)

$11.99

$

In Stock, only 1 left!

0

88

Tecumseh 570412

Spacer

$3.99

$

In Stock, only 1 left!

0

90

Tecumseh 570422

Washer

$1.99

$

Usually ships in 3-12 days

0

91

Tecumseh 650583

Washer

$1.99

$

In Stock, only 2 left!

0

92A

Tecumseh 550195

Decal, Instruction

$

$

Currently unavailable

107

Tecumseh 570629A

Primer Assy. (Incl. 110 thru 113)
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

110

Tecumseh 570443

Spring, Primer bulb (Use as required)

$

$

Currently unavailable

111

Tecumseh 570444

Washer, Primer bulb (Use as required)

$

$

Currently unavailable

112

Tecumseh 570442A

Bulb, Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

113

Tecumseh 32180C

Line, Primer

$6.99

$

In Stock, only 4 left!

0

114

Tecumseh 450232

Body, Air filter

$9.99

$

Usually ships in 3-12 days

0

115

Tecumseh 29962

Air Cleaner Screen

$5.49

$

In Stock, Qty 7

0

116

Tecumseh 450215

Air Filter

$7.49

$

In Stock, only 4 left!

0

117

Tecumseh 450205

Air Filter

$5.49

$

In Stock, only 2 left!

0

118

Tecumseh 450216

Cover, Air filter

$15.99

$

Usually ships in 3-12 days

0

119

Tecumseh 610650B

Switch, Toggle

$21.99

$

In Stock, only 1 left!

0

137

Tecumseh 30548B

Condenser (also available in Packaged Part #740037B)

$13.99

$

In Stock, Qty 9

0

138

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, only 1 left!

0

139A

Tecumseh 630932A

Inlet Needle, Seat, Spring & Gasket A ssy.

$9.49

$

In Stock, Qty 11

0

140

Tecumseh 630978

Diaphragm & Gasket Assy.

$5.99

$

Usually ships in 3-12 days

0

141

Tecumseh 631772

Carburetor (Incl. 24, 139A & 140) (Re fer to Division 5, Section A, page 12 6 for breakdown)

$

$

Not available

142

Tecumseh 610794

Magneto NOTE: The complete magneto i s not available as an assembly. The magneto number is shown for reference purposes only. Order component part s individually, as shown in parts lis t. (Refer to Division 5, Section B, p age 28 for breakdown)

$

$

Currently unavailable

146

Tecumseh 510295

* Gasket Set (Incl. items marked *)
(Superseded to 510295A)

$18.99

$

Usually ships in 3-12 days

0
