AV600-660-03 - Tecumseh Engine Engine Parts List #2 Parts Diagram

Engine

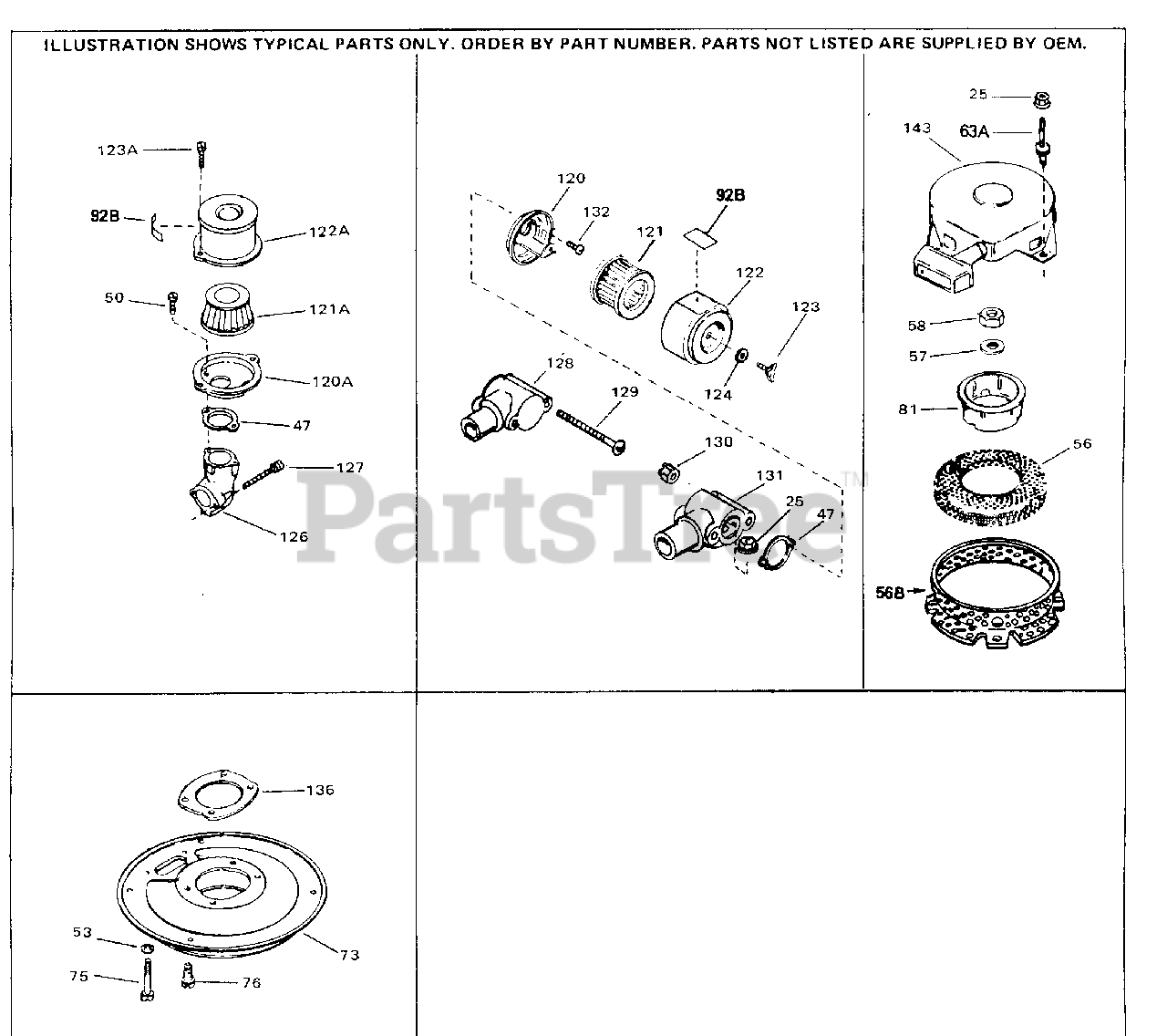

Engine Parts List #2 Parts Diagram

  • Title

25

Tecumseh 650456

Nut, Hex, 1/4-20 (Use as required)

$1.99

$

In Stock, only 1 left!

0

25

Tecumseh 650457

Nut, Hex, 1/4-28 (Use as required)
(Superseded to 29752)

$1.99

$

In Stock, only 3 left!

0

47

Tecumseh 510206

Gasket
(Superseded to 35815)

$1.49

$

In Stock, Qty 20+

0

50

Tecumseh 650431

Screw, Torx T-25, 10-32 x 5/8"

$1.99

$

In Stock, Qty 6

0

53

Tecumseh 650295

Washer

$

$

Currently unavailable

56

Tecumseh 590417

Screen, Starter cup

$7.49

$

In Stock, only 1 left!

0

57

Tecumseh 650201

Washer

$

$

Not available

58

Tecumseh 650390

Nut, Flywheel

$1.99

$

In Stock, only 3 left!

0

63A

Pop Rivet (Can be purchased locally)

$

$

Not available

73

Tecumseh 390273C

Muffler (Incl. 73A, 75 & 82A)

$

$

Currently unavailable

75

Tecumseh 650412

Screw, 1/4-20 x 1-7/8"

$

$

Currently unavailable

76

Tecumseh 650603

Screw, 5/16-18 x 5/8"

$

$

Not available

81

Tecumseh 590416

Cup, Starter

$9.99

$

Usually ships in 3-12 days

0

120

Tecumseh 450230

Base Assy., Filter

$

$

Currently unavailable

121

Tecumseh 450229

Air Filter

$

$

Currently unavailable

122

Tecumseh 450231

Cover, Air filter

$

$

Currently unavailable

123

Tecumseh 650715

Screw, 10-24 x 1/2"

$

$

Currently unavailable

136

Tecumseh 510271

Gasket, Flange
(Superseded to 510271A)

$

$

Not available

143

Tecumseh 590420

Starter, Rewind Refer to Division 5, Section C, page 25 for breakdown
(Superseded to 590420A)

$68.99

$

In Stock, only 1 left!

0
