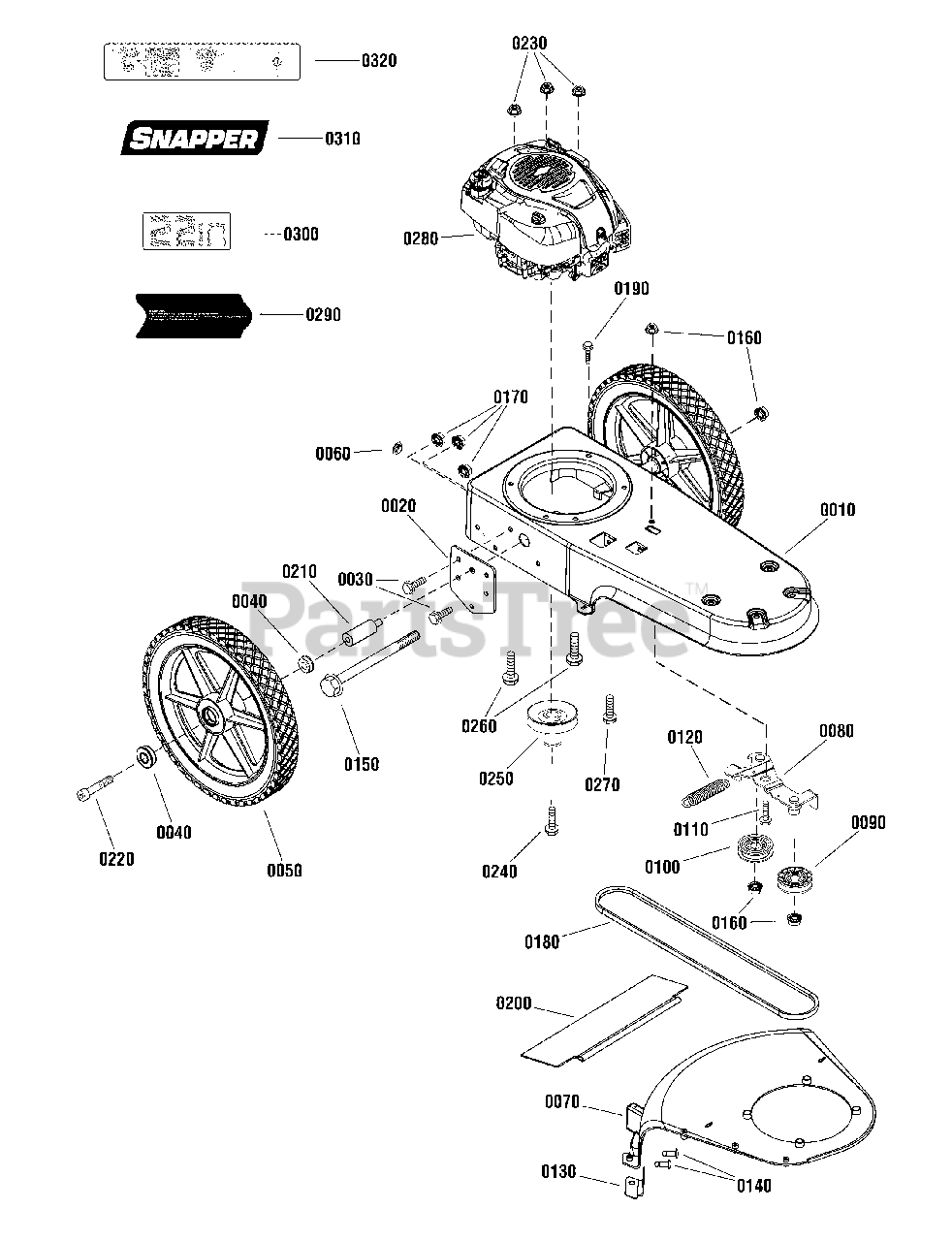

AT 67522 (7800945-00) - Snapper Walk-Behind Trimmer, 6.75hp Engine & Frame Group Parts Diagram

Walk-Behind Trimmer, 6.75hp

Engine & Frame Group Parts Diagram

  • Title

0010

FRAME. Deck

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0020

PLATE, Axle

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0030

BOLT, Hex Head Flange, M8 X 1.25 X 20 GR8.8

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0040

Snapper 705794

BEARING, Wheel

$12.99

$

Usually ships in 2-12 days

0

0050

Snapper 705795

TIRE & WHEEL ASSEMBLY, GRAY

$96.99

$

Usually ships in 2-12 days

0

0060

BUSHING, Rubber, M12 X 23

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0070

Snapper 705796

SHIELD, Trimmer

$136.99

$

Usually ships in 2-12 days

0

0080

IDLER ASSEMBLY

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0090

Snapper 705797

PULLEY, V w/Bearing

$26.99

$

Usually ships in 2-12 days

0

0100

Snapper 705798

PULLEY, 3L w/Bearing

$25.99

$

Usually ships in 2-12 days

0

0110

BOLT, Shoulder, M10 X 1.5 X 20

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0120

Snapper 705799

SPRING, Extension

$4.99

$

In Stock, only 1 left!

0

0130

CUTTER LINE

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0140

RIVET, M5 X 10

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0150

BOLT, Carriage, M6 X 1.0 X 285

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0160

NUT, Flange Nylock, M6 X 1.0, GR8.8

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0170

NUT, Flange Nylock, M8-1

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0180

Snapper 705800

BELT, 3L 45.5

$39.99

$

Usually ships in 2-12 days

0

0190

SCREW, Washer Head, M4.7 X15, GR8.8

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0200

Snapper 705801

TRAILING SHIELD

$33.99

$

Usually ships in 2-12 days

0

0210

SPACER, Stud

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0220

BOLT, Shoulder, 10-1.5 X 25, 1 2X 63M, GR8.8

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0230

NUT, Flange Nylock, M8 X 1.25, GR8.8

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0240

BOLT, Hex, 3/8-24 X 1, GR8.8

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0250

Snapper 706346

PULLEY, Engine

$91.99

$

Usually ships in 2-12 days

0

0260

BOLT, Hex Head, M8 X 1.25 X 20, GR8.8

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0270

BOLT, Hex, M5.8 X 2.0, GR8.8

Note: (Not serviced by Briggs & Stratton)

$

$

Not available

0280

Snapper 126M02-0451-E1

*ENGINE, B&S, 675 ST Window, Mod. 126M02-0451-E1

$

$

Currently unavailable

0290

DECAL, Instruction Starting

$

$

Not available

0300

DECAL, Cutting Width

$

$

Not available

0310

DECAL, Snapper

$

$

Not available

0320

DECAL, String Install

$

$

Not available
