AS30-23CV - Scag AerStorm 30" Aerator, 23hp Kohler (SN: V9200001 - V9299999) TINES AND LIFT SYSTEM Parts Diagram

AerStorm 30" Aerator, 23hp Kohler

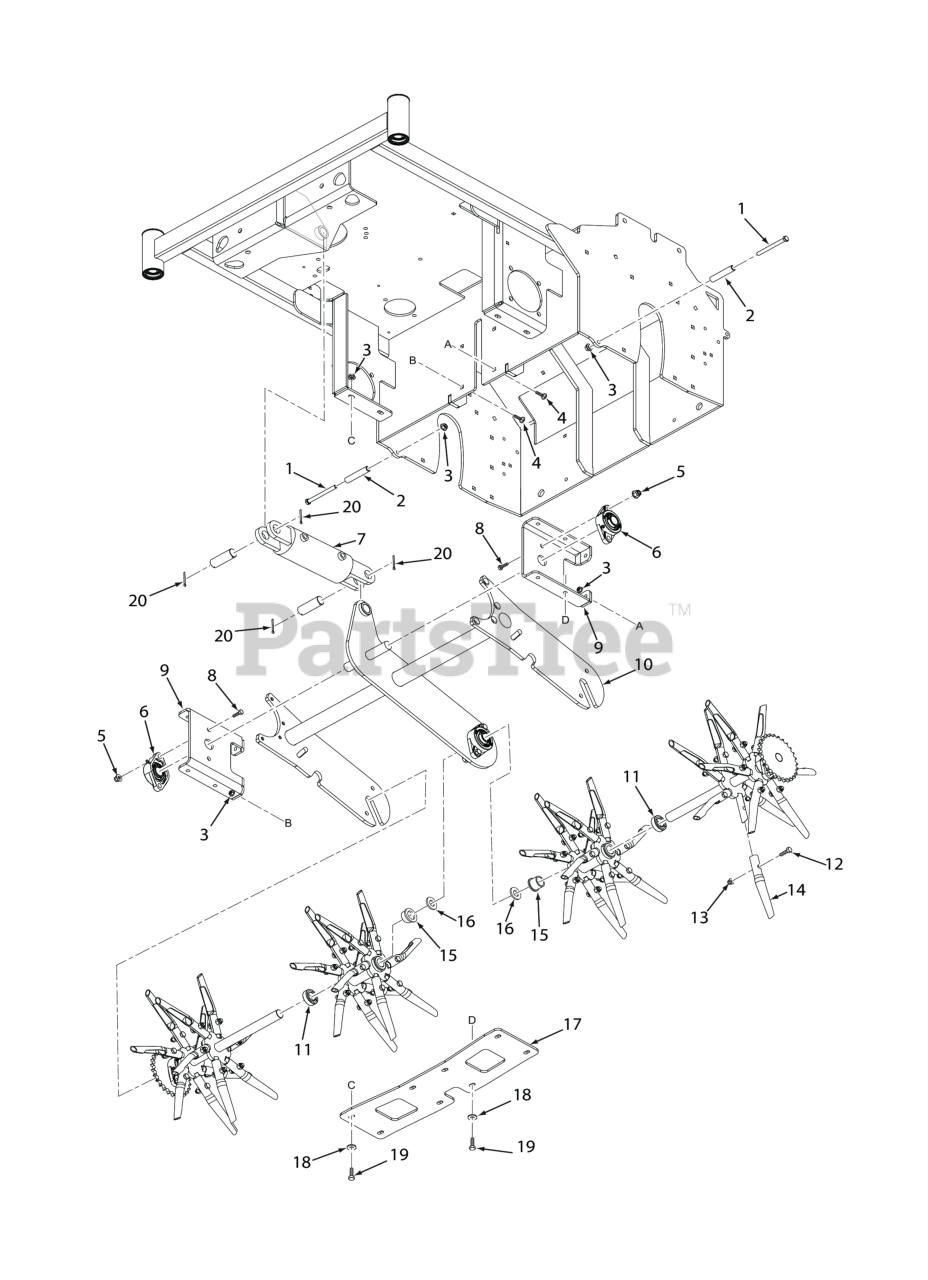

TINES AND LIFT SYSTEM Parts Diagram

  • Title

1

Scag 04001-30

Bolt, Hex Head 3/8-16 x 4.00

$1.49

$

In Stock, only 2 left!

0

2

Scag 431183

Spacer, Wheel Mount

$11.99

$

Usually ships in 2-12 days

0

3

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

4

Scag 04003-11

SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

5

Scag 04019-05

HEX NUT, 7/16-14 SERRATED FLANGE

$0.99

$

In Stock, Qty 12

0

6

Scag 487259

Bearing, 1" Flange

$75.99

$

Usually ships in 2-12 days

0

7

Scag 487258

Cylinder, 3.00 Bore x 4.00 Stroke

$658.99

$

Usually ships in 2-12 days

0

8

Scag 04001-178

Bolt, Hex Head 7/16-20 x 1"

$1.99

$

In Stock, Qty 12

0

9

Scag 429042

Pivot Arm Mnt

$33.99

$

Usually ships in 2-12 days

0

10

Scag 453337

Pivot Arm Wlmt

$709.99

$

Usually ships in 2-12 days

0

11

Scag 485553

Clamp Collar, 1.25 Bore 2 Piece

$20.99

$

Usually ships in 2-12 days

0

12

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

14

Scag 487253

Tine

$14.99

$

Usually ships in 2-12 days

0

15

Scag 48100-17

Bushing, 1" ID Oilite
(Superseded to 48100-08)

$5.99

$

In Stock, only 2 left!

0

16

Scag 04042-05

Flatwasher, 1" (1.062 x 1.75 x .10)

$0.99

$

In Stock, Qty 18

0

17

Scag 429081

Brace, Wheelmotors

$45.99

$

Usually ships in 2-12 days

0

18

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-25

HH BOLT, 3/8-16 X 1.0 PL STL

$0.99

$

Usually ships in 2-12 days

0

20

Scag 04061-06

Pin, Cotter 9/16" x 1-1/2"

$0.99

$

In Stock, Qty 11

0
