AS30-23CV - Scag AerStorm 30" Aerator, 23hp Kohler (SN: V9200001 - V9299999) SHEET METAL COMPONENTS Parts Diagram

AerStorm 30" Aerator, 23hp Kohler

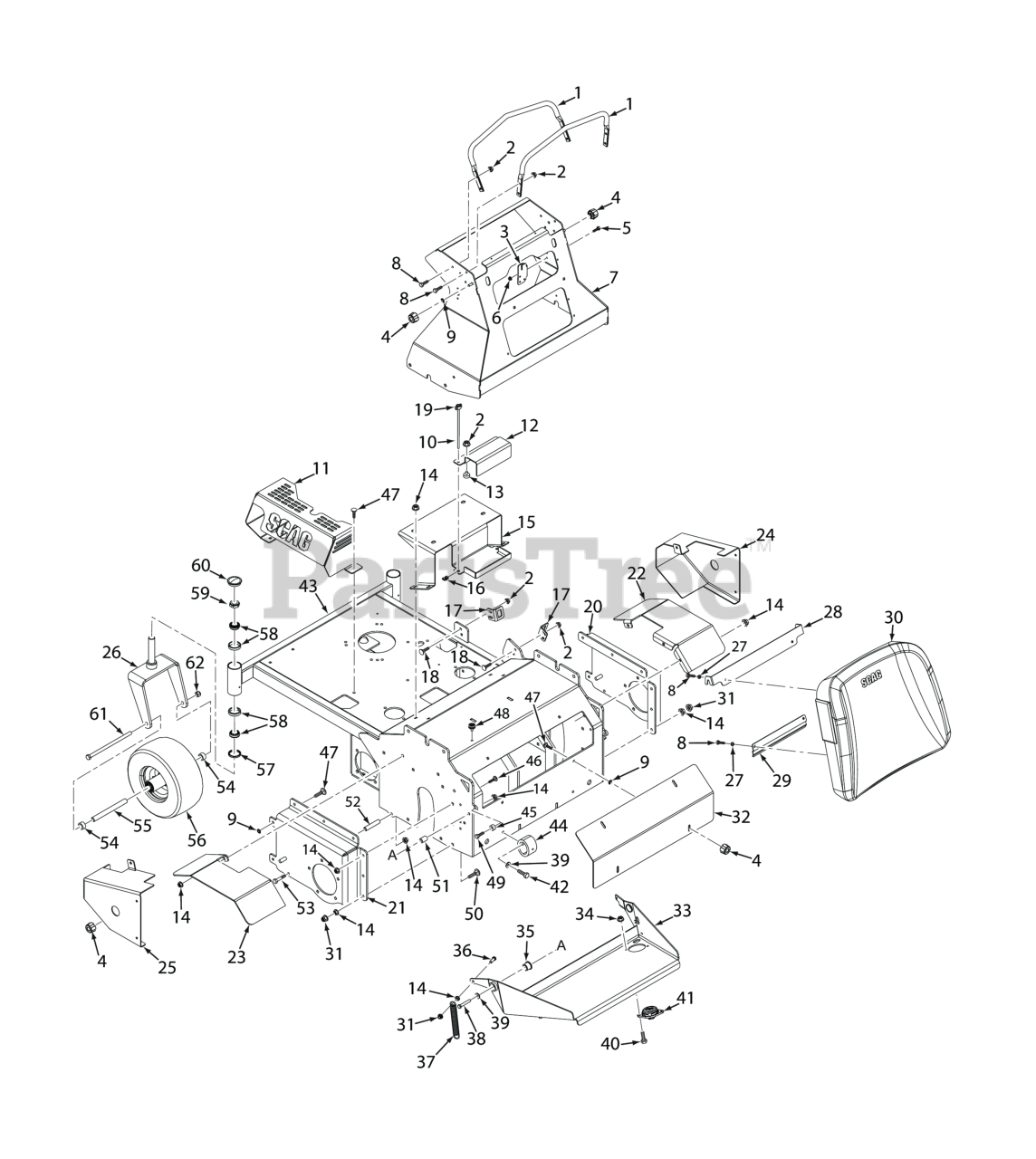

SHEET METAL COMPONENTS Parts Diagram

  • Title

1

Scag 427189

Reference Bar

$53.99

$

Usually ships in 2-12 days

0

2

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

3

Scag 427269

Bracket, Neutral Switch

$13.99

$

Usually ships in 2-12 days

0

4

Scag 481885-06

Knob, 5/16-18

$14.99

$

In Stock, Qty 6

0

5

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

6

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

7

Scag 453340

Handlebar Weldment

$367.99

$

Usually ships in 2-12 days

0

8

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 04024-03

Nut, Push-On 5/16-18

$1.49

$

In Stock, Qty 16

0

10

Scag 04001-221

Bolt, Hex Head 1/4-20 x 8"

$3.99

$

In Stock, Qty 18

0

11

Scag 429214

Heatshield, Muffler

$131.99

$

Usually ships in 2-12 days

0

12

Scag 429160

Cover, Battery Box

$19.99

$

Usually ships in 2-12 days

0

13

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 3 left!

0

14

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

15

Scag 429132

Mount, Fuel Tank

$128.99

$

Usually ships in 2-12 days

0

16

Scag 04110-01

Bolt, Hex Head 3/8-16 x 1"

$1.49

$

In Stock, Qty 18

0

17

Scag 429195

Bracket, Height Switch

$5.99

$

Usually ships in 2-12 days

0

18

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

19

Scag 485698-01

Knob, 1/4" Wing

$0.99

$

In Stock, Qty 20+

0

20

Scag 428949

Bracket RH, Wheel Mount

$93.99

$

Usually ships in 2-12 days

0

21

Scag 428948

Bracket LH, Wheel Mount

$93.99

$

Usually ships in 2-12 days

0

22

Scag 463518

Fender RH

$70.99

$

Usually ships in 2-12 days

0

23

Scag 463517

Fender LH

$70.99

$

Usually ships in 2-12 days

0

24

Scag 429127

Chain Cover, RH

$64.99

$

Usually ships in 2-12 days

0

25

Scag 429126

Chain Cover, LH

$64.99

$

Usually ships in 2-12 days

0

26

Scag 453110

Yoke Weldment

$97.99

$

In Stock, only 1 left!

0

27

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

28

Scag 427289

Bracket, Knee Pad - Upper

$34.99

$

Usually ships in 2-12 days

0

29

Scag 427292

Bracket, Knee Pad - Lower

$17.99

$

Usually ships in 2-12 days

0

30

Scag 486756

Operator Pad

$320.99

$

Usually ships in 2-12 days

0

31

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

32

Scag 428995

Guard, Rear

$28.99

$

Usually ships in 2-12 days

0

33

Scag 453360

Footplate

$381.99

$

Usually ships in 2-12 days

0

34

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

35

Scag 486834

Bearing, Pivot

$17.99

$

Usually ships in 2-12 days

0

36

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 12

0

37

Scag 48755

Spring,Counter Balance

$10.99

$

In Stock, only 2 left!

0

38

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

39

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

40

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

41

Scag 487354

Switch, Foot

$52.99

$

Usually ships in 2-12 days

0

42

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

43

Scag 463519

Frame

$2404.99

$

Usually ships in 2-12 days

0

44

Scag 486758

Isolator, Footplate

$15.99

$

In Stock, only 1 left!

0

45

Scag 43720

Spacer, Idler Pulley - SFZ61

$4.99

$

In Stock, only 1 left!

0

46

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

47

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

48

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 3 left!

0

49

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 6

0

50

Scag 04003-21

Carriage Bolt, 3/8-16 x 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

51

Scag 431126

Bearing, Hub

$9.49

$

Usually ships in 2-12 days

0

52

Scag 431183

Spacer, Wheel Mount

$11.99

$

Usually ships in 2-12 days

0

53

Scag 04001-30

Bolt, Hex Head 3/8-16 x 4.00

$1.49

$

In Stock, only 2 left!

0

54

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

55

Scag 43583

Sleeve, Caster Wheel (61V, 72A/VS)

$13.99

$

In Stock, Qty 20+

0

56

Scag 483050

REPLACED BY 9278
(Superseded to 9278)

$191.99

$

In Stock, Qty 20+

0

57

Scag 481025

Seal, 2.00" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

58

Scag 481657

Bearing, 1.0 Diameter
(Superseded to 48668)

$23.99

$

In Stock, Qty 20+

0

59

Scag 04021-20

Nut, Elastic Stop 1.0"-14

$4.99

$

In Stock, Qty 20+

0

60

Scag 484195

Cap, Grease

$2.49

$

In Stock, Qty 20+

0

61

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2" (61V & 72A/VS)

$5.99

$

In Stock, Qty 20+

0

62

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0
