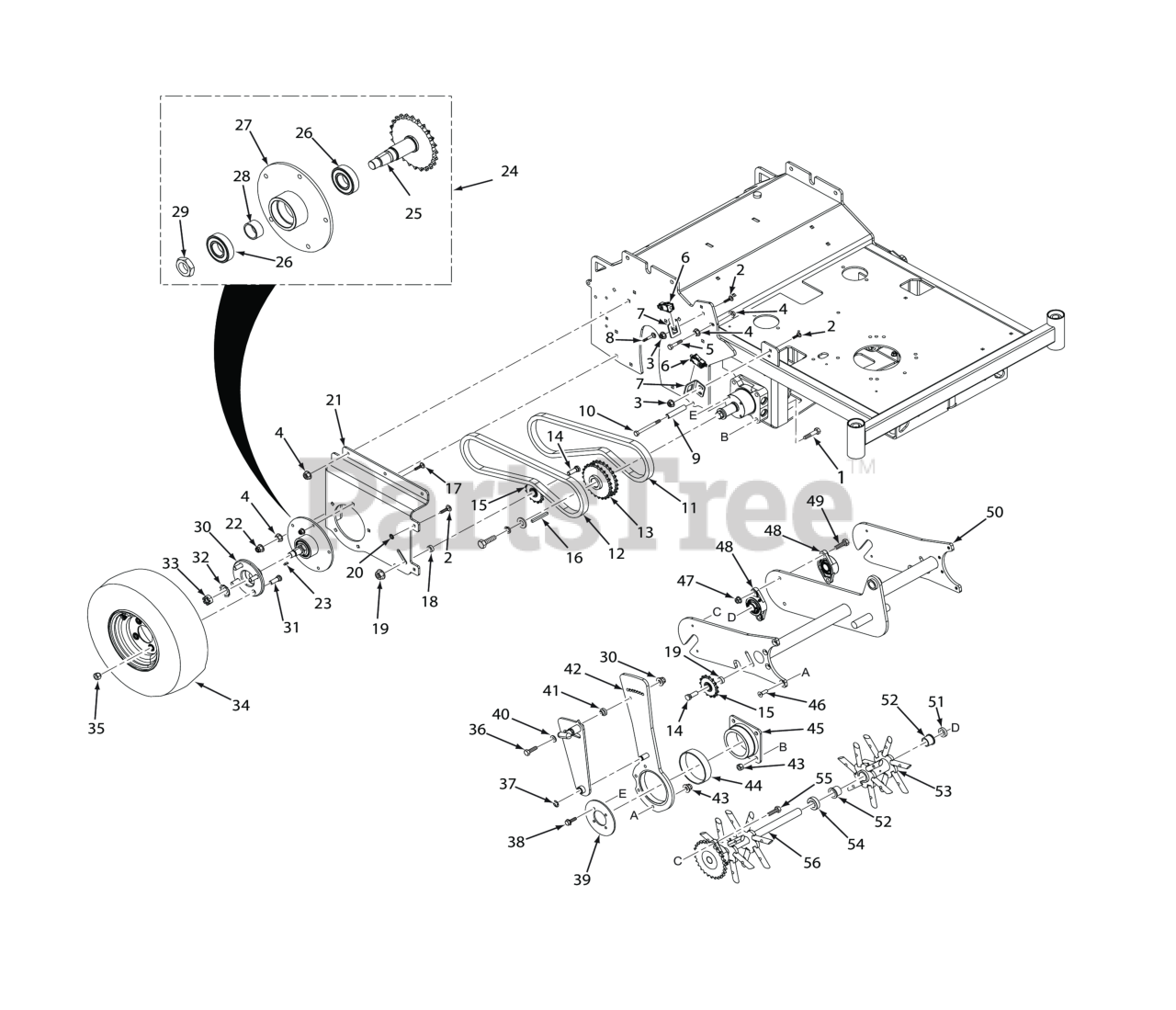

AS30-23CV - Scag AerStorm 30" Aerator, 23hp Kohler (SN: V9200001 - V9299999) RIGHT SIDE TINE WHEEL DRIVE Parts Diagram

AerStorm 30" Aerator, 23hp Kohler

RIGHT SIDE TINE WHEEL DRIVE Parts Diagram

  • Title

1

Scag 04001-190

Bolt, Hex Head 1/2-13 x 2-3/4" (48V & 52V - One Weight)

$2.49

$

In Stock, Qty 6

0

2

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

3

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

4

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 8

0

6

Scag 486365

Switch, Plunger, Double Pole, Snap

$12.99

$

In Stock, only 2 left!

0

7

Scag 429195

Bracket, Height Switch

$5.99

$

Usually ships in 2-12 days

0

8

Scag 04003-21

Carriage Bolt, 3/8-16 x 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

9

Scag 431183

Spacer, Wheel Mount

$11.99

$

Usually ships in 2-12 days

0

10

Scag 04001-30

Bolt, Hex Head 3/8-16 x 4.00

$1.49

$

In Stock, only 2 left!

0

11

Scag 487321

Chain, Tine Drive

$41.99

$

Usually ships in 2-12 days

0

12

Scag 487320

Chain, Wheel Drive

$40.99

$

Usually ships in 2-12 days

0

13

Scag 453356

Sprocket, Motor

$193.99

$

Usually ships in 2-12 days

0

14

Scag 487439

Bolt, Ilder Sprocket

$2.99

$

Usually ships in 0 days

0

15

Scag 487270

Sprocket, Idler 15T

$30.99

$

Usually ships in 2-12 days

0

16

Scag 04063-44

Key, 5/16 x 5/16 x 1.437

$1.99

$

Usually ships in 0 days

0

17

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

18

Scag 431182

Bushing, Idler Sprocket

$5.99

$

Usually ships in 2-12 days

0

19

Scag 04019-06

Nut, Hex Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 10

0

20

Scag 04024-03

Nut, Push-On 5/16-18

$1.49

$

In Stock, Qty 16

0

21

Scag 428949

Bracket RH, Wheel Mount

$93.99

$

Usually ships in 2-12 days

0

22

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04063-07

KEY, WOODRUFF #9, 3/16 X 3/4"

$0.99

$

In Stock, Qty 12

0

24

Scag 493896

Assembly (incl. #18, 19, 20, 21, 22)

$430.99

$

Usually ships in 2-12 days

0

25

Scag 453346

Shaft, Wheel

$101.99

$

Usually ships in 2-12 days

0

26

Scag 487330

Bearing, Ball 30mm Bore x 62mm OD

$13.99

$

Usually ships in 2-12 days

0

27

Scag 453345

Hub, Wheel

$143.99

$

Usually ships in 2-12 days

0

28

Scag 431180

Spacer, Wheel Bearing

$11.99

$

Usually ships in 2-12 days

0

29

Scag 481035

Nut , Spec ial 1 -1/ 1 6 - 1 8

$7.99

$

In Stock, only 3 left!

0

30

Scag 46928

Wheel Hub Assembly

$133.99

$

Usually ships in 2-12 days

0

31

Scag 04008-01

Bolt, Serr. Flange 1/2-20 x 4.563"

$3.49

$

In Stock, Qty 20+

0

32

Scag 422214

Lock Washer, Wheel Motor

$4.49

$

In Stock, only 1 left!

0

33

Scag 04027-01

Hex Castle Nut, 3/4-28 UNEF

$8.49

$

In Stock, only 1 left!

0

34

Scag 487462

Wheel Assy., 18 x 6.5 - 8

$175.99

$

Usually ships in 2-12 days

0

35

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.49

$

In Stock, Qty 20+

0

36

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

37

Scag 04050-01

RETAINING RING, 5/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

38

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

39

Scag 429025

Stop Plate, Pivot Bearing

$8.99

$

Usually ships in 2-12 days

0

40

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

41

Scag 43086

BUSHING, SPEED ADJUSTMENT LEVER

$5.99

$

Usually ships in 2-12 days

0

42

Scag 453381

Pivot Bearing Wlmt RH

$168.99

$

Usually ships in 2-12 days

0

43

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

44

Scag 487280

Pivot Bearing

$27.99

$

Usually ships in 2-12 days

0

45

Scag 453353

Pivot Bearing Wlmt

$189.99

$

Usually ships in 2-12 days

0

46

Scag 04014-07

Capscrew, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 9

0

47

Scag 04019-05

HEX NUT, 7/16-14 SERRATED FLANGE

$0.99

$

In Stock, Qty 12

0

48

Scag 487259

Bearing, 1" Flange

$75.99

$

Usually ships in 2-12 days

0

49

Scag 04001-117

BOLT, HEX HEAD, 7/16-14 X 1-3/4

$0.99

$

In Stock, only 3 left!

0

50

Scag 453337

Pivot Arm Wlmt

$709.99

$

Usually ships in 2-12 days

0

51

Scag 04042-05

Flatwasher, 1" (1.062 x 1.75 x .10)

$0.99

$

In Stock, Qty 18

0

52

Scag 48100-17

Bushing, 1" ID Oilite
(Superseded to 48100-08)

$5.99

$

In Stock, only 2 left!

0

53

Scag 453335

Tine Wlmt, Idler

$286.99

$

Usually ships in 2-12 days

0

54

Scag 485553

Clamp Collar, 1.25 Bore 2 Piece

$20.99

$

Usually ships in 2-12 days

0

55

Scag 04001-178

Bolt, Hex Head 7/16-20 x 1"

$1.99

$

In Stock, Qty 12

0

56

Scag 453338

Tine Wlmt, RH Drive

$263.99

$

Usually ships in 2-12 days

0
