AS30-23CV - Scag AerStorm 30" Aerator, 23hp Kohler (SN: V9200001 - V9299999) ENGINE AND HYDRAULICS Parts Diagram

AerStorm 30" Aerator, 23hp Kohler

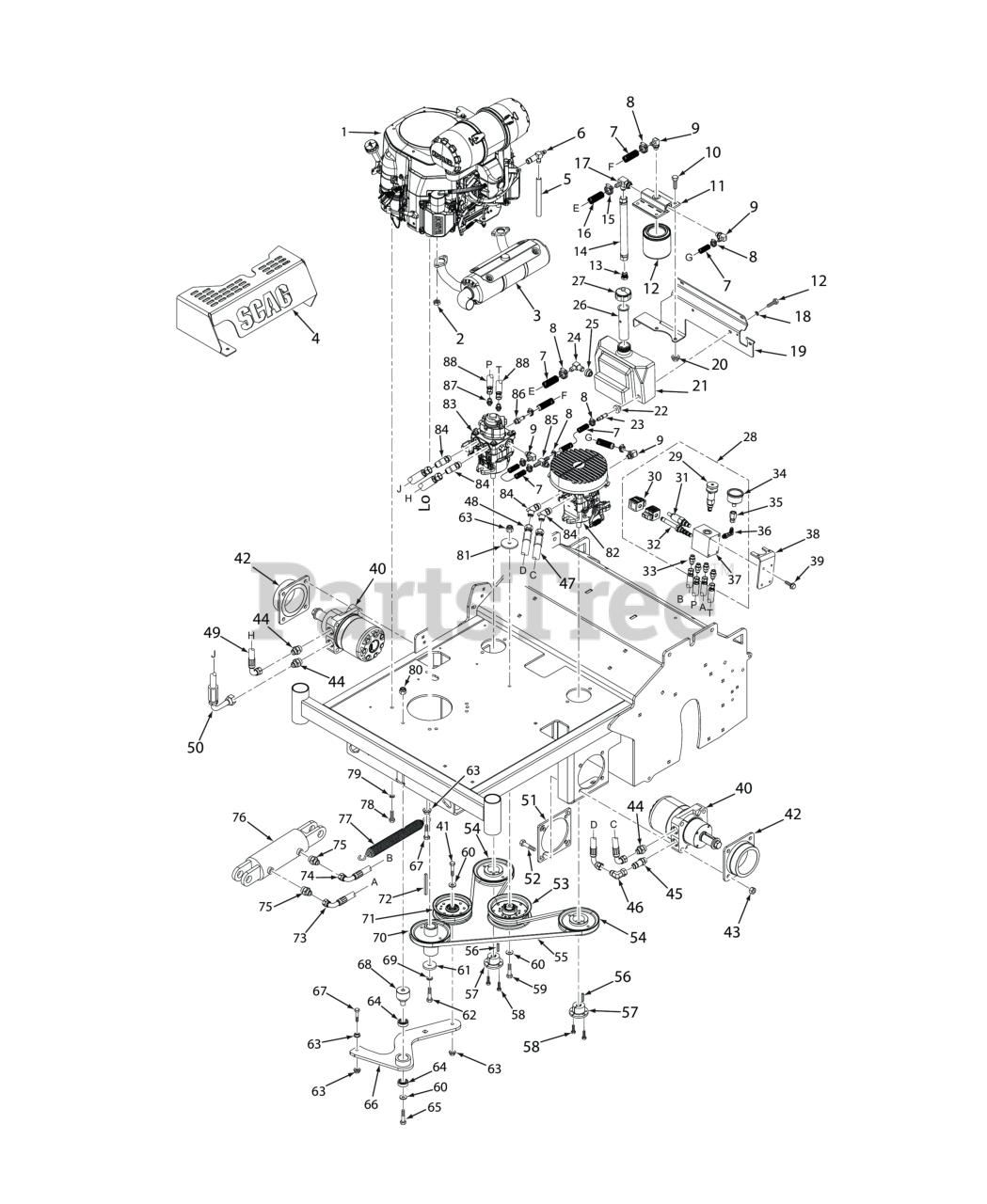

ENGINE AND HYDRAULICS Parts Diagram

  • Title
1

Scag 486137

Engine, Kohler - 23CV

Note: Order through Engine Manufacturer

$

$

Currently unavailable

2

Scag 04130-01

Lock Nut, M8-1.25 -8H (Kohler)

Note: Order through Engine Manufacturer

$1.49

$

Usually ships in 2-12 days

0

3

Scag 487372

Muffler, Kohler

$132.99

$

Usually ships in 2-12 days

0

4

Scag 429214

Heatshield, Muffler

$135.99

$

Usually ships in 2-12 days

0

5

Scag 483280-02

Tubing, Oil Drain 1/2 x 14"

$4.49

$

Usually ships in 2-12 days

0

6

Scag 482510

Extension, Oil Drain 2.3" - Kawasaki

$37.99

$

Usually ships in 2-12 days

0

7

Scag 48811

Hose, 3/8" ID - 10-1/4" Long (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

8

Scag 48136-13

Clamp, .69" Max. / .25" Min. Dia.

$7.49

$

In Stock, Qty 20+

0

9

Scag 482266-01

Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose

$32.99

$

Usually ships in 2-12 days

0

10

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 482417

Filter Head Assembly

$128.99

$

Usually ships in 2-12 days

0

12

Scag 48462-01

OIL FILTER, SPECIAL

$26.99

$

In Stock, Qty 20+

0

13

Scag 48771-02

Plug, JIC 3/4-16 UNF

$2.99

$

Usually ships in 2-12 days

0

14

Scag 485870

Drain, Hose Assembly

Note: (Inc. #13)

$47.99

$

Usually ships in 2-12 days

0

15

Scag 48136-05

Clamp, Cable 3/4" I.D.

$3.99

$

In Stock, only 2 left!

0

16

Scag 48351

Hose Assembly, 1/2" ID (Oil Reservoir to Filter Base)

$0.99

$

In Stock, Qty 12

0

17

Scag 482483

Tee, 3/4" O-Ring x JIC x 1/2" Hose

$35.99

$

In Stock, only 1 left!

0

18

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

19

Scag 429151

Bracket, Hydro Tank

$43.99

$

Usually ships in 2-12 days

0

20

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

21

Scag 463521

Hydraulic Tank Assy.(incl. #22, 23, 24, 25, 26, 27)

Note: (incl. #22, 23, 24, 25, 26, 27)

$126.99

$

Usually ships in 2-12 days

0

22

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

23

Scag 485590

Fitting, Straight

$3.49

$

Usually ships in 2-12 days

0

24

Scag 482574

Fitting, 90 Degree - 1/2" Hose

$18.99

$

Usually ships in 2-12 days

0

25

Scag 482753

Bushing

$

$

Currently unavailable

26

Scag 481507

Insert, Filler Neck

$13.99

$

Usually ships in 2-12 days

0

27

Scag 481164

CAP, HYDRAULIC TANK

$18.99

$

In Stock, Qty 8

0

28

Scag 487325

Pressure Valve Assy. (incl. # 29 - 37)

Note: (incl. # 29 - 37)

$1198.99

$

Usually ships in 2-12 days

0

29

Scag 487431

Adjustable Valve Assy.

$201.99

$

Usually ships in 0 days

0

30

Scag 487429

Adapter, Plug

$78.99

$

Usually ships in 0 days

0

31

Scag 487430

Sensor, Valve

$187.99

$

Usually ships in 0 days

0

32

Scag 487428

Sensor, Plug

$289.99

$

Usually ships in 0 days

0

33

Scag 487432

Fitting, Valve

$3.99

$

Usually ships in 2-12 days

0

34

Scag 487435

Pressure Gauge

$92.99

$

Usually ships in 0 days

0

35

Scag 487433

Adapter

$16.99

$

Usually ships in 0 days

0

36

Scag 487438

Elbow, 90 Degree O-Ring

$15.99

$

Usually ships in 0 days

0

37

Scag 487427

Base, Valve

$307.99

$

Usually ships in 0 days

0

38

Scag 429172

Mounting Brkt, Manifold

$29.99

$

Usually ships in 2-12 days

0

39

Scag 04017-04

CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 20+

0

40

Scag 487281

Wheelmotor

$1302.99

$

Usually ships in 2-12 days

0

41

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

42

Scag 453353

Pivot Bearing Wlmt

$194.99

$

Usually ships in 2-12 days

0

43

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 10

0

44

Scag 48572-02

TUBE UNION, 3/4-16 JIC TO 7/8-14 "O" RING

$12.99

$

Usually ships in 2-12 days

0

45

Scag 48572-10

Fitting, 1/2" JIC x 5/8" O-Ring (LH Wheel Motor - Upper Port Only)

$11.99

$

Usually ships in 2-12 days

0

46

Scag 481203-02

Elbow, 1/2 JIC Female to 1/2 JIC Male

$12.99

$

In Stock, only 1 left!

0

47

Scag 485602

Hose Assembly

$66.99

$

Usually ships in 2-12 days

0

48

Scag 485603

Hose Assembly

$69.99

$

In Stock, only 1 left!

0

49

Scag 484452

Hose Assembly

$81.99

$

In Stock, only 1 left!

0

50

Scag 487441

Hose Assembly

$93.99

$

Usually ships in 2-12 days

0

51

Scag 423279

Plate Weldment, Motor Backing

$26.99

$

Usually ships in 2-12 days

0

52

Scag 04001-190

Bolt, Hex Head 1/2-13 x 2-3/4" (48V & 52V - One Weight)

$2.49

$

In Stock, Qty 6

0

53

Scag 483215

Idler Pulley, Belt Clutch

$62.99

$

In Stock, Qty 20+

0

54

Scag 482649

Pulley, 5.45 OD - Tapered Bore"

$49.99

$

In Stock, only 1 left!

0

55

Scag 487297

Belt, Pump Drive

$46.99

$

Usually ships in 2-12 days

0

56

Scag 04063-14

KEY, 5 MM X 5 MM X 25 MM

$0.99

$

In Stock, Qty 5

0

57

Scag 482085

Hub, Tapered, 15mm Bore

$28.99

$

In Stock, only 1 left!

0

58

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

59

Scag 04001-22

Capscrew, Hex Head 3/8-16 x 2.75"

$1.49

$

In Stock, Qty 10

0

60

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

61

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 13

0

62

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch (Kawasaki)

$2.49

$

In Stock, Qty 13

0

63

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

64

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

65

Scag 04001-77

Bolt, Hex Head, 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

0

66

Scag 453361

Idler Arm Assy, Pump Drive (incl. #64)

$103.99

$

Usually ships in 2-12 days

0

67

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

68

Scag 43683

Pivot, Idler

$55.99

$

Usually ships in 2-12 days

0

69

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 8

0

70

Scag 487363

Pulley, 5.45 Dia. 1.125 Bore

$93.99

$

Usually ships in 2-12 days

0

71

Scag 483213

Pulley, Idler 4-1/2"

$53.99

$

In Stock, only 1 left!

0

72

Scag 04063-23

Key, 1/4 x 1/4 x 3-1/4�

$2.49

$

In Stock, only 2 left!

0

73

Scag 487470

Hose Assembly

$127.99

$

Usually ships in 2-12 days

0

74

Scag 487471

Hose Assembly

$122.99

$

Usually ships in 2-12 days

0

75

Scag 487432

Fitting, Valve

$3.99

$

Usually ships in 2-12 days

0

76

Scag 487258

Cylinder, 3.00 Bore x 4.00 Stroke

$674.99

$

Usually ships in 2-12 days

0

77

Scag 483112

Spring, Transmission Drive

$14.99

$

In Stock, only 1 left!

0

78

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 14

0

79

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

80

Scag 04021-02

Bolt, Hex Hd. 1/2-13 x 9-1/2"

$0.99

$

In Stock, Qty 5

0

81

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 9

0

82

Scag 487389

Pump, LH

$1212.99

$

Usually ships in 2-12 days

0

83

Scag 487390

Pump, RH

$1082.99

$

Usually ships in 2-12 days

0

84

Scag 48485-01

Elbow, 45 Deg. - 3/4-16 JIC Male x Male 3/4-16 O-Ring

$23.99

$

Usually ships in 2-12 days

0

85

Scag 482277

Tee Fitting, O-Ring to Barb

$36.99

$

Usually ships in 2-12 days

0

86

Scag 482800-02

Fitting, 9/16" O-Ring x 3/8" Hose

$17.99

$

Usually ships in 2-12 days

0

87

Scag 48572-11

Union, 37 Degree 9/16-18 x 7/16-20 O-Ring

$7.49

$

Usually ships in 2-12 days

0

88

Scag 487472

Hose Assembly

$117.99

$

Usually ships in 2-12 days

0
