AS30-23CV - Scag AerStorm 30" Aerator, 23hp Kohler (SN: V9200001 - V9299999) ELECTRICAL SYSTEM Parts Diagram

AerStorm 30" Aerator, 23hp Kohler

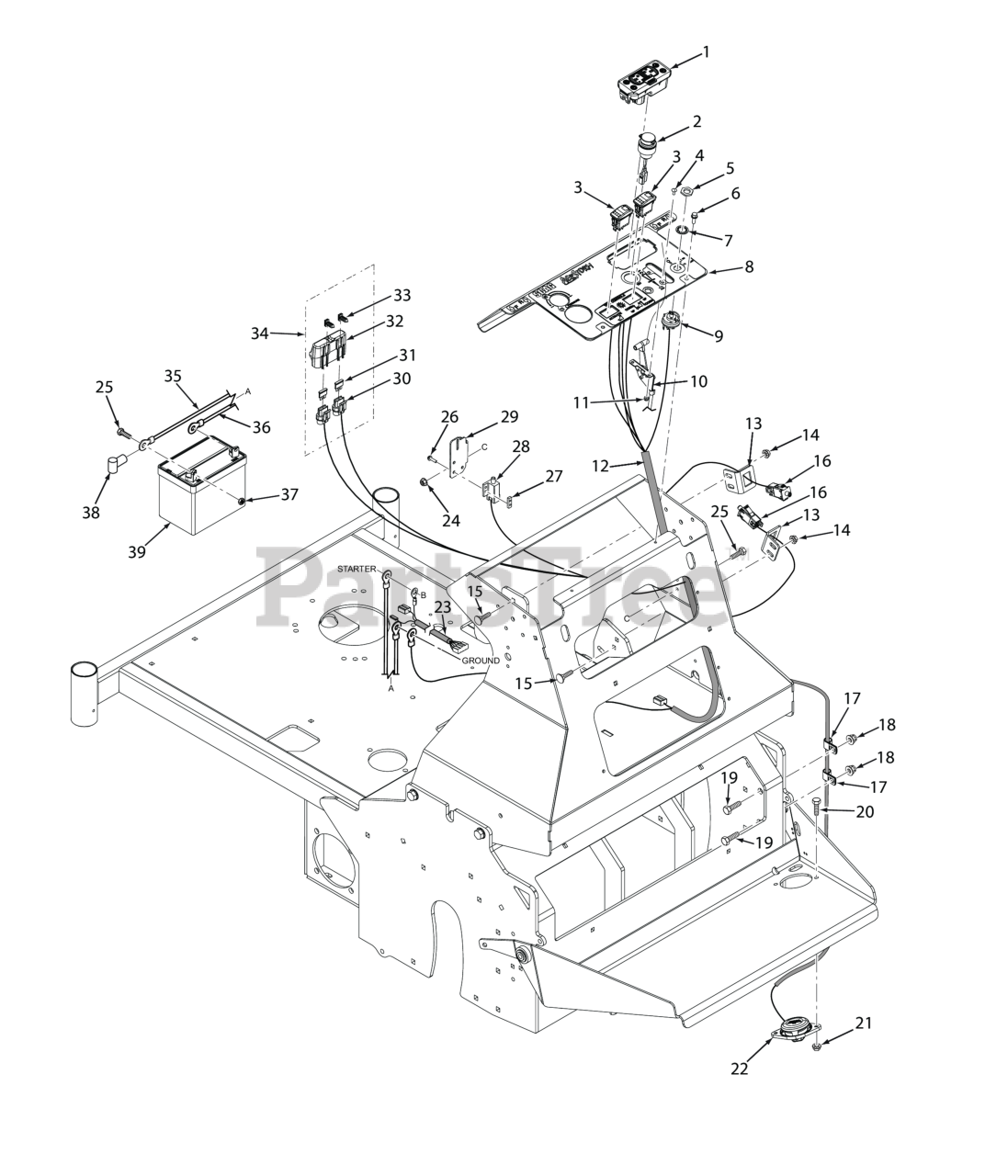

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 484721

Tiger Eye, Cluster Gauge

$374.99

$

In Stock, only 3 left!

0

2

Scag 485568

Power Plug, 12V

$30.99

$

Usually ships in 2-12 days

0

3

Scag 487039

Switch, Rocker - Lighted

$31.99

$

Usually ships in 2-12 days

0

4

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 10

0

5

Scag 48017-04

Nut, 5/8-32 Special

$1.49

$

In Stock, Qty 5

0

6

Scag 04011-14

Screw, Self-Tapping 1/4-20 x 3/4

$0.99

$

In Stock, Qty 13

0

7

Scag 48017-03

LOCK WASHER, 5/8" INTERNAL TOOTH

$0.99

$

In Stock, Qty 6

0

8

Scag 463520

Instrument Panel w/Decal

$94.99

$

Usually ships in 2-12 days

0

9

Scag 48798

KEY SWITCH(INCLUDES MOUNTING HARDWARE)

$27.99

$

In Stock, Qty 20+

0

10

Scag 484665

Throttle Cable

$28.99

$

In Stock, Qty 8

0

11

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 8

0

12

Scag 487481

Wire Harness

$1244.99

$

Usually ships in 2-12 days

0

13

Scag 429195

Bracket, Height Switch

$5.99

$

Usually ships in 2-12 days

0

14

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

15

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

16

Scag 486365

Switch, Plunger, Double Pole, Snap

$12.99

$

In Stock, only 2 left!

0

17

Scag 48030-15

Wire Loom

$

$

Not available

18

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

20

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

21

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 16

0

22

Scag 487354

Switch, Foot

$52.99

$

Usually ships in 2-12 days

0

23

Scag 485673

Wire Harness Adapter, Kohler - 23CV

$31.99

$

Usually ships in 2-12 days

0

24

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

25

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 20+

0

26

Scag 04010-12

Screw, Hex-Slotted Washer Head #10 32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

27

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0

28

Scag 481545

Switch, Interlock (see below)

$16.99

$

In Stock, Qty 9

0

29

Scag 427269

Bracket, Neutral Switch

$13.99

$

Usually ships in 2-12 days

0

30

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 7

0

31

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$3.99

$

Usually ships in 2-12 days

0

32

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

33

Scag 428588

Mounting Bracket, Operator Presence

$180.99

$

Usually ships in 2-12 days

0

34

Scag 483642

Double Fuse Assy.

$43.99

$

Usually ships in 2-12 days

0

35

Scag 48029-38

Cable, Battery - Red 60" w/Braid

$100.99

$

Usually ships in 2-12 days

0

36

Scag 48029-19

Battery Cable, Black

$24.99

$

Usually ships in 2-12 days

0

37

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 20+

0

38

Scag 48126

RUBBER BOOT

$8.49

$

Usually ships in 2-12 days

0

39

Scag 483665

Battery, 350 CCA (not available through Scag)

$

$

Not available
