ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 406294345 - 408644345) (Rev A) (2020) Auxiliary Hydraulic Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

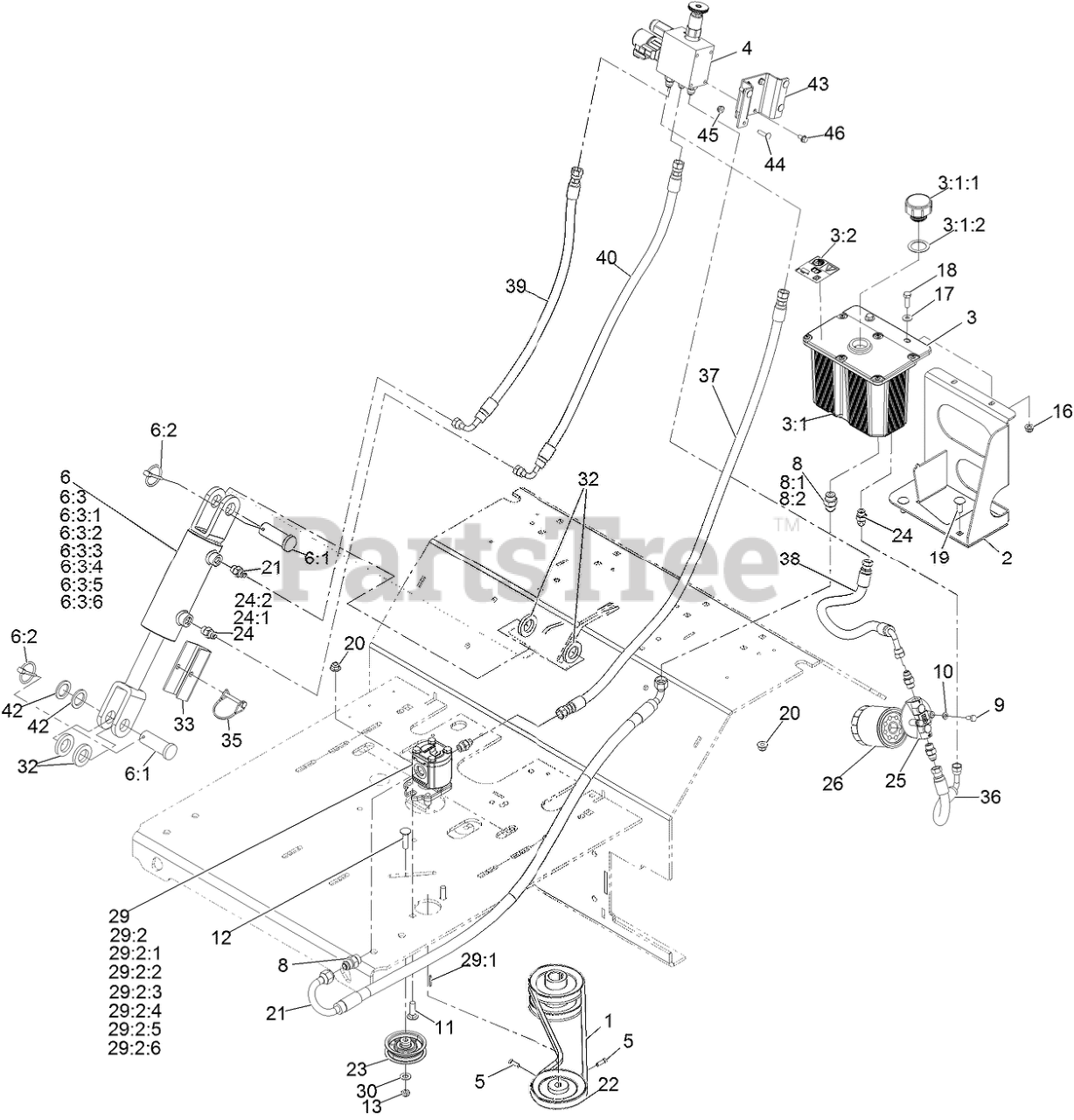

Auxiliary Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-8874

BELT-4L SECTION
(Superseded to 116-8874-SL)

$35.99

$

In Stock, only 1 left!

0

2

Exmark 116-6618-03

BRACKET-TANK, HYDRAULIC

$126.99

$

Usually ships in 3-6 days

0

3

Exmark 116-7557

RESERVOIR ASM

$284.99

$

Usually ships in 3-6 days

0

3:1

Tank-Hydraulic

Note: Not serviced separately

$

$

Not available

3:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$27.99

$

In Stock, only 2 left!

0

3:1:2

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 9

0

3:2

Exmark 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5127

Manifold ASM

$781.99

$

Usually ships in 3-6 days

0

5

Exmark 3241-6

SCREW-SQH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 116-6969

HYD CYLINDER ASM

$911.99

$

Usually ships in 3-6 days

0

6:1

Exmark 116-7290

PIN-CLEVIS

$44.99

$

Usually ships in 3-6 days

0

6:2

Exmark 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0

6:3

Exmark 127-3234

SEAL KIT

$116.99

$

Usually ships in 3-6 days

0

6:3:1

O-Ring

Note: Not serviced separately

$

$

Not available

6:3:2

Backup Ring

Note: Not serviced separately

$

$

Not available

6:3:3

Psp Seal

Note: Not serviced separately

$

$

Not available

6:3:4

Bs Seal

Note: Not serviced separately

$

$

Not available

6:3:5

Dust Seal

Note: Not serviced separately

$

$

Not available

6:3:6

O-Ring

Note: Not serviced separately

$

$

Not available

8

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

8:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

8:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

9

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

11

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

12

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

13

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

17

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

18

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

20

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 116-9309

HOSE-HYDRAULIC

$104.99

$

Usually ships in 3-6 days

0

22

Exmark 116-6667

PULLEY

$94.99

$

Usually ships in 3-6 days

0

23

Exmark 116-6760

PULLEY-IDLER, FLAT

$41.99

$

Usually ships in 3-6 days

0

24

Exmark 103-2156

FITTING-STRAIGHT

$42.99

$

In Stock, only 4 left!

0

24:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

24:2

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

26

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$47.99

$

In Stock, Qty 16

0

29

Exmark 116-9129

HYDRAULIC PUMP ASM

$738.99

$

Usually ships in 3-6 days

0

29:1

Exmark 115-7855

KEY-SQUARE

$21.99

$

Usually ships in 3-6 days

0

29:2

Exmark 112-0199

SEAL KIT

$63.99

$

Usually ships in 3-6 days

0

29:2:1

Seal-Anti Extrusion

Note: Not serviced separately

$

$

Not available

29:2:2

Seal-Anti Extrusion

Note: Not serviced separately

$

$

Not available

29:2:3

Seal-Shaft

Note: Not serviced separately

$

$

Not available

29:2:4

Seal-Upper

Note: Not serviced separately

$

$

Not available

29:2:5

Seal

Note: Not serviced separately

$

$

Not available

29:2:6

O-Ring

Note: Not serviced separately

$

$

Not available

30

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

32

Exmark 116-6781

SPACER

$14.99

$

Usually ships in 3-6 days

0

33

Exmark 116-7307-01

STOP-CYLINDER

$35.99

$

Usually ships in 3-6 days

0

35

Exmark 100-1663

PIN-HITCH

$15.99

$

In Stock, Qty 6

0

36

Exmark 116-6675

HOSE-HYDRAULIC, LP

$34.99

$

Usually ships in 3-6 days

0

37

Exmark 116-8151

HOSE-HYDRAULIC

$45.99

$

Usually ships in 3-6 days

0

38

Exmark 116-9308

HOSE-HYDRAULIC

$38.99

$

Usually ships in 3-6 days

0

39

Exmark 116-6677

HOSE-HYDRAULIC

$60.99

$

Usually ships in 3-6 days

0

40

Exmark 135-5973

Hydraulic Hose ASM

$60.99

$

Usually ships in 3-6 days

0

42

Exmark 3-8514

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

43

Exmark 135-3603-03

Bracket-Sensor, Control (Depth)

$30.99

$

Usually ships in 3-6 days

0

44

Exmark 3229-30

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

45

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

46

Exmark 119-1065

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0
