ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 404314159 - 406294344) (2019) Tine Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

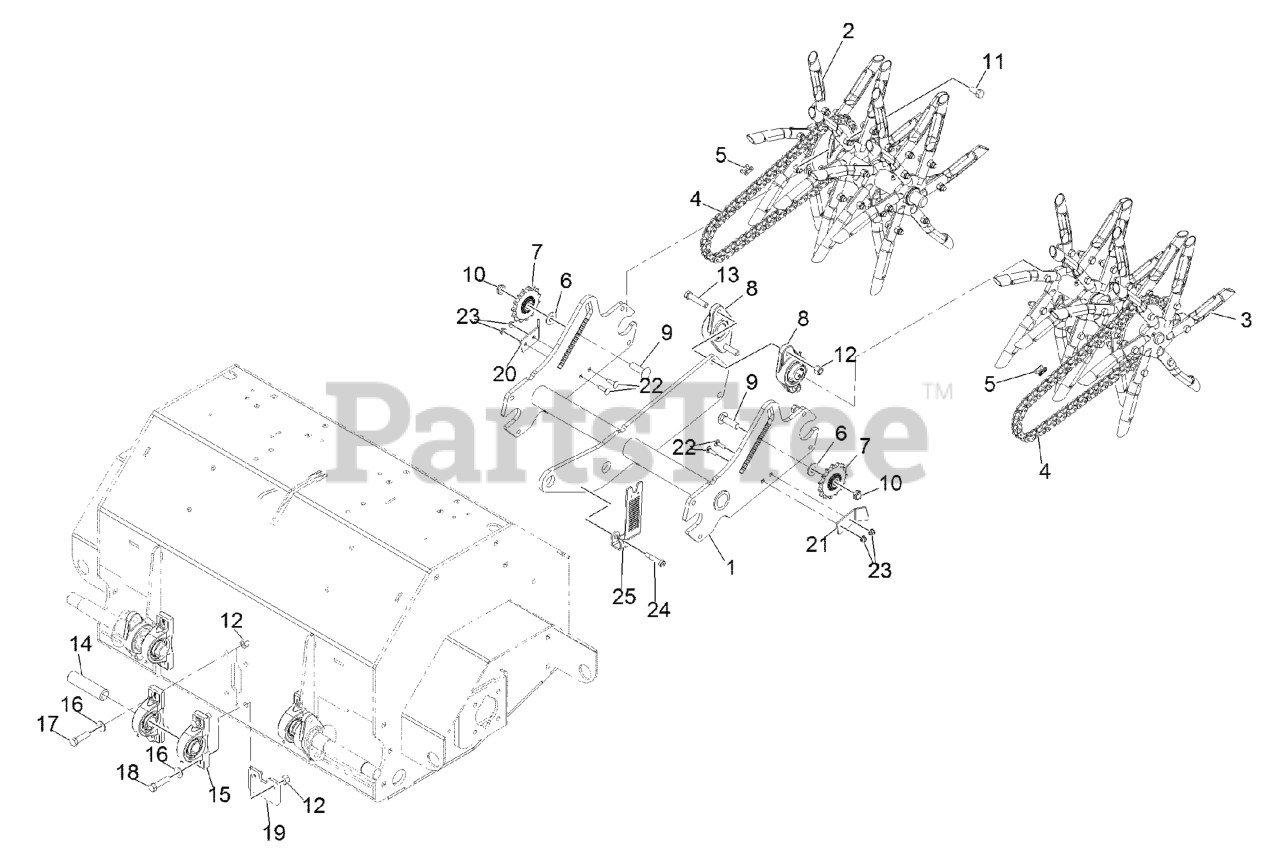

Tine Assembly Parts Diagram

  • Title

1

Exmark 135-5952-03

Arm-Trail

$518.99

$

Usually ships in 3-6 days

0

2

Exmark 135-2507

ASM-TINE WHEEL, RH

$1008.99

$

Usually ships in 3-6 days

0

3

Exmark 135-2510

ASM-TINE WHEEL, LH

$1008.99

$

Usually ships in 3-6 days

0

4

Exmark 126-8808

CHAIN-ROLLER

$227.99

$

In Stock, only 2 left!

0

5

Exmark 116-6897

LINK-CONNECTING

$8.49

$

In Stock, Qty 7

0

6

Exmark 87-7270

WASHER-THRUST

$1.49

$

In Stock, Qty 20+

0

7

Exmark 126-9108

SPROCKET-IDLER, 15T

$114.99

$

In Stock, Qty 20+

0

8

Exmark 116-6777

BEARING-FLANGE, 2 BOLT

$47.99

$

In Stock, Qty 8

0

9

Exmark 3233-14

SCREW-CARR

$17.99

$

In Stock, Qty 20+

0

10

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

11

Exmark 116-7109

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 20+

0

12

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Exmark 324-8

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

14

Exmark 116-6629

SHAFT

$21.99

$

Usually ships in 3-6 days

0

15

Exmark 116-6756

BEARING-PILLOW BLOCK

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$56.99

$

In Stock, only 2 left!

0

16

Exmark 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Exmark 324-6

1-800811
(Superseded to 1-800811)

$12.99

$

In Stock, only 3 left!

0

18

Exmark 324-7

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

19

Exmark 116-7327-01

PLATE-DOWNSTOP

$11.99

$

Usually ships in 3-6 days

0

20

Exmark 126-4192-03

GUARD-CHAIN, RH

$14.99

$

In Stock, only 2 left!

0

21

Exmark 126-4193-03

GUARD-CHAIN, LH

$14.99

$

Usually ships in 3-6 days

0

22

Exmark 3229-30

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 114-0239

SCREW-HSH

$13.99

$

In Stock, only 2 left!

0

25

Exmark 135-5109

Bracket-Control, Depth

$36.99

$

Usually ships in 3-6 days

0
