ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Tine Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

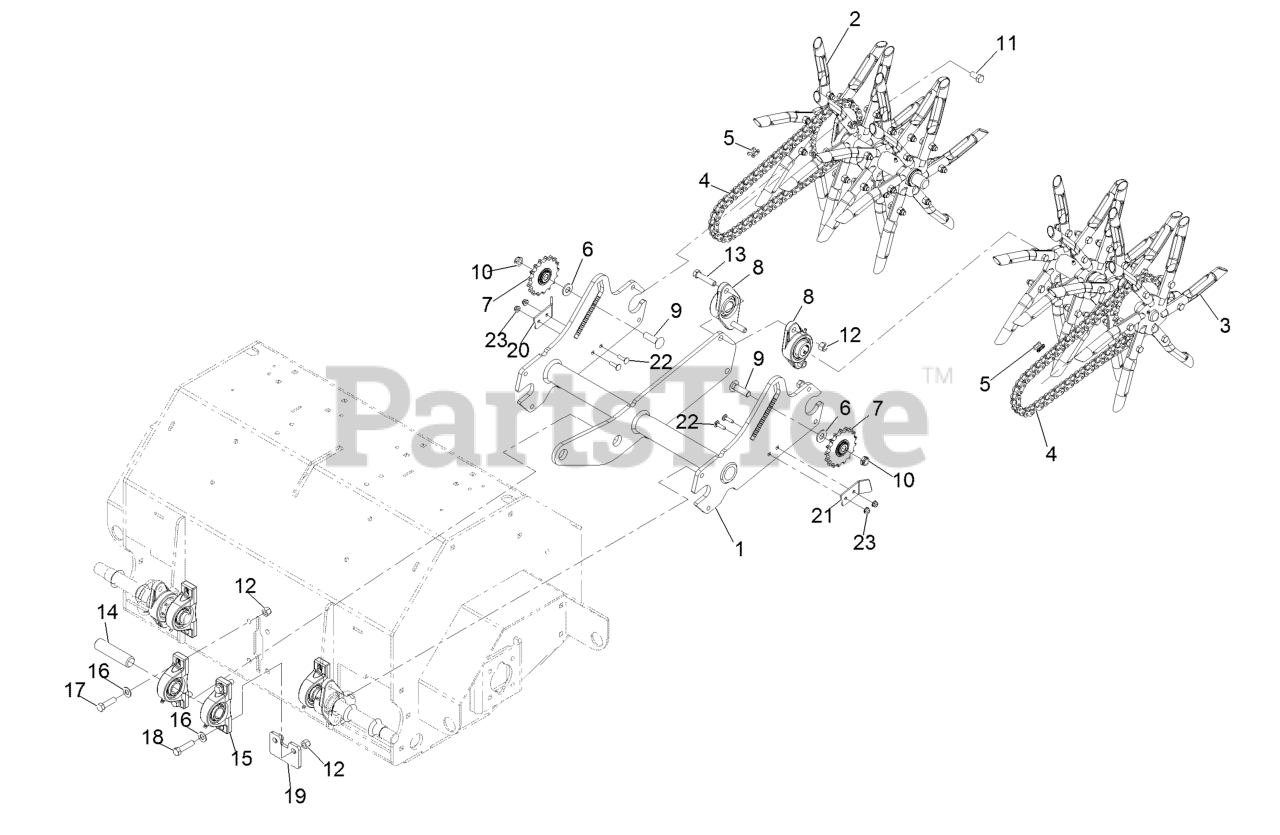

Tine Assembly Parts Diagram

  • Title

1

Exmark 126-4817-03

Arm-Trail
(Superseded to 135-5952-03)

$489.99

$

Usually ships in 3-6 days

0

2

Exmark 116-6738

RH Tine Wheel ASM
(Superseded to 135-2507)

$1008.99

$

Usually ships in 3-6 days

0

3

Exmark 116-6739

LH Tine Wheel ASM
(Superseded to 135-2510)

$1008.99

$

Usually ships in 3-6 days

0

4

Exmark 126-8808

Chain-Roller

$206.99

$

In Stock, only 2 left!

0

5

Exmark 116-6897

Link-Connecting

$7.99

$

In Stock, only 4 left!

0

6

Exmark 87-7270

Washer-Thrust

$0.99

$

In Stock, Qty 20+

0

7

Exmark 126-9274

Sprocket-Idler
(Superseded to 126-9108)

$103.99

$

In Stock, only 2 left!

0

8

Exmark 116-6777

Bearing-Flange, 2 Bolt

$45.99

$

In Stock, only 3 left!

0

9

Exmark 3233-14

Screw-CARR

$16.99

$

In Stock, Qty 8

0

10

Exmark 3296-45

Nut-Nyloc 1/2-13 Thin

$4.49

$

In Stock, Qty 20+

0

11

Exmark 116-7109

Screw-HH

$2.99

$

In Stock, only 2 left!

0

12

Exmark 3296-48

Nut-Nyloc 7/16-14

$0.99

$

In Stock, Qty 20+

0

13

Exmark 324-8

Screw-HH

$5.99

$

In Stock, Qty 18

0

14

Exmark 116-6629

Shaft

$20.99

$

Usually ships in 3-6 days

0

15

Exmark 116-6756

Bearing-Pillow Block

$53.99

$

In Stock, only 3 left!

0

16

Exmark 3256-25

Washer-7/16 SAE

$0.99

$

In Stock, Qty 10

0

17

Exmark 324-6

Screw-HH 7/16-14 X 1 1/2
(Superseded to 1-800811)

$11.99

$

In Stock, only 3 left!

0

18

Exmark 324-7

Screw-HH

$1.99

$

Usually ships in 3-6 days

0

19

Exmark 116-7327-01

Plate-Downstop

$10.99

$

Usually ships in 3-6 days

0

20

Exmark 126-4192-03

Guard-Chain, RH

$13.99

$

In Stock, only 2 left!

0

21

Exmark 126-4193-03

Guard-Chain, LH

$13.99

$

Usually ships in 3-6 days

0

22

Exmark 3229-30

Bolt-Carriage 1/4-20 X 1

$1.49

$

In Stock, Qty 20+

0

23

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0
