ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) LH Transaxle Assembly No. 135-1051 Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

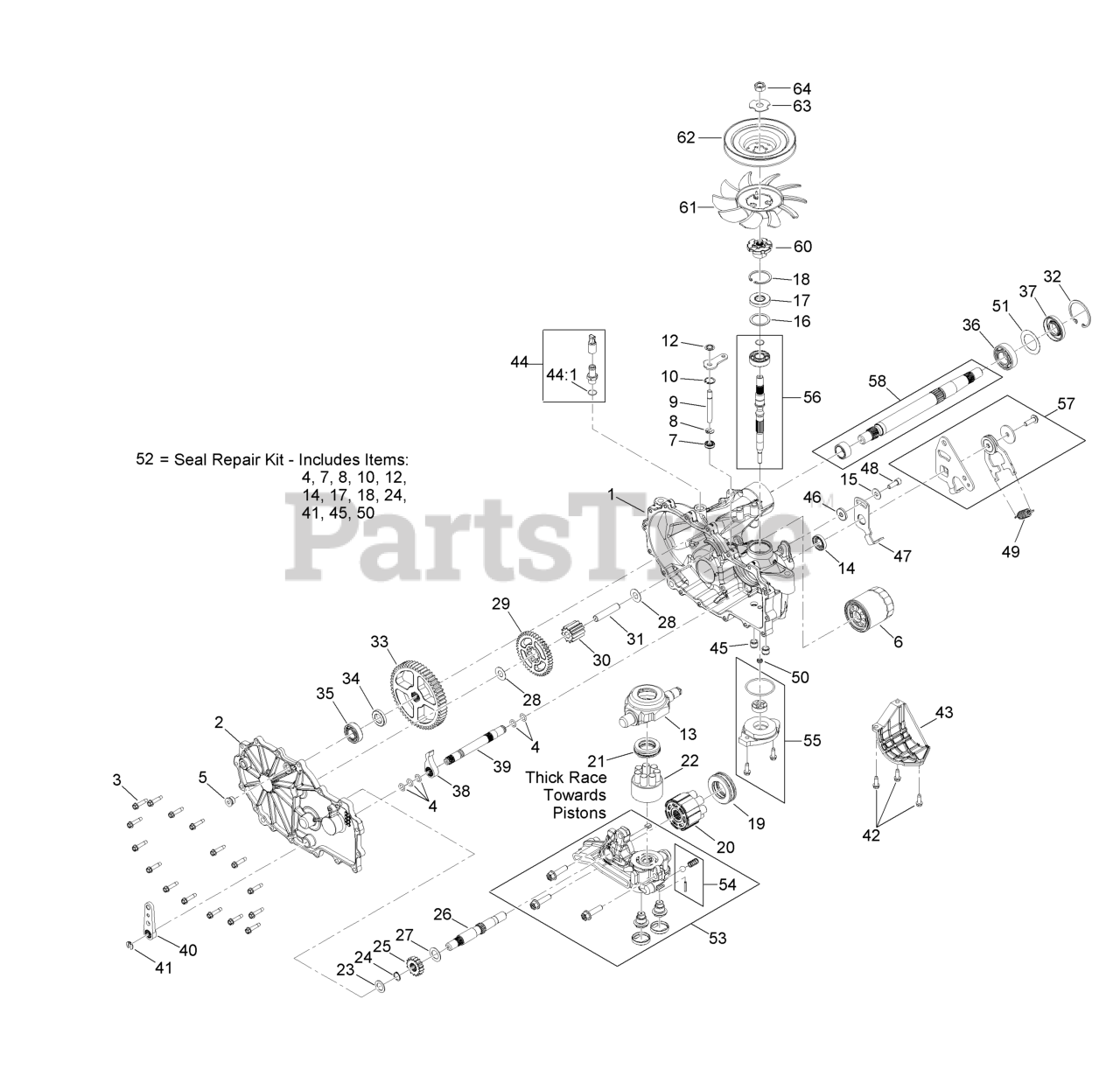

LH Transaxle Assembly No. 135-1051 Parts Diagram

  • Title

1

Exmark 114-8471

LH Main Housing Kit

$613.99

$

In Stock, only 1 left!

0

2

Exmark 114-8472

LH Side Cover Kit

$

$

Not available

3

Exmark 117-5359

Screw-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Exmark 114-1678

O-Ring

$5.99

$

Usually ships in 3-6 days

0

5

Exmark 135-1140

Plug-Straight
(Superseded to 353-508)

$8.49

$

In Stock, only 1 left!

0

6

Exmark 109-3321

Filter-Hydraulic

$31.99

$

In Stock, only 4 left!

0

7

Exmark 106-8676

Seal-Lip
(Superseded to 139-7497)

$6.99

$

Usually ships in 3-6 days

0

8

Exmark 106-8677

Ring-Retaining, External

$8.99

$

In Stock, only 1 left!

0

9

Exmark 114-1685

Rod-Bypass

$35.99

$

Usually ships in 3-6 days

0

10

Exmark 106-8679

Ring-Retaining, Internal

$9.49

$

Usually ships in 3-6 days

0

12

Exmark 106-8681

Ring-Retaining, External

$8.99

$

Usually ships in 3-6 days

0

13

Exmark 104-5304

Swashplate-Trunnion

$194.99

$

Usually ships in 3-6 days

0

14

Exmark 104-5313

Seal-Lip

$25.99

$

In Stock, only 1 left!

0

15

Exmark 114-8491

Washer

$5.49

$

Usually ships in 3-6 days

0

16

Exmark 104-5308

Spacer

$9.49

$

Usually ships in 3-6 days

0

17

Exmark 104-5310

Seal-Lip

$36.99

$

In Stock, only 1 left!

0

18

Exmark 104-5309

Ring-Retaining

$12.99

$

In Stock, only 1 left!

0

19

Exmark 109-2865

Bearing-Thrust
(Superseded to 112-4154)

$103.99

$

Usually ships in 3-6 days

0

20

Exmark 114-1689

Motor Cylinder Block Kit
(Superseded to 139-4074)

$248.99

$

Usually ships in 3-6 days

0

21

Exmark 94-6922

Bearing-Thrust

$62.99

$

In Stock, only 3 left!

0

22

Exmark 110-8561

Pump Block ASM

$347.99

$

Usually ships in 3-6 days

0

23

Exmark 104-5339

Washer-Flat

$6.99

$

Usually ships in 3-6 days

0

24

Exmark 104-5340

Ring-Retaining

$7.99

$

Usually ships in 3-6 days

0

25

Exmark 126-0788

Gear-16T

$92.99

$

Usually ships in 3-6 days

0

26

Exmark 114-1691

Shaft-Motor

$169.99

$

Usually ships in 3-6 days

0

27

Exmark 104-5360

Washer

$7.99

$

Usually ships in 3-6 days

0

28

Exmark 94-1933

Washer

$6.49

$

Usually ships in 3-6 days

0

29

Exmark 125-0000

Gear-43T

$62.99

$

Usually ships in 3-6 days

0

30

Exmark 120-7974

Gear-11T

$75.99

$

Usually ships in 3-6 days

0

31

Exmark 104-5329

Pin-Jackshaft

$112.99

$

Usually ships in 3-6 days

0

32

Exmark 104-2169

Ring-Retaining

$19.99

$

Usually ships in 3-6 days

0

33

Exmark 114-1694

Gear-54T

$139.99

$

In Stock, only 2 left!

0

34

Exmark 120-7975

Spacer

$6.49

$

Usually ships in 3-6 days

0

35

Exmark 135-1361

Bearing-Ball

$38.99

$

Usually ships in 3-6 days

0

36

Exmark 120-7976

Bearing-Ball
(Superseded to 130-8477)

$25.99

$

Usually ships in 3-6 days

0

37

Exmark 104-2144

Seal

$49.99

$

In Stock, only 1 left!

0

38

Exmark 114-1697

Pawl-Brake

$17.99

$

Usually ships in 3-6 days

0

39

Exmark 114-1698

Shaft-Brake, Inboard

$140.99

$

Usually ships in 3-6 days

0

40

Exmark 125-0021

Handle-Brake

$14.99

$

In Stock, only 1 left!

0

41

Exmark 131-0906

Ring-Retaining, EXT

$6.49

$

Usually ships in 3-6 days

0

42

Exmark 104-2120

Screw

$7.99

$

In Stock, only 1 left!

0

43

Exmark 120-7979

Guard-Filter, LH

$34.99

$

In Stock, only 1 left!

0

44

Exmark 109-3278

Adapter-Straight

$124.99

$

Usually ships in 3-6 days

0

44:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 9

0

45

Exmark 114-8455

Tube-Connecting

$13.99

$

Usually ships in 3-6 days

0

46

Exmark 114-8458

Spacer

$40.99

$

Usually ships in 3-6 days

0

47

Exmark 114-8474

Arm-Neutral, Left

$39.99

$

Usually ships in 3-6 days

0

48

Exmark 106-8682

Screw-Sh

$8.99

$

Usually ships in 3-6 days

0

49

Exmark 115-8307

Spring-Extension

$22.99

$

Usually ships in 3-6 days

0

50

Exmark 131-0908

Seal-Gerotor

$

$

Not available

51

Exmark 121-5745

Spacer

$10.99

$

Usually ships in 3-6 days

0

52

Exmark 109-3537

Seal Kit
(Superseded to 140-8351)

$90.99

$

In Stock, only 1 left!

0

53

Exmark 120-7980

LH Center Section Charge Kit

$508.99

$

Usually ships in 3-6 days

0

54

Exmark 114-8464

Charge Relief Kit

$22.99

$

Usually ships in 3-6 days

0

55

Exmark 114-8465

Charge Kit

$110.99

$

In Stock, only 1 left!

0

56

Exmark 117-5361

Input Shaft Kit
(Superseded to 121-3248)

$270.99

$

Usually ships in 3-6 days

0

57

Exmark 126-0790

Control Arm Kit

$79.99

$

Usually ships in 3-6 days

0

58

Exmark 114-8470

Axle Shaft Kit

$265.99

$

Usually ships in 3-6 days

0

60

Exmark 116-9705

Hub-Pulley

$8.49

$

In Stock, only 1 left!

0

61

Exmark 116-9706

Fan

$27.99

$

In Stock, only 1 left!

0

62

Exmark 116-9707

Pulley

$28.99

$

In Stock, only 1 left!

0

63

Exmark 116-9708

Washer-Slotted

$5.49

$

In Stock, only 1 left!

0

64

Exmark 116-9714

Nut-HJ

$5.49

$

In Stock, only 4 left!

0
