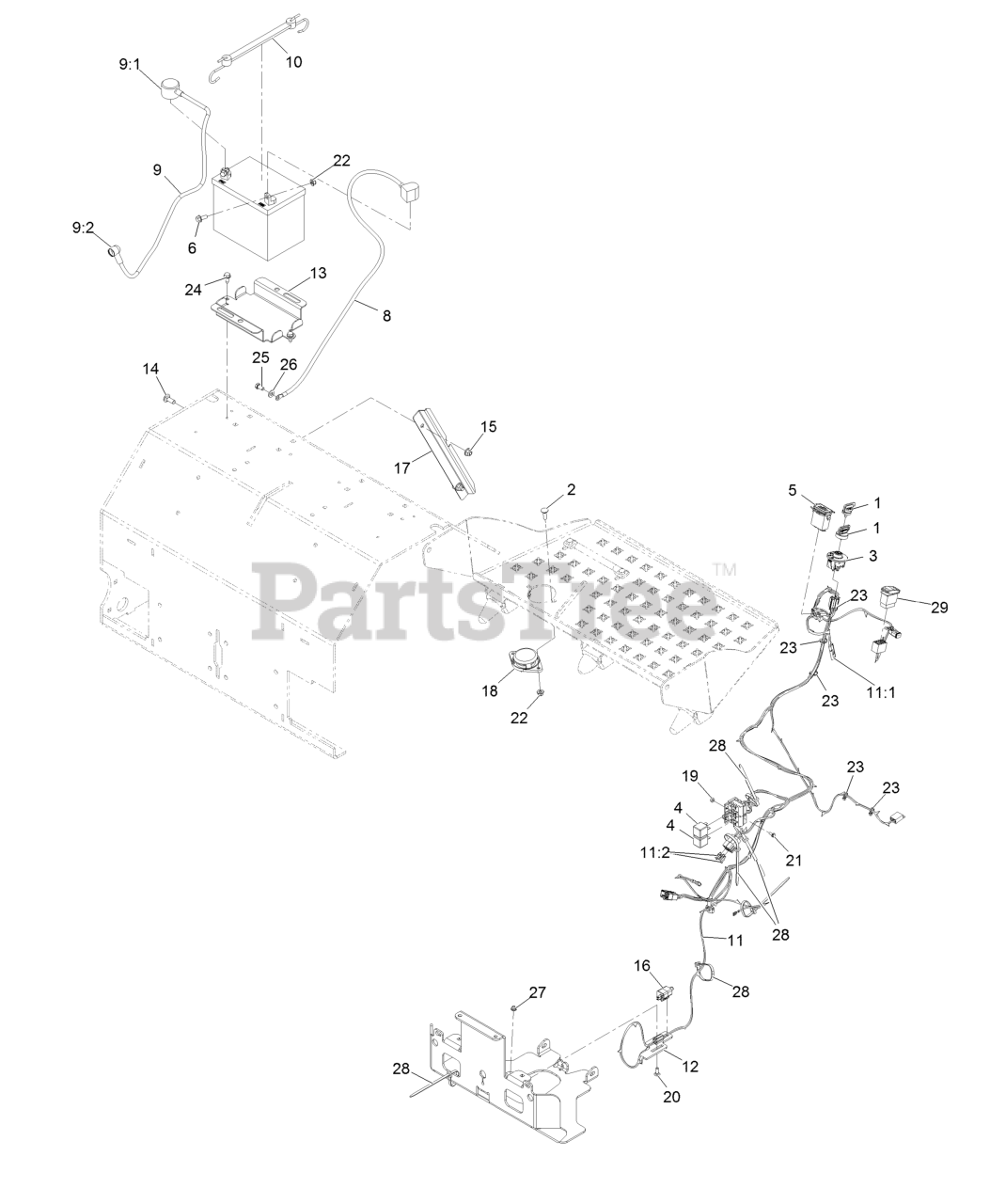

ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

Electrical Assembly Parts Diagram

  • Title
1

Exmark 1-603511

Key-Ignition

$2.49

$

In Stock, Qty 20+

0

1

Exmark 103-2106

Key-Exmark Logo

$5.49

$

In Stock, Qty 7

0

2

Exmark 3230-2

Bolt-Carriage 5/16-18 X 1

$1.49

$

In Stock, Qty 5

0

3

Exmark 137-4100

Switch-Ignition

$35.99

$

In Stock, Qty 20+

0

4

Exmark 1-643275

Relay-12Vdc 40 Amp

$23.99

$

In Stock, Qty 6

0

5

Exmark 1-513374

Meter-Engine Hours
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

6

Exmark 3234-5

Screw-HH Flg 5/16-18 X 3/4

$1.49

$

In Stock, Qty 5

0

8

Exmark 117-6422

Cable-Battery, Black

$32.99

$

Usually ships in 3-6 days

0

9

Exmark 109-7630

Positive Battery Cable ASM

$43.99

$

In Stock, only 2 left!

0

9:1

Exmark 109-2407

Insulator-Battery

$5.49

$

In Stock, only 3 left!

0

9:2

Exmark 1-543393

Insulator-Solenoid

$5.49

$

In Stock, only 2 left!

0

10

Exmark 104-2466

Holddown-Battery

$23.99

$

In Stock, Qty 6

0

11

Exmark 126-9480

Harness-Wire

$302.99

$

Usually ships in 3-6 days

0

11:1

Exmark 116-0053

Cap-Plug

$39.99

$

Usually ships in 3-6 days

0

11:2

Exmark 1-816001

Fuse-Blade Type, 20 Amp

$6.49

$

In Stock, Qty 13

0

12

Exmark 116-7589

Mount-Switch

$41.99

$

Usually ships in 3-6 days

0

13

Exmark 116-9383-03

Bracket-Battery

$42.99

$

Usually ships in 3-6 days

0

14

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 12

0

15

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

16

$13.99

$

In Stock, Qty 11

0

17

Exmark 116-9394-03

Guard-Harness

$20.99

$

Usually ships in 3-6 days

0

18

Exmark 92-6282

Switch-Seat

$34.99

$

Usually ships in 3-6 days

0

19

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

20

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 20+

0

21

Exmark 3290-321

Screw-HWH

$4.49

$

Usually ships in 3-6 days

0

22

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

23

Exmark 1-303287

Tie-Cable 5 1/2 (Small)

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

25

Exmark 33114-016

Screw-HH M8-1.25 X 16Mm

$0.99

$

In Stock, only 4 left!

0

26

$0.99

$

In Stock, only 2 left!

0

27

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

28

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

29

$44.99

$

In Stock, only 1 left!

0
