ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 400000000 - 402082299) (Rev B) (2017) Tower Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

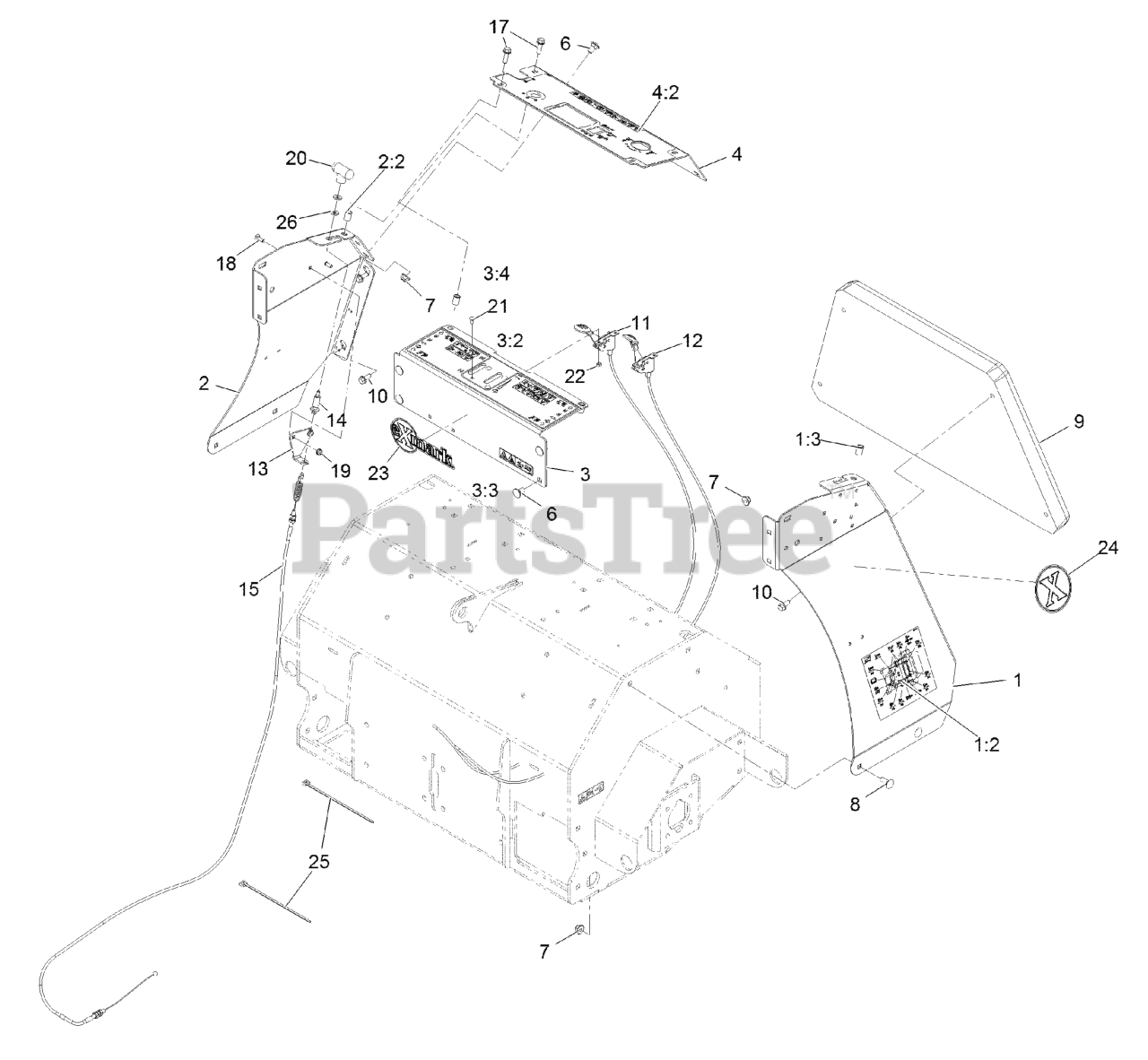

Tower Assembly Parts Diagram

  • Title

1

Exmark 116-9386

PANEL-SIDE,LH W/DECALS-BL

$248.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-9392

DECAL-SERVICE AID CE

$20.99

$

Usually ships in 3-6 days

0

1:3

Exmark 32148-7

NUT-CLINCH

$3.99

$

Usually ships in 3-6 days

0

2

Exmark 116-7658

ASM-PANEL,SIDE RH (BLACK)

$248.99

$

Usually ships in 3-6 days

0

2:2

Exmark 32148-7

NUT-CLINCH

$3.99

$

Usually ships in 3-6 days

0

3

Exmark 126-4525

ASM-PLATE W/DECAL

$174.99

$

Usually ships in 3-6 days

0

3:2

Exmark 121-6164

DECAL-WARNING, CONTROL PA

$35.99

$

Usually ships in 3-6 days

0

3:3

Exmark 121-6162

DECAL-WARNING, TINES

$5.49

$

Usually ships in 3-6 days

0

3:4

Exmark 32148-7

NUT-CLINCH

$3.99

$

Usually ships in 3-6 days

0

4

Exmark 126-4524

ASM-PANEL W/DECALS

$144.99

$

Usually ships in 3-6 days

0

4:2

Exmark 121-6166

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

4:3

Exmark 126-4528

DECAL-DANGER, CONTROL PAN

$27.99

$

Usually ships in 3-6 days

0

6

Exmark 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

9

Exmark 116-6765

CUSHION, GREY

$269.99

$

Usually ships in 3-6 days

0

10

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

11

Exmark 109-9147

CONTROL-CHOKE

$38.99

$

In Stock, only 1 left!

0

12

Exmark 109-3958

CONTROL-THROTTLE

$41.99

$

In Stock, only 2 left!

0

13

Exmark 116-6630

BRACKET-CABLE, BRAKE

$17.99

$

In Stock, only 1 left!

0

14

Exmark 116-7504

LINK-CABLE, BRAKE

$54.99

$

Usually ships in 3-6 days

0

15

Exmark 116-7503

CABLE-BRAKE

$86.99

$

In Stock, only 2 left!

0

17

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

18

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

19

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Exmark 116-7607

KNOB-TEE

$12.99

$

Usually ships in 3-6 days

0

21

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

22

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Exmark 126-6877

DECAL, EXMARK LOGO

$7.49

$

In Stock, Qty 10

0

24

Exmark 126-7457

DECAL-X-LOGO

$8.99

$

Usually ships in 3-6 days

0

25

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

26

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0
