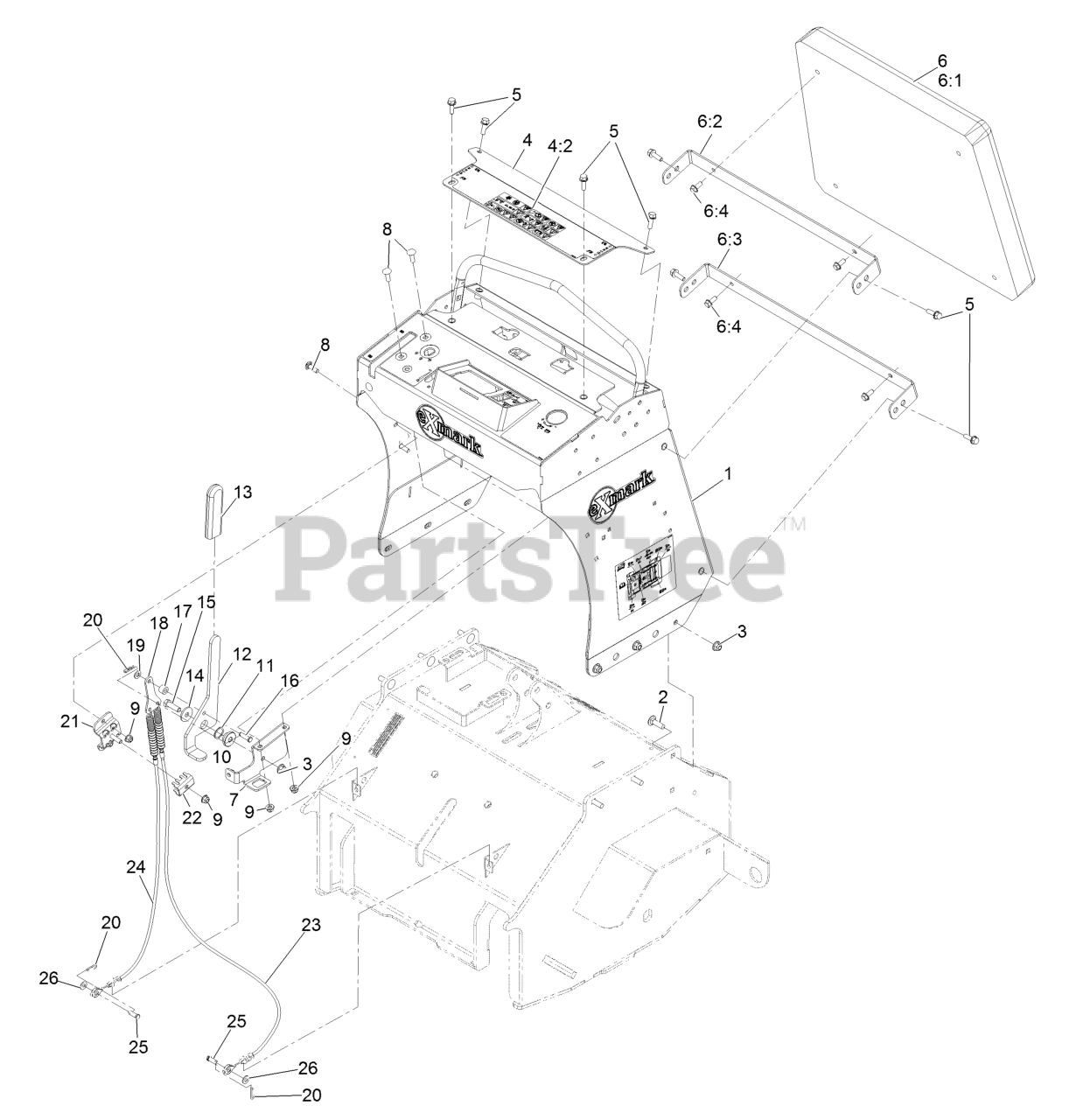

ARX440GKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 402082300 - 404314158) (2018) Tower Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

Tower Assembly Parts Diagram

  • Title
1

Exmark 135-1700

Control Tower ASM

$483.99

$

Usually ships in 3-6 days

0

2

Exmark 3231-25

Bolt-Carriage 3/8-16 X 1 1/4
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

3

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 135-1695

Control Panel ASM

$74.99

$

Usually ships in 3-6 days

0

4:2

Exmark 135-2014

Decal-Warning

$13.99

$

Usually ships in 3-6 days

0

5

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 14

0

6

Cushion ASM

$

$

Not available

6:1

Exmark 135-1693

Cushion-Grey

$246.99

$

Usually ships in 3-6 days

0

6:2

Exmark 135-1712-03

Bracket-Pad, Upper

$21.99

$

Usually ships in 3-6 days

0

6:3

Exmark 135-1713-03

Bracket-Pad, Lower

$21.99

$

Usually ships in 3-6 days

0

6:4

$2.49

$

In Stock, only 3 left!

0

7

Exmark 135-1714-03

Bracket-Pivot, Brake

$21.99

$

Usually ships in 3-6 days

0

8

Exmark 3230-22

Bolt-Carriage 5/16-18 X 1 Sp
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

9

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

10

Exmark 126-5989

Pivot-Flange

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 119-4164

Washer-Wave

$3.49

$

In Stock, only 3 left!

0

12

Exmark 135-1715

Handle-Brake

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 1-633268

Grip-Lever

$14.99

$

In Stock, only 4 left!

0

14

Exmark 2844

Washer

$2.99

$

In Stock, Qty 17

0

15

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

16

Exmark 283-61

Pin-Yoke

$2.49

$

In Stock, only 2 left!

0

17

Exmark 114-8549

Bushing

$3.49

$

In Stock, Qty 20+

0

18

Exmark 132-1188

Yoke-Cable

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 93-6079

Spacer-Nylon

$2.49

$

Usually ships in 3-6 days

0

20

Exmark 3290-307

Pin-Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

21

Exmark 132-7582

Mount-Cable, Brake

$34.99

$

Usually ships in 3-6 days

0

22

Exmark 132-1187

Clamp-Cable

$10.99

$

Usually ships in 3-6 days

0

23

Exmark 135-0081

Cable-Brake, LH

$46.99

$

Usually ships in 3-6 days

0

24

Exmark 135-0082

Cable-Brake, RH

$46.99

$

Usually ships in 3-6 days

0

25

Exmark 283-75

Pin-Clevis 5/16 X 3/4

$3.49

$

Usually ships in 3-6 days

0

26

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0
