ARX440GKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 402082300 - 404314158) (2018) Tine Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

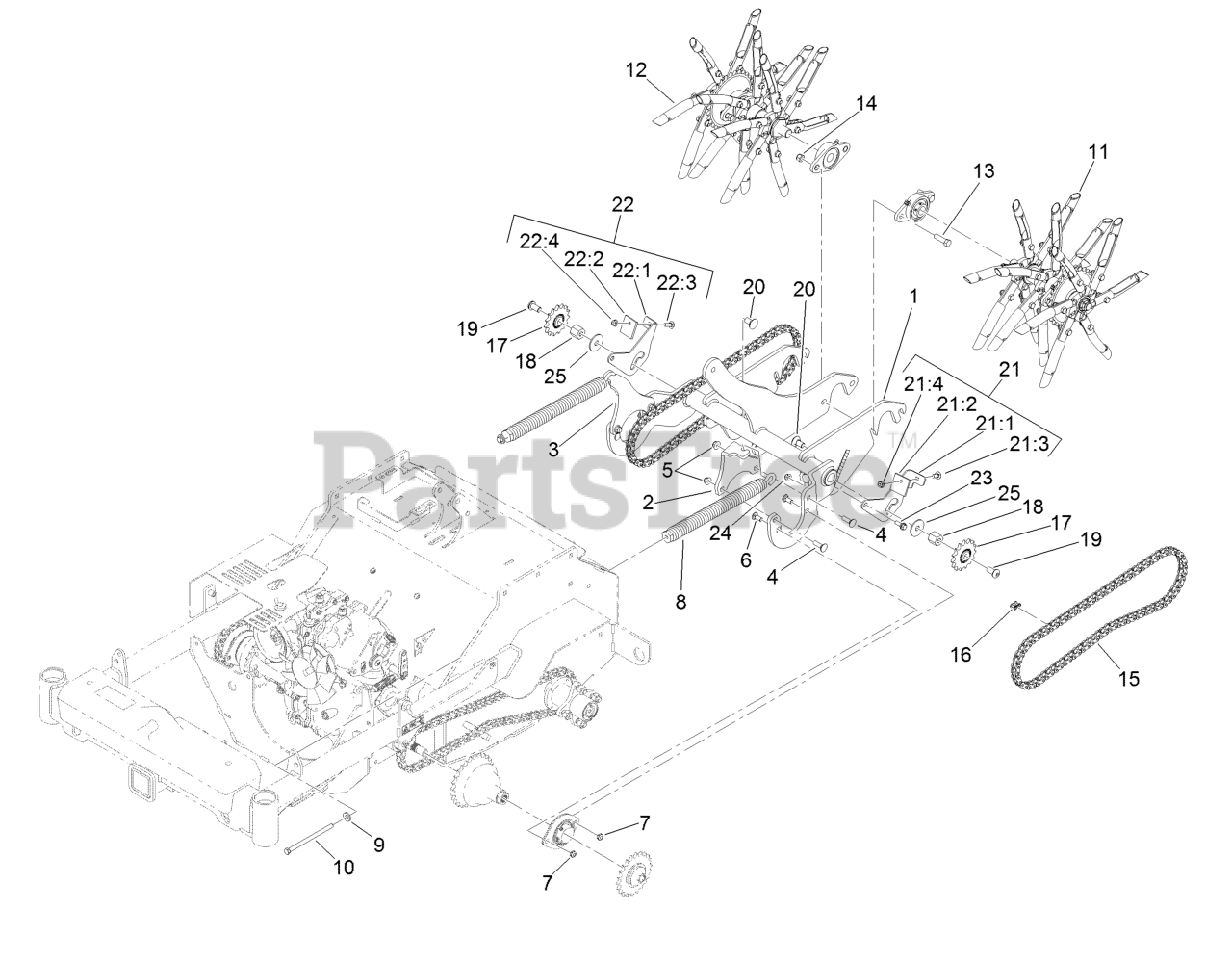

Tine Assembly Parts Diagram

  • Title
1

Exmark 135-0810-03

Lift-Tine

$405.99

$

In Stock, only 1 left!

0

2

Exmark 135-1060-03

Arm-Spring, LH

$30.99

$

Usually ships in 3-6 days

0

3

Exmark 135-1061-03

Arm-Spring, RH

$30.99

$

Usually ships in 3-6 days

0

4

Exmark 3231-25

Bolt-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

5

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 3231-12

Bolt-CARR

$6.49

$

In Stock, only 3 left!

0

7

Exmark 3296-59

Nut-Lock, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

8

Exmark 116-0000

Spring-Extension

$136.99

$

Usually ships in 3-6 days

0

9

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

10

Exmark 323-58

Bolt-TAP, HH

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 126-9550

LH Tine Wheel ASM

$661.99

$

Usually ships in 3-6 days

0

12

Exmark 126-9551

RH Tine Wheel ASM

$661.99

$

Usually ships in 3-6 days

0

13

Exmark 324-6

Screw-HH
(Superseded to 1-800811)

$11.99

$

In Stock, only 3 left!

0

14

Exmark 3296-76

Nut-Lock, NI

$4.99

$

Usually ships in 3-6 days

0

15

Exmark 135-1100

Chain-Roller

$213.99

$

Usually ships in 3-6 days

0

16

Exmark 116-6897

Link-Connecting

$7.99

$

In Stock, only 4 left!

0

17

Exmark 126-9108

Sprocket-Idler, 15T

$103.99

$

In Stock, only 2 left!

0

18

$14.99

$

Usually ships in 3-6 days

0

19

Exmark 99-8446

Screw- Pan Socket Head

$11.99

$

Usually ships in 3-6 days

0

20

Exmark 3233-9

Screw-CARR

$3.49

$

Usually ships in 3-6 days

0

21

Exmark 135-2405

LH Debris Deflector ASM

$34.99

$

Usually ships in 3-6 days

0

21:1

Exmark 135-2325

Bracket-Deflector, Debris (LH)

$28.99

$

Usually ships in 3-6 days

0

21:2

Exmark 135-2403

Deflector-Debris

$1.49

$

Usually ships in 3-6 days

0

21:3

Exmark 3230-10

Bolt-CARR

$3.99

$

In Stock, only 4 left!

0

21:4

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 17

0

22

Exmark 135-2404

RH Debris Deflector ASM

$34.99

$

Usually ships in 3-6 days

0

22:1

Exmark 135-2406

Bracket-Deflector, Debris (RH)

$28.99

$

Usually ships in 3-6 days

0

22:2

Exmark 135-2403

Deflector-Debris

$1.49

$

Usually ships in 3-6 days

0

22:3

Exmark 3230-10

Bolt-CARR

$3.99

$

In Stock, only 4 left!

0

22:4

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 17

0

23

Exmark 27-0410

Screw-Shoulder

$2.99

$

In Stock, Qty 5

0

24

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 17

0

25

Exmark 120-3856

Washer-Flat

$2.99

$

Usually ships in 3-6 days

0
