ARX440GKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

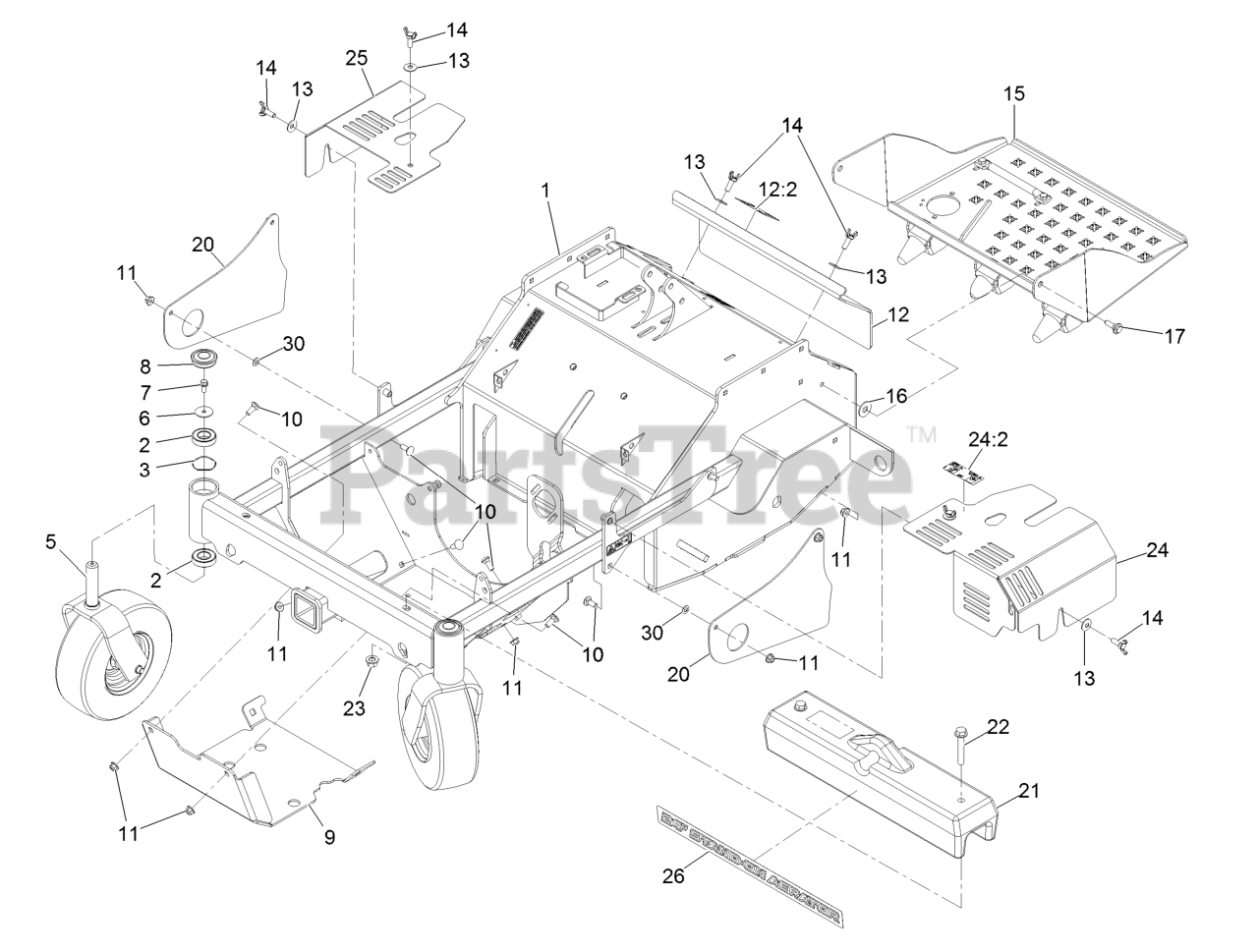

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 126-8700

Main Frame ASM

$1888.99

$

Usually ships in 3-6 days

0

2

Exmark 109-3678

Bearing-Ball

$14.99

$

In Stock, Qty 20+

0

3

Exmark 126-5897

Spring

$1.49

$

In Stock, Qty 20+

0

5

Front Caster ASM

$

$

Not available

6

Exmark 3256-68

Washer-Flat

$2.99

$

In Stock, Qty 20+

0

7

Exmark 3234-5

Screw-HH Flg 5/16-18 X 3/4

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-4348

Cap-Grease

$5.49

$

In Stock, Qty 5

0

9

Exmark 126-8726-03

Guard-Engine

$90.99

$

Usually ships in 3-6 days

0

10

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 20+

0

11

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 126-8801

Access Cover ASM

$94.99

$

Usually ships in 3-6 days

0

12:2

Exmark 121-6163

Decal-Operation, Tine Ground (CE)

$8.49

$

Usually ships in 3-6 days

0

13

Exmark 3290-461

Washer-Spring Disc

$5.49

$

In Stock, only 2 left!

0

14

Exmark 126-6752

Screw-Thumb

$7.49

$

In Stock, only 1 left!

0

15

Exmark 126-9135

Platform ASM

$533.99

$

Usually ships in 3-6 days

0

16

Exmark 3256-6

Washer

$0.99

$

In Stock, only 4 left!

0

17

Exmark 614672

Screw-Shoulder 3/8-16 X 1.295

$2.99

$

In Stock, only 4 left!

0

20

Exmark 126-9819-01

Guard-Chain

$26.99

$

Usually ships in 3-6 days

0

21

Exmark 135-2017

Weight-Front

$506.99

$

Usually ships in 3-6 days

0

22

Exmark 3234-40

Screw-HF

$13.99

$

Usually ships in 3-6 days

0

23

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

24

Exmark 135-3270

Hydro-Cover

$95.99

$

Usually ships in 3-6 days

0

24:2

Exmark 135-3183

Decal-Release, Drive

$7.49

$

Usually ships in 3-6 days

0

25

Exmark 135-0822-03

Cover-Hydro

$46.99

$

Usually ships in 3-6 days

0

26

Exmark 135-3936

Decal-Standon Aerator 24

$21.99

$

Usually ships in 3-6 days

0

30

Exmark 131-8667

Washer-Thrust

$1.49

$

In Stock, Qty 10

0
