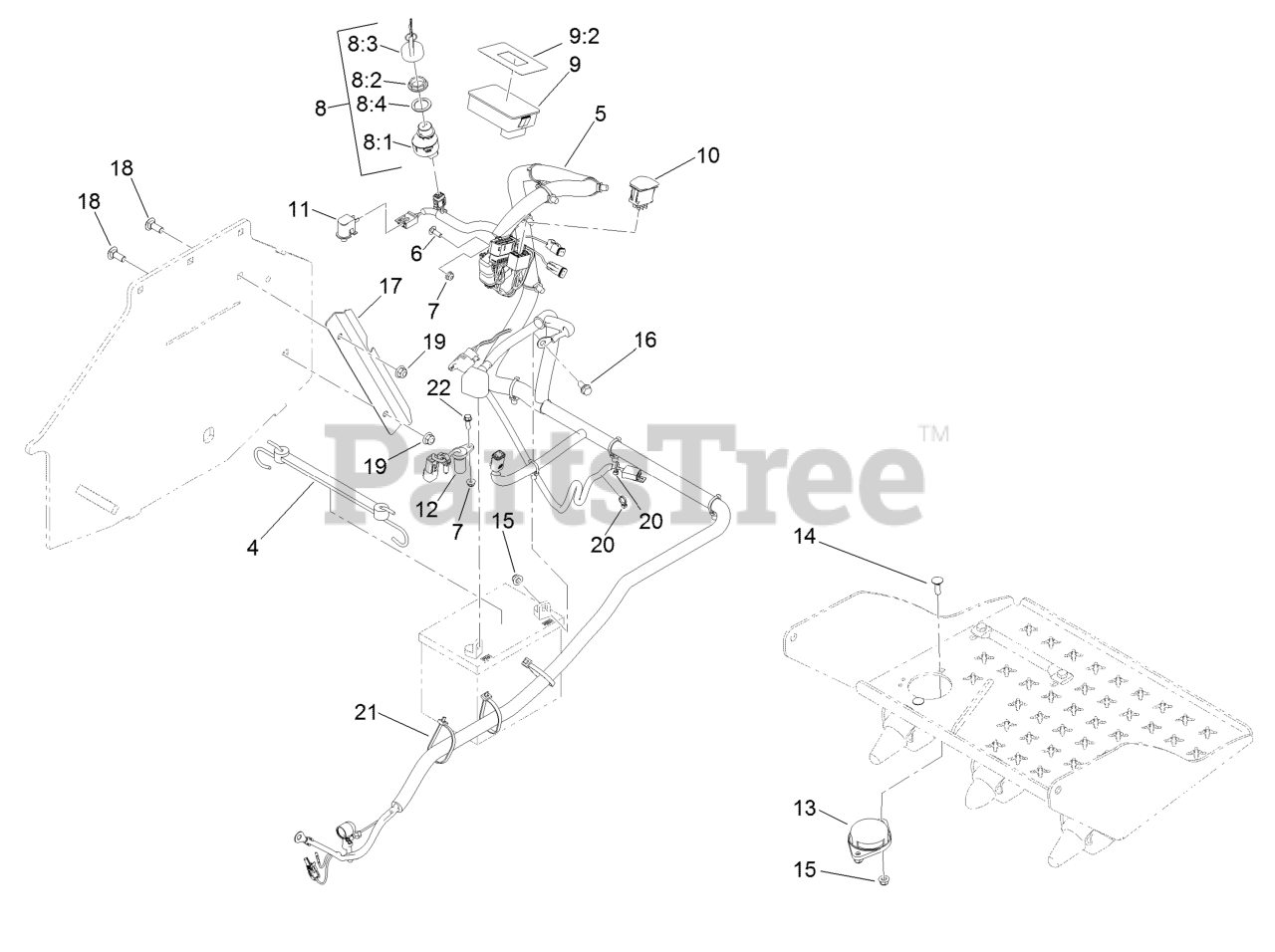

ARX440GKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

Electrical Assembly Parts Diagram

  • Title

4

Exmark 104-2466

Holddown-Battery

$23.99

$

In Stock, Qty 6

0

5

Exmark 126-9535

Harness-Wire

$431.99

$

Usually ships in 3-6 days

0

6

Exmark 3229-1

Bolt-CARR

$3.99

$

In Stock, Qty 20+

0

7

Exmark 104-7201

Nut-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 126-6285

Ignition Switch ASM

$54.99

$

In Stock, Qty 20+

0

8:1

Switch-Ignition

$

$

Not available

8:2

Exmark 108-8660

Nut-Mounting

$35.99

$

In Stock, only 3 left!

0

8:3

Exmark 106-5270

Ignition Key Set

$22.99

$

In Stock, Qty 18

0

8:4

Exmark 108-8659

Washer-Backup

$14.99

$

In Stock, only 1 left!

0

9

Exmark 135-2500

Hour Meter ASM

$273.99

$

Usually ships in 3-6 days

0

9:2

Exmark 135-1854

Decal-Meter, Hour

$12.99

$

Usually ships in 3-6 days

0

10

Exmark 100-1535

Switch, (On)-Off-(On)

$90.99

$

In Stock, only 3 left!

0

11

Exmark 82-2190

Switch-Bail

$14.99

$

In Stock, Qty 20+

0

12

Exmark 135-0101

Sensor-Quadrature

$213.99

$

Usually ships in 3-6 days

0

13

Exmark 92-6282

Switch-Seat

$34.99

$

In Stock, Qty 5

0

14

Exmark 3230-2

Bolt-CARR

$1.49

$

In Stock, Qty 14

0

15

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3234-5

Screw-HHF

$1.49

$

In Stock, Qty 5

0

17

Exmark 126-9701-03

Guard-Harness

$15.99

$

Usually ships in 3-6 days

0

18

Exmark 3231-2

Bolt-CARR

$1.99

$

In Stock, Qty 20+

0

19

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-303287

Tie-Cable

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 1-303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

22

Exmark 32105-15

Screw-HWH

$2.99

$

In Stock, Qty 20+

0
