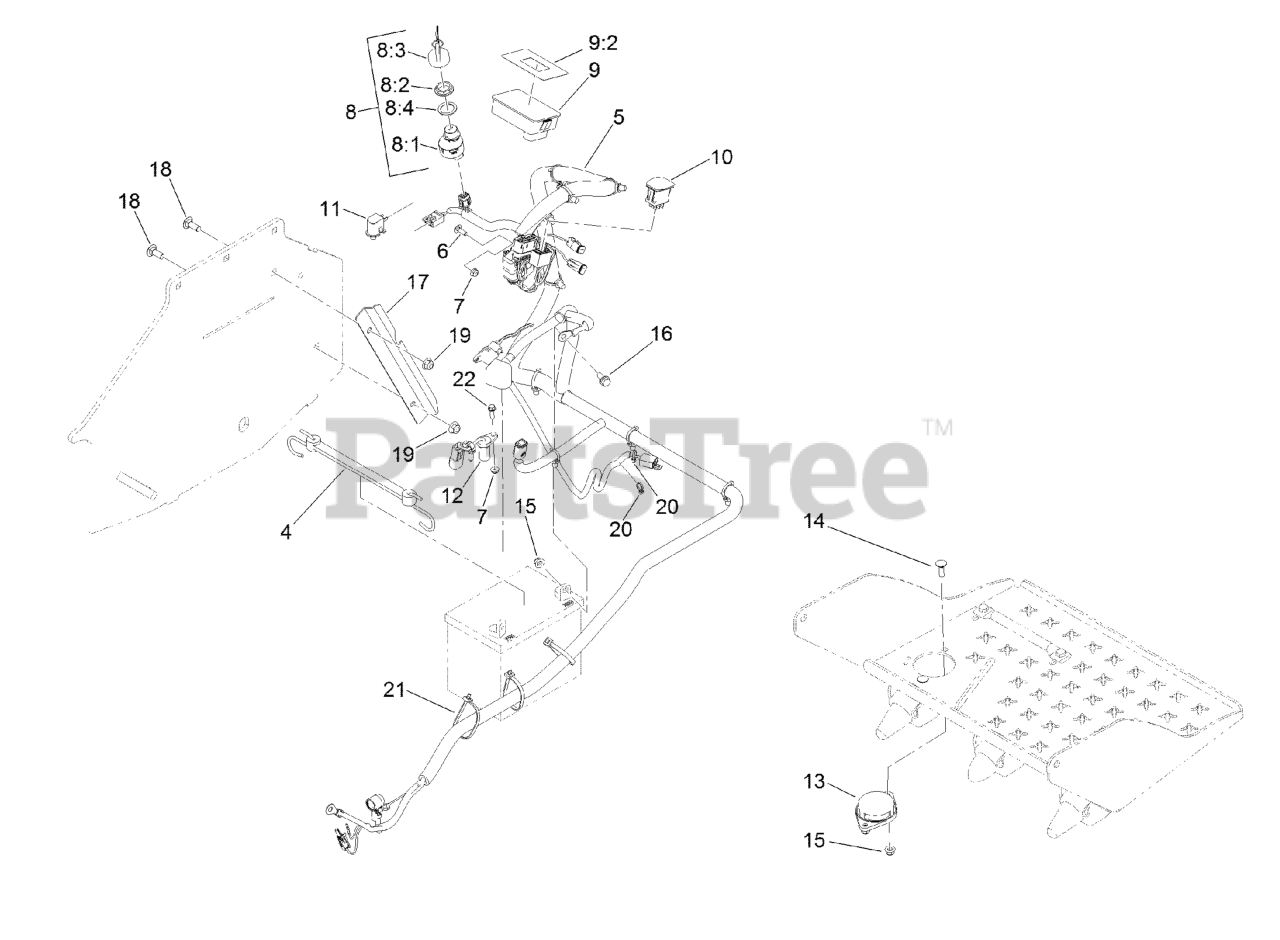

ARX440CKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 404314159 - 406294344) (Rev B) (2019) Electrical Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

Electrical Assembly Parts Diagram

  • Title

4

Exmark 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

5

Exmark 126-9535

HARNESS-WIRE

$383.99

$

Usually ships in 3-6 days

0

6

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

7

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 126-6285

IGNITION SWITCH ASM

$52.99

$

In Stock, Qty 16

0

8:1

Switch-Ignition

Note: Not serviced separately

$

$

Not available

8:2

Exmark 108-8660

NUT-MOUNTING

$33.99

$

In Stock, only 3 left!

0

8:3

Exmark 106-5270

IGNITION KEY SET

$21.99

$

In Stock, Qty 18

0

8:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

9

Exmark 135-2500

Hour Meter ASM

$249.99

$

Usually ships in 3-6 days

0

9:2

Exmark 135-1854

DECAL-METER, HOUR

$11.99

$

Usually ships in 3-6 days

0

10

Exmark 100-1535

SWITCH

$85.99

$

In Stock, Qty 5

0

11

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 12

0

12

Exmark 135-0101

SENSOR-QUADRATURE

$192.99

$

Usually ships in 3-6 days

0

13

Exmark 92-6282

SWITCH-SEAT

$33.99

$

Usually ships in 3-6 days

0

14

Exmark 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 14

0

17

Exmark 126-9701-03

GUARD-HARNESS

$13.99

$

Usually ships in 3-6 days

0

18

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 17

0

19

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

22

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 10

0
