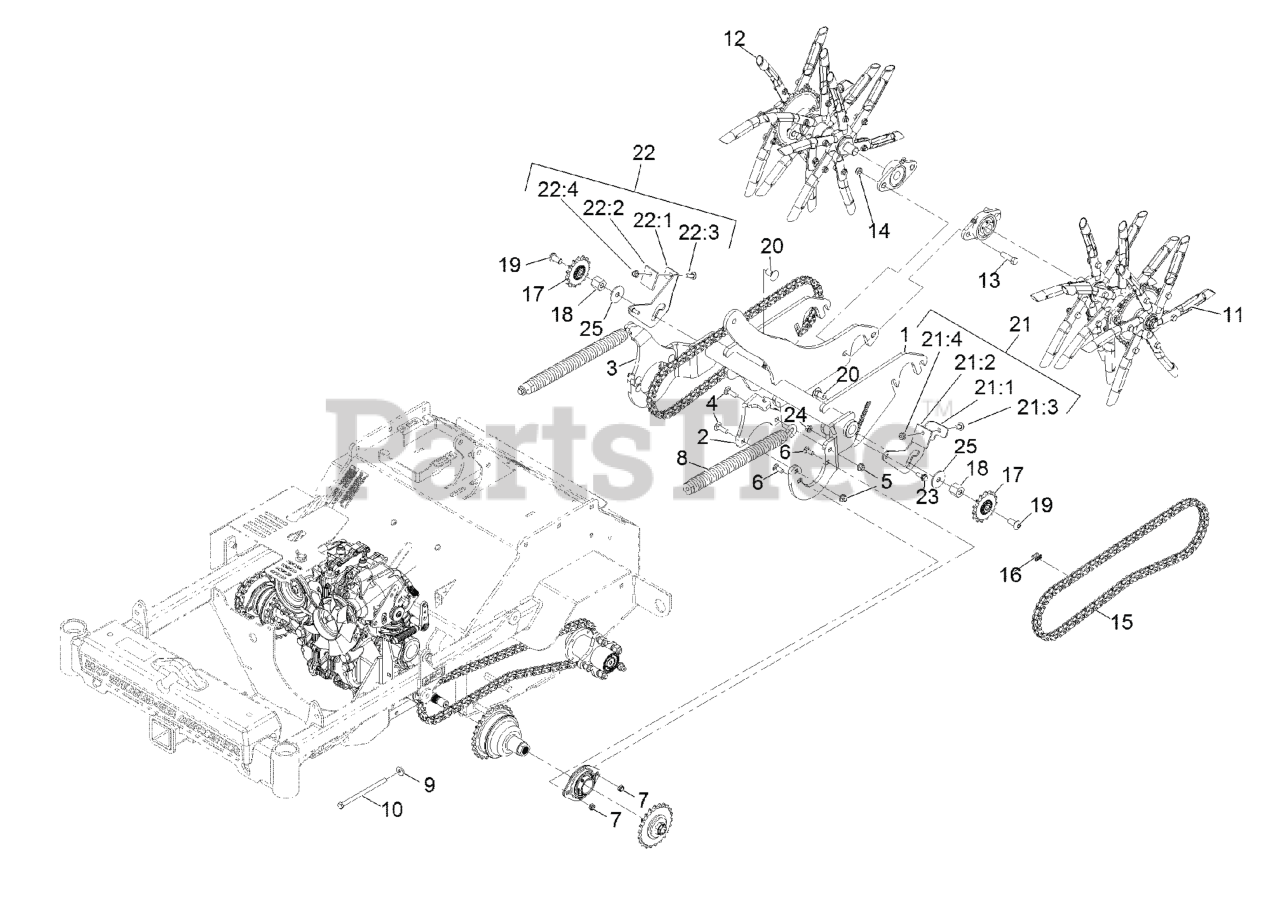

  • Title

1

Exmark 135-0810-03

LIFT-TINE

$405.99

$

In Stock, only 1 left!

0

2

Exmark 135-1060-03

ARM-SPRING, LH

$30.99

$

Usually ships in 3-6 days

0

3

Exmark 135-1061-03

ARM-SPRING, RH

$30.99

$

Usually ships in 3-6 days

0

4

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

7

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

8

Exmark 116-0000

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Exmark 323-58

BOLT-TAP, HH

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 126-9550

LH TINE WHEEL ASM

$661.99

$

Usually ships in 3-6 days

0

12

Exmark 126-9551

RH TINE WHEEL ASM

$661.99

$

Usually ships in 3-6 days

0

13

Exmark 324-6

1-800811
(Superseded to 1-800811)

$11.99

$

In Stock, only 3 left!

0

14

Exmark 126-9780

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 135-1100

CHAIN-ROLLER

$213.99

$

Usually ships in 3-6 days

0

16

Exmark 116-6897

LINK-CONNECTING

$7.99

$

In Stock, only 4 left!

0

17

Exmark 126-9108

SPROCKET-IDLER, 15T

$103.99

$

In Stock, only 2 left!

0

18

Exmark 135-2242

SPACER

$14.99

$

Usually ships in 3-6 days

0

19

Exmark 99-8446

SCREW- PAN SOCKET HEAD

$11.99

$

Usually ships in 3-6 days

0

20

Exmark 3233-9

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

21

Exmark 135-2405

LH DEBRIS DEFLECTOR ASM

$34.99

$

Usually ships in 3-6 days

0

21:1

Exmark 135-2325

BRACKET-DEFLECTOR, DEBRIS

$28.99

$

Usually ships in 3-6 days

0

21:2

Exmark 135-2403

DEFLECTOR-DEBRIS

$1.49

$

Usually ships in 3-6 days

0

21:3

Exmark 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

21:4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

22

Exmark 135-2404

RH DEBRIS DEFLECTOR ASM

$34.99

$

Usually ships in 3-6 days

0

22:1

Exmark 135-2406

BRACKET-DEFLECTOR, DEBRIS

$28.99

$

Usually ships in 3-6 days

0

22:2

Exmark 135-2403

DEFLECTOR-DEBRIS

$1.49

$

Usually ships in 3-6 days

0

22:3

Exmark 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

22:4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

23

Exmark 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

24

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

25

Exmark 120-3856

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0
