ARX440CKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 404314159 - 406294344) (2019) Motion Control Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

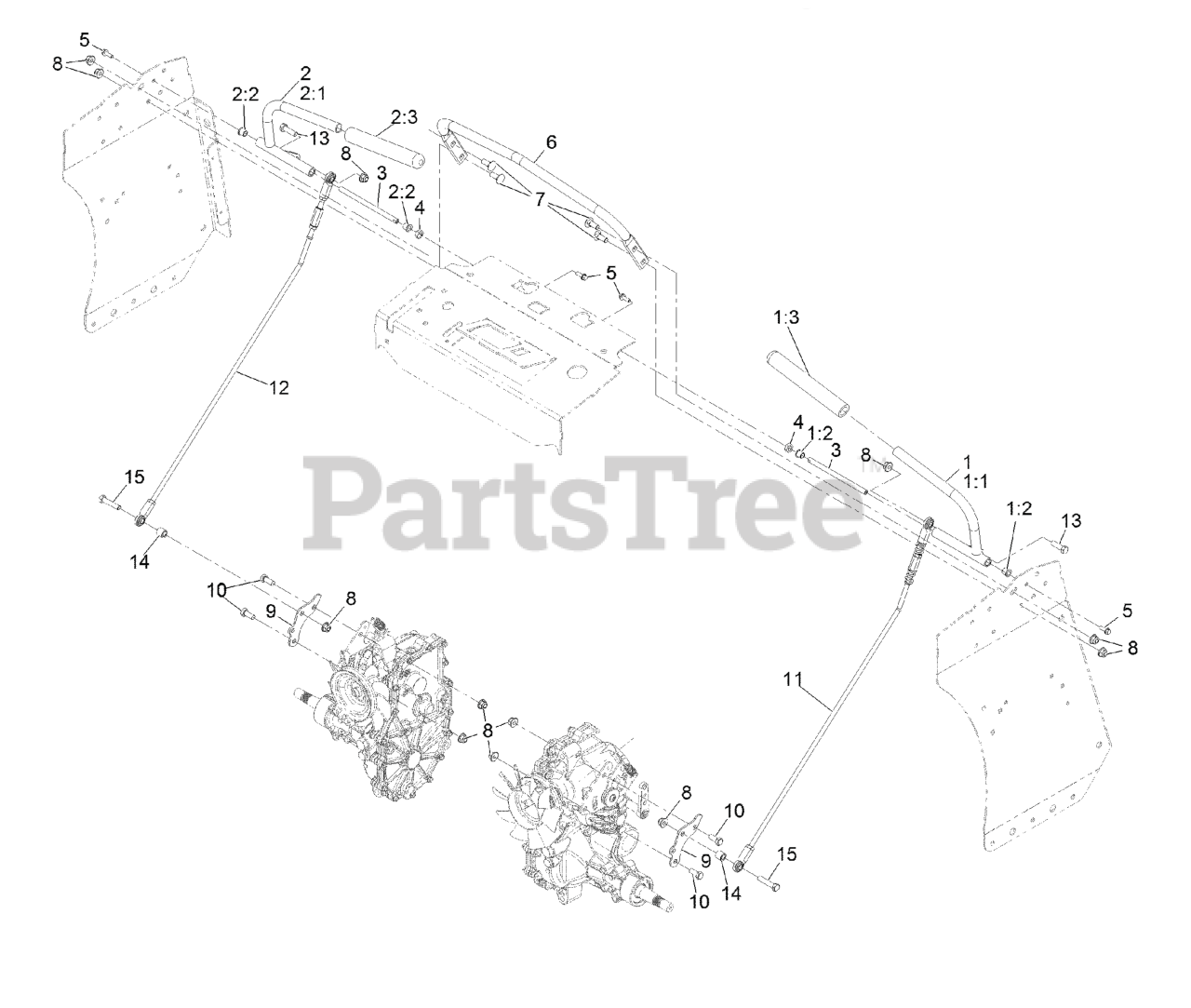

Motion Control Assembly Parts Diagram

  • Title

1

LH Motion Handle ASM

Note: Not serviced separately

$

$

Not available

1:1

Exmark 135-1575-03

HANDLE-CONTROL, LH

$76.99

$

Usually ships in 3-6 days

0

1:2

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

0

1:3

Exmark 103-8153

GRIP-LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

2

RH Motion Handle ASM

Note: Not serviced separately

$

$

Not available

2:1

Exmark 135-1576-03

HANDLE-CONTROL, RH

$76.99

$

Usually ships in 3-6 days

0

2:2

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

0

2:3

Exmark 103-8153

GRIP-LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

3

Exmark 116-4978

SHAFT-PIVOT, MOTION CONTROL

$26.99

$

In Stock, only 1 left!

0

4

Exmark 116-4198

SPACER-SHAFT, DRIVE LEVER

$6.49

$

Usually ships in 3-6 days

0

5

Exmark 117-8304

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

6

Exmark 135-1557-03

BAR, REFERENCE

$50.99

$

Usually ships in 3-6 days

0

7

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 135-0305

ARM-MOTION

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

11

LH Motion Linkage ASM

Note: Not serviced separately

$

$

Not available

12

RH Motion Linkage ASM

Note: Not serviced separately

$

$

Not available

13

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Exmark 126-9682

SPACER

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
