ARX440CKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 404314159 - 406294344) (2019) Engine Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

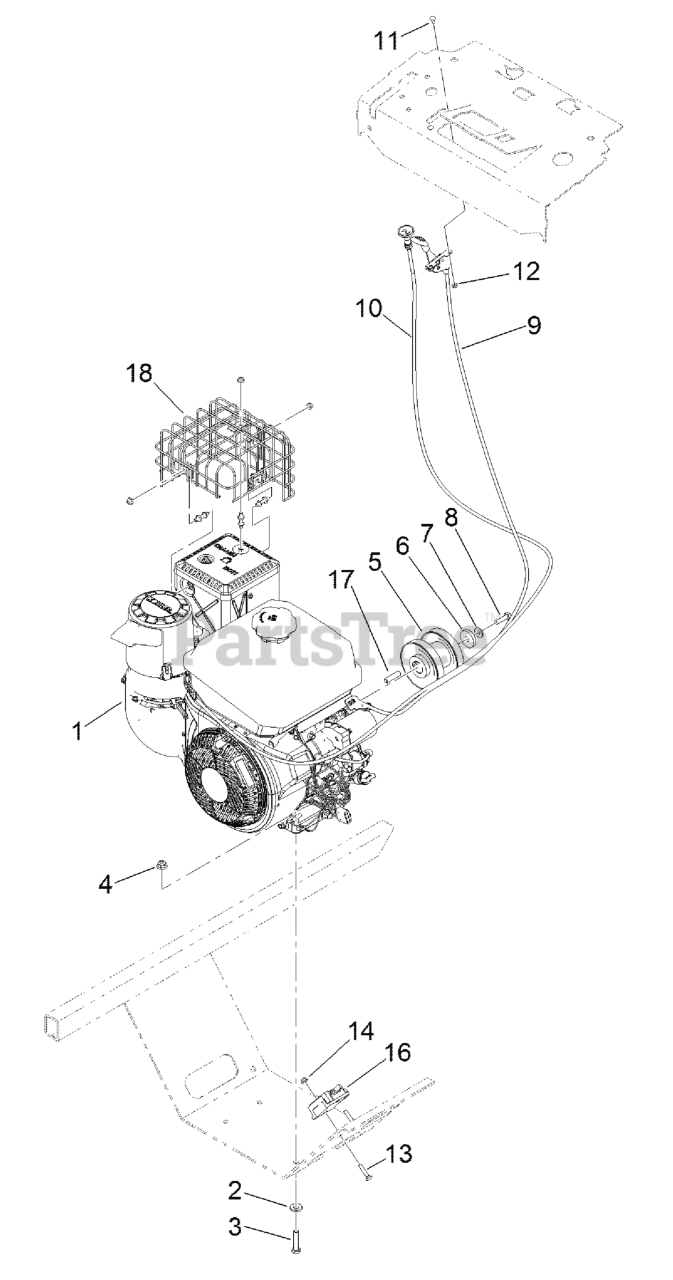

Engine Assembly Parts Diagram

  • Title

1

Exmark 135-3981

ENGINE-KOHLER, CH440-3041

$1527.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 126-9142

PULLEY

$113.99

$

Usually ships in 3-6 days

0

6

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 6

0

7

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

8

Exmark 33114-030

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 109-3958

CONTROL-THROTTLE

$42.99

$

In Stock, only 1 left!

0

10

Exmark 135-2133

CABLE-CHOKE, PUSH/PULL

$46.99

$

Usually ships in 3-6 days

0

11

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

12

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Exmark 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Exmark 126-9904

REGULATOR

$117.99

$

In Stock, only 1 left!

0

17

Exmark 135-3980

KEY-SQUARE, 7MM

$5.49

$

Usually ships in 3-6 days

0

18

Exmark 135-3366

KIT-MUFFLER BIRDCAGE

$57.99

$

Usually ships in 3-6 days

0
