ARX440CKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 402082300 - 404314158) (Rev B) (2018) RH Tine Wheel Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

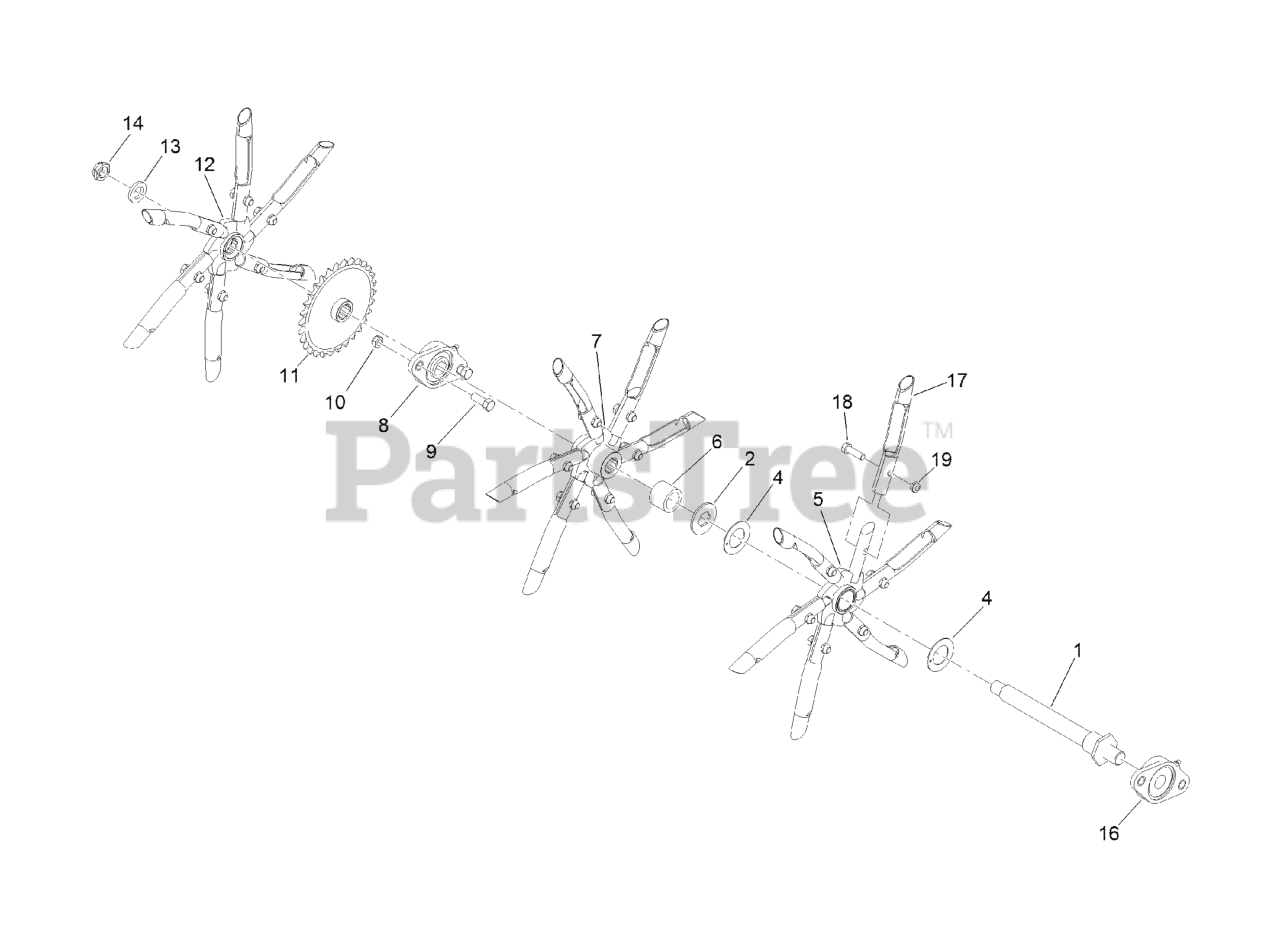

RH Tine Wheel Assembly Parts Diagram

  • Title

1

Exmark 135-2980

TINE SHAFT ASM

$83.99

$

Usually ships in 3-6 days

0

2

Exmark 135-2977

KEEPER-TINE, FLOATING

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 126-9619

WASHER-THRUST

$7.99

$

Usually ships in 3-6 days

0

5

Exmark 126-9540

FLOATING SPYDER ASM

$105.99

$

Usually ships in 3-6 days

0

6

Exmark 126-9715

SPACER-TINE

$11.99

$

Usually ships in 3-6 days

0

7

Exmark 126-9625

DRIVEN SPYDER ASM

$121.99

$

Usually ships in 3-6 days

0

8

Exmark 126-9705

BEARING-HEX BORE

$58.99

$

In Stock, only 1 left!

0

9

Exmark 126-9822

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 126-9780

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 126-9624

SPROCKET ASM

$155.99

$

Usually ships in 3-6 days

0

12

Exmark 126-9630

DRIVEN SPYDER ASM

$106.99

$

Usually ships in 3-6 days

0

13

Exmark 135-0502

WASHER-SPACER

$7.99

$

Usually ships in 3-6 days

0

14

Exmark 135-1528

NUT-LOCK

$10.99

$

Usually ships in 3-6 days

0

16

Exmark 126-9704

BEARING-ROUND BORE

$58.99

$

Usually ships in 3-6 days

0

17

Exmark 126-2143

TINE-CORING (3/4 INCH)

$11.99

$

In Stock, Qty 20+

0

18

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0
