ARX440CKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 402082300 - 404314158) (2018) Motion Control Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

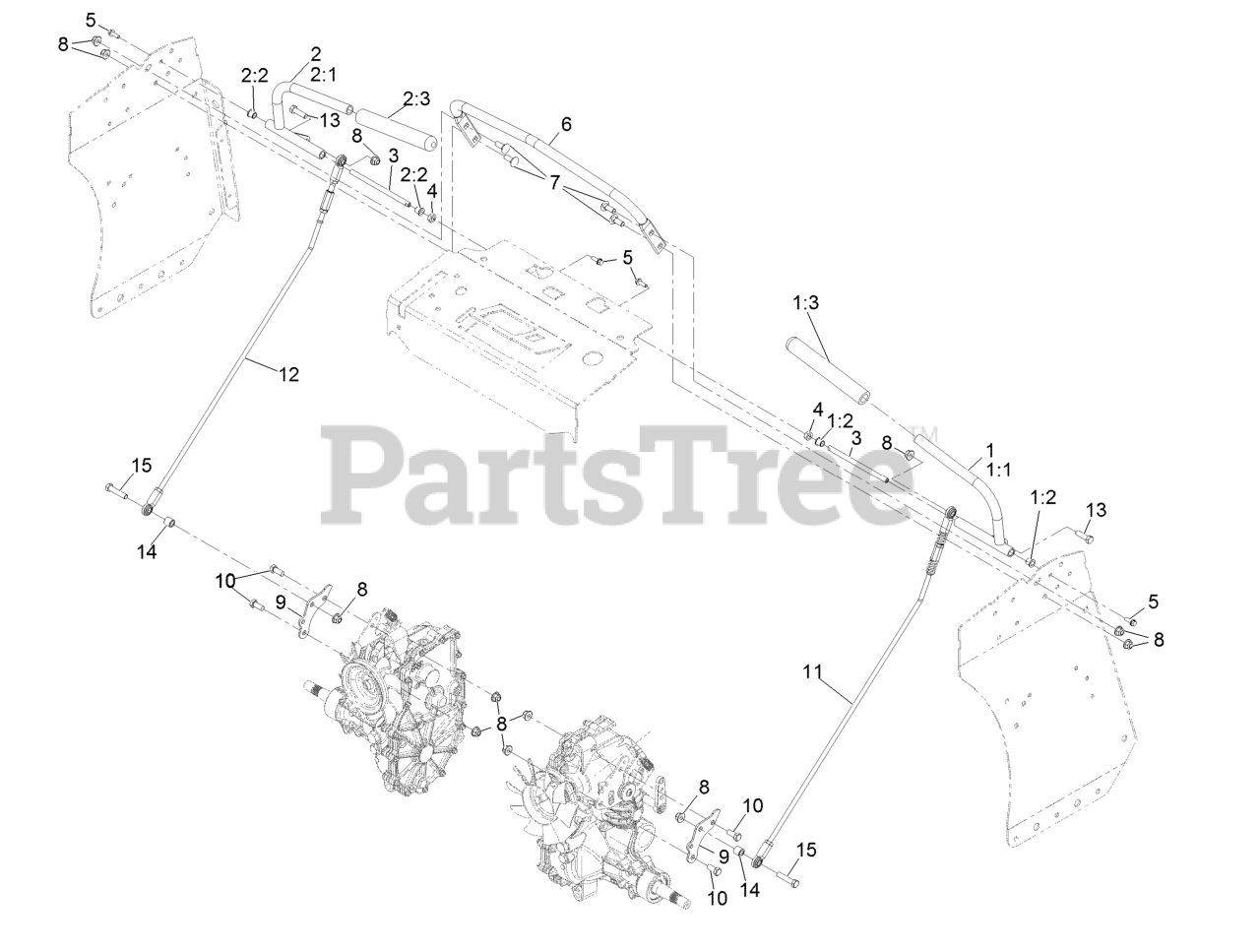

Motion Control Assembly Parts Diagram

  • Title

1

LH Motion Handle ASM

$

$

Not available

1:1

Exmark 135-1575-03

Handle-Control, LH

$71.99

$

Usually ships in 3-6 days

0

1:2

Exmark 103-9928

Bearing

$7.99

$

In Stock, Qty 11

0

1:3

Exmark 103-8153

Grip-Lever, Control

$14.99

$

In Stock, only 1 left!

0

2

RH Motion Handle ASM

$

$

Not available

2:1

Exmark 135-1576-03

Handle-Control, RH

$71.99

$

Usually ships in 3-6 days

0

2:2

Exmark 103-9928

Bearing

$7.99

$

In Stock, Qty 11

0

2:3

Exmark 103-8153

Grip-Lever, Control

$14.99

$

In Stock, only 1 left!

0

3

Exmark 116-4978

Shaft-Pivot, Motion Control

$26.99

$

In Stock, only 1 left!

0

4

Exmark 116-4198

Spacer-Shaft, Drive Lever

$6.49

$

Usually ships in 3-6 days

0

5

Exmark 117-8304

Screw-Hex Flange 1/4-20 X 03/04/18

$3.49

$

Usually ships in 3-6 days

0

6

Exmark 135-1557-03

Bar, Reference

$47.99

$

Usually ships in 3-6 days

0

7

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 12

0

8

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 135-0305

Arm-Motion

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 323-5

Screw-HH 3/8-16 X 7/8

$1.49

$

Usually ships in 3-6 days

0

11

LH Motion Linkage ASM

$

$

Not available

12

RH Motion Linkage ASM

$

$

Not available

13

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

14

Exmark 126-9682

Spacer

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0
