ARX440CKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 402082300 - 404314158) (2018) LH Tine Wheel Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

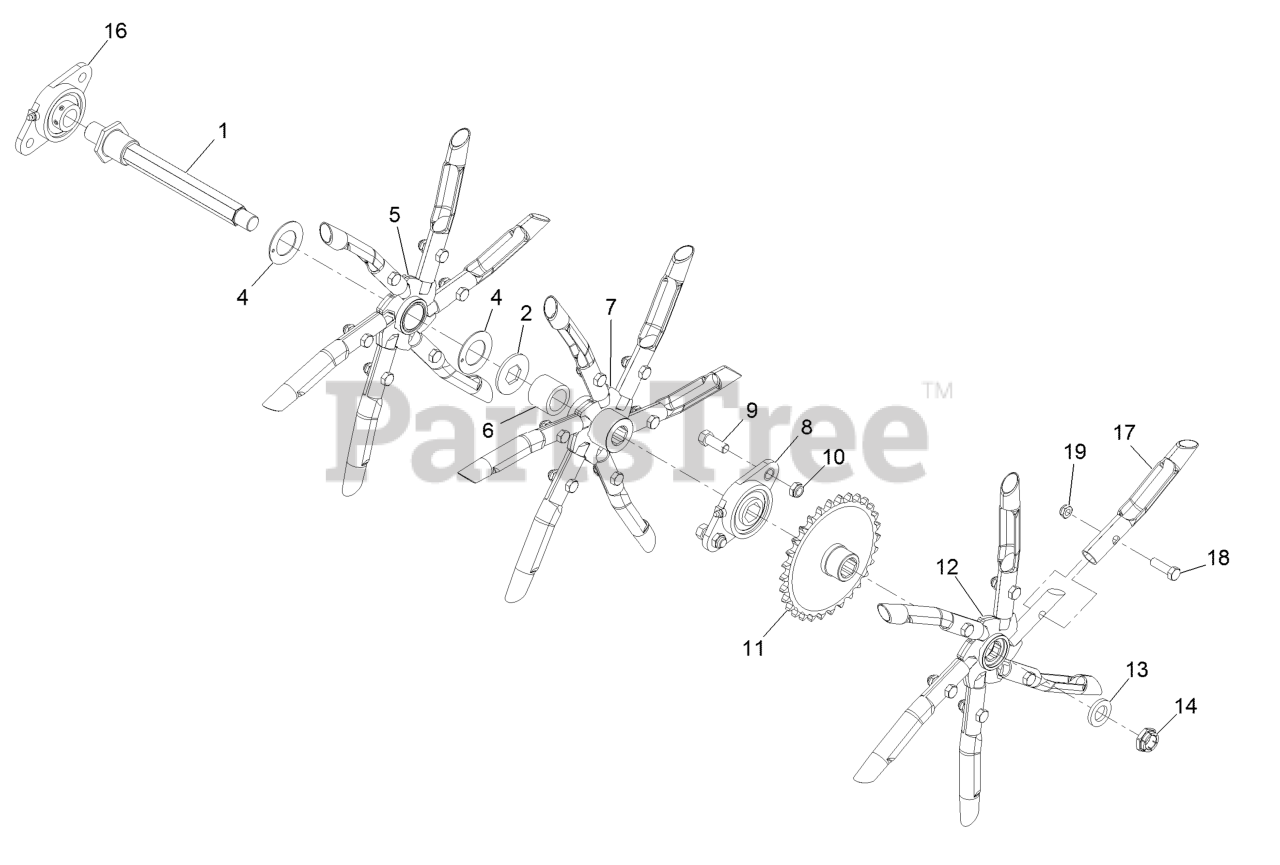

LH Tine Wheel Assembly Parts Diagram

  • Title

1

Exmark 135-2980

Tine Shaft ASM

$83.99

$

Usually ships in 3-6 days

0

2

Exmark 135-2977

Keeper-Tine, Floating

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 126-9619

Washer-Thrust

$7.99

$

Usually ships in 3-6 days

0

5

Exmark 126-9540

Floating Spyder ASM

$105.99

$

Usually ships in 3-6 days

0

6

Exmark 126-9715

Spacer-Tine

$11.99

$

Usually ships in 3-6 days

0

7

Exmark 126-9625

Driven Spyder ASM

$121.99

$

Usually ships in 3-6 days

0

8

Exmark 126-9705

Bearing-Hex Bore

$58.99

$

In Stock, only 1 left!

0

9

Exmark 126-9822

Screw-HH

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 126-9780

Nut-Lock

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 126-9624

Sprocket ASM

$171.99

$

Usually ships in 3-6 days

0

12

Exmark 126-9630

Driven Spyder ASM

$106.99

$

Usually ships in 3-6 days

0

13

Exmark 135-0502

Washer-Spacer

$7.99

$

Usually ships in 3-6 days

0

14

Exmark 135-1528

Nut-Lock

$10.99

$

Usually ships in 3-6 days

0

16

Exmark 126-9704

Bearing-Round Bore

$58.99

$

Usually ships in 3-6 days

0

17

Exmark 126-2143

Tine-Coring (3/4 Inch)

$11.99

$

In Stock, Qty 20+

0

18

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3296-59

Nut-Nyloc 3/8-16 Thin
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0
