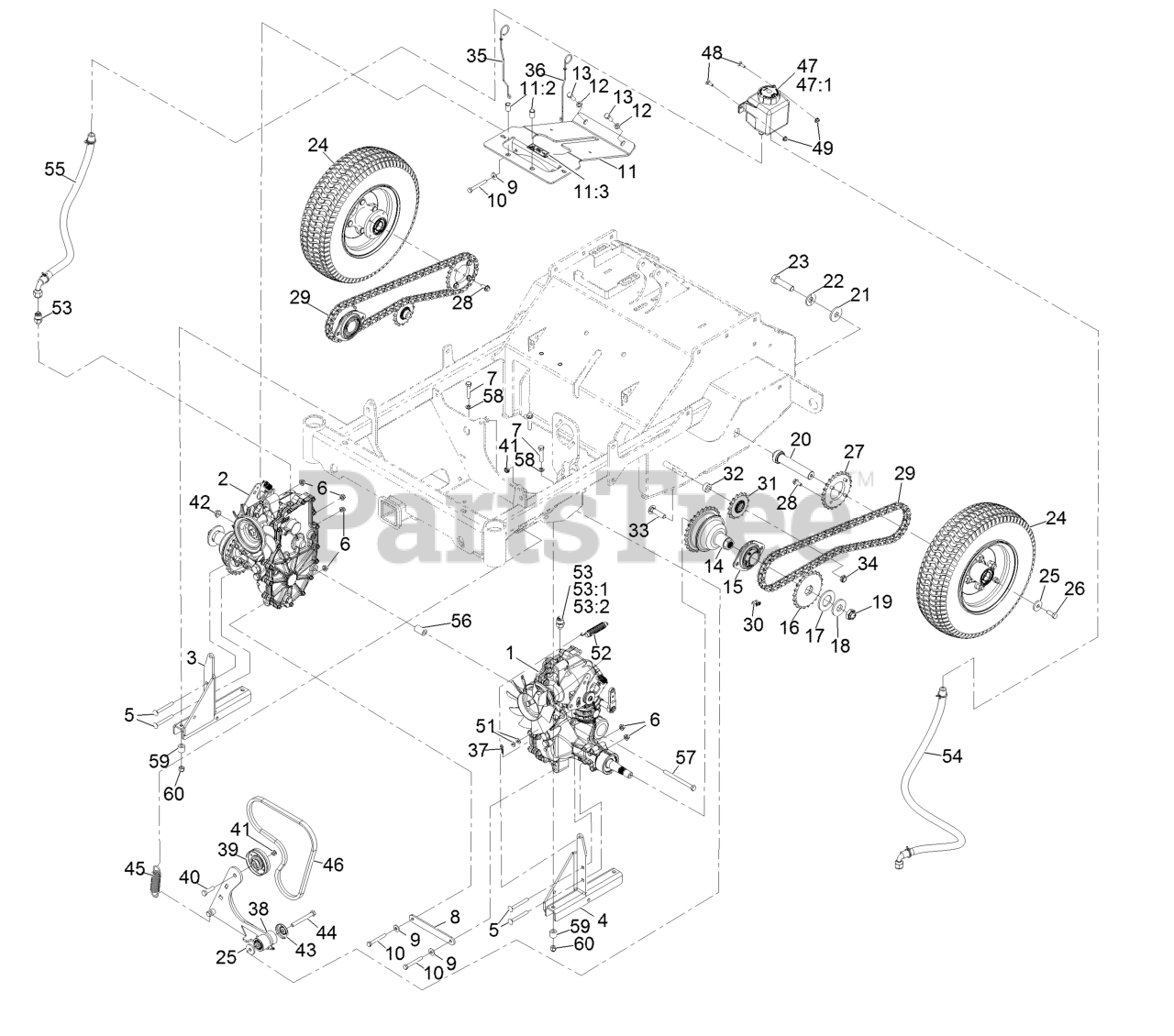

ARX440CKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 402082300 - 404314158) (2018) Ground Drive Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 126-9064

Hydro-Zt3100, LH
(Superseded to 142-6970)

$1476.99

$

Usually ships in 3-6 days

0

2

Exmark 126-9065

Hydro-Zt3100, RH
(Superseded to 142-6971)

$1476.99

$

Usually ships in 3-6 days

0

3

Exmark 135-2004-03

Mount-Hydro, RH

$68.99

$

Usually ships in 3-6 days

0

4

Exmark 135-2006-03

Mount-Hydro, LH

$68.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-9

Bolt-Carriage 5/16-18 X 2 03/04/18

$3.99

$

In Stock, Qty 5

0

6

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

7

Exmark 323-52

Screw-HH 3/8-16 X 1 3/4

$4.49

$

In Stock, only 2 left!

0

8

Exmark 126-9092-03

Crossmember-Transmission

$7.49

$

Usually ships in 3-6 days

0

9

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, only 4 left!

0

10

Exmark 132-3838

Screw-HH

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 135-2497

Support-Cover

$101.99

$

Usually ships in 3-6 days

0

11:2

Exmark 32148-10

Insert-Nut

$8.49

$

Usually ships in 3-6 days

0

11:3

Exmark 121-6161

Decal-Danger

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 3253-21

Washer-Lock 3/8

$0.99

$

In Stock, Qty 10

0

13

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

14

Exmark 135-0537

Hub-Bell

$444.99

$

Usually ships in 3-6 days

0

15

Exmark 135-1056

Bearing-Flanged

$67.99

$

Usually ships in 3-6 days

0

16

Exmark 135-0347

Sprocket

$64.99

$

Usually ships in 3-6 days

0

17

Exmark 135-0360

Washer-Spacer

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 26-1990

Washer-Belleville

$20.99

$

Usually ships in 3-6 days

0

19

Exmark 116-2839

Nut-Lock

$11.99

$

In Stock, only 3 left!

0

20

Exmark 135-1895

Axle-Wheel, Drive

$58.99

$

Usually ships in 3-6 days

0

21

Exmark 135-1894

Washer-Spacer

$7.99

$

Usually ships in 3-6 days

0

22

Exmark 125-1736

Washer-Belleville

$4.49

$

In Stock, only 3 left!

0

23

Exmark 327-7

Screw-HH

$13.99

$

In Stock, only 1 left!

0

24

Exmark 126-9044

Wheel And Tire ASM
(Superseded to 142-4438)

$150.99

$

Usually ships in 3-6 days

0

25

Exmark 53-6380

Washer-Flat

$8.49

$

Usually ships in 3-6 days

0

26

Exmark 3235-22

Screw-HH, Lock

$2.99

$

In Stock, only 2 left!

0

27

Exmark 126-9075

Sprocket

$64.99

$

In Stock, only 2 left!

0

28

Exmark 98-9940

Screw

$2.49

$

In Stock, only 3 left!

0

29

Exmark 135-1100

Chain-Roller

$213.99

$

Usually ships in 3-6 days

0

30

Exmark 116-6897

Link-Connecting

$7.99

$

In Stock, only 4 left!

0

31

Exmark 126-9108

Sprocket-Idler, 15T

$103.99

$

In Stock, only 2 left!

0

32

Exmark 126-9498

Spacer

$6.99

$

Usually ships in 3-6 days

0

33

Exmark 3233-4

Screw-CARR

$2.99

$

Usually ships in 3-6 days

0

34

Exmark 3296-45

Nut-Nyloc 1/2-13 Thin

$4.49

$

In Stock, Qty 20+

0

35

Exmark 135-0683

Rod-Bypass, LH

$18.99

$

Usually ships in 3-6 days

0

36

Exmark 135-0685

Rod-Bypass, RH

$18.99

$

Usually ships in 3-6 days

0

37

Exmark 3290-307

Pin-Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

38

Exmark 126-9116

Idler Arm ASM

$178.99

$

Usually ships in 3-6 days

0

39

Exmark 116-9715

Pulley-Idler

$60.99

$

In Stock, only 1 left!

0

40

Exmark 323-29

Screw-HH 3/8-16 X 1 3/8

$0.99

$

In Stock, Qty 16

0

41

Exmark 3296-59

Nut-Nyloc 3/8-16 Thin
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

42

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

43

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

44

Exmark 323-20

Screw-HH 3/8-16 X 3-1/4

$3.49

$

In Stock, only 2 left!

0

45

Exmark 1-603402

Spring-Extension

$7.99

$

In Stock, only 3 left!

0

46

Exmark 126-9834

Belt-V, Cogged

$30.99

$

In Stock, only 2 left!

0

47

Exmark 109-2250

Tank-HYD

$66.99

$

In Stock, Qty 8

0

47:1

Exmark 109-3320

Cap-Reservoir, HYD

$28.99

$

In Stock, only 1 left!

0

48

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 20+

0

49

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

51

Exmark 119-8952

Washer

$0.99

$

In Stock, Qty 20+

0

52

Exmark 109-7124

Spring-Extension

$7.99

$

Usually ships in 3-6 days

0

53

Exmark 135-3138

Fitting-Straight

$6.99

$

Usually ships in 3-6 days

0

53:1

Exmark 237-78

O-Ring

$4.49

$

Usually ships in 3-6 days

0

53:2

Exmark 1-603992

O-Ring-37 Flare #8

$2.99

$

In Stock, Qty 20+

0

54

Exmark 135-0061

Hose ASM

$47.99

$

Usually ships in 3-6 days

0

55

Exmark 135-0062

Hose ASM

$41.99

$

Usually ships in 3-6 days

0

56

Exmark 135-0124

Spacer

$10.99

$

Usually ships in 3-6 days

0

57

Exmark 323-23

Screw-HH 3/8-16 X 4-1/2

$5.49

$

In Stock, Qty 16

0

58

Exmark 106-5592

Spacer-Brake, Parking

$15.99

$

Usually ships in 3-6 days

0

59

Exmark 98-8895

Spacer

$26.99

$

Usually ships in 3-6 days

0

60

Exmark 112-0236

Nut-Lock

$5.99

$

Usually ships in 3-6 days
