ARS180KA21 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 312000000 - 312999999) (2012) Handle Assembly Parts Diagram

21" Aerator, Kawasaki FJ180V

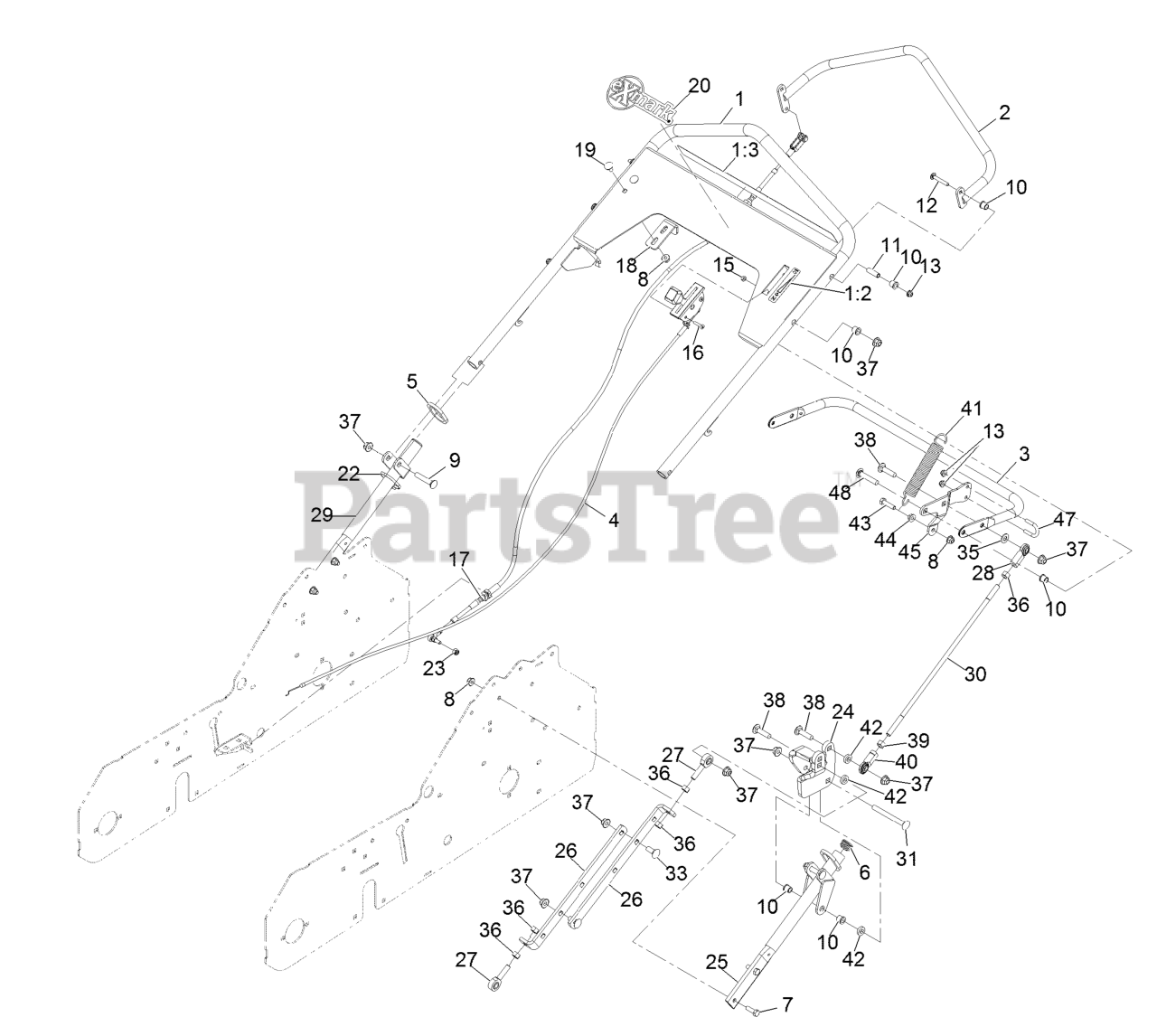

Handle Assembly Parts Diagram

  • Title

1

Exmark 126-0639

HANDLE ASM

$382.99

$

Usually ships in 3-6 days

0

1:2

Exmark 121-6151

DECAL-THROTTLE, CHOKE

$4.99

$

Usually ships in 3-6 days

0

1:3

Exmark 116-8699

DECAL-AERATOR CONTROL PAN

$21.99

$

Usually ships in 3-6 days

0

2

Exmark 121-6053-03

TUBE-CONTROL

$74.99

$

Usually ships in 3-6 days

0

3

Exmark 116-9873-03

TUBE-HANDLE LIFT

$105.99

$

Usually ships in 3-6 days

0

4

Exmark 116-9898

CONTROL-THROTTLE

$49.99

$

Usually ships in 3-6 days

0

5

Exmark 121-6202

RING-HANDLE LOCK

$7.99

$

Usually ships in 3-6 days

0

6

Exmark 121-4870

PLUG

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

10

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 14

0

11

Exmark 121-6060

BUSHING-PIVOT

$6.49

$

Usually ships in 3-6 days

0

12

Exmark 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

13

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, only 1 left!

0

17

Exmark 121-6068

CABLE

$146.99

$

In Stock, Qty 5

0

18

Exmark 121-6057

ANGLE-STOP

$19.99

$

Usually ships in 3-6 days

0

19

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

20

Exmark 103-3999

DECAL,EXMARK LOGO

$9.49

$

In Stock, Qty 7

0

22

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

23

Exmark 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

24

Exmark 126-1656-03

BRACKET-TRUNNION

$46.99

$

Usually ships in 3-6 days

0

25

Exmark 116-9883-03

HANDLE-LOWER, LH

$67.99

$

Usually ships in 3-6 days

0

26

Exmark 126-0841-03

LINK-LIFT

$27.99

$

Usually ships in 3-6 days

0

27

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, Qty 6

0

28

Exmark 103-0608

JOINT-BALL, END

$33.99

$

In Stock, only 1 left!

0

29

Exmark 121-1893-03

HANDLE-LOWER

$67.99

$

Usually ships in 3-6 days

0

30

Exmark 116-9893

ROD-UPPER LINK

$31.99

$

In Stock, only 1 left!

0

31

Exmark 3231-24

SCREW-CARR

$14.99

$

Usually ships in 3-6 days

0

33

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

35

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

37

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, only 3 left!

0

39

Exmark 3219-20

NUT-HEX, LH

$2.99

$

Usually ships in 3-6 days

0

40

Exmark 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 9

0

41

Exmark 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, Qty 20+

0

42

Exmark 80-7730

SPACER

$14.99

$

Usually ships in 3-6 days

0

43

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

44

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

45

Exmark 126-1657-03

BRACKET-SPRING

$30.99

$

Usually ships in 3-6 days

0

47

Exmark 01-170-0040

U-BOLT

$4.99

$

Usually ships in 3-6 days

0

48

Exmark 117-9971

BOLT-CARRIAGE

$3.99

$

Usually ships in 3-6 days

0
