ARS180KA21 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 312000000 - 312999999) (2012) Frame Assembly Parts Diagram

21" Aerator, Kawasaki FJ180V

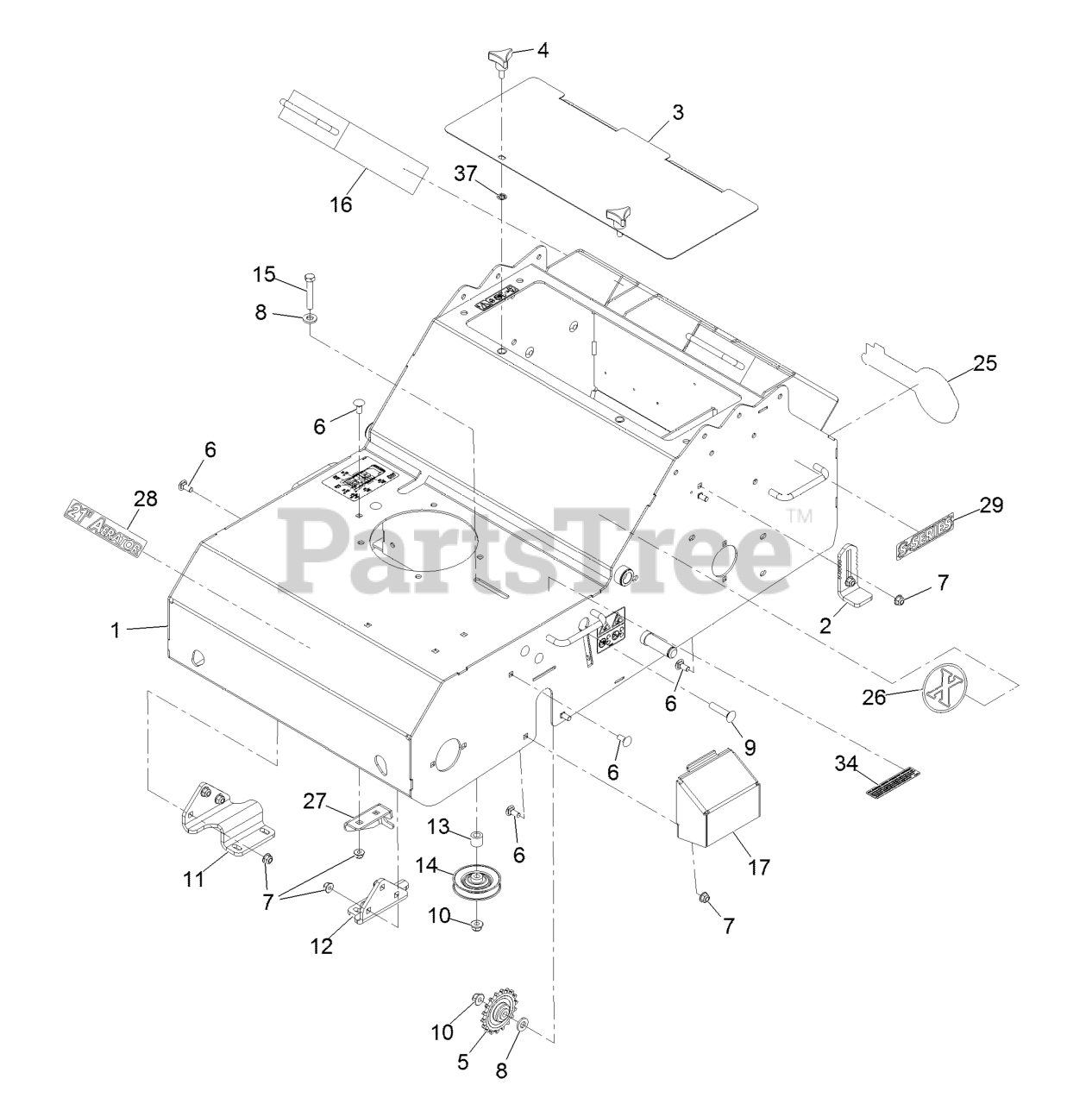

Frame Assembly Parts Diagram

  • Title

1

Exmark 116-9867

FRAME ASM

$1057.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9886

STOP-DEPTH

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 126-0974-01

COVER-ACCESS

$39.99

$

Usually ships in 3-6 days

0

4

Exmark 109-3351

KNOB

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 121-4915

SPROCKET-IDLER

$54.99

$

In Stock, Qty 20+

0

6

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Exmark 87-7480

WASHER

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 3231-29

SCREW-CARR

$7.49

$

Usually ships in 3-6 days

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 121-4948-03

BRACKET-MOUNT AXLE, RH

$29.99

$

Usually ships in 3-6 days

0

12

Exmark 121-4949-03

BRACKET-MOUNT AXLE, LH

$29.99

$

Usually ships in 3-6 days

0

13

Exmark 121-6087

BUSHING-IDLER

$11.99

$

Usually ships in 3-6 days

0

14

Exmark 62-4530

PULLEY

$39.99

$

In Stock, only 2 left!

0

15

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Exmark 121-6080

WEIGHT-AERATOR

$272.99

$

Usually ships in 3-6 days

0

17

Exmark 121-1981-01

COVER-TRANSAXLE

$54.99

$

Usually ships in 3-6 days

0

25

Exmark 103-3999

DECAL,EXMARK LOGO

$8.99

$

In Stock, Qty 7

0

26

Exmark 116-7035

DECAL-EXMARK X-LOGO 3.26

$

$

Not available

27

Exmark 121-6056

BRACKET-MOUNTING, CABLE

$21.99

$

Usually ships in 3-6 days

0

28

Exmark 116-6953

DECAL-AERATOR 21

$

$

Not available

29

Exmark 116-3884

DECAL-S-SERIES

$7.49

$

Usually ships in 3-6 days

0

34

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

37

Exmark 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0
